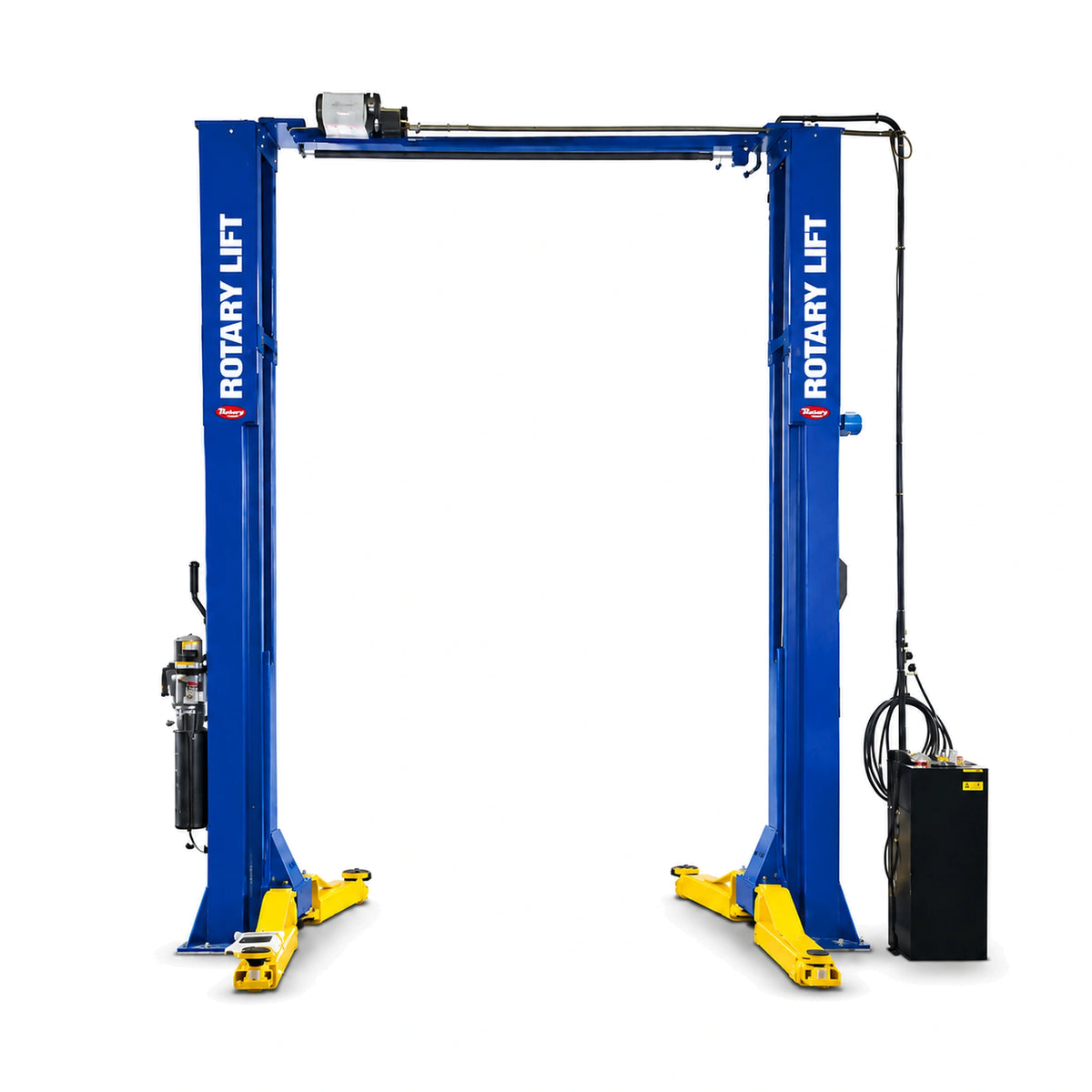

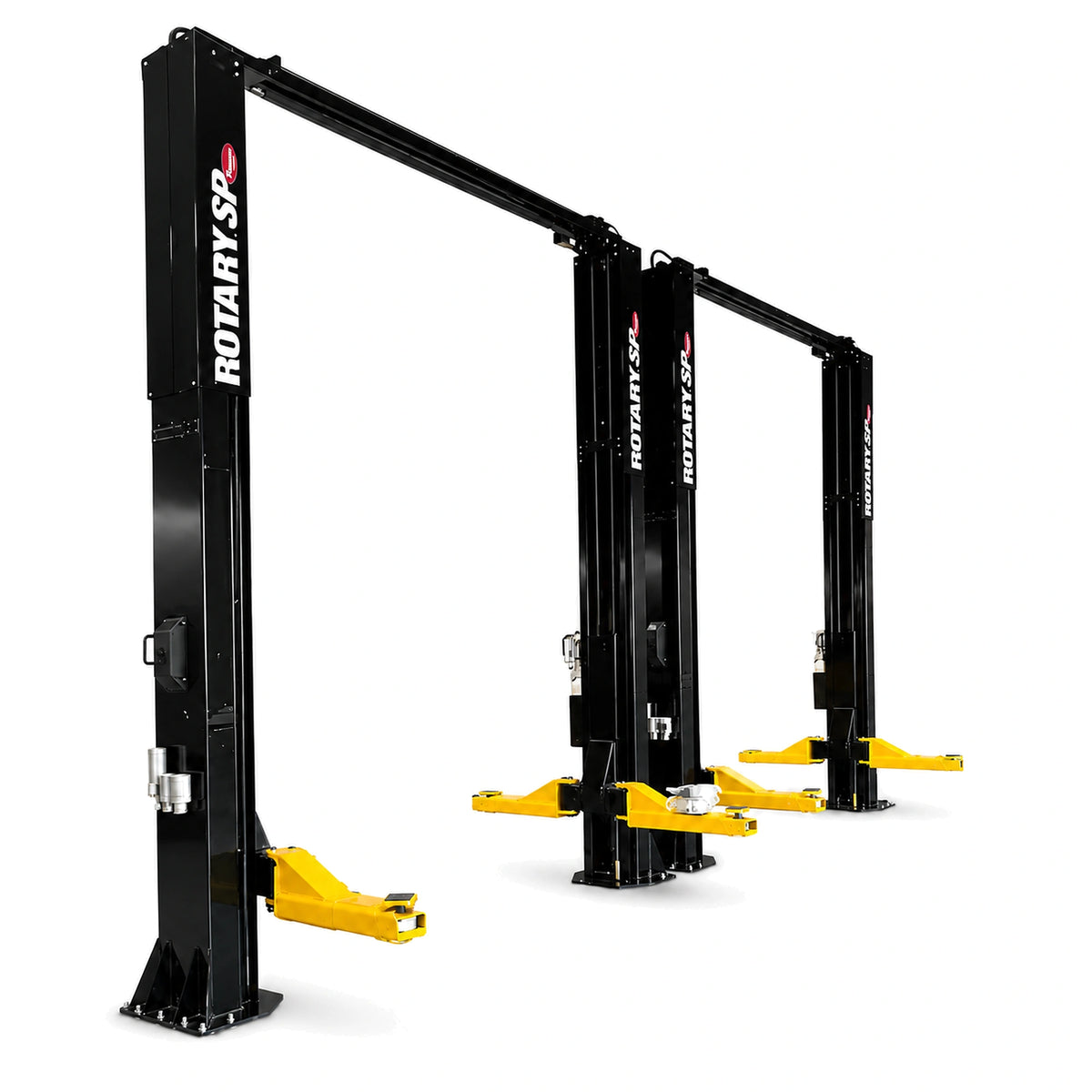

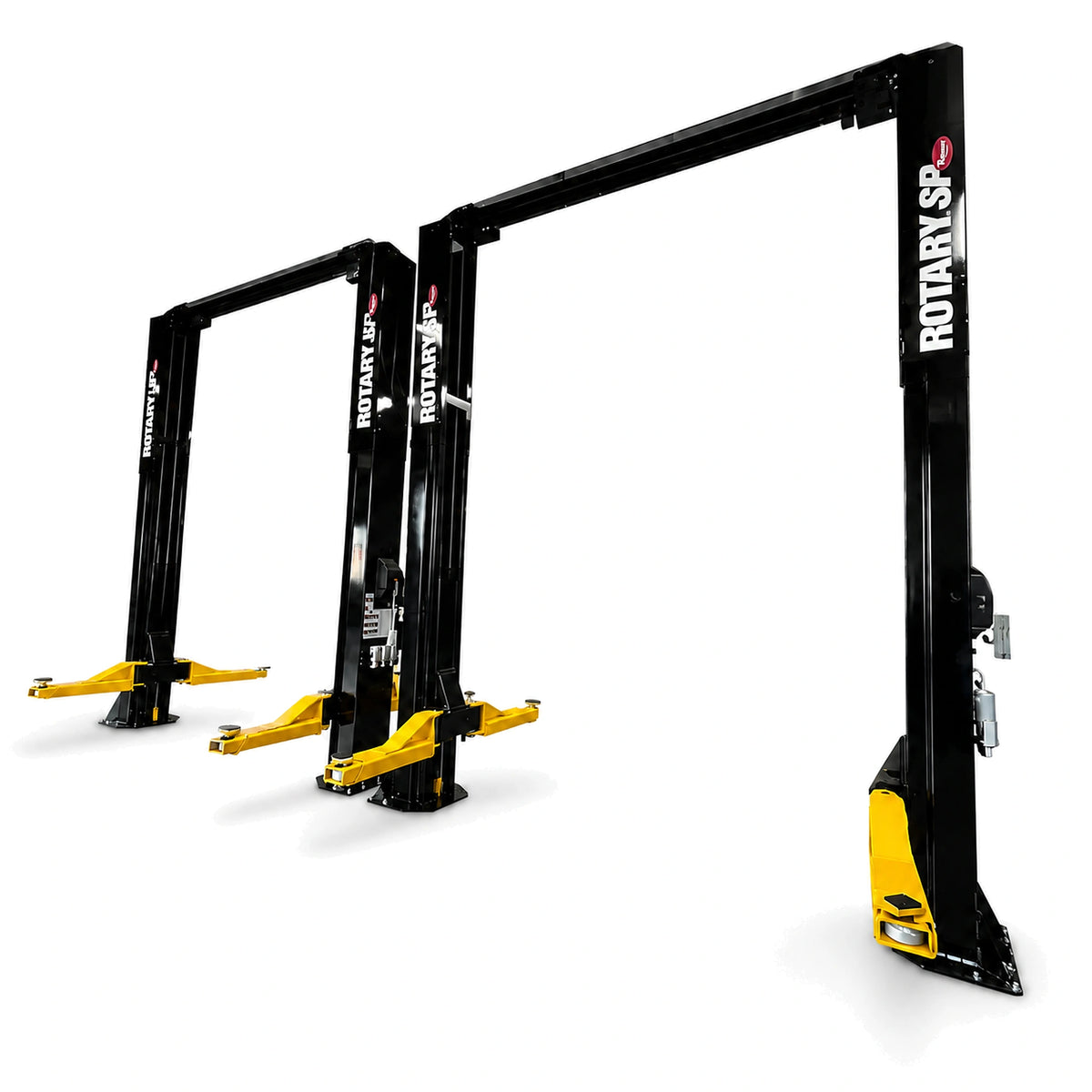

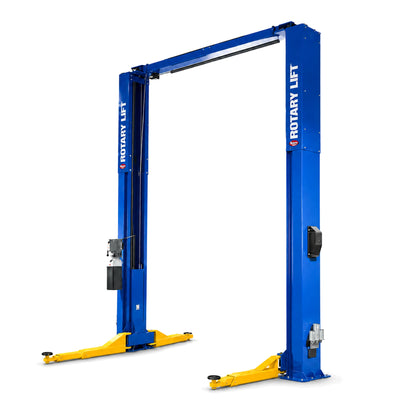

ROTARY | SPO20 | Symmetric 20K 2-Post Lift with TRIO Arms, ALI Cert
SPO20 Information

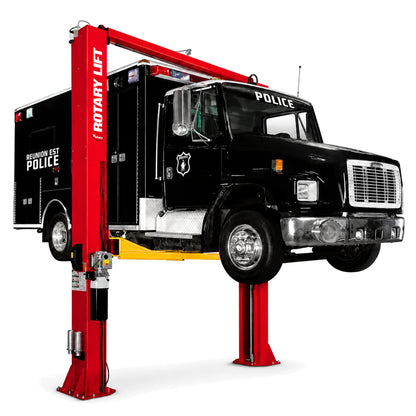

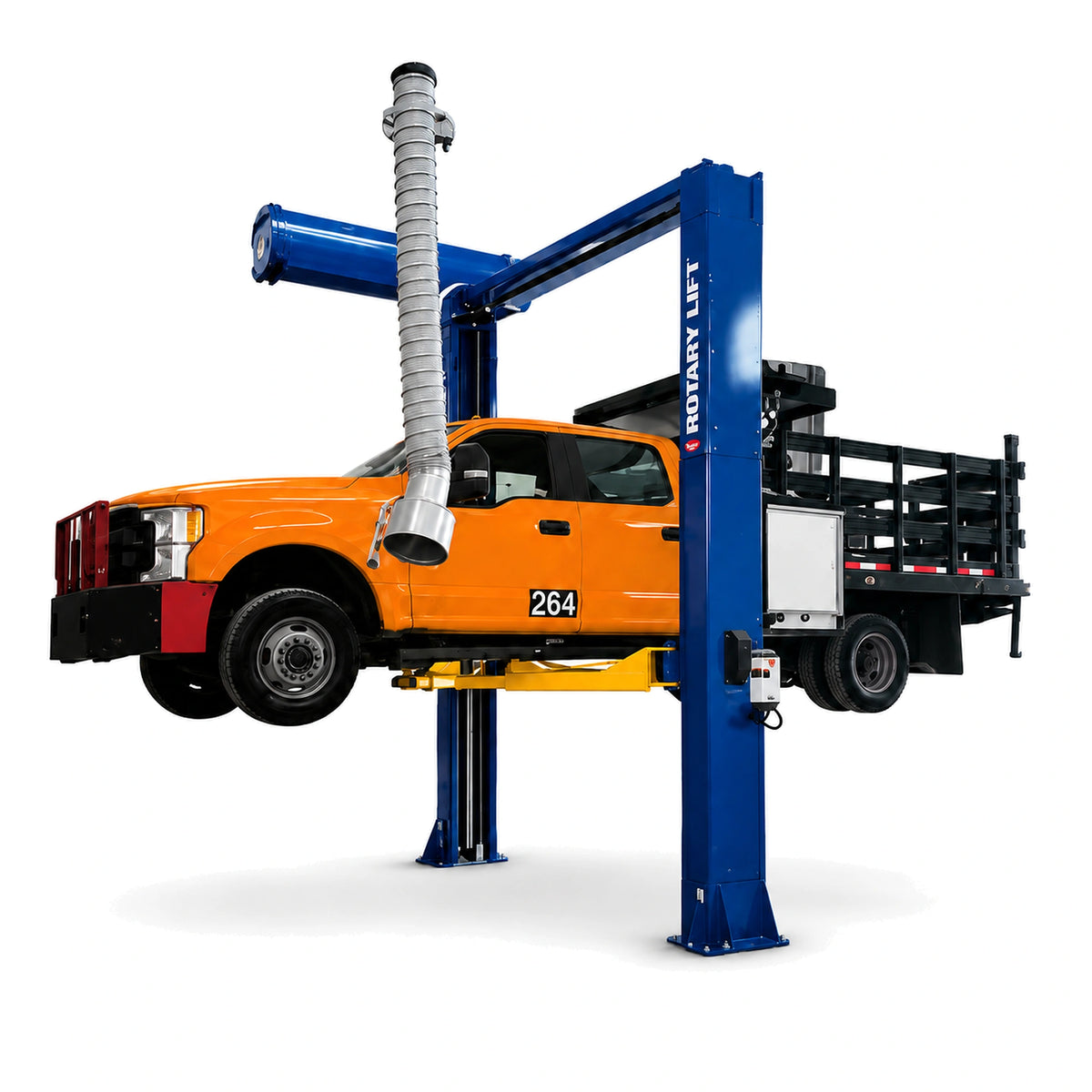

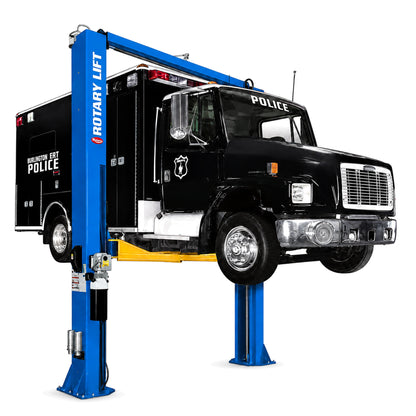

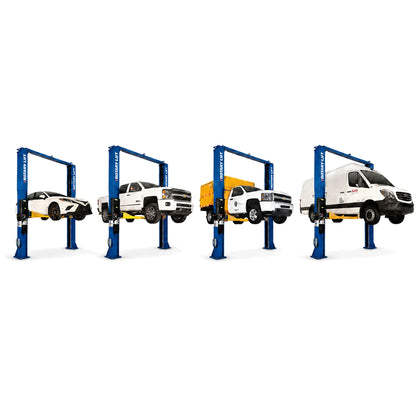

The Rotary SPO20 Symmetric 20,000 lb. 2-Post Lift with TRIO Arms is a robust solution for automotive service centers requiring exceptional lifting capacity and versatility. Engineered to accommodate taller vehicles, this lift offers an increased lift height, ensuring comprehensive access to a wide range of automobiles, from standard sedans to larger trucks.
SPO20 Features
Strong Double-S Columns
Rotary's original Double "S" columns have multiple bends to maximize strength and longevity, while its compact cross-section provides more access to the vehicle. Technicians can perform services more quickly and easily with more access to the vehicle and a less restrictive compact column cross- section to work around. Self-lubricating and maintenance-free UHMW slider blocks are long-lasting and durable. Our time-tested, trusted design will maximize profitable uptime and give you the lowest ownership cost.

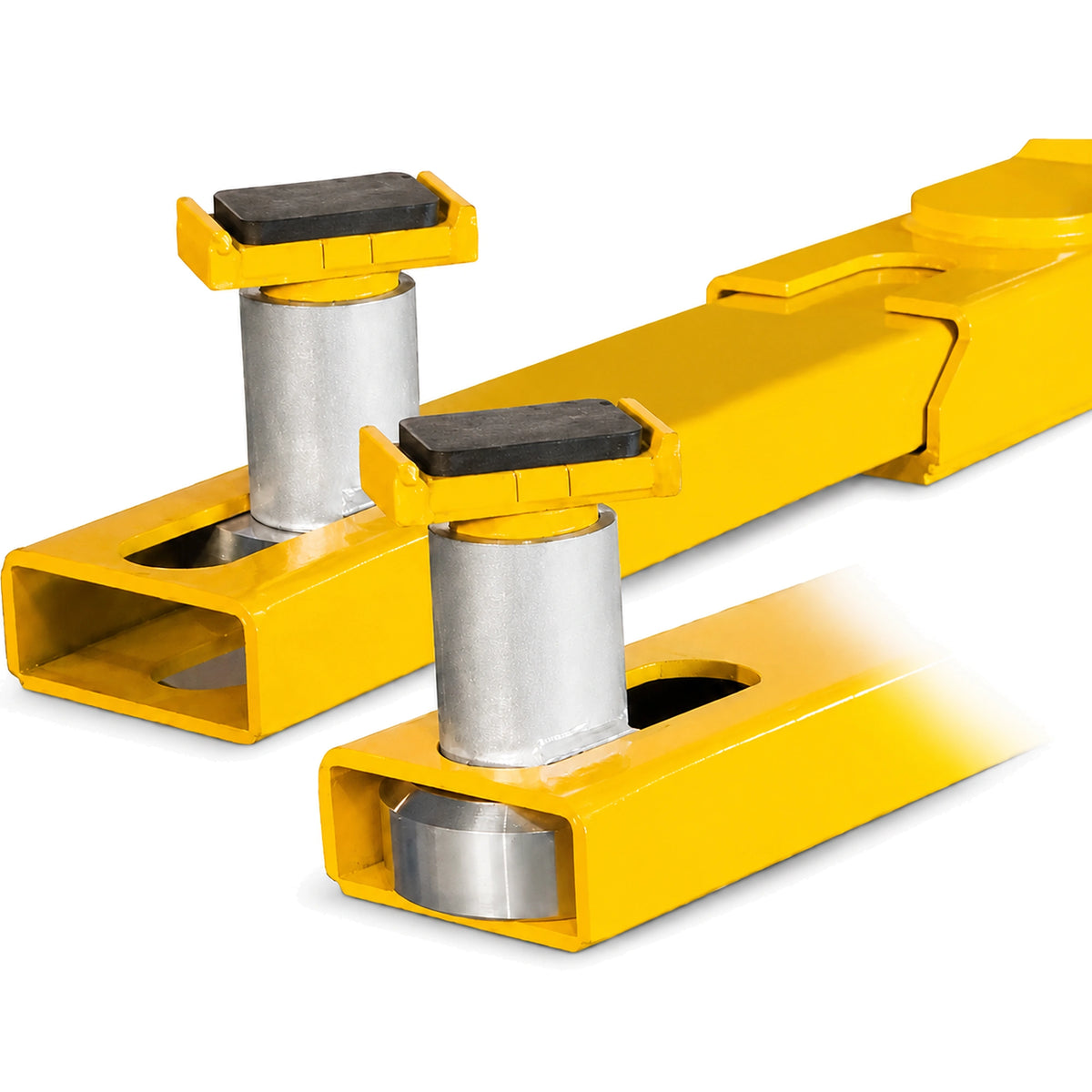

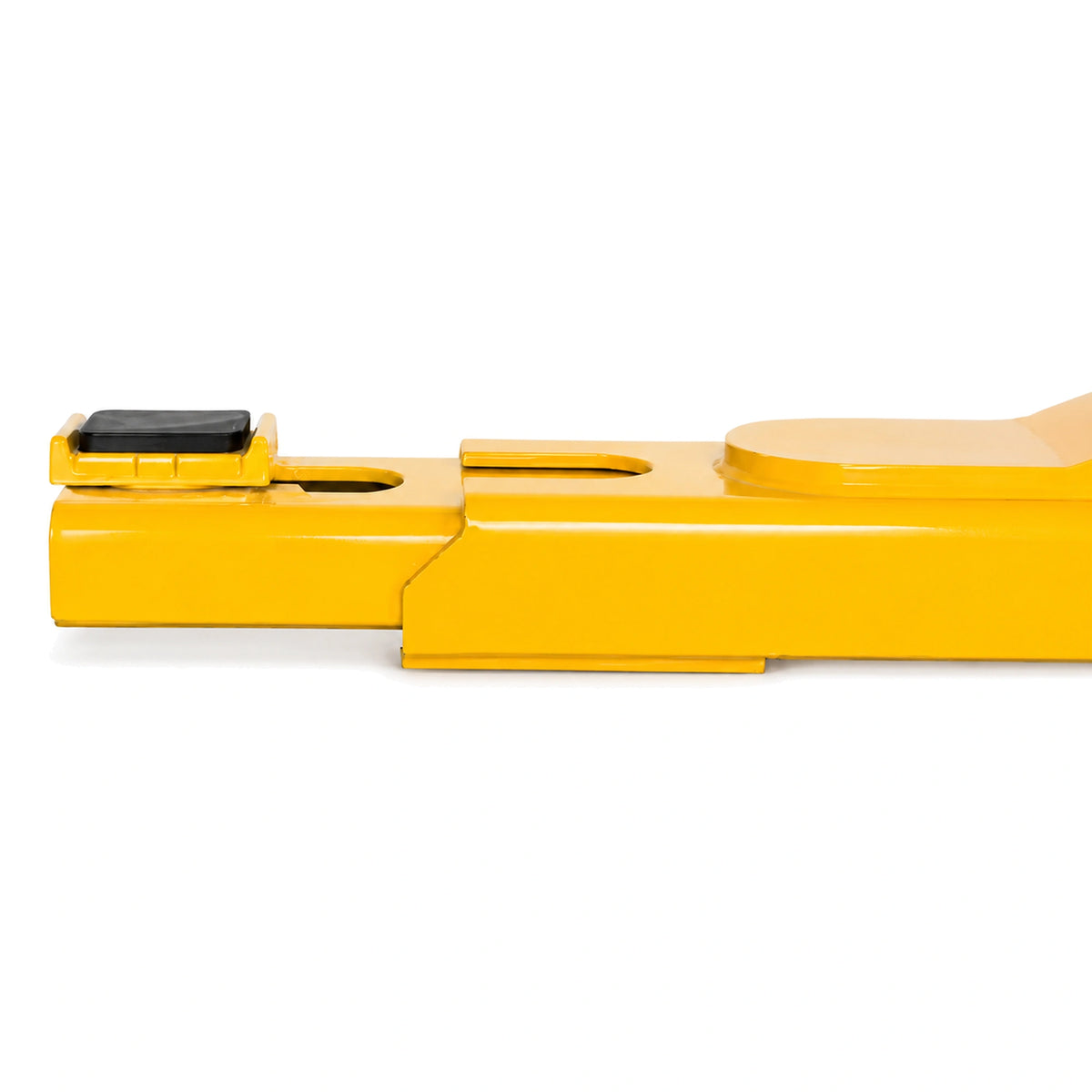

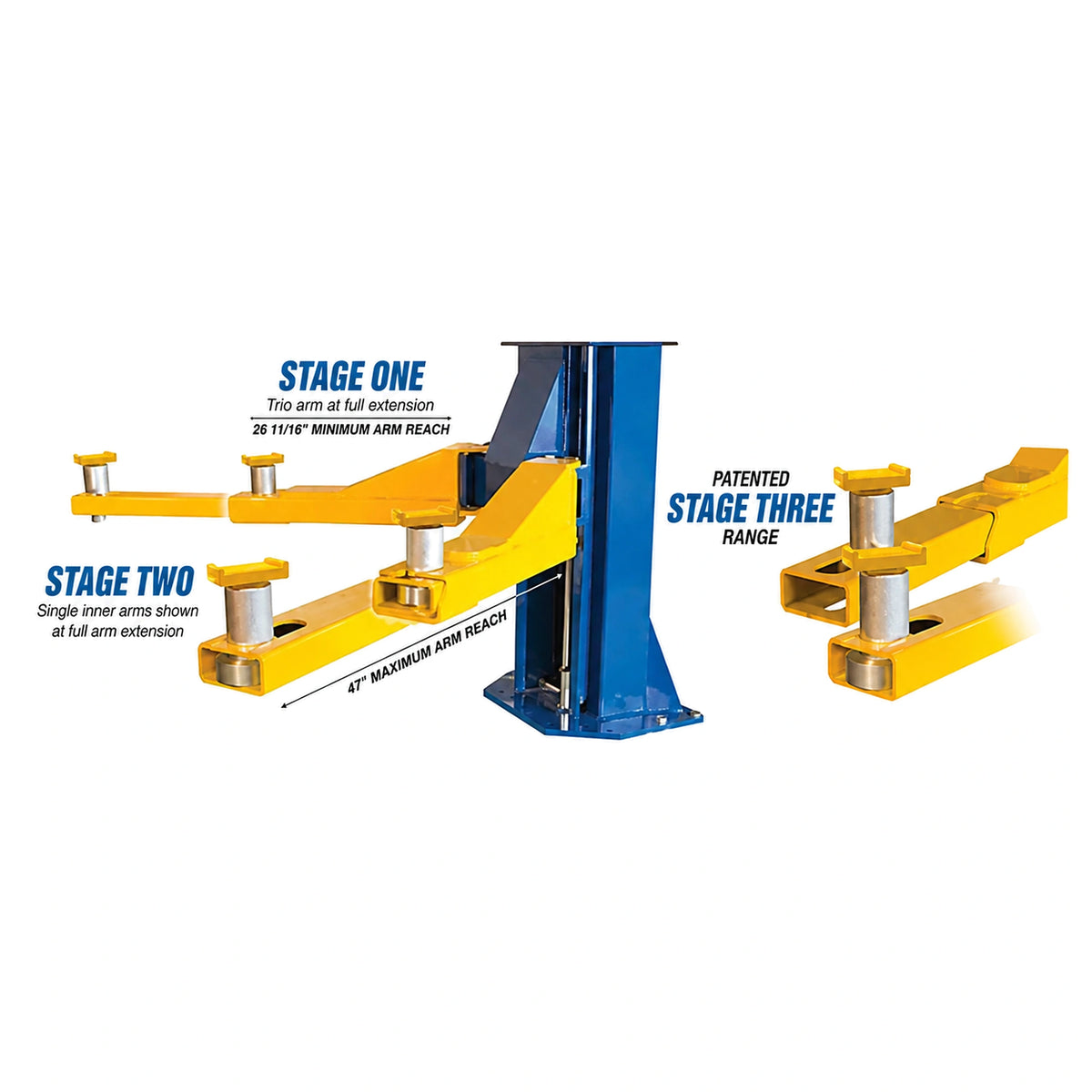

Patented Trio Arm™™ Design

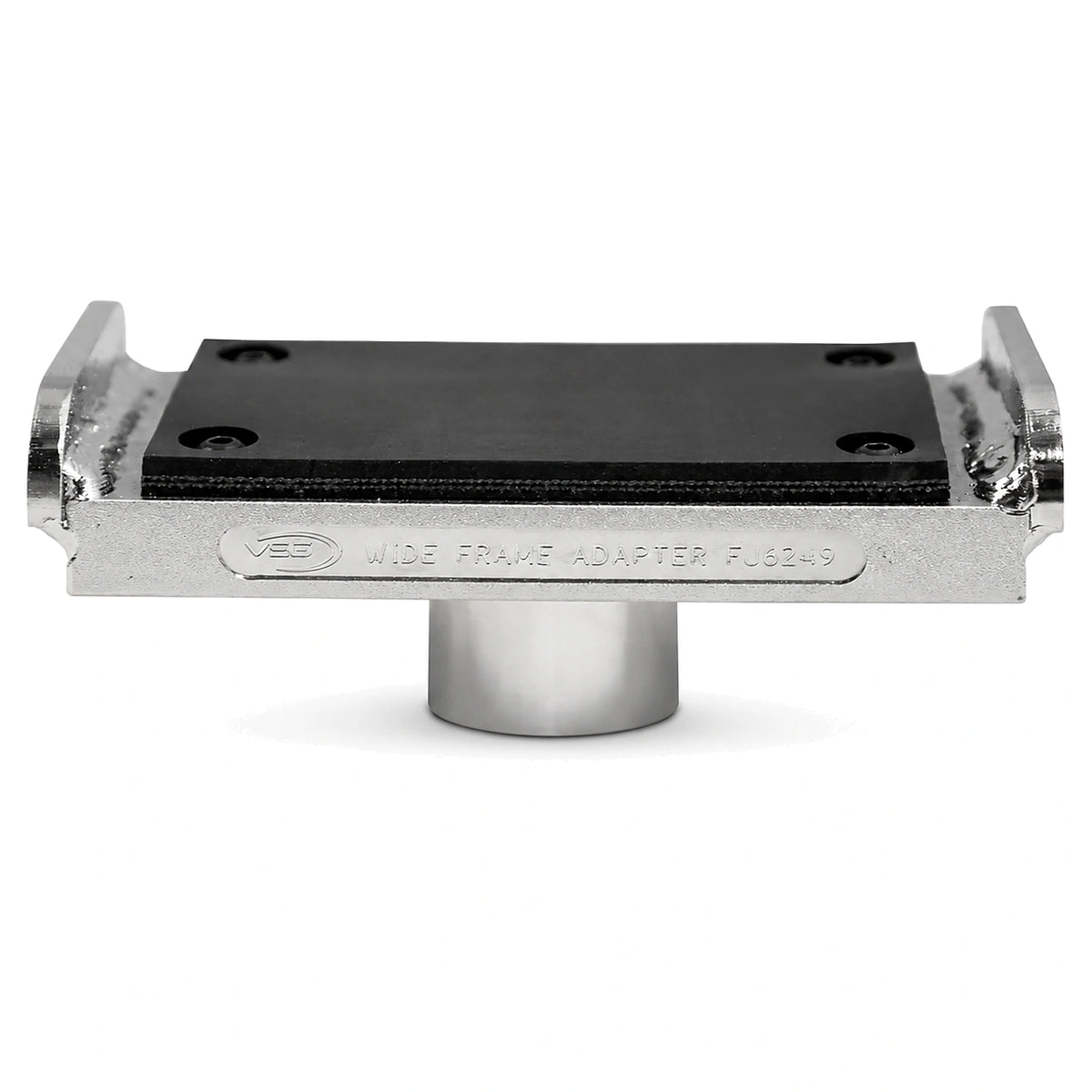

ROTARY SP Rotary's patented Trio Arm™™™ design consists of a two-piece arm and a sliding adapter, which allows the technician to easily slide the adapter under the vehicle pickup point without moving the arms. The design provides 22% greater reach and retraction to accommodate a wide range of vehicles, from small, low-profile cars to large trucks. Trio Arms come with your choice of Rotary three-position flip-up, round rubber, or truck adapters to meet your needs and preferences.
Long-Reach Cargo Arms'
Our available three-stage cargo arms provide the long 74 13/16" reach needed to service tall cargo vans. With industry-leading reach and retraction, technicians can properly raise and service cargo vans using the manufacturer's recommended pick-up points.
Multiple Extended Height Options
A taller lift means more clearance for tall cargo vans and a more comfortable, ergonomic, and productive servicing height for technicians. The SPO10 has the highest overall height in the industry for its capacity with our 4' height extension accessory.
Widest Lift Option
Over one foot wider than competitor lifts, our 119 3/8" drive-through lift is the widest on the market with 17" of additional column-to-column space. This is perfect for technicians who need open- door access to wide vehicles or who just need to drive wider vehicles through to another part of your shop's bay.
Shockwave™™ Accelerator Option
Shockwave-equipped lifts are the fastest in the world. They provide two times faster rise and descent, boosting your shop's speed, productivity, and profit.
SPO20 Specifications
| Specification | SPO20 |
|---|---|
| Lift Type | Symmetric 2-Post Lift |
| Capacity | 20,000 lbs |
| Lift Arms | TRIO Arms |
| Certification | ALI Certified |
| Rise Time | 60 seconds |
| Lowering Time | 45 seconds |
| Column Height | 15' 6" |
| Overall Width | 12' 4" |
| Drive-Thru Width | 106" |
| Arm Reach (Min) | 48" |
| Arm Reach (Max) | 88" |
| Lift Height | 76" |
| Voltage Options | 208-230V, Single or 3 Phase |
| Motor | 2 HP |
| Safety Features | Overload protection, mechanical and hydraulic locks |
| Adapter Options | Flip-Up and Stack Adapters Included |
| Warranty | 1 Year Limited Warranty |
