Rotary SPO16-CARGO-LC - 16,000 lb Two-Post Lift for Low Ceiling Cargo Van Service
The Rotary SPO16-CARGO-LC delivers 16,000 lb lifting capacity in a low-ceiling symmetric two-post configuration engineered for facilities with 13 ft 8 in to 14 ft 8 in overhead clearance. Featuring three-stage cargo arms with 74-13/16 in maximum reach, this ALI Gold Certified lift handles Class 1 through Class 5 vehicles including long-wheelbase cargo vans like the Ford Transit, Mercedes Sprinter, and RAM ProMaster.
Key Features & Benefits
Low-Ceiling Specialist Configuration

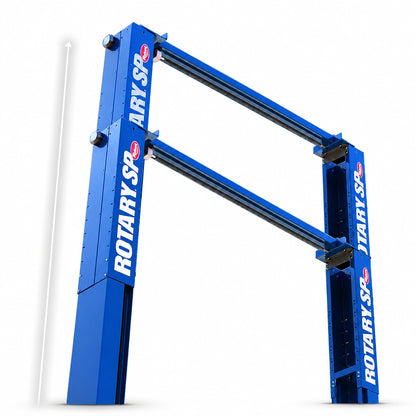

The SPO16-CARGO-LC operates in ceiling heights as low as 13 ft 8 in, significantly lower than standard 16K two-post lifts that typically require 15 ft or more clearance. The height-adjustable design offers three configurations in 6 in increments (13 ft 6 in, 14 ft, and 14 ft 6 in), allowing facility optimization without costly structural modifications to raise ceilings or lower floors.
Many automotive service facilities occupy older buildings or multi-use industrial spaces with overhead constraints that prevent installation of standard heavy-duty lifts. The SPO16-CARGO-LC directly addresses this challenge by delivering full 16,000 lb capacity within the dimensional envelope of facilities previously limited to lighter-duty equipment.
This enables shops to service heavy commercial vehicles without relocating or renovating. Fleet operations, dealerships, and independent repair facilities gain access to professional-grade cargo van service capability regardless of existing building constraints.

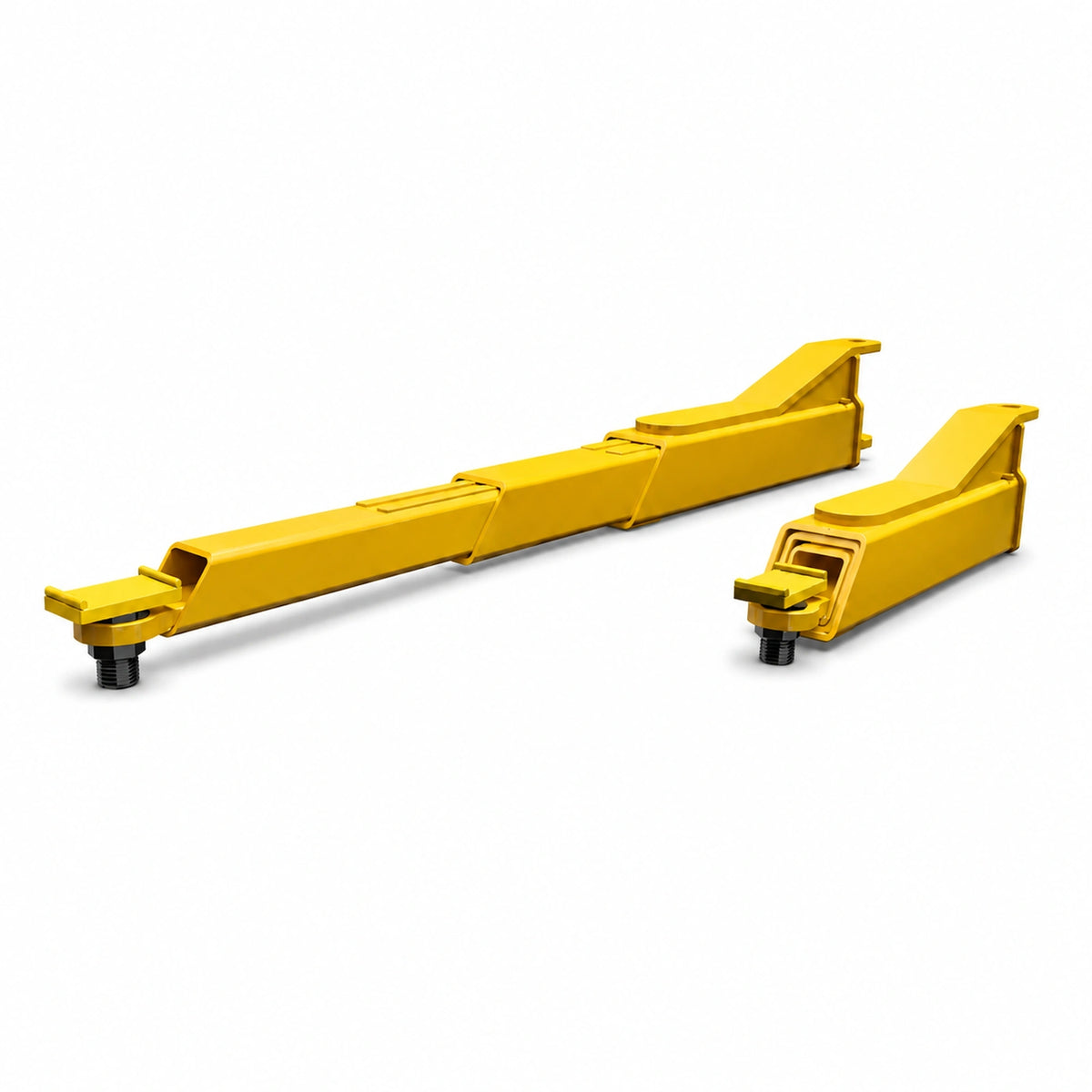

Extended Three-Stage Cargo Arms

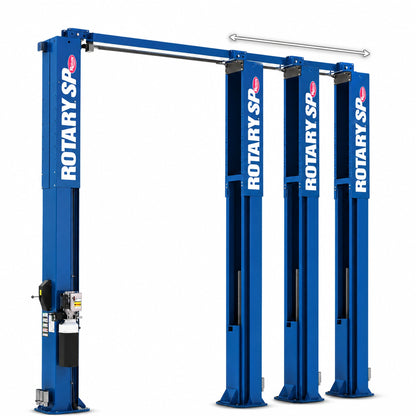

The three-stage swing arms deliver 74-13/16 in maximum reach with a minimum retraction of 36-13/16 in, providing a 38 in adjustment range that accommodates vehicle wheelbases from compact cars to extended-length cargo vans. This reach specification leads the 16K cargo lift category and exceeds typical two-stage competitor designs by a substantial margin.

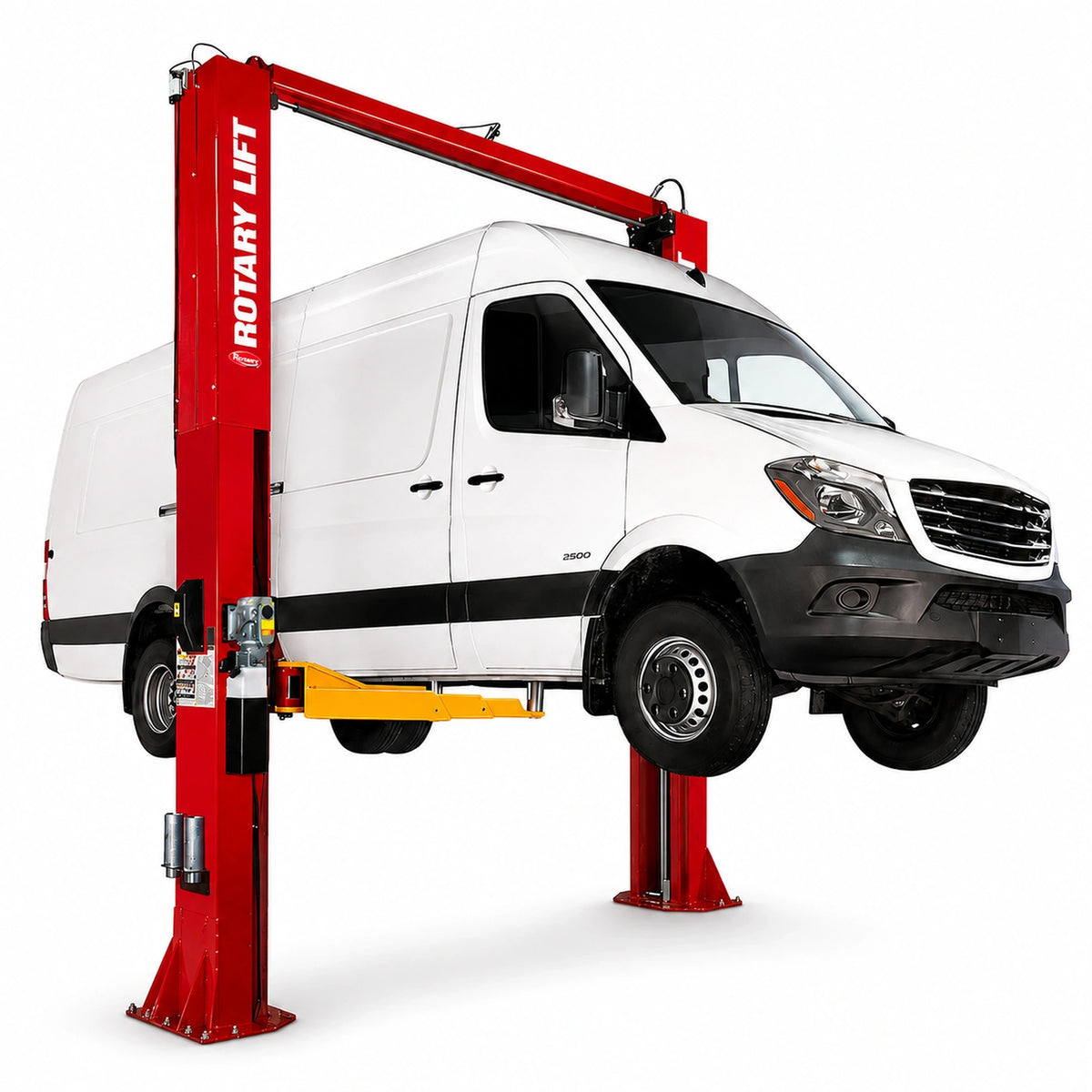

Extended-wheelbase vehicles like the Ford Transit 148 in WB, Mercedes Sprinter 170 in WB, and RAM ProMaster present spotting challenges that shorter-arm lifts cannot safely address. The three-stage design reaches OEM-designated pickup points on these long vehicles while maintaining the structural rigidity required for safe heavy-duty lifting.

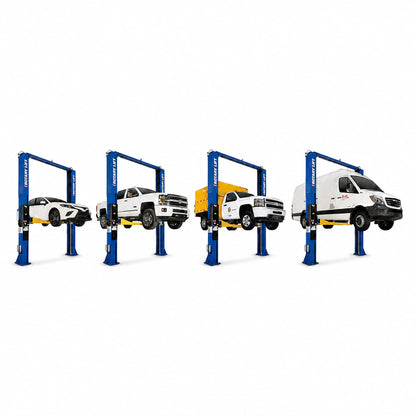

This eliminates the need for separate specialty lifts for cargo van work. A single SPO16-CARGO-LC handles the full range from compact passenger vehicles through Class 5 commercial trucks, reducing capital equipment costs while maximizing bay utilization.

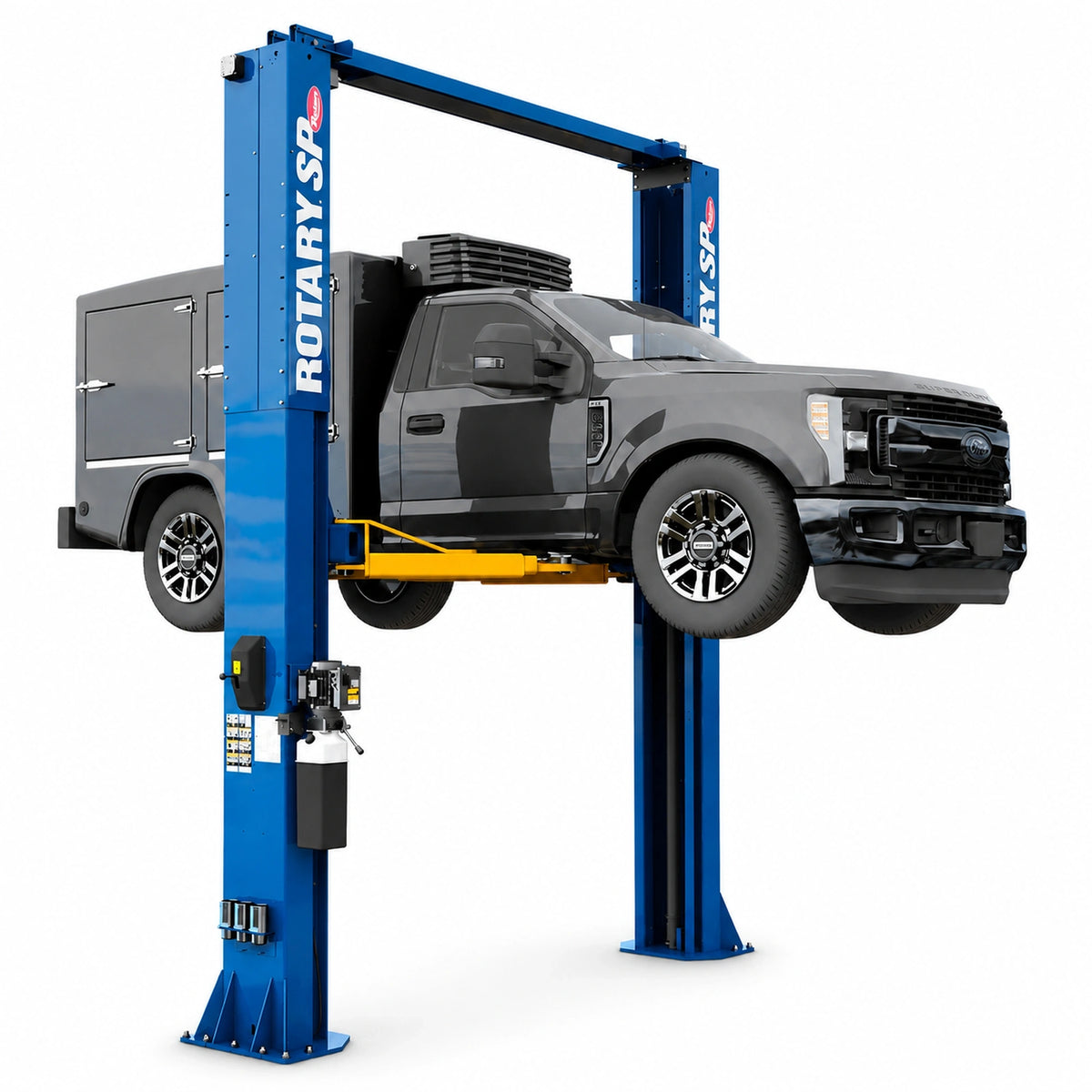

Symmetric High-Capacity Design

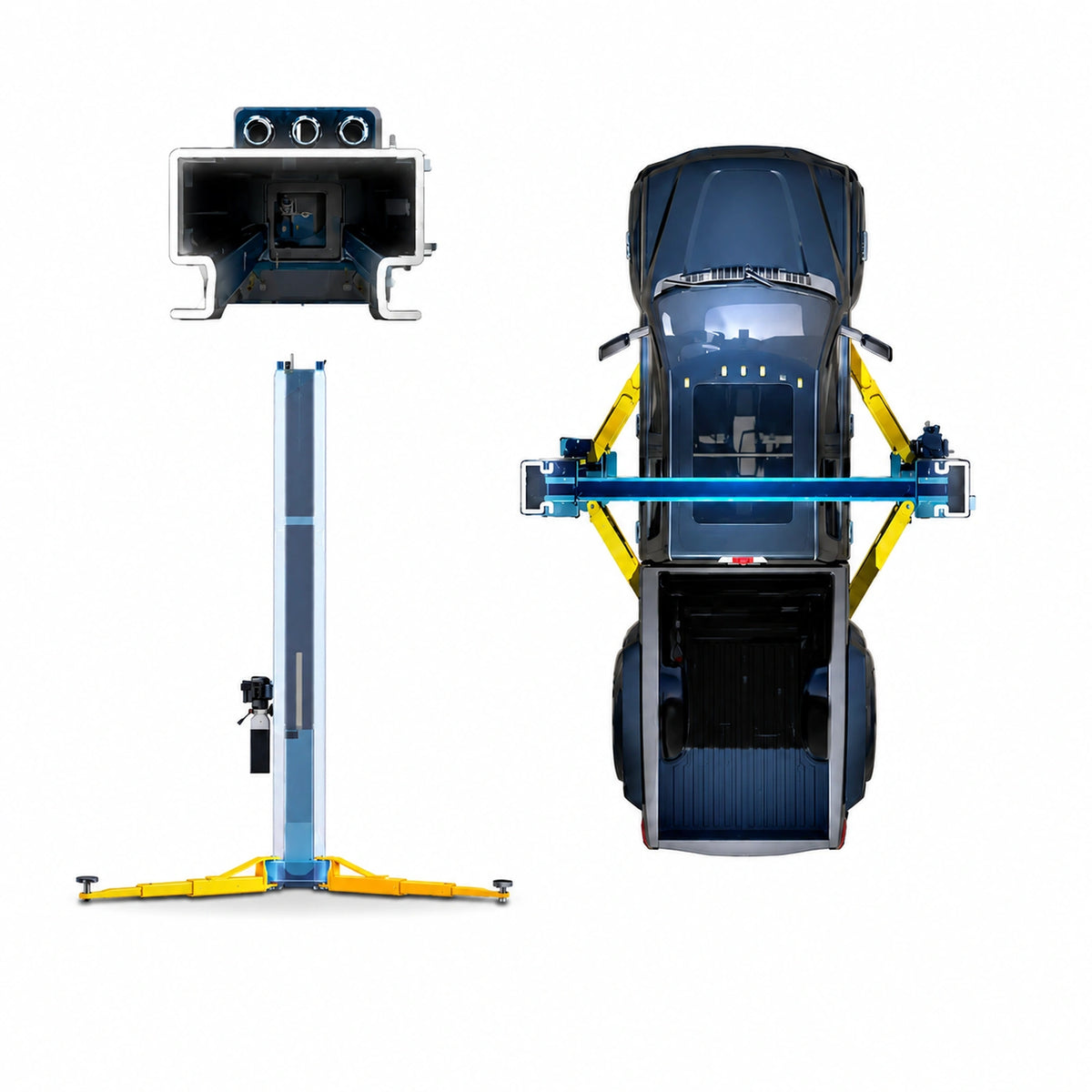

The symmetric column configuration positions the vehicle's center of gravity directly between the posts, delivering 16,000 lb total capacity with maximum stability for top-heavy cargo vans and box trucks. The Double-S column construction provides the structural foundation for handling elevated loads without the column flex common in lighter-duty designs.
Cargo vans and commercial vehicles present unique lifting challenges due to their high roof lines and variable load distribution. Traditional asymmetric lifts designed for passenger cars create stability concerns when servicing fully-loaded delivery vehicles or upfitted service trucks with heavy tool storage and equipment.
This improves technician confidence and bay safety when servicing commercial fleets. The symmetric design also provides full door swing clearance on both sides of the vehicle, enabling interior access during service operations critical for upfitted fleet vehicles with cargo management systems.
ALI Gold Certified Compliance
The SPO16-CARGO-LC carries ALI Gold Certification and ETL listing, meeting ANSI/ALI ALCTV-2011 standards and International Building Code requirements recognized in 47+ states plus Washington D.C. Third-party safety certification provides documented compliance for OSHA inspections, insurance audits, and municipal code enforcement.
Non-certified imports create regulatory exposure for commercial operations. Fleet maintenance facilities, dealership service departments, and government motor pools face increasing scrutiny from safety inspectors and insurance underwriters requiring documented lift certification.
This eliminates compliance risk and provides liability protection for commercial operations. The ALI Gold badge serves as immediate verification during inspections without requiring operators to produce additional documentation or defend equipment provenance.
Complete Adapter Package Included
The SPO16-CARGO-LC ships with four 5 in stack adapters, two 10 in stack adapters, and four rubber clip-in pads for immediate unibody and frame-contact lifting applications. This verified adapter set enables ready-to-lift-out-of-crate deployment without post-purchase accessory orders delaying production.
Many competitor listings advertise lift pricing without clarifying adapter inclusion, leading to unexpected costs and delays when operators discover essential adapters must be purchased separately. The included stack adapter heights address the majority of pickup point access requirements for passenger vehicles through medium-duty trucks.
This reduces total acquisition cost and eliminates deployment delays. Operators begin generating revenue immediately upon installation rather than waiting for adapter shipments or discovering compatibility gaps during the first vehicle service.
Shockwave-Ready Platform
The SPO16-CARGO-LC platform supports the optional Shockwave technology upgrade, delivering up to 2x faster rise and descent cycles compared to standard hydraulic operation. The DC battery power option eliminates the 208V electrical requirement for retrofit installations where running new service proves cost-prohibitive.
High-volume fleet operations lose measurable productivity waiting for standard lift cycles. The 81-second rise time on the base unit, while competitive, adds up across dozens of daily vehicle movements in busy maintenance facilities.
This enables quantifiable productivity ROI for operations where lift cycle time directly impacts technician efficiency. The battery option also expands installation flexibility for facilities with limited electrical infrastructure or multi-bay expansion plans.
Product Demonstration
Applications & Use Cases
- Fleet Maintenance Facilities: Service cargo vans, delivery vehicles, and service trucks for commercial fleets including Amazon, FedEx, UPS, and regional delivery operations
- Commercial Vehicle Service Centers: Handle Class 1 through Class 5 vehicles requiring heavy-duty lifting capacity with extended arm reach
- Cargo Van Specialists: Ford Transit, Mercedes Sprinter, RAM ProMaster, and Nissan NV service with proper pickup point access on extended wheelbase models
- Dealership Service Departments: Medium-duty truck service bays requiring ALI certification for warranty and liability compliance
- Government and Municipal Fleet Operations: Fire department support vehicles, utility trucks, and municipal fleet maintenance with documented safety certification
- Auto Repair Shops: Mixed vehicle portfolios including light trucks, commercial vehicles, and passenger cars in facilities with ceiling height constraints
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 16,000 lb |
| Rise | 80 in |
| Time to Full Rise | 81 seconds |
| Motor | 2 HP |
| Specification | Value |
|---|---|
| Overall Height Options | 13 ft 6 in / 14 ft / 14 ft 6 in (162 in / 168 in / 174 in) |
| Required Ceiling Height | 13 ft 8 in to 14 ft 8 in |
| Drive-Thru Width | 111-11/32 in |
| Front Arm Reach (Min/Max) | 36-13/16 in to 74-13/16 in |
| Rear Arm Reach (Min/Max) | 36-13/16 in to 74-13/16 in |
| Minimum Bay Size | 15 ft x 30 ft |
| Specification | Value |
|---|---|
| Voltage | 208V-230V, Single Phase, 60Hz |
| Air Supply | 90-120 PSI clean, dry air |
Installation Requirements
Foundation Requirements
- Concrete Thickness: 6 in minimum
- Concrete Strength: 3,000 PSI minimum
- New Concrete Curing: 30 days minimum before installation
- Anchor Bolt Torque: 110 ft-lb
Bay Requirements
- Minimum Bay Size: 15 ft x 30 ft
- Minimum Ceiling Height: 13 ft 8 in to 14 ft 8 in (varies by height configuration)
- Overhead Clearance: Area above lift must be clear of lights, lines, and heaters
Power Requirements
- Electrical: 208V-230V, Single Phase, 60Hz
- Circuit: Dedicated circuit recommended
- Air Supply: 90-120 PSI clean, dry air required for air-operated lock release
Installation Notes
- Environment: Indoor use only
- Professional Installation: Rotary Authorized Installer (RAI) recommended for warranty compliance
- Permits: Verify local code compliance and permit requirements before installation
Shipping & Delivery
Freight Information
Shipping Method: LTL freight (flatbed or standard freight), palletized shipping.
Geographic Coverage: Free freight offers typically exclude accessorial fees including liftgate, call-before-delivery, residential, limited-access, and inside delivery surcharges.
Delivery Requirements
Forklift Required: 5,000 lb minimum capacity forklift required on-site for unloading.
Receiving: Immediate inspection upon delivery recommended. Note any visible damage on bill of lading before driver departs.
Warranty Coverage
Rotary Warranty Program
5 Years - Equipment Structure: Columns, carriage, yokes, and arms
1 Year - Operating/Functional Parts: Power units, cylinders, latches, and controls
1 Year - Labor: Covers labor costs for warranty repairs
Warranty Notes
Extended Coverage: Extended warranty terms may apply when installed by Rotary Authorized Installer (RAI). Confirm current terms with manufacturer.
Registration: Product registration recommended to activate warranty coverage.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility. Our team can help with product selection, installation planning, and technical specifications. Call to confirm included accessories and verify ceiling height compatibility for your specific bay configuration.
Frequently Asked Questions
What is the lifting capacity of the Rotary SPO16-CARGO-LC?
The SPO16-CARGO-LC has a maximum lifting capacity of 16,000 lb, making it suitable for Class 1 through Class 5 vehicles. This capacity handles cargo vans like the Ford Transit, Mercedes Sprinter, and RAM ProMaster, as well as delivery trucks, service vehicles, and medium-duty commercial trucks. The symmetric two-post design positions the vehicle center of gravity between the columns for maximum stability when lifting top-heavy commercial vehicles with elevated roof lines.
What ceiling height is required for the SPO16-CARGO-LC?
The SPO16-CARGO-LC requires a minimum ceiling height between 13 ft 8 in and 14 ft 8 in depending on the height configuration selected. The lift offers three overall height options at 13 ft 6 in, 14 ft, and 14 ft 6 in, allowing you to match the lift to your facility constraints. This low-ceiling design operates in buildings where standard 16K two-post lifts requiring 15 ft or more clearance cannot be installed, making it ideal for older facilities or multi-use industrial spaces with overhead limitations.
What adapters are included with the Rotary SPO16-CARGO-LC?
The lift ships with four 5 in stack adapters, two 10 in stack adapters, and four rubber clip-in pads for unibody vehicles. Installation hardware and owner documentation are also included in the package. The stack adapter heights address the majority of pickup point access requirements for passenger vehicles through medium-duty trucks, enabling ready-to-lift deployment without additional accessory purchases. Some dealer sources may list additional items such as frame cradles or wheel spotting dishes, so contact us to confirm complete kit contents for your order.
What are the concrete requirements for installing the SPO16-CARGO-LC?
Installation requires a minimum 6 in thick concrete floor with 3,000 PSI compressive strength. New concrete must cure for at least 30 days before installation to ensure proper anchor holding strength. Anchor bolts require 110 ft-lb torque specification during installation. The minimum bay size is 15 ft by 30 ft, and the overhead area must be clear of lights, utility lines, and heaters. Indoor installation only is permitted. We recommend having a Rotary Authorized Installer verify your floor specifications before purchase.
Is the Rotary SPO16-CARGO-LC ALI Certified?
Yes, the SPO16-CARGO-LC is ALI Gold Certified and ETL Listed, meeting ANSI/ALI ALCTV-2011 standards for automotive lift safety. The lift is also International Building Code compliant, accepted in 47 or more states plus Washington D.C. for commercial automotive service operations. This third-party certification provides documented compliance for OSHA inspections, insurance audits, and municipal code enforcement, eliminating regulatory exposure for fleet maintenance facilities and dealership service departments.
What is the arm reach on the SPO16-CARGO-LC?
The three-stage cargo arms provide a reach range from 36-13/16 in minimum to 74-13/16 in maximum on both front and rear arms, delivering a 38 in total adjustment range. This extended reach accommodates long-wheelbase cargo vans including Ford Transit 148 in wheelbase, Mercedes Sprinter 170 in wheelbase, and RAM ProMaster extended models. The three-stage design reaches OEM-designated pickup points on these long vehicles while maintaining the structural rigidity required for safe 16,000 lb lifting operations.
What is the warranty on the Rotary SPO16-CARGO-LC?
The SPO16-CARGO-LC includes a 5-year warranty on equipment structure covering columns, carriage, yokes, and arms. Operating and functional parts including power units, cylinders, latches, and controls carry a 1-year warranty. A 1-year labor warranty covers labor costs for warranty repairs. Extended coverage terms may apply when the lift is installed by a Rotary Authorized Installer. Product registration is recommended to activate warranty coverage.
What electrical requirements does the SPO16-CARGO-LC need?
The lift requires 208V-230V, single phase, 60Hz power with a dedicated circuit recommended for reliable operation. An air supply of 90-120 PSI clean, dry air is also required for the air-operated lock release system. The standard configuration delivers an 80 in rise in 81 seconds using a 2 HP motor. The optional Shockwave upgrade offers DC battery power for installations without suitable electrical service, eliminating the 208V requirement for retrofit applications.
