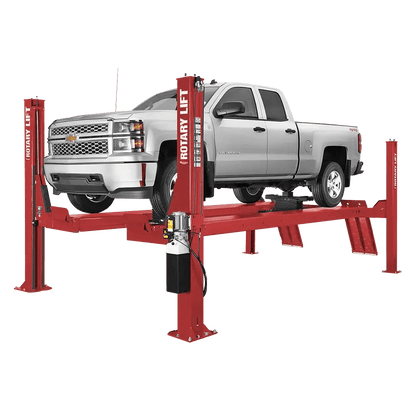

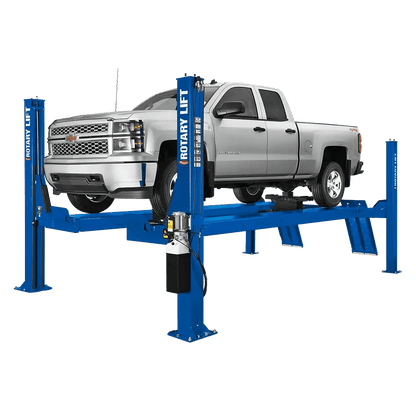

Rotary Four Post Lift for Commercial Vehicles and Extra-Long Trucks
Standard four post lifts top out around 158 inches of wheelbase. That's fine for passenger cars and light-duty trucks. But if your shop sees buses, heavy commercial trucks, or any vehicle that simply won't fit on a conventional lift, you need something built to a different scale. The Rotary SMO14EL2 is a rotary 4 post lift with a 215-inch maximum wheelbase capacity and a 286-inch overall length, so it handles the vehicles that used to be parked outside because nothing in your bay could accommodate them.
The open-front design is a genuine advantage here. You're not working around a front crossmember every time you need access to the undercarriage. Clear, unobstructed access from the front means faster service on steering, suspension, and exhaust work on full-size commercial vehicles. At 14,000 lbs. of rated capacity, it covers everything from heavy-duty vans and utility trucks to medium-duty commercial trucks and buses without asking you to check a chart before every drive-on.

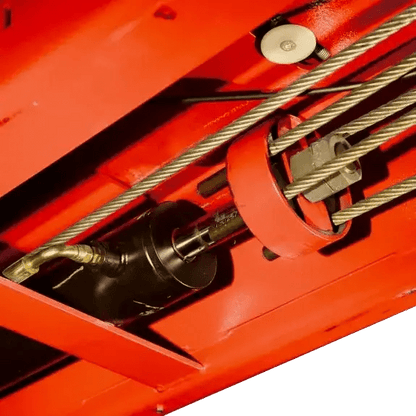

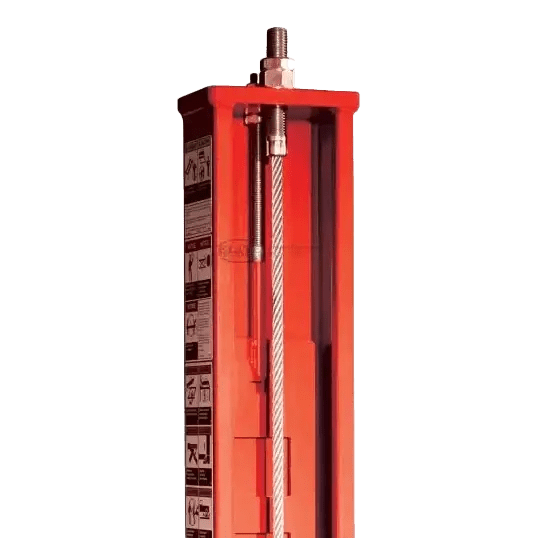

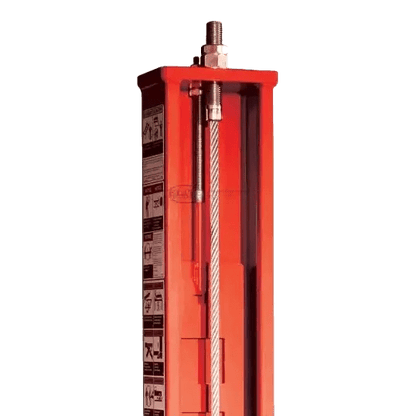

Rotary built this lift to hold up in a working commercial shop, not just look good in a brochure. Single-piece non-welded runways eliminate the weak points that welded designs develop over time. The dual-function Sentinel Lock System gives you redundant safety at every lift height. Concealed cables and sheaves stay protected from the daily grind of shop traffic. And the whole unit carries ALI Gold Certification, so you know it's been tested and verified against the industry standard that actually matters.
When you're ready to configure or have questions before ordering, our team is standing by. Free shipping to the lower 48 is included, and you've got a direct line to people who know these lifts inside and out.
Specifications
| Model | SMO14EL2 |
| Capacity | 14,000 lbs. |
| Overall Length (OAL) | 286 in. |
| Max Wheelbase | 215 in. |
| Motor | 2 HP |
| Voltage | Single Phase - 208v-230v |
| Time to Full Rise | 65 seconds |
| Min. Bay Size | 15 ft. x 28 ft. |
| Front Design | Open Front |
| Runway Construction | Single-Piece Non-Welded |
| Safety System | Sentinel Lock System (Dual Function) |
| Certification | ALI Gold Certified |
| Finish | Powder Coat |
| Color | Red/Blue |
What's Included
- Call to confirm included accessories.
Installation & Setup
Electrical Requirements

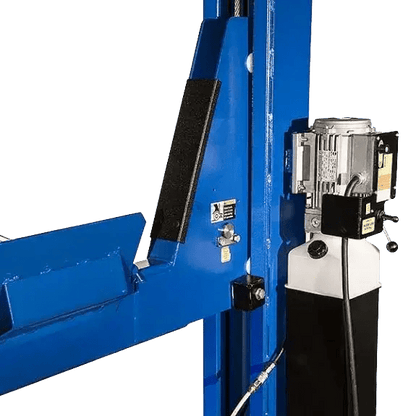

The SMO14EL2 runs on a 2 HP motor and requires a single-phase 208v-230v power supply. Before your lift arrives, confirm your shop has a properly rated circuit with the correct amperage for this motor size. Running undersized wiring to a commercial lift is the kind of shortcut that causes headaches down the road, so get your electrician involved early.
Bay Size and Concrete
You'll need a minimum bay size of 15 ft. x 28 ft. to install and operate this lift safely. That footprint accounts for the 286-inch overall length plus working clearance. Concrete requirements for a four post vehicle lift of this capacity should be confirmed with your installer - slab thickness and PSI rating matter for both safety and warranty compliance. If you're pouring new concrete or working with an older slab, get those specs verified before installation day.
Rolling Jack Compatibility
The SMO14EL2 is compatible with optional rolling jacks, which add the ability to perform brake and suspension work while the vehicle is on the lift. If you plan to use jacks, confirm compatibility and clearance requirements with our team before placing your order so everything arrives ready to go.
Applications
This lift fills a specific need: shops that regularly service vehicles too large or too long for standard four post automotive lifts. If that describes your operation, it was built for you.
Fleet maintenance operations running medium-duty trucks, full-size buses, and service vehicles need a lift that keeps up. The extra-long runway and open-front access make undercarriage inspections and service faster on vehicles that would otherwise dominate your schedule.
Pre-delivery inspections, warranty work, and upfitting on long-wheelbase commercial trucks require equipment that matches the inventory. Four post car lifts sized for passenger vehicles won't cut it when your lot runs heavy.
Independent shops that pick up commercial vehicle accounts need one lift that covers everything from vans and light trucks to the outliers that walk in the door. This is the four post auto lift that handles both ends of the range without compromise.
In-house fleet maintenance teams need reliable, certified equipment. ALI Gold Certification and the Sentinel Lock safety system mean this lift meets the standard your fleet managers and insurance carriers expect to see in a professional facility.
Model Comparison
Rotary's SMO14 family covers a range of wheelbase capacities and configurations. Here's how the models stack up so you can confirm the SMO14EL2 is the right fit, or identify a better match if your needs are different.
| Model | Configuration | Max Wheelbase | Front Design |
|---|---|---|---|
| SM14 | Standard Four Post Lift | Standard configuration | Closed Front |
| SMO14 | Open Front Four Post Lift | 158 in. | Open Front |
| SMO14L | Open Front Long | 182 in. | Open Front |
| SMO14EL2 | Open Front Extra Long | 215 in. | Open Front |
| ARO14EL2 | Alignment Lift - Extra Long | 215 in. | Open Front |
If your vehicles fit within a 158-inch wheelbase, the SMO14 handles the job with a smaller footprint. If you need alignment capability alongside the extra length, the ARO14EL2 is worth a closer look. Not sure which model matches your vehicle mix? Call us and we'll work through it with you.
Shipping
Free Shipping to the Lower 48 states is included with your purchase of the SMO14EL2. Freight delivery of a commercial four post lift requires advance coordination for receiving. Have a forklift or loading dock available at your location, and confirm access for a freight carrier before your order ships. Call us at (855) 498-2147 if you have questions about delivery logistics for your specific location.
Warranty
The SMO14EL2 is covered under the light-duty lift warranty, which applies to lifts rated under 30,000 lbs. capacity. Coverage breaks down as follows:
Structural Parts - 5-year warranty
Functional Parts - 1-year warranty
Labor - 1-year warranty
For warranty questions or to understand what's covered on your specific unit, call our team at (855) 498-2147.
Documents
Click to open in a new tab.
Sale Sheet
Ready to Order or Have Questions?
Our team knows these lifts and can help you confirm the right configuration for your shop. Call us at (855) 498-2147 - we're here to help you get the right lift the first time.
Frequently Asked Questions
What is the minimum bay size required to install the SMO14EL2?
You'll need a minimum bay size of 15 ft. x 28 ft. to safely install and operate the SMO14EL2. This accounts for the lift's 286-inch overall length plus the working clearance needed around the unit. If your bay is close to the minimum, contact our team to talk through the layout before ordering.
What's the difference between the SMO14EL2 and the standard SMO14?
The key difference is wheelbase capacity. The standard SMO14 handles vehicles up to 158 inches of wheelbase, while the SMO14EL2 extends that to 215 inches and has a 286-inch overall length. If you're regularly servicing buses, long-wheelbase commercial trucks, or other oversized vehicles, the EL2 is the model built for that work. The SMO14 is the better fit if your vehicle mix stays within the standard wheelbase range, since it requires a smaller bay footprint.
Is the SMO14EL2 compatible with rolling jacks?
Yes, the SMO14EL2 is compatible with optional rolling jacks. Adding rolling jacks lets you perform brake and suspension work while the vehicle is elevated on the lift, expanding what you can accomplish with a single piece of equipment. Call us at (855) 498-2147 to confirm compatibility with the specific jack configuration you're considering before placing your order.
What electrical supply does the SMO14EL2 require?
The SMO14EL2 runs on a 2 HP motor and requires a single-phase 208v-230v power supply. You'll want a properly rated dedicated circuit in place before installation. Consult a licensed electrician to confirm your shop's electrical capacity and ensure the circuit is sized correctly for this motor.
Is the SMO14EL2 ALI certified?
Yes, the SMO14EL2 carries ALI Gold Certification. ALI (Automotive Lift Institute) Gold Certification is the recognized industry standard for lift safety and performance testing. It means the lift has been independently verified against established load and safety criteria, which matters both for shop safety programs and for insurance and compliance requirements.
