ROTARY RJ9100Y-1 9,000 lbs Rolling Jack for SM180/181 Four-Post Lift
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

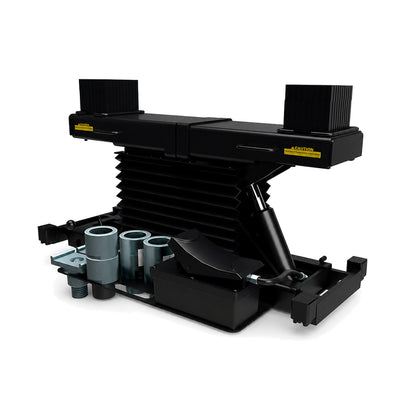

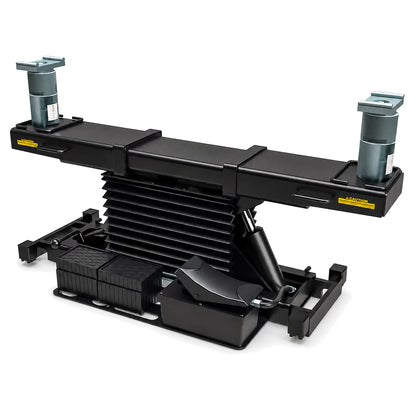

Rotary RJ9100Y-1 9,000 lb Rolling Jack for SM180/SM181 Four-Post Lifts
The Rotary RJ9100Y-1 delivers 9,000 lb capacity in a heavy-duty air-actuated scissor-style rolling jack, engineered for Rotary SM180 and SM181 four-post lift systems. This dealer-grade jack enables wheels-free brake, suspension, and tire service operations with adjustable rail width and included adapter pads for secure component holding.
Key Features & Benefits
Air-Actuated Scissor-Style Design
The RJ9100Y-1 operates via air actuation rather than manual hydraulic pumping, delivering smooth, controlled lifting and lowering of work platforms. The scissor-style mechanism expands vertically and collapses compactly when not in use, reducing footprint when stored in tight shop spaces.
Traditional manual rolling jacks require repetitive pump strokes and operator fatigue during extended service operations. This air-operated design addresses the industry-wide need for faster component positioning and reduced technician strain when servicing heavy brake drums, transmission assemblies, and suspension components.
This enables faster wheel-free service cycles and more efficient shop workflow, allowing technicians to focus on diagnostics and repair rather than manual jack operation. The consistent air pressure ensures repeatable positioning across multiple vehicles during a shift.
Adjustable Rail Width for Symmetric & Asymmetric Vehicles
The jack features adjustable rail width spanning 40 3/4" to 49 1/4", accommodating a wide range of vehicle frames and component configurations. This adjustability eliminates the need for multiple jack sizes or custom adapters for different platform dimensions.
Standard fixed-width rolling jacks fail when working with vehicles outside a narrow width range, forcing technicians to improvise positioning with shims or secondary support equipment. The RJ9100Y-1 addresses this compatibility challenge by offering a 8.5-inch adjustment range that covers most four-post lift platforms and component cradles.
This flexibility enables single-jack deployment across an entire shop's vehicle mix, from compact cars to full-size trucks, without operator adjustments between vehicles. The rail locks securely at any position within the range, preventing slippage during load shifts.
Integrated Rubber Pads & Truck Adapters
The RJ9100Y-1 ships with included rubber pads and truck adapters that work in concert to protect component finish and prevent marking of painted surfaces. The rubber contact points distribute load across a wider area, reducing point-load pressure that could dent or crack fragile castings like engine blocks or transmission housings.
Unprotected metal-to-metal contact with brake drums, hub assemblies, and suspension components leaves visible marks and raises customer concerns during warranty work. These integrated adapters solve the finish-protection challenge while providing the gripping surface needed for secure component positioning without requiring separate tool purchases.
This eliminates component damage during service and reduces rework delays caused by finish restoration. The included adapters mean technicians can deploy the jack immediately without assembly time or sourcing adapter kits separately.
SM180/SM181 Four-Post Lift Compatibility
The RJ9100Y-1 is designed specifically for Rotary SM180 and SM181 four-post lift systems and is not intended for generic four-post or XA/X14 series lifts. This model-specific design ensures proper clearance, mounting alignment, and integrated operation within the Rotary lift ecosystem.
Mismatched rolling jacks and lift platforms create clearance conflicts, binding during rail travel, and unsafe height positioning that can result in component drops or shift during service. This jack eliminates compatibility guesswork by being engineered exclusively for SM180/SM181 platform dimensions and rail spacing.
This ensures safe, reliable operation without modifications to the lift or jack. The purpose-built design integrates seamlessly with your existing Rotary equipment, reducing installation time and eliminating safety concerns from improvised pairings.
Applications & Use Cases
- Brake Service: Wheel-free brake drum and rotor removal, inspection, and reassembly without vehicle weight stress, enabling thorough pad and caliper evaluation.
- Suspension Service: Component isolation during spring, strut, and control arm service with stable platform support for technician safety during extended work cycles.
- Tire Service: Secure component positioning for tire rotation, removal, and assembly operations including weights, balancing, and pressure checks without vehicle movement.
- Transmission & Drivetrain Service: Heavy component support for transmission, transfer case, and differential service requiring hands-free positioning during diagnostics and replacement.
- Engine & Accessory Work: Stabilized work platform for engine bay service, alternator, water pump, and cooling system work with load distribution across multiple contact points.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lift Capacity | 9,000 lb (4,082 kg) |
| Operation Type | Air-actuated scissor-style |
| Adjustable Rail Width Range | 40 3/4" to 49 1/4" (1,035 mm to 1,251 mm) |
| Weight | 250–300 lb (113–136 kg) |
| Primary Lift Compatibility | Rotary SM180 / SM181 four-post lifts |
| Included Components | Rubber pads, truck adapters (variable by kit) |
What's Included
Standard Components
Rubber pads and truck adapters are included with this unit. Exact pad sizes and adapter extensions may vary by dealer kit configuration. Call +1 (855) 498-2147 to confirm the specific components included with your order.
Ready to Add This Jack to Your Facility?
Get expert guidance on the Rotary RJ9100Y-1 and how it integrates with your SM180/SM181 four-post lift system. Our team can confirm lift compatibility, included adapters, and technical specifications for your specific application.
Frequently Asked Questions
What is the maximum capacity of the Rotary RJ9100Y-1?
The RJ9100Y-1 delivers 9,000 lb (4,082 kg) of lift capacity, engineered for heavy brake drums, transmissions, and suspension components during wheel-free service operations on Rotary SM180 and SM181 four-post lift systems. This capacity supports extended diagnostics and component service work without requiring repositioning of heavy assemblies.
Is this jack compatible with non-Rotary four-post lifts?
No. The RJ9100Y-1 is designed exclusively for Rotary SM180 and SM181 four-post lift systems and is not compatible with generic four-post lifts, XA series lifts, X14 series lifts, or other competing lift platforms. Using this jack on incompatible lift systems creates dangerous clearance conflicts, rail binding during travel, and unsafe height positioning that compromises component support during service and creates drop hazards for both technicians and vehicles. Verify your specific lift model and serial number before ordering to ensure safe operation, eliminate installation delays, and prevent costly modification requirements or unsafe workarounds.
What adapters come standard with this rolling jack?
The RJ9100Y-1 ships with rubber pads and truck adapters as standard included components in every purchase. However, exact pad sizes, adapter heights, extension configurations, and component counts vary significantly depending on your specific dealer kit selection and Rotary configuration options chosen at order time. Contact Garage Supply Guys immediately at +1 (855) 498-2147 to confirm the exact adapter specifications, part numbers, and complete component inventory included with your specific order before final purchase commitment. This verification ensures you receive the correct equipment for your exact SM180/SM181 lift system and intended service applications, preventing post-purchase compatibility issues and assembly delays.
What is the adjustable rail width range?
The rail width adjusts from 40 3/4" to 49 1/4" (1,035 mm to 1,251 mm), providing an 8.5-inch adjustment range that accommodates most vehicle frames and component cradles used with SM180/SM181 lift systems.
How much does the RJ9100Y-1 weigh?
The RJ9100Y-1 weighs 250-300 lb (113-136 kg), providing substantial platform stability and secure positioning during extended service cycles while remaining mobile enough for efficient deployment across multiple lift stations and work bays throughout your shop. This weight range ensures the jack resists movement during load shifts and aggressive component positioning without requiring permanent floor anchoring or excessive operator effort during repositioning between different vehicles and multiple service applications throughout your facility.
What service operations can I perform with this jack?
The RJ9100Y-1 enables wheels-free brake service including complete drum and rotor removal, suspension component work with full strut and control arm isolation support, tire service with secure positioning for rotation and complete replacement, transmission removal and comprehensive diagnostics, and complete engine bay operations including accessory replacement. Any task requiring secure component positioning without direct vehicle weight stress benefits from this jack platform. Air actuation supports extended work cycles without operator fatigue during repetitive repositioning or complex diagnostics.
How is the RJ9100Y-1 operated?
The jack operates via air actuation (pneumatic power), delivering smooth, controlled lifting without manual hydraulic pump strokes or repetitive operator pressure cycles. Air supply connects to the unit, enabling hands-free operation during extended service cycles, reducing technician fatigue compared to manual pump systems that demand constant pressure cycling. Pneumatic operation delivers repeatable positioning consistency across multiple vehicles during service shifts, eliminating manual pump stroke variation and operator strain while maintaining secure position hold during active component removal and diagnostics work.
