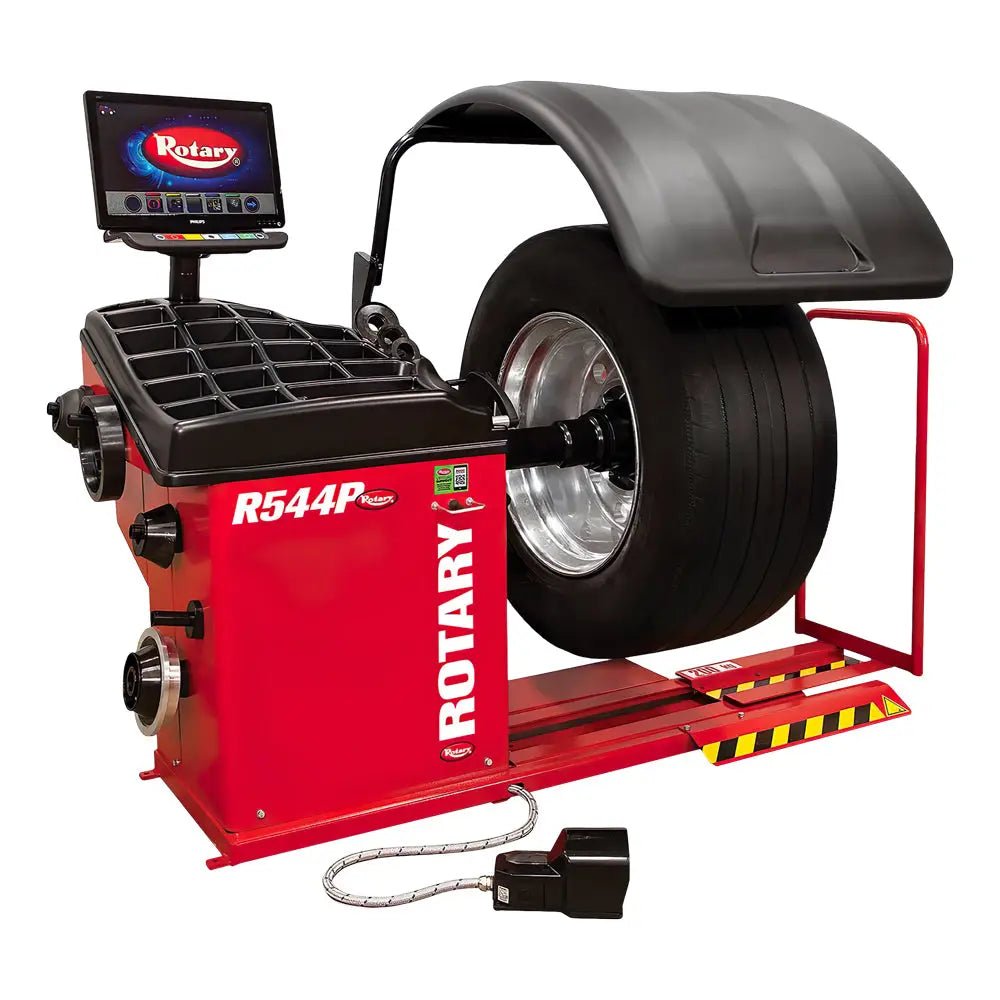

ROTARY R544PLUS - Pro Truck 3D Wheel Balancer for Commercial Heavy-Duty Service
The ROTARY R544PLUS is a commercial-grade 3D wheel balancing machine engineered for professional wheel service across passenger vehicles, light trucks, commercial trucks, and motorcycles. With automatic 3D data input using optical sensing and digital calipers, combined with pneumatic wheel lifting and locking, this system improves balancing speed, accuracy, and operator safety in high-volume service environments. Designed for tire shops, commercial truck service centers, and fleet maintenance operations requiring efficient handling of large wheel assemblies.
Key Features & Benefits
Automatic 3D Data Input System
The R544PLUS delivers automatic 3D wheel measurement through a combination of digital calipers and optical sensors that instantly capture rim diameter, width, and positioning data. This patented measurement approach eliminates manual measurement steps and the potential for operator error during setup, capturing precise wheel geometry in seconds rather than minutes.
Traditional wheel balancers require technicians to manually input rim width and diameter by hand or dial, a process prone to mistakes when handling high-volume traffic or when processing unfamiliar wheel sizes common in commercial truck service. This system addresses that industry-wide challenge by automatically sensing wheel geometry on contact, requiring no manual entry for most applications.
This enables faster service cycles and consistent accuracy across all wheel sizes processed through the shop. The automatic positioning lock engages immediately after measurement, securing the wheel for balancing without additional technician adjustment.

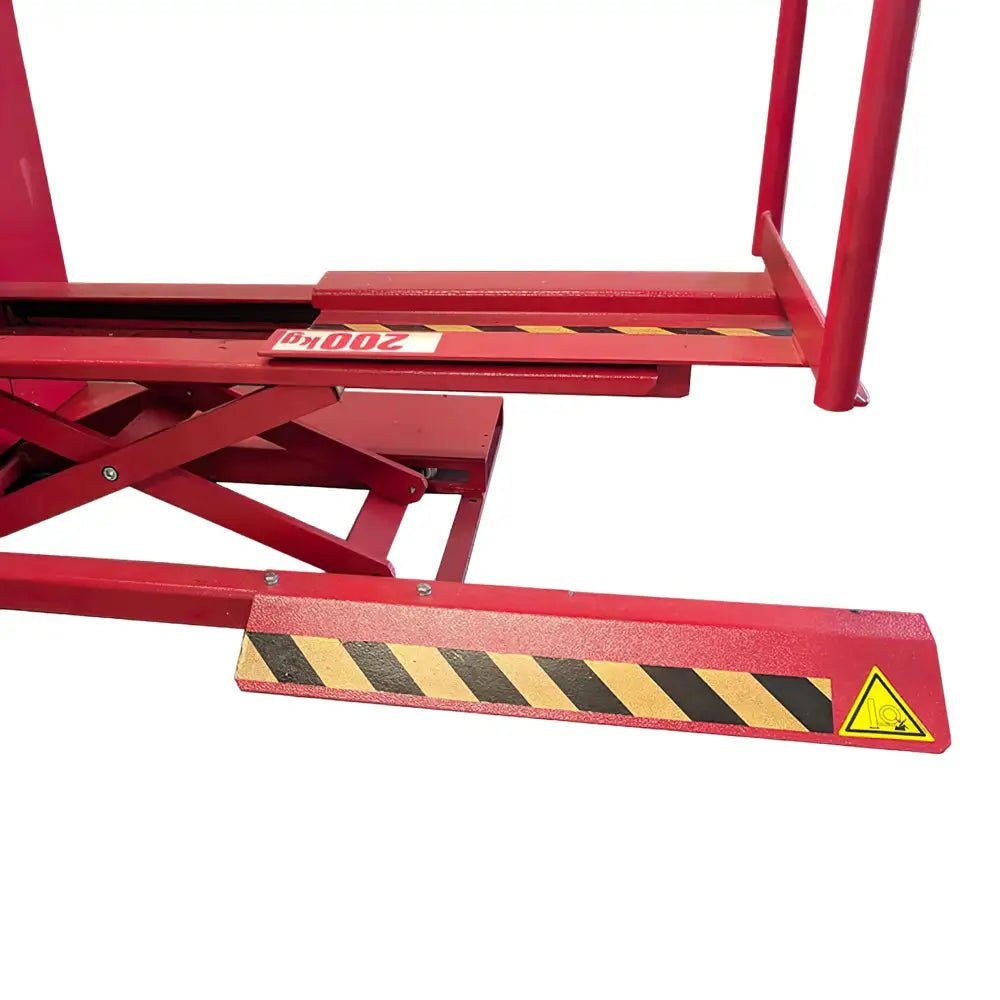

Pneumatic Wheel Lift and Locking System
The R544PLUS features standard pneumatic wheel lift and locking mechanisms that safely raise and secure wheel assemblies up to 441 lbs (200 kg) without manual operator effort. The pneumatic system delivers consistent lifting force and holds the wheel in position throughout the balancing cycle, with automatic engagement that locks the wheel in place immediately upon contact.
Manual lifting and traditional manual locking systems create operator fatigue during high-volume service, particularly when processing heavy commercial truck wheels and dual assemblies. Pneumatic lift-and-lock addresses this challenge by automating the most physically demanding aspects of wheel handling, reducing operator strain while improving consistency and safety across service operations.
This enables technicians to process more wheels per shift with reduced physical fatigue. The pneumatic system operates reliably across varying shop temperatures and maintains consistent performance across the full range of wheel weights the balancer handles, from light passenger car wheels to heavy dual truck configurations.
High-Capacity Wheel Range: 10"-30" Rim Diameter with 441 lb Maximum Assembly Weight
The system handles rim diameters from 10 inches to 30 inches with rim widths spanning 1.5 inches to 22 inches, supporting wheel assemblies up to 441 lbs (200 kg) in combined weight. This wide capacity range accommodates passenger vehicles, light trucks, and heavy-duty commercial truck wheels on a single platform without requiring multiple balancers or frequent repositioning of cone and adapter sets.
Most tire shops and fleet operations must choose between single-vehicle balancers (passenger-focused with 15"-20" rim range and 150-250 lb capacity) or purchasing dedicated commercial-grade equipment. The R544PLUS addresses this inefficiency by handling the full spectrum of wheel sizes and weights that commercial service centers encounter daily, from compact car wheels to oversized truck wheels and dual axle assemblies.
This eliminates the need for multiple balancing machines and reduces capital equipment costs while improving workflow efficiency. A single unit handles mixed-volume shops effectively, reducing setup transitions and allowing technicians to balance vehicles sequentially without stopping to change equipment settings.
Dual Accuracy Modes: 10 g Commercial and 1 g Passenger Precision
The R544PLUS operates in two precision modes tuned to specific vehicle applications: 10 g accuracy for commercial truck wheels and 1 g accuracy for passenger vehicles. This dual-mode approach optimizes balancing tolerances for each vehicle class, allowing the balancer to meet industry standards for both high-volume commercial operations and precision-critical passenger vehicle service without manual recalibration between modes.
Standard balancers typically operate at a single tolerance level, which creates inefficiency: commercial truck tolerances often apply to passenger vehicles (unnecessarily restrictive and time-consuming), or passenger accuracy tolerances are applied to heavy trucks (risking under-corrected imbalance in high-stress applications). The R544PLUS addresses this by automatically applying appropriate accuracy standards based on the application type selected, improving throughput on commercial work while maintaining full precision for passenger vehicles.
This enables shops to balance commercial truck wheels faster while maintaining the precision necessary for passenger vehicle performance. The separate accuracy modes also accommodate different rotation speeds (80 rpm for commercial, 100 rpm for passenger) tuned to each vehicle class's standard balancing requirements.
Color Monitor with Glove-Friendly Keypad Interface
The system includes a color monitor display with a dedicated glove-friendly keypad that allows technicians to input and verify wheel balancing data, select accuracy modes, and navigate system functions without removing work gloves or relying on touchscreen interaction. The keypad layout is designed for quick navigation during high-volume service, with dedicated function buttons for common operations like mode selection and balance execution.
Standard touchscreen interfaces require frequent screen cleaning in shop environments and fail when technicians wear heavy work gloves, forcing them to remove gloves repeatedly during the workday. A dedicated keypad interface addresses this practical challenge by providing reliable, glove-compatible operation in dirty shop environments without the maintenance burden of touchscreen-only systems.
This improves operational efficiency and reduces workflow interruption. Technicians can work continuously without removing personal protective equipment, and the color display provides clear, high-contrast visualization of balancing data and equipment status even in shops with variable lighting conditions.
Auto Stop on Top and Automatic Positioning Lock
The R544PLUS incorporates auto stop on top positioning and automatic positioning lock functions that eliminate manual wheel positioning and manual restraint engagement. When balancing completes, the wheel automatically decelerates and stops with the heavy spot at the top (12 o'clock position), allowing technicians to apply weights immediately without manually rotating the wheel. The automatic lock engages simultaneously, preventing accidental wheel movement during weight application.
Traditional balancers require technicians to manually rotate wheels to position the heavy spot and then manually engage locks or clamps before weight application, increasing cycle time and introducing risk of technician contact with rotating equipment. Auto stop on top and automatic lock address these workflow inefficiencies and safety concerns by automating the final positioning stage and restraint engagement without additional operator action.
This reduces total cycle time per wheel by 10-15 seconds on average, a significant efficiency gain in high-volume operations. The automatic positioning lock also improves safety by preventing accidental wheel movement during weight installation, reducing technician injury risk and material damage.
Product Demonstration
Applications & Use Cases
- Commercial Tire Service Centers: High-volume shops balancing mixed passenger, light truck, and commercial truck wheels daily, requiring a single platform for diverse wheel sizes and weights.
- Commercial Truck Service Operations: Fleet maintenance facilities and dedicated heavy-duty service centers processing dual wheels, oversized rims, and high-weight assemblies requiring commercial-grade accuracy and capacity.
- Fleet Maintenance Facilities: Large operations managing multiple vehicle classes (pickup trucks, straight trucks, tractor-trailers) requiring consistent balancing across diverse fleet compositions.
- Heavy-Duty Vehicle Service Providers: Shops specializing in construction equipment, agricultural vehicles, and industrial trucks where wheel weights exceed standard passenger vehicle ranges.
- Motorcycle and All-Terrain Vehicle Service: Shops offering wheel balancing for specialty vehicles, where automatic 3D measurement accommodates unconventional wheel geometries.
Technical Specifications
| Specification | Value |
|---|---|
| Rim Diameter Range | 10"-30" |
| Rim Width Range | 1.5"-22" |
| Maximum Tire Diameter | 51" |
| Maximum Assembly Weight | 441 lbs (200 kg) |
| Specification | Value |
|---|---|
| Readout Accuracy (Commercial) | 10 g |
| Readout Accuracy (Passenger) | 1 g |
| Rotation Speed (Commercial) | 80 rpm |
| Rotation Speed (Passenger) | 100 rpm |
| Balancing Technology | Automatic 3D data input with digital caliper and optical sensor |
| Specification | Value |
|---|---|
| Power Supply | 110V, single-phase, 60 Hz |
| Wheel Handling System | Pneumatic wheel lift and pneumatic locking (standard) |
Installation Requirements
Power Requirements
- Electrical Supply: 110V, single-phase, 60 Hz standard outlet
- Circuit Requirements: Dedicated electrical circuit recommended for optimal performance and safety compliance
- Grounding: Proper grounding and overload protection required per local electrical code
Floor Space and Clearance
- Equipment Footprint: Adequate floor space required for machine base and standard hood operation; refer to detailed specifications for exact dimensions
- Ceiling Clearance: Sufficient clearance above and around the unit for hood opening and technician access during balancing operations
- Work Surface: Level, stable flooring suitable for equipment of this weight and vibration class
Installation Notes
- Professional Installation: Installation should be performed by qualified personnel familiar with wheel balancing equipment setup and safety protocols
- Compressed Air System: Pneumatic operation requires connection to a shop compressed air system with appropriate pressure regulation and moisture removal
- Local Code Compliance: Verify local building codes, equipment permits, and workplace safety requirements before installation
What's Included
Complete Adapter and Cone Set

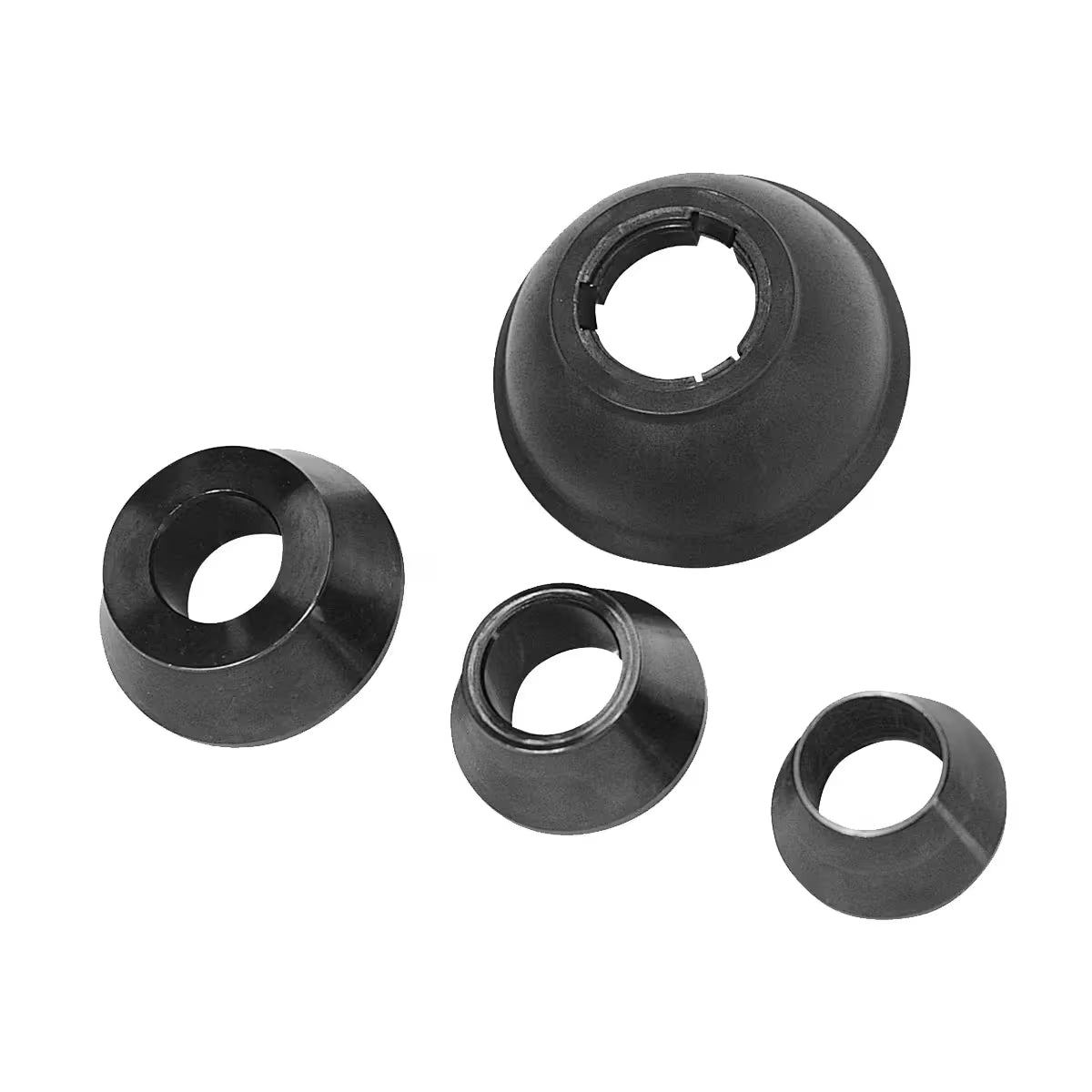

- Passenger Vehicle Adapters: Cone and adapter set for passenger vehicle wheel balancing
- Light Truck Adapters: Cone and adapter set for light truck wheel sizes
- Heavy-Duty Truck Adapters: Cone and adapter set for commercial truck wheels and dual assemblies
- Pneumatic Wheel Lift System: Standard pneumatic lift and locking mechanisms
- Control Interface: Color monitor and glove-friendly keypad
- Measurement Tools: Digital calipers and rim diameter gauges
- Calibration and Setup Tools: Calibration tools and weight hammer
Warranty Coverage
Standard Warranty Program
3 Years - Parts: Comprehensive parts coverage for all internal and external components under normal use and maintenance
1 Year - Labor: Labor coverage for warranty-eligible repairs and service
Warranty Requirements
- Installation: Installation must be performed by qualified personnel following manufacturer installation guidelines
- Maintenance: Regular maintenance and care per manufacturer recommendations required to maintain warranty validity
- Transferability: Coverage terms and transferability subject to manufacturer warranty terms
Ready to Upgrade Your Wheel Service Equipment?
The ROTARY R544PLUS delivers the capacity, accuracy, and automation your commercial wheel service operation needs. Get expert guidance on equipment selection, installation requirements, and technical specifications for your specific facility.
Frequently Asked Questions
What is the maximum wheel weight the ROTARY R544PLUS can balance?
The R544PLUS handles wheel assemblies up to 441 lbs (200 kg), accommodating commercial truck wheels, dual assemblies, and heavy-duty applications on a single platform. This weight capacity far exceeds typical passenger vehicle balancers (150-250 lbs). Commercial truck service centers benefit significantly from this capacity because dual wheels and oversized rims common in fleet operations often exceed standard equipment limits, requiring either multiple balancers or manual rejection of certain jobs. The R544PLUS eliminates this workflow constraint, enabling mixed-volume shops to service complete vehicle inventories without equipment gaps.
What rim diameter and width ranges does the R544PLUS accommodate?
The system handles rim diameters from 10 inches to 30 inches with rim widths spanning 1.5 inches to 22 inches, supporting passenger vehicles, light trucks, commercial trucks, and specialty wheels on a single unit. The maximum tire diameter supported is 51 inches. This broad range eliminates the need for shops to stock multiple balancers for different vehicle classes. Fleet maintenance operations particularly benefit because a single R544PLUS platform accommodates everything from compact passenger cars to pickup trucks to heavy-duty commercial vehicles, dramatically reducing capital equipment requirements while improving shop flexibility and throughput.
How does the automatic 3D data input system work?
The R544PLUS uses digital calipers and optical sensors to automatically capture rim diameter, width, and positioning data upon wheel contact. This eliminates manual measurement steps, reducing setup time and operator error compared to traditional balancers requiring manual rim width and diameter input. In high-volume operations, automatic measurement dramatically accelerates service cycles by eliminating the 30-60 seconds typically spent manually entering wheel dimensions. Technicians simply position wheels on the balancer and the system acquires all necessary data instantly, enabling faster throughput while improving balancing consistency across the entire shop.
Does the R544PLUS require pneumatic system connection?
Yes, the pneumatic wheel lift and locking mechanisms require connection to a shop compressed air system with appropriate pressure regulation and moisture removal equipment. Consult installation guidelines for specific pressure and volume requirements.
What accuracy modes are available, and how do they differ?
The R544PLUS operates in two precision modes: 10 g accuracy for commercial truck wheels and 1 g accuracy for passenger vehicles. This dual-mode approach optimizes balancing tolerances for each vehicle class, with corresponding rotation speeds of 80 rpm (commercial) and 100 rpm (passenger).
What electrical requirements does the R544PLUS have?
The system operates on 110V, single-phase, 60 Hz standard electrical service. A dedicated electrical circuit with proper grounding and overload protection is recommended per local electrical code and safety compliance requirements.
What adapters and accessories are included with the R544PLUS?
The system includes passenger vehicle, light truck, and heavy-duty truck cone and adapter sets, allowing immediate balancing of diverse wheel types. Additional components include pneumatic wheel lift system, color monitor with glove-friendly keypad, digital calipers, diameter gauges, calibration tools, and weight hammer.
What warranty coverage does the R544PLUS include?
The standard warranty covers parts for 3 years and labor for 1 year under normal use and maintenance. Installation must be performed by qualified personnel per manufacturer guidelines, and regular maintenance is required to maintain warranty validity.
