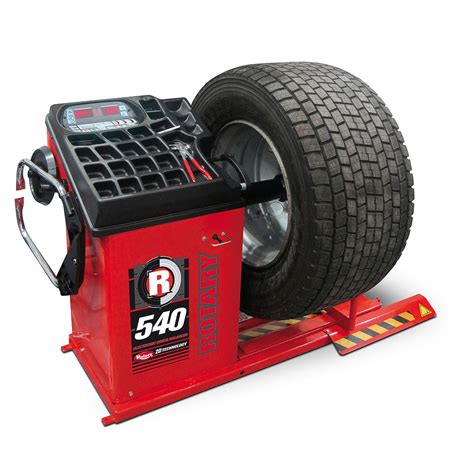

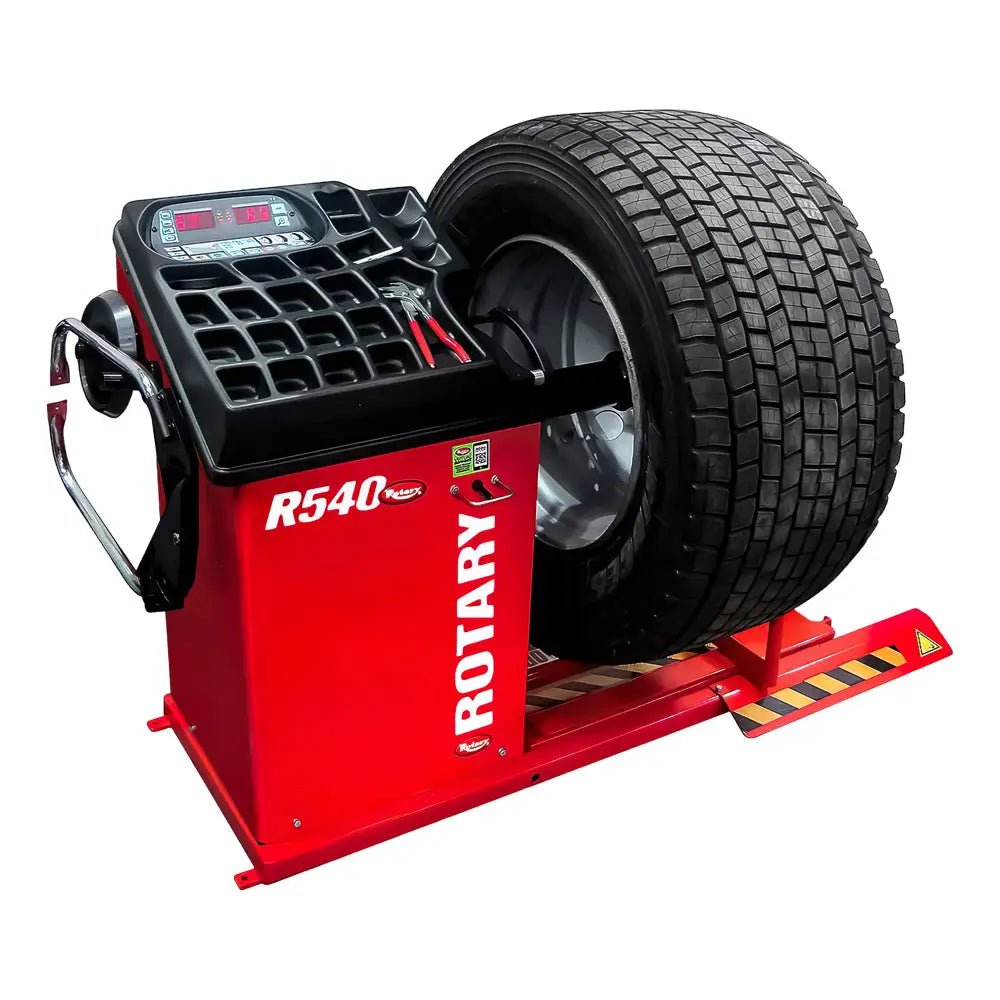

ROTARY R540 RTLD Truck 2D Wheel Balancer

The R540 RTLD handles wheel assemblies up to 441 lbs (200 kg), making it suitable for passenger vehicles, light trucks, and many commercial truck applications. This capacity covers standard automotive use cases, though assemblies exceeding this weight—such as specialized heavy-duty or dual-wheel configurations beyond typical truck service—require dedicated heavy-capacity equipment. The 441 lb capacity represents the limit at which the built-in wheel lift can safely support and position wheels for microprocessor-controlled balancing operations. Most automotive shops find this capacity adequate for approximately 90 percent of incoming wheel balancing requests across mixed-vehicle fleets.

The R540 RTLD accommodates rim diameters from 10" to 30" and rim widths from 1.5" to 22", with maximum tire diameter capability up to 51 inches. This range covers passenger sedans and crossovers (typically 17"-20" rim diameter), light trucks (16"-22" rim diameter), and heavy commercial trucks (20"-28" rim diameter) on a single machine platform. The 1.5" to 22" width specification handles everything from narrow passenger car wheels to split-rim commercial truck wheels. The broad size range eliminates the need for separate balancers in mixed-use shops, consolidating tire service equipment investment and shop floor space while maintaining capability across diverse vehicle types.

The complete package includes passenger and light truck cone kits (part numbers GAR111, GAR112, GAR113, GAR114) and truck adapters/spacers (GAR122, GAR124), plus a quick nut locking system and calibration kit. These components provide coverage for standard automotive wheel types across passenger and commercial applications without requiring additional purchases. The included adapter set is sufficient for most shop operations and enables immediate use out of the box. For specialized applications or replacement parts, additional adapter kits are available separately through authorized dealers. This turnkey approach allows shops to begin wheel balancing service immediately after equipment installation and electrical setup, rather than waiting for sourcing of optional components.

The system operates on 110V single-phase 60 Hz AC power, which is standard in most automotive shops. Before installation, verify adequate circuit capacity with a qualified electrician to ensure the circuit can handle equipment startup current draw and continuous operation without voltage drop or breaker trips. The 110V single-phase requirement means the R540 RTLD can integrate into existing shop electrical infrastructure without specialized three-phase power conversion or additional distribution panel work. Consult the manufacturer installation manual for specific amperage requirements, and confirm circuit distance from the main panel does not exceed recommended guidelines to maintain stable power delivery during operation. Most shops can integrate this balancer into existing service bays without additional electrical upgrades.

Passenger wheels use 1 g (gram) accuracy at 80 rpm rotation speed because lighter vehicles transmit wheel imbalance vibration to the cabin at lower thresholds, requiring precision balancing. Commercial truck wheels operate at 10 g accuracy and 100 rpm rotation speed because heavier vehicles have greater unsprung weight and suspension compliance that naturally dampens vibration from minor imbalances. These dual modes reflect the physics of different vehicle platforms—a 1 g imbalance causes noticeable vibration in a 3,000 lb car at highway speeds but may be imperceptible in a 20,000 lb truck. The R540 RTLD optimizes balancing performance for each vehicle class rather than forcing a single compromise tolerance, enabling shops to maintain accuracy standards across their entire mixed-fleet customer base.

Yes. The integrated wheel lift provides safe load support for assemblies up to 441 lbs (200 kg), enabling safe mounting and balancing of heavy commercial truck wheels without manual lifting. The lift system eliminates technician strain during wheel positioning and reduces repetitive injury risk during high-volume truck wheel service operations. The built-in lift mechanism controls height adjustment for secure wheel mounting and prevents accidental wheel slippage during the balancing operation. This feature becomes particularly valuable for shops operating single-shift crew or service operations with limited dedicated wheel lift equipment, as it consolidates wheel handling and balancing functions onto one machine. The automatic wheel locking and controlled braking features ensure stable position during dynamic balancing, maintaining operator safety throughout the entire cycle.

The R540 RTLD includes a 3-year parts warranty and 1-year labor warranty covering manufacturer defects in materials and workmanship. This tiered structure provides extended parts coverage (common failure points like microprocessor boards, motors, sensors) at 3 years while labor coverage addresses installation and service-related issues during the critical first-year operational period. Product registration may be required within 30 days of purchase to activate warranty benefits—verify specific terms with your authorized dealer. The 3-year parts coverage exceeds typical industry standard one-year warranties, providing extended protection on core mechanical and electrical components. Consult the warranty terms for coverage exclusions, maintenance requirements, and claim procedures specific to your purchase.

No special foundation or pit installation is required. The machine operates on a level, stable work surface using standard shop flooring—concrete slabs, elevated work platforms, or asphalt bays are all acceptable provided the surface is flat and capable of supporting the equipment weight and operational vibration. The only installation requirement is adequate floor space surrounding the machine for safe wheel mounting, balancing, and removal operations without obstruction. Verify the installation surface is level (use a spirit level across critical bearing surfaces) and free of significant cracks, soft spots, or degradation that could affect equipment stability during the high-speed rotation cycle. Most shops can integrate the R540 RTLD into existing service bays without any concrete work, reinforcement, or facility modifications beyond standard electrical circuit verification.
