ROTARY R5000HD 6CCD Wheel Aligner, Pro Commercial Truck Alignment System
Rotary R5000HD 6CCD - Professional Heavy-Duty Truck Wheel Alignment System
The Rotary R5000HD is a heavy-duty commercial truck wheel alignment system engineered for professional service centers, fleet maintenance facilities, and truck dealerships. Featuring 6-CCD sensor technology with infrared and Bluetooth communication, the portable console design delivers precise alignments without requiring fixed installation or tower mounting, supporting trucks, buses, trailers, and multi-axle rigs with reliable speed and accuracy.
Key Features & Benefits
6-CCD Sensor Architecture for Precision Truck Alignment
The Rotary R5000HD employs 6-CCD high-precision sensors paired with infrared and Bluetooth communication to capture and transmit alignment data across large vehicle footprints. This architecture delivers faster data acquisition and higher resolution measurement compared to typical systems, accommodating the dimensional complexity of commercial trucks, buses, and multi-axle vehicles.
Traditional alignment systems struggle with heavy-duty vehicles requiring simultaneous multi-axle measurement and communication over extended distances. The 6-CCD design addresses this by enabling reliable sensor placement on front and rear axles without requiring line-of-sight or fixed positioning towers.
This enables faster setup and measurement cycles without compromising accuracy, allowing technicians to align complex commercial vehicles in a single bay without repositioning equipment or restarting the system.
No Run-Out Compensation Required for Rapid Measurements
Unlike conventional wheel alignment systems that require running wheels through multiple rotations to compensate for tire and wheel run-out (radial and lateral variations), the R5000HD eliminates this step entirely. This direct measurement approach reduces alignment cycle time significantly, particularly when servicing multiple heavy-duty vehicles in succession.
Fleet maintenance operations and busy truck service centers face constant pressure to minimize downtime per vehicle. Traditional run-out compensation procedures add 10-15 minutes per alignment, creating bottlenecks when handling volume-based workloads like pre-delivery inspections or periodic fleet maintenance.
This eliminates unnecessary waiting between measurement steps, enabling technicians to proceed directly from wheel mounting to adjustment guidance, improving bay utilization and reducing overall service time per vehicle.
Double Inclinometer Caster Adjustment Without Steering Engagement
The system includes a dual-axis inclinometer that measures caster angle independently of steering wheel position. Conventional alignment systems require technicians to rotate the steering wheel to specific angles during caster measurement, creating alignment inconsistencies if wheel position drifts or if the vehicle's steering geometry is compromised.
Heavy-duty service operations involving damaged axles, worn king pins, or steering box problems require caster verification without introducing steering variables. The double inclinometer approach measures caster directly from suspension geometry rather than inferred from steering input.
This improves accuracy when servicing vehicles with worn steering linkages or damaged suspension components, and reduces setup time by eliminating the requirement to position steering wheels to precise angles before measurement begins.
Portable Console Architecture for Bay Flexibility

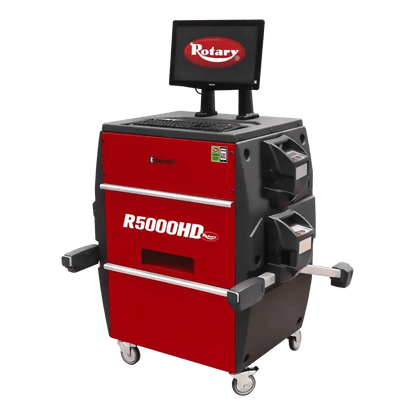

The R5000HD control unit is a self-contained portable console featuring integrated PC, keyboard, printer integration, and a 19-inch color monitor, eliminating the need for separate workstations or fixed tower installations. The entire system operates from standard 110V electrical supply, allowing placement anywhere in the service bay without permanent mounting or infrastructure modifications.
Many service facilities operate multiple alignment bays with varying layouts, turning radii, and ceiling heights. Fixed tower systems limit bay flexibility, forcing shops to commit alignment equipment to specific bay locations regardless of workload distribution across the facility.
This enables shops to deploy the R5000HD across multiple bays on a per-job basis, maximize equipment utilization across different service operations, and adapt to facility layout changes without equipment relocation costs or downtime for installation/removal.
Heavy-Duty Measurement Heads and Turntable System

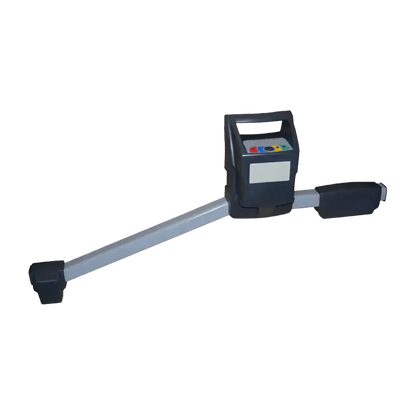

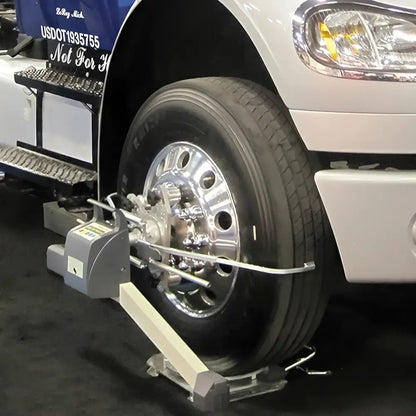

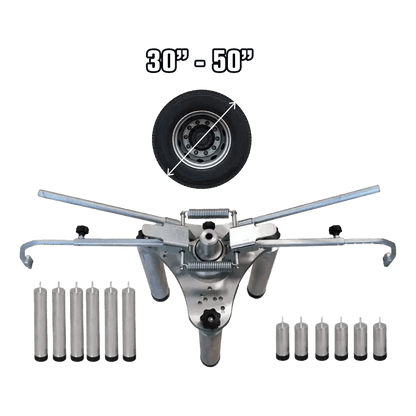

The system includes two front and two rear measuring heads paired with heavy-duty turntables (STDA29L) and universal wheel clamps (STDA92) rated for commercial truck hub sizes and loading. These components are engineered to withstand repeated measurement cycles on multi-axle vehicles ranging from medium-duty single-axle trucks through heavy-duty dual-rear-wheel configurations.
Standard automotive alignment equipment is designed for passenger vehicles and light trucks. Commercial heavy-duty vehicles present significantly larger wheel diameters, heavier hub assemblies, and wider track widths that exceed the capacity of conventional clamps and turntables, requiring professional-grade equipment rated for this duty cycle.
This ensures consistent measurement reliability across your entire customer base regardless of vehicle class, eliminates the need to maintain multiple clamp sets or adapter configurations, and provides warranty coverage and spare parts availability specifically engineered for commercial truck alignment operations.
Complete System Integration with Safety Accessories
Beyond measurement and control components, the R5000HD includes brake pedal depressor and steering wheel lock accessories that prevent unintended vehicle movement during measurement and adjustment. These items address the primary safety concern in commercial vehicle alignment: preventing wheel rotation or steering changes while technicians are positioned near the vehicle during caster and camber adjustments.
Heavy-duty vehicles present significant inertia and brake responsiveness challenges. A truck with air brakes or worn braking systems can roll if parking brakes fail or air pressure is lost during service. Unintended steering movement can result in technician injury if positioning or adjustment leverage points unexpectedly shift.
This creates a safer service environment by providing mechanical safeguards independent of the vehicle's own brake and steering systems, reducing setup time by eliminating the need to source improvised wheel chocks or steering locks, and ensuring consistent safety protocols across all alignment operations.
Applications & Use Cases
- Commercial Truck Service Centers: Independent and franchise service facilities performing routine maintenance, pre-delivery inspections, and warranty service on commercial trucks, tractors, and vocational vehicles.
- Fleet Maintenance Operations: Large fleet operators running captive service facilities for company-owned truck fleets requiring periodic alignment verification and post-incident damage assessment.
- Heavy-Duty Truck Dealerships: Authorized dealership service departments handling new vehicle delivery inspections, warranty work, and component replacement services.
- Bus and Motorcoach Alignment: Transit authorities, motorcoach operators, and specialized service facilities servicing transit buses, intercity coaches, and shuttle vehicles requiring multi-axle alignment.
- Trailer and Multi-Axle Service: Shops specializing in tandem-axle trailers, pup trailers, and multi-axle configurations requiring simultaneous front and rear alignment measurement.
Technical Specifications
| Specification | Value |
|---|---|
| System Type | Commercial truck wheel alignment system |
| Sensor Technology | 6-CCD high-precision sensors |
| Communication | Infrared between measuring heads; Bluetooth to control unit |
| Console Configuration | Portable; no fixed tower required |
| Display | 19-inch color monitor |
| Run-Out Compensation | Not required |
| Caster Adjustment Feature | Double inclinometer enables adjustment without steering |
| Specification | Value |
|---|---|
| Power Supply | 110V, single-phase, 60 Hz |
| Portable Console Components | Control unit with integrated PC, keyboard, printer, battery charger, side supports |
| Component | Specification |
|---|---|
| Measuring Heads | Two front and two rear 6-CCD sensors |
| Heavy-Duty Wheel Clamps | STDA92, rated for commercial truck hub sizes |
| Heavy-Duty Turntables | STDA29L for multi-axle vehicle support |
| Safety Accessories | Brake pedal depressor, steering wheel lock |
Installation Requirements
Electrical Requirements
- Power Supply: Standard 110V, single-phase, 60 Hz electrical outlet within proximity of the alignment bay.
- Dedicated Circuit: Verify adequate electrical circuit capacity before installation to avoid nuisance breaker trips during full system operation.
- Cable Management: Plan cable routing to prevent tripping hazards and damage to power cords during wheel clamp movement.
Bay Space & Environmental Requirements
- Bay Dimensions: Adequate space for heavy-duty vehicles (minimum length 45+ feet for full-size tractors; width 12+ feet to accommodate tire widths and measurement head positioning).
- Concrete Surface: Level concrete floor (maximum 1 percent slope variation) to ensure turntable stability and accurate alignment readings.
- Ceiling Clearance: Minimum 11-12 feet clearance for cab-over and conventional tractor measurements; verify for your specific vehicle mix.
- Environmental Conditions: Normal shop temperature and humidity (no extreme heat, cold, or moisture exposure for console electronics).
Installation Notes
- No Permanent Mounting Required: The portable console operates on standard shop floor without anchor bolts, concrete embedding, or tower installation.
- Multi-Bay Deployment: Equipment can be relocated between bays as needed for maintenance or seasonal workload adjustments.
- Professional Installation Recommended: Initial setup and measurement head calibration should be performed by qualified technician following manufacturer installation manual to ensure measurement accuracy and system reliability.
- Local Code Compliance: Verify compliance with local electrical codes and safety regulations before energizing the system.
Shipping & Delivery
Freight Coverage & Delivery
Shipping: Ships via LTL (less-than-truckload) freight. Delivery available across the continental United States; additional charges may apply for residential delivery, limited-access locations, or remote areas.
Delivery Requirements: Forklift or loading dock access required for unloading. Curbside delivery may be available upon special request with additional charges.
Receiving Inspection: Carefully inspect all packages immediately upon delivery before signing the bill of lading. Note any visible damage on the BOL. Equipment should be inspected and tested within 15 days to identify any concealed damage and initiate replacement or repair claims.
Warranty Coverage
Multi-Tier Warranty Program
3 Years - Parts: Coverage for defects in material and workmanship affecting sensor assemblies, console electronics, turntables, and clamp components under normal use conditions.
1 Year - Labor: Coverage for labor required to repair defective components identified within the first year of ownership. Subsequent repairs require customer payment for labor beyond the first year.
Warranty Requirements & Conditions
Eligibility: Valid for original equipment purchaser. Warranty is non-transferable if equipment changes ownership.
Proper Operation: Warranty covers defects arising from manufacturer error or material failure. Damage resulting from improper operation, misuse, modification, or lack of maintenance is excluded.
Professional Installation: Installation must follow manufacturer guidelines. Improper installation or modification voids warranty coverage.
Ready to Upgrade Your Alignment Capability?
The R5000HD delivers the precision and efficiency commercial truck service centers and fleets require. Get expert guidance on system selection, facility layout optimization, and technical specifications for your specific alignment workload.
Frequently Asked Questions
What is the R5000HD and what vehicles can it align?
The Rotary R5000HD is a commercial truck wheel alignment system designed for heavy-duty vehicles including trucks, buses, trailers, and multi-axle rigs. It uses 6-CCD sensor technology with infrared and Bluetooth communication to deliver precise alignments without requiring a fixed tower installation.
What does "no run-out compensation" mean and why does it matter?
Traditional alignment systems require running wheels through multiple rotations to measure and compensate for tire and wheel run-out (radial and lateral variations). The R5000HD eliminates this step entirely using direct measurement, reducing alignment cycle time by 10-15 minutes per vehicle and improving overall throughput in busy service facilities.
What electrical requirements does the system need?
The R5000HD operates from standard 110V, single-phase, 60 Hz electrical supply. No special electrical infrastructure or dedicated heavy-duty circuits are required, making installation flexible across multiple service bays.
Does the R5000HD require permanent installation or a fixed tower?
No. The portable console design enables placement anywhere in the service bay without permanent mounting, anchor bolts, or tower installation. The system operates from standard floor placement and can be relocated between bays as needed.
What equipment and components are included in the system?
The R5000HD includes a control unit with integrated PC, 19-inch monitor, keyboard, printer, battery charger, two front and two rear measuring heads, heavy-duty turntables (STDA29L), heavy-duty wheel clamps (STDA92), brake pedal depressor, and steering wheel lock.
What is the warranty coverage?
The system includes a 3-year parts warranty covering defects in sensor assemblies, console electronics, turntables, and clamps under normal use. Labor is covered for 1 year from the purchase date. Non-transferable upon change of ownership.
How is the R5000HD shipped and what are the delivery requirements?
The system ships via LTL freight to continental US locations. Forklift or loading dock access is required for unloading. Additional charges apply for residential delivery or limited-access locations. Inspect equipment immediately upon delivery and test within 15 days to identify any concealed damage.
Can the double inclinometer enable caster measurement without steering wheel manipulation?
Yes. The R5000HD's dual-axis inclinometer measures caster angle directly from suspension geometry independent of steering wheel position, improving accuracy when servicing vehicles with worn steering linkages and reducing setup time by eliminating the need to position steering wheels to precise angles before measurement.
