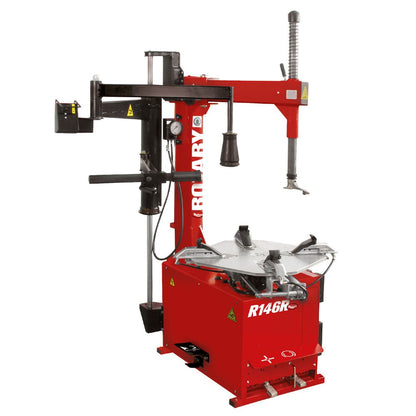

ROTARY R146RPS Super Swing Arm Tire Changer w/ Helper Arm & Wheel Lift 19.5"

The R146RPS accommodates external rim clamping from 10 to 26 inches and internal clamping from 12 to 28.5 inches, making it suitable for passenger tires through 19.5-inch truck applications. This extended range eliminates the need for multiple machines in shops serving diverse vehicle fleets, enabling single-platform operations capable of handling everything from compact car wheels to heavy commercial truck assemblies. The 12-to-28.5 inch internal clamping range provides the reach necessary for wide-variety wheel types, while the 10-to-26 inch external range accommodates specialty and custom applications. Commercial shops and fleet operations benefit from equipment consolidation, improved scheduling flexibility, and reduced capital equipment investment when a single machine handles their complete service range.

Yes, the super configuration includes the PLUS91SA pneumatic helper arm and integrated wheel lift as standard components, pre-assembled and ready for operation without additional purchases. Unlike base-model tire changers that require aftermarket add-on purchases for helper arms and separate lift systems, this bundled configuration reduces total equipment costs and simplifies setup. The factory-integrated design ensures proper pneumatic flow, compatible pressure operation, and synchronized function between the bead breaker, helper arm, and wheel lift systems. Shops avoid the expense and complexity of sourcing compatible components separately, and technicians benefit from consistent operational behavior and unified control across all pneumatic functions. The included configuration is particularly valuable for commercial operations where equipment standardization and simplified training are important for consistent workflow and technician safety.

The double-acting pneumatic bead breaker delivers 6,745 foot-pounds of clamping force at 145 PSI, with an opening width of 15 inches to accommodate larger tire sidewalls and reinforced profiles. This force level provides the power necessary to break the bead seal on stiff truck tires while remaining controlled enough for precision work on delicate wheels and specialty applications. The symmetric double-acting design distributes this force evenly across the bead contact zone, preventing damage to low-profile sidewalls or high-value alloy wheels. Technicians find that this force rating handles the full spectrum of tire constructions without requiring separate machines or manual breaking techniques that risk rim or sidewall damage. The hand-controlled pneumatic operation enables technicians to modulate pressure and duration based on specific tire and wheel characteristics, providing flexibility for non-standard applications and specialty work that would challenge automated or preset-force systems.

The R146RPS requires standard 110V single-phase 60 Hz electrical service for motor operation. Verify your facility has adequate dedicated circuit capacity and proper grounding before installation. Professional electrical connection following local electrical code and NEC standards is recommended for safety and liability protection. Most tire shops already have 110V circuits available, but confirming adequate circuit capacity prevents nuisance breaker trips or voltage drop issues that can cause operational problems or equipment damage. Installing a dedicated circuit breaker or disconnect switch specific to this equipment protects the machine and provides emergency shutoff capability required by safety codes. Shops should verify that their facility's electrical system can support the R146RPS alongside other equipment without overloading circuits during peak operation when multiple machines may run simultaneously.

Operating pressure of 115 to 145 PSI is required for the bead breaker, helper arm, and wheel lift systems during normal operation. Ensure your shop air compressor maintains this pressure consistently and has capacity to supply multiple pneumatic devices simultaneously during peak workflow. Many smaller shops discover that their existing air systems cannot maintain adequate pressure when the R146RPS runs alongside other pneumatic tools, creating performance degradation or pressure fluctuations that affect bead breaker consistency and helper arm response. Shops running high-volume service should assess current air system capacity and consider compressor upgrade if maximum pressure drops below 130 PSI during multi-device operation. Proper air system design with adequate receiver tank capacity and pressure regulation ensures fast cycle times and prevents technician frustration from slow helper arm or bead breaker response. Including air quality considerations like filtration and moisture control prevents costly pneumatic component failures and maintains long-term equipment reliability in humid or wet shop environments.

Yes, the R146RPS is specifically engineered to service 19.5-inch truck tire assemblies. The machine accommodates maximum tire diameters of 45 to 46 inches with reinforced frame and extended clamping range to safely handle larger, heavier wheel assemblies common to light commercial vehicles. Standard tire changers designed for passenger cars cannot accommodate the rim geometry and tire sidewall dimensions of 19.5-inch applications without compromising grip or creating safety hazards. The R146RPS addresses this limitation with purpose-built construction rated for the weight and leverage forces created by oversized tires and wheels. Fleet operations and commercial shops benefit by serving a complete range of light-duty and light-commercial vehicle classes on a single machine without outsourcing tire service or maintaining multiple equipment types. The reinforced swing arm and clamping system provide the structural support necessary for safe operation with these heavier assemblies, while the extended bead breaker opening accommodates the larger sidewall profiles and reinforced bead construction typical of truck tires.

The machine includes 3-year coverage on functional components including frame, swing arm assembly and mechanical elements, plus 1-year labor coverage. Warranty is valid for original purchaser only and non-transferable between owners or facilities. Regular pneumatic maintenance and air line cleaning are required to maintain coverage validity and ensure safe operation throughout the equipment's service life. The 3-year structural coverage substantially exceeds typical 1-year industry standards for commercial equipment, reflecting the durability of the R146 series platform. However, shops must perform routine maintenance including air line condensation draining, pneumatic seal inspection, and component lubrication as specified in the manufacturer manual to preserve warranty eligibility. Shops neglecting air system maintenance risk seal degradation, moisture contamination, and operational failures that manufacturers may consider non-warranty situations resulting from improper maintenance. Understanding these requirements upfront prevents coverage disputes and helps shops maintain equipment performance and safety standards throughout the warranty period.
