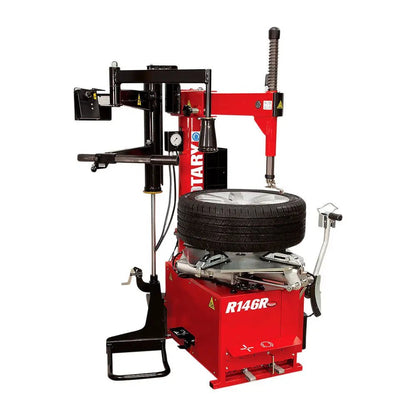

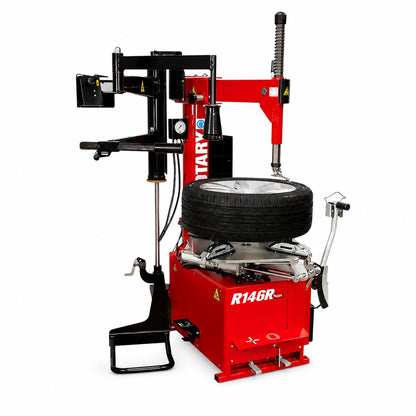

Rotary R146RP - Air-Operated Swing Arm Tire Changer for 19.5" Assemblies
The Rotary R146RP is a professional swing arm tire changer engineered for high-volume tire shops and fleet service centers handling passenger, light truck, and 19.5" tire assemblies. Built on the proven R146 platform with an air-operated motor, this machine delivers the durability and precision required for commercial tire service operations.
Key Features & Benefits

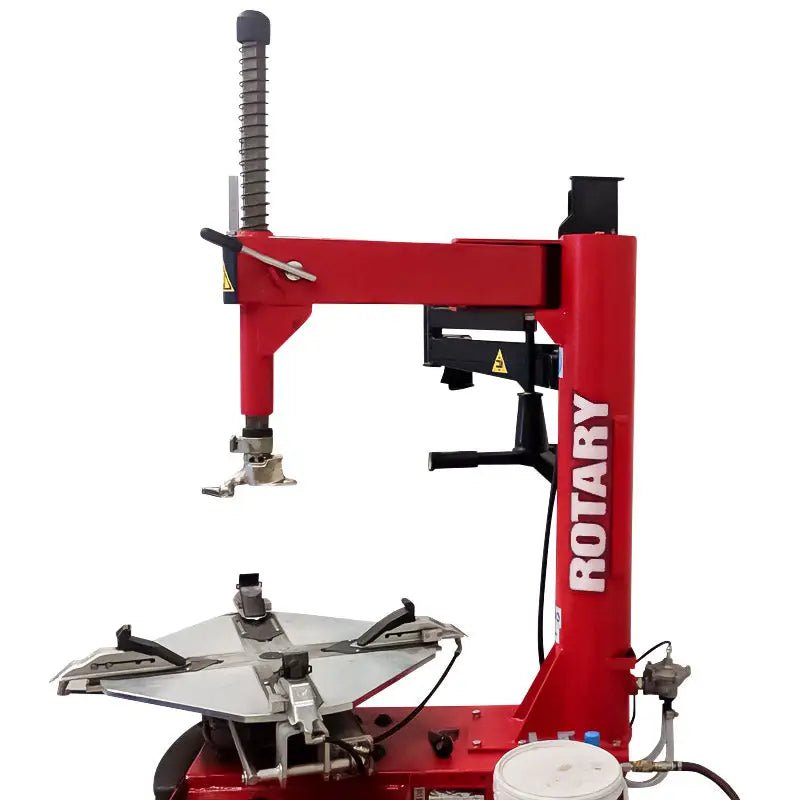

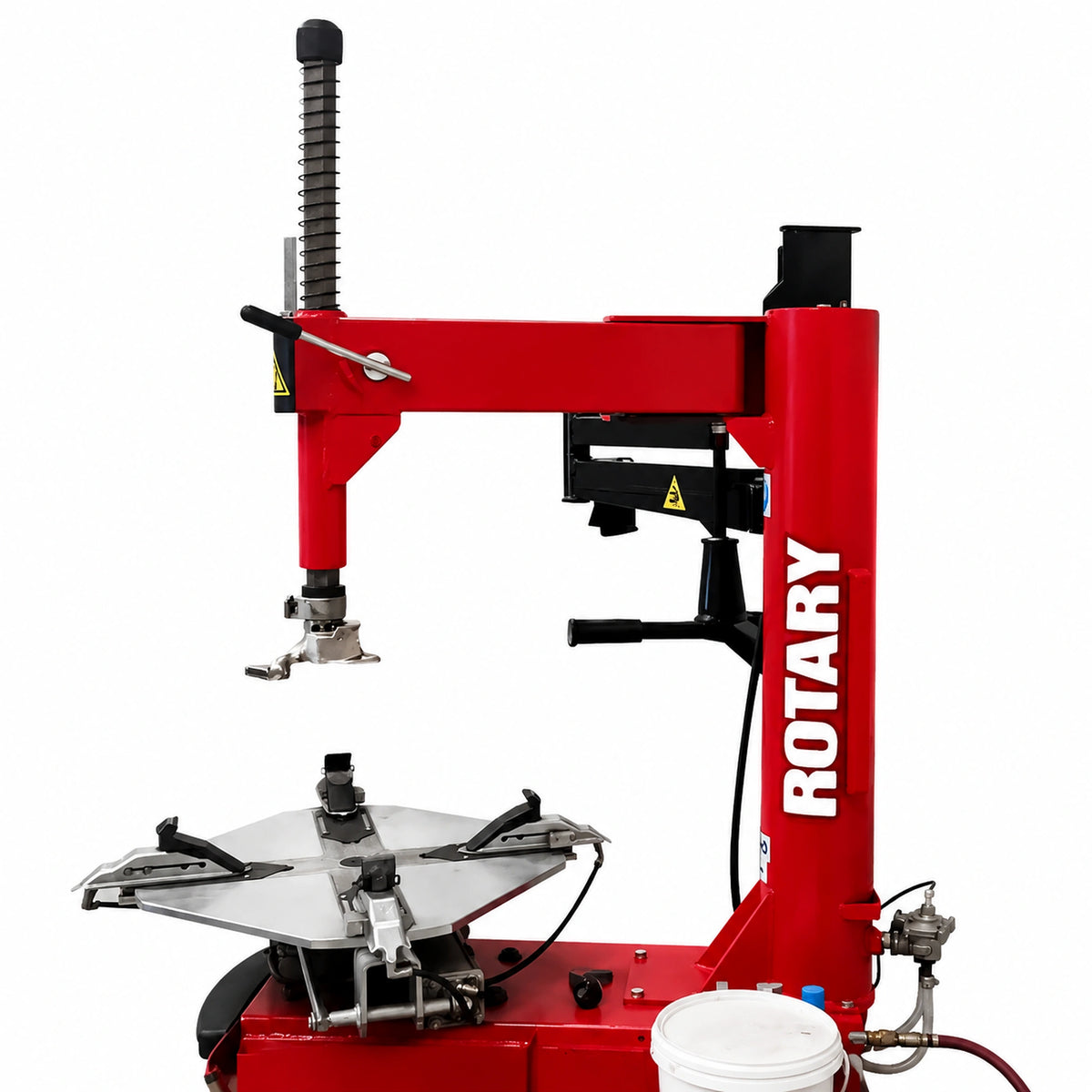

Reinforced R146 Frame Design
The R146RP features a reinforced frame with an extra-height vertical post engineered from heavy-gauge steel. This structural approach delivers exceptional stability during mounting and demounting operations while accommodating tire assemblies up to 46 inches in diameter and 15 inches in width.
High-volume tire shops regularly process heavier and stiffer tire constructions on medium and heavy-duty trucks. Traditional frames with standard height or lighter gauge construction lack the rigidity needed for consistent performance across diverse tire types and load conditions.
This enables safer, more precise tire service by maintaining arm position and control throughout each operation. The reinforced structure reduces deflection and vibration, improving the accuracy of both mounting and demounting phases.

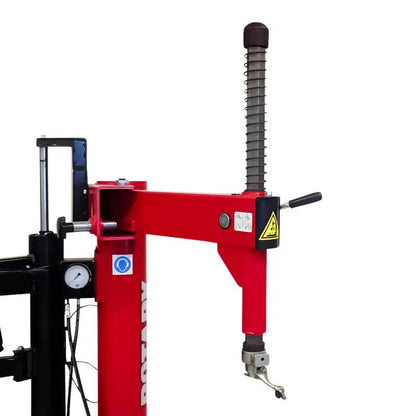

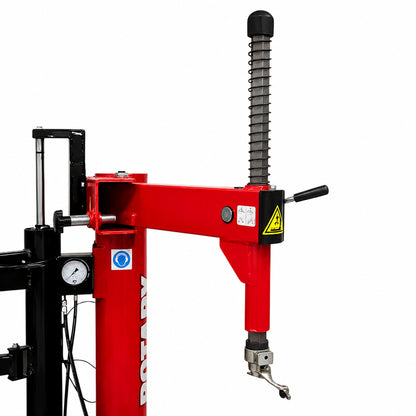

Swing Arm Tool Design for Superior Accessibility
The swing arm configuration positions the mount/demount tool heads on a rotating arm rather than a fixed vertical post. This design allows technicians to work from multiple angles around the tire assembly, reducing awkward body positioning and improving tool control during both mounting and bead breaking operations.
Standard fixed-arm systems restrict technician movement and accessibility, requiring repositioning of the vehicle or wheel multiple times during service. Swing arm designs address this by enabling the tool to move to the technician rather than requiring the technician to move around the equipment.
This improves workflow efficiency and reduces fatigue during high-volume operations. The improved accessibility also enables better visibility of tire bead engagement and rim contact points throughout the entire mounting process.

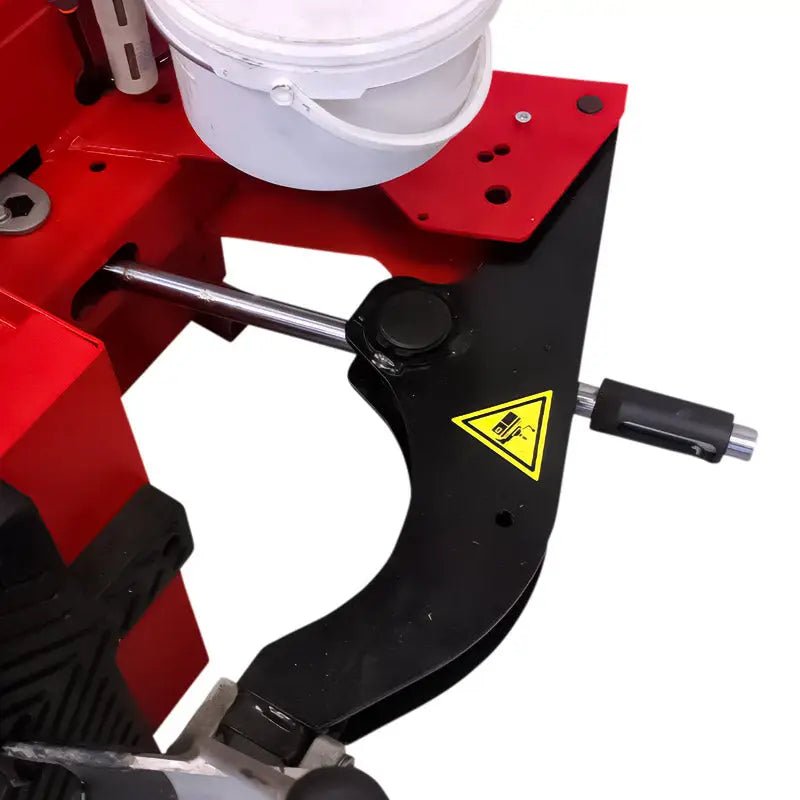

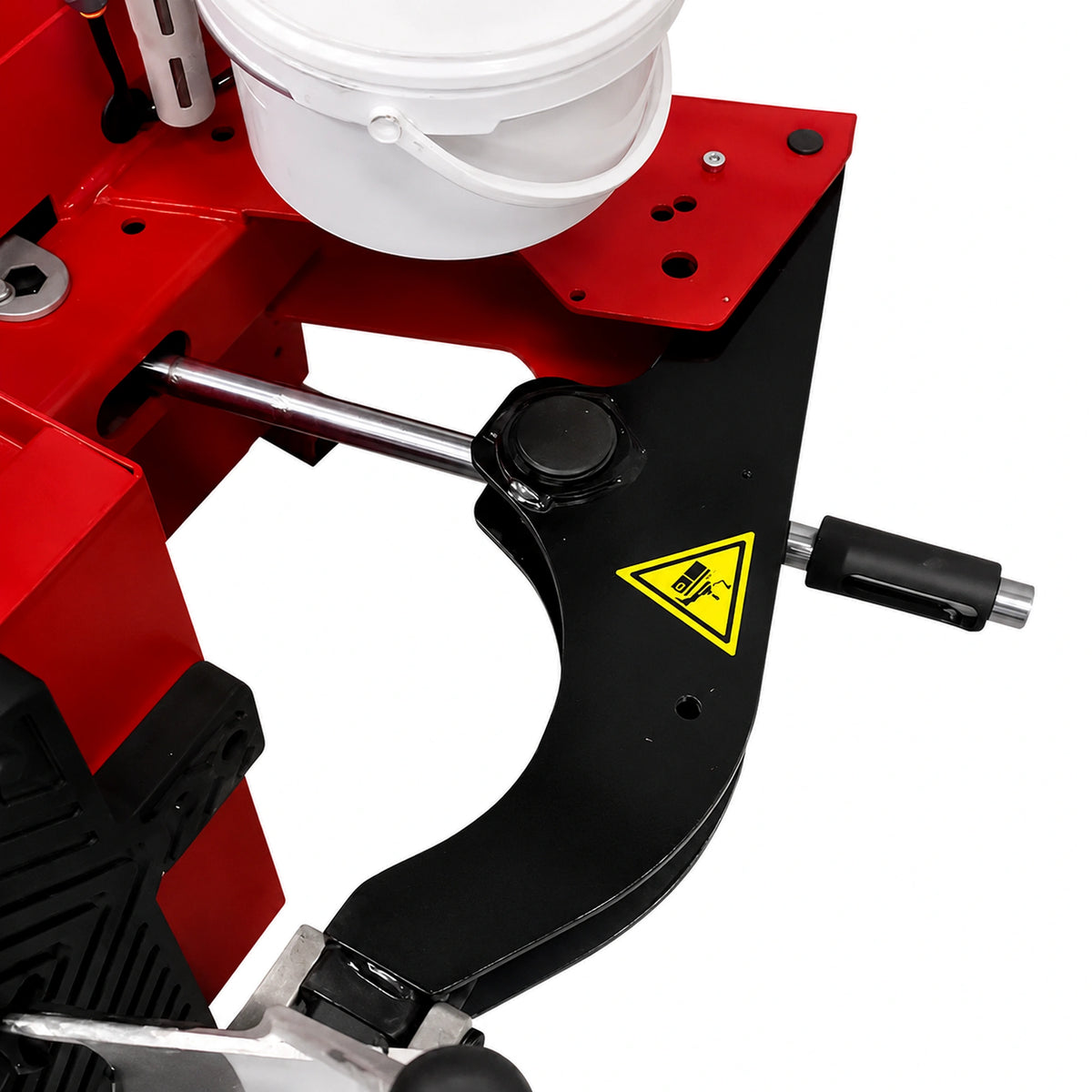

Double-Acting Pneumatic Bead Breaker System
The R146RP delivers approximately 6,745 lbs of bead breaker force at approximately 145 PSI through a double-acting pneumatic mechanism with an approximately 15-inch bead breaker opening. This force is sufficient to separate tire beads from rim edges on passenger tires through heavy-duty commercial truck tires.
Traditional single-acting or manual bead breaker systems require excessive operator force or result in incomplete bead separation on heavy-duty tire assemblies. This directly impacts service time and increases the risk of tire or rim damage during demounting.
This enables faster bead separation with consistent force application, reducing technician fatigue and improving safety during the critical demounting phase. The pneumatic actuation responds instantly to operator input without requiring significant manual force.
Pneumatic Motor for Flexible Shop Power Requirements
The R146RP substitutes an air-operated drive motor for the electric motor found in the R146R variant. This pneumatic approach delivers approximately 885 ft-lbs of torque (1,200 Nm) at the chuck while eliminating the requirement for high-amperage electrical circuits (typically 230V or 460V three-phase power).
Shops with established pneumatic infrastructure or those lacking capacity for additional high-amperage electrical loads face installation challenges with standard electric tire changers. Pneumatic motors also offer inherent overload protection through pressure regulation, preventing motor stalling under jam conditions.
This enables seamless integration into pneumatic-focused shop environments and reduces electrical infrastructure costs. The air motor's consistent torque delivery ensures smooth rim rotation across varying tire and rim friction conditions without requiring variable frequency drives or complex electrical controls.

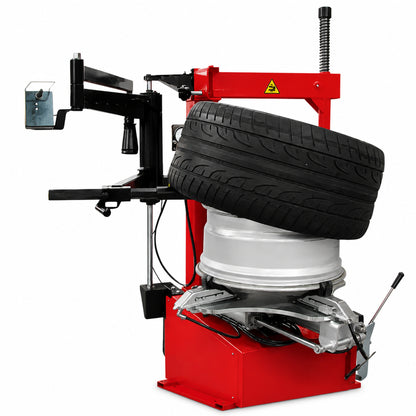

External and Internal Rim Clamping Versatility
The R146RP accommodates both external rim clamping (10" to 26" range) and internal rim clamping (12" to 28.5" range), enabling service of passenger tires through specialized commercial truck wheel designs. External clamping supports conventional wheel designs, while internal clamping provides secure grip on deep-dish and custom wheel architectures common on lifted trucks.
Fleet service centers and independent shops must handle multiple wheel configurations without relocating equipment or investing in platform-specific machines. Dual clamping capability directly expands the accessible market and service revenue per unit installed.
This extends the machine's applicability to diverse wheel designs and fleet compositions. The wide clamping ranges accommodate both metric and imperial sizing standards, reducing the need for separate machines or manual rim adaptation approaches.

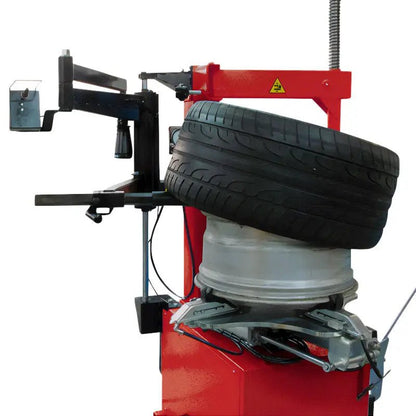

Helper Arm Compatibility for Enhanced Performance
The R146RP accommodates optional helper arms (sold separately) that assist with difficult or stiff tire mounting operations. These external assist tools engage with the machine's structure to provide mechanical advantage during mounting phases without modifying the core machine design.
Shops processing high volumes of commercial truck tires frequently encounter stiff sidewalls and tight bead-to-rim fits requiring additional force application. Manual assist techniques increase technician fatigue and extend service time per tire, directly impacting shop throughput and labor efficiency.
This enables optional addition of assist capability to the R146RP without purchasing a larger or more powerful machine. The compatibility approach allows shops to scale capability as tire load composition changes, matching equipment investment to actual workflow demands.
Product Demonstration
Applications & Use Cases
- Automotive Tire Shops: Retail and independent tire service centers handling passenger vehicle through light truck tire assemblies on a daily basis.
- Fleet Service Centers: Operations managing multi-vehicle commercial fleets that require consistent tire maintenance and replacement across diverse vehicle types and tire specifications.
- Light and Medium Truck Service: Facilities specializing in pickup trucks, cargo vans, and medium-duty commercial vehicles requiring professional tire mounting and demounting equipment.
- Commercial Garages: Full-service automotive repair facilities integrating tire service as part of broader vehicle maintenance operations.
- High-Volume Tire Operations: Shops processing 50+ tire changes daily and requiring equipment capable of sustained performance without service downtime.
Technical Specifications
| Specification | Value |
|---|---|
| External Clamping Range | 10" to 26" |
| Internal Clamping Range | 12" to 28.5" |
| Maximum Tire Diameter | Approximately 46" |
| Maximum Tire Width | 15" |
| Bead Breaker Opening | Approximately 15" |
| Specification | Value |
|---|---|
| Bead Breaker Force | Approximately 6,745 lbs at ~145 PSI |
| Chuck Torque | Approximately 885 ft-lbs (1,200 Nm) |
| Motor Type | Air-operated (pneumatic) |
| Swing Arm Configuration | Rotating mount/demount tool design |
| Specification | Value |
|---|---|
| Frame Design | Reinforced heavy-gauge steel with extra-height vertical post |
| Clamping System | External and internal rim clamping with protective clamp pads |
| Bead Breaker Type | Double-acting pneumatic mechanism |
| Tool Head Options | Plastic and metal mount/demount tool heads included |
Installation Requirements
Compressed Air Supply
- Shop Air Pressure: Approximately 115 to 145 PSI for optimal air motor and bead breaker operation.
- Air Quality: Clean, dry compressed air recommended to prevent moisture and contamination from affecting pneumatic components.
- Air Hose Compatibility: Standard pneumatic quick-disconnect fittings; verify coupling specifications match your shop's compressed air delivery system.

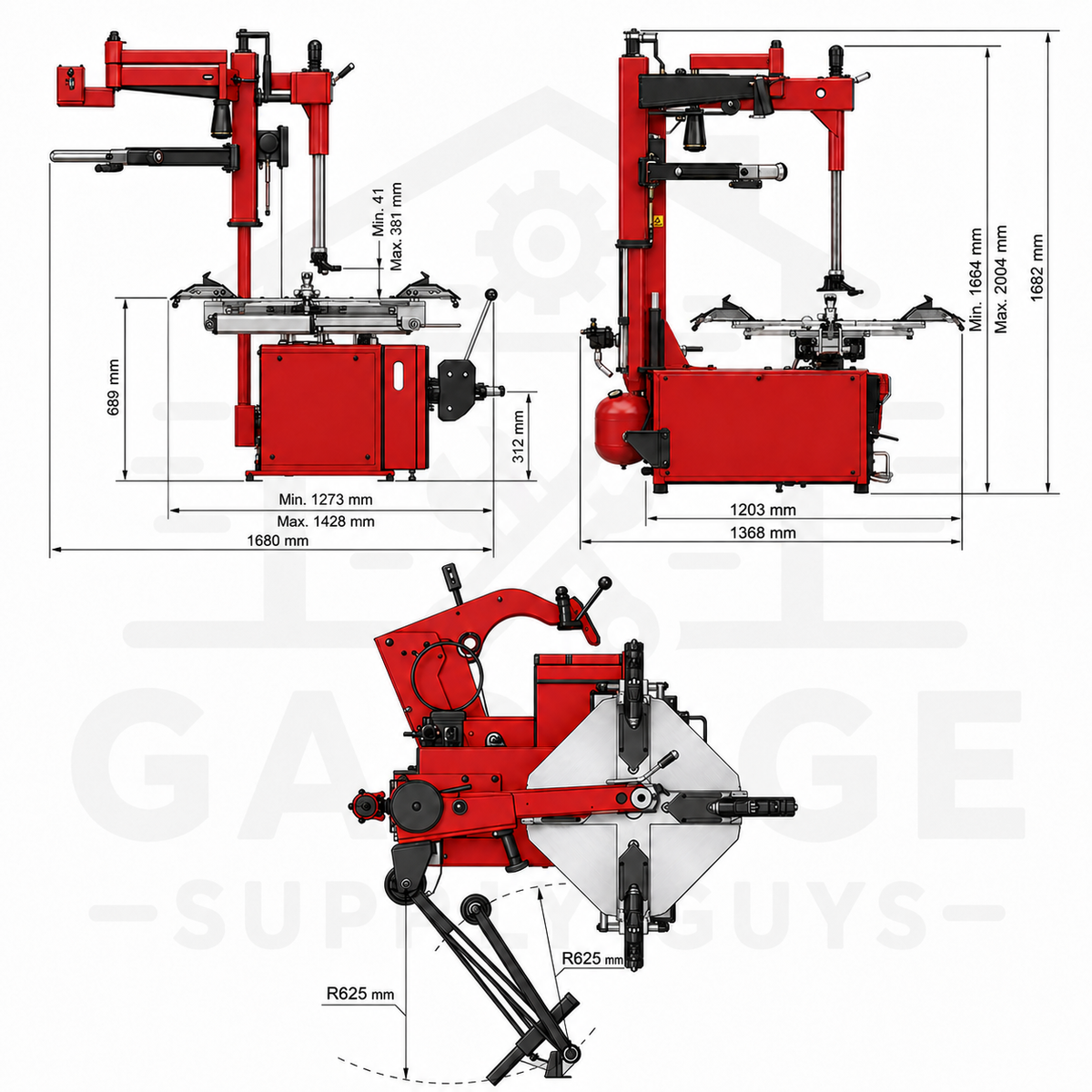

Floor Space and Clearance
- Footprint: Adequate floor space required to accommodate the swing arm movement arc during mounting and demounting operations.
- Swing Arm Clearance: Minimum clearance on all sides of the machine to prevent interference with the rotating swing arm during operation.
- Vertical Clearance: Sufficient ceiling height to service tire assemblies up to 46 inches in diameter without interference.
- Technician Access: Space for technician positioning around the machine from multiple angles during tire service operations.
Installation Notes
- Anchor Verification: Consult the manufacturer installation manual for floor mounting and anchor specifications appropriate for your facility's concrete and structural conditions.
- Pneumatic Connections: Verify your shop's compressed air system capacity exceeds the machine's demand to prevent pressure drops during peak operation.
- Permits: Verify local code compliance and permit requirements before installation; some jurisdictions require equipment installation certification.
What's Included
Standard Machine Components
- Swing Arm Mount/Demount Tool Heads - Plastic and metal configuration options for diverse rim material compatibility
- Double-Acting Pneumatic Bead Breaker - Integrated mechanism delivering consistent 6,745 lbs force
- Clamp Protectors and Tool Protection Kit - Accessories for protecting wheel finishes during clamping operations
- Tire Paste and Application Brush - Lubricant and application tools for bead mounting
- Accessory Storage Tray - Integrated storage for small tools and consumables
Optional Accessories (sold separately): Helper arms and additional tool head configurations available to customize the machine for specific fleet or material applications. Call to confirm specific accessory availability and compatibility with your application.
Warranty Coverage
Standard Rotary Warranty Program
3 Years - Parts: Coverage for manufacturing defects in all structural and mechanical components during normal use.
1 Year - Labor: Manufacturer support for covered warranty claims including technical assistance and authorized service center access.
Warranty Requirements
Eligibility: Warranty coverage valid for the original purchaser; coverage may be non-transferable (verify specific terms with manufacturer).
Installation: Installation must follow manufacturer guidelines outlined in the installation manual to maintain warranty validity.
Maintenance: Regular maintenance and servicing according to the manufacturer's maintenance schedule supports warranty protection.
Ready to Upgrade Your Tire Service Operation?
Get expert guidance on the Rotary R146RP and confirm specific installation requirements for your facility. Our team can help with product selection, air supply specifications, and technical configuration details.
Frequently Asked Questions
What is the external and internal clamping range of the Rotary R146RP ?
The R146RP handles 10" to 26" external clamping and 12" to 28.5" internal clamping, accommodating wheels from passenger vehicles through light trucks and commercial applications.
What compressed air pressure is required for the R146RP air motor and bead breaker?
The machine operates optimally at approximately 115 to 145 PSI shop air pressure. Verify your compressed air system can deliver this pressure range without significant drops during peak operation when other equipment is running.
What is included with the Rotary R146RP ?
The machine includes swing arm mount/demount tool heads in both plastic and metal configurations, a double-acting pneumatic bead breaker, clamp protectors, tire paste with brush, and an accessory storage tray. Optional helper arms are sold separately.
What is the maximum tire diameter and width the R146RP can service?
The R146RP accommodates tire assemblies up to approximately 46 inches in diameter and 15 inches in width, supporting passenger tires through heavy-duty commercial truck tire applications.
How is the R146RP different from the R146R electric model?
The R146RP uses an air-operated (pneumatic) motor instead of an electric motor, eliminating the need for high-amperage electrical circuits. Both models share the same reinforced frame, clamping ranges, and performance specifications. Choose based on your shop's existing power infrastructure.
What warranty coverage does the Rotary R146RP include?
The R146RP includes 3 years of parts coverage and 1 year of labor coverage under the standard Rotary warranty program. Warranty eligibility requires proper installation following the manufacturer manual and regular maintenance.
Can the R146RP work with optional helper arms?
Yes, the R146RP is compatible with optional helper arms (sold separately) to provide mechanical assist during difficult tire mounting operations, improving efficiency and reducing technician fatigue.
What bead breaker force does the R146RP deliver?
The R146RP double-acting pneumatic bead breaker delivers approximately 6,745 lbs of force at approximately 145 PSI, providing consistent bead separation across passenger tire through heavy-duty commercial truck tire applications.
