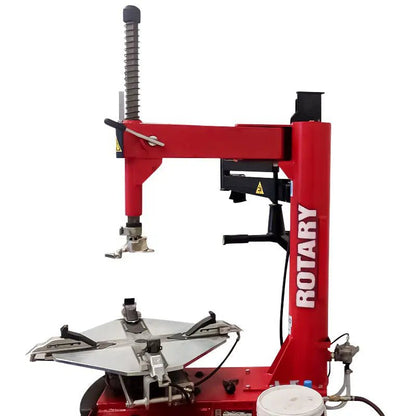

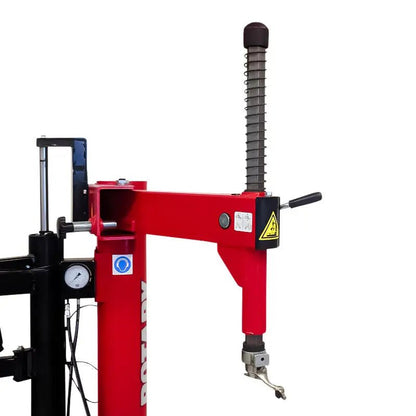

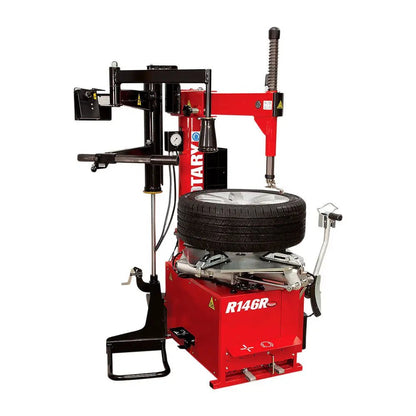

ROTARY R146RAPS Super Swing Arm Tire Changer w/ Helper Arm & Wheel Lift 19.5" (w/ Assist)

The R146RAPS features an air-driven PLUS91A pneumatic helper arm and integrated pneumatic wheel lift, providing automated bead assistance and wheel positioning not available on base models. These pneumatic systems operate from the shop air supply at 115-145 PSI, enabling faster cycle times and reduced technician fatigue compared to manual helper arm designs. The super accessories package includes bead rollers, protectors, and storage that base models require as separate purchases. Base R146 models cost less but require technicians to manually position helper arms and handle wheels without lift assistance, resulting in slower service cycles and higher physical demands. The R146RAPS addresses these limitations through pneumatic automation, delivering higher throughput and improved ergonomics for high-volume operations. Shops choosing between models should compare total acquisition cost, expected service volume, and technician retention objectives when evaluating base versus super configurations.

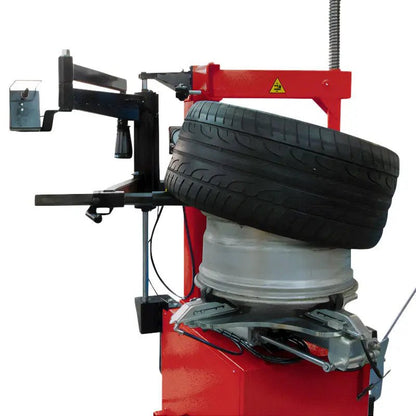

The PLUS91A helper arm integrates directly into the R146RAPS pneumatic control system, receiving power and command signals through unified shop air supply and pneumatic valve operation. This integration enables synchronized operation with the bead breaker and wheel lift systems, ensuring all pneumatic functions respond together to technician control inputs without timing delays or separate control modules. Unlike aftermarket helper arms that require separate air lines and control valves, the factory-integrated PLUS91A simplifies installation and maintenance while guaranteeing compatibility with original equipment specifications. Technicians do not need to learn separate control sequences or manage multiple independent systems, improving training efficiency and reducing operational errors. The unified control architecture enables experienced operators to coordinate bead breaking, helper arm assist, and wheel lift operations seamlessly throughout service cycles, optimizing workflow efficiency and minimizing demounting cycle times on challenging tires.

The R146RAPS requires 115-145 PSI operating pressure for all pneumatic systems including the PLUS91A helper arm, wheel lift, and bead breaker. Most shops find that a 5-10 horsepower compressor with adequate receiver tank capacity can maintain this pressure during typical service operations. However, if your shop runs multiple pneumatic tools simultaneously such as impact wrenches, grinders, and air sanders alongside the tire changer, you may need larger compressor capacity to prevent pressure drop during peak demand. Pressure drop below 130 PSI significantly reduces bead breaker force and helper arm response speed, slowing service cycles and frustrating technicians. Professional installation includes assessment of existing air system capacity and recommendations for compressor upgrades if required. Shops considering R146RAPS installation should have compressed air system evaluated before equipment delivery to prevent performance issues and ensure fast cycle times from initial operation.

Yes, the R146RAPS is specifically designed for 19.5-inch truck tire service with maximum tire diameter capacity of 45-46 inches. The extra-large reinforced frame and extended clamping range from 10-26 inches external and 12-28.5 inches internal provide the structural capacity for heavier wheel assemblies typical of commercial vehicles. The 15-inch bead breaker opening accommodates larger sidewalls characteristic of oversized truck tire applications without rim contact or damage. Standard tire changers designed for passenger vehicles cannot accommodate these dimensions safely, forcing shops to either maintain separate equipment or outsource commercial tire service. The R146RAPS consolidates both passenger and commercial tire service to a single platform, improving scheduling flexibility and eliminating equipment duplication costs. Fleet operators and commercial shops benefit from unified service capability supporting vehicle class diversity within their operations.

The bead breaker delivers 6,745 foot-pounds of force at 145 PSI using a double-acting pneumatic cylinder design. This force level is engineered for professional and high-volume shop environments, providing power for reinforced truck and commercial tire constructions while remaining controlled enough for delicate high-value alloy wheels and performance tires. The symmetric force distribution prevents rim cracking and sidewall damage that can occur with single-stage designs or manual breaking methods. Hand-controlled pneumatic operation enables technicians to adapt pressure application to specific tire and wheel characteristics, preventing damage on specialty constructions like low-profile performance tires or custom alloy wheels. Shops processing diverse tire types benefit from this precision control capability without requiring separate machines for different tire categories.

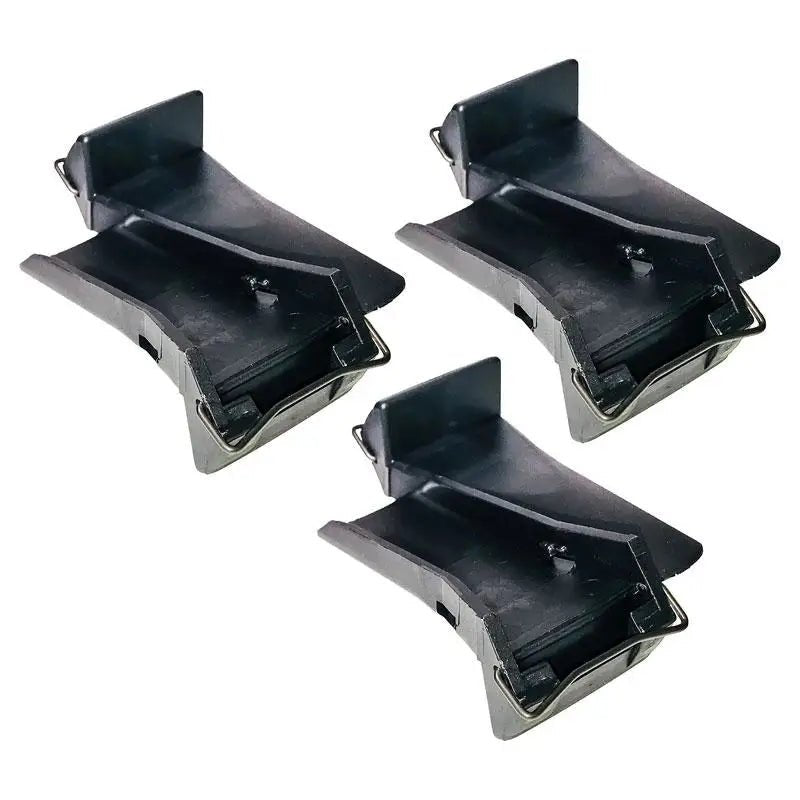

The complete package includes the PLUS91A pneumatic helper arm, integrated wheel lift, bead pressing rollers, clamp and breaker protectors, mount and demount tool heads in both plastic and metal, tire lubrication paste with brush, and organized component storage tray. All items are factory-integrated and require no additional purchases to achieve full operational capability. Unlike base models requiring separate aftermarket accessories, the super package arrives complete and ready for service operations. The factory-bundled approach ensures all accessories are compatible with original equipment specifications and pneumatic system design, eliminating compatibility questions and timing delays that occur when sourcing separate components. Shops benefit from reduced total acquisition costs compared to purchasing base equipment plus multiple aftermarket additions. The organized storage approach maintains tool availability and prevents equipment loss, supporting consistent shop organization and efficient workflow in busy service environments.

The R146RAPS includes 3-year coverage on functional components including frame, swing arm, and mechanical systems, plus 1-year labor coverage for authorized service repairs. Warranty is valid for original purchaser only and non-transferable between owners or facilities. Regular pneumatic maintenance including air line condensation drainage, seal inspection, and component lubrication is required to maintain warranty validity throughout the coverage period. The 3-year structural coverage substantially exceeds typical 1-year industry standards for commercial equipment, reflecting the durability engineering of the R146 platform. However, shops must perform routine maintenance as specified in the manufacturer manual to preserve warranty eligibility and prevent seal degradation from moisture contamination. Shops neglecting air system maintenance risk seal failures and operational problems that manufacturers may consider non-warranty situations resulting from inadequate maintenance. Understanding these requirements prevents coverage disputes and helps maintain equipment performance and safety compliance throughout the warranty period and beyond.

The removable pedal assembly enables fast access to control systems and pneumatic valves without disassembling the main frame structure. When pedal components or control valves require replacement, technicians can remove the module in approximately 30 minutes rather than disassembling the entire machine, significantly reducing maintenance downtime. This design approach extends equipment lifespan by enabling preventive maintenance and component replacement before catastrophic failures occur, protecting the capital investment over extended operational life. Fixed pedal designs require hours of disassembly for routine maintenance, creating unacceptable downtime in high-volume shops where equipment availability directly impacts revenue and technician productivity. The modular approach dramatically reduces maintenance costs and enables shops to schedule preventive care during slow operational periods without major scheduling disruptions. Shops operating 24-hour or extended shift operations particularly benefit from rapid component access that minimizes equipment out-of-service duration when maintenance becomes necessary.
