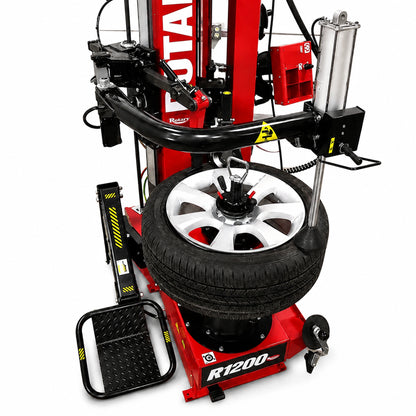

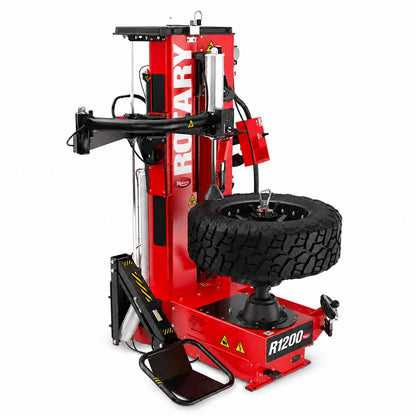

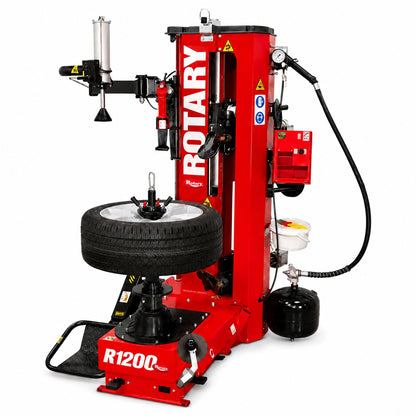

Rotary R1200 - Auto Center-Post Leverless Tire Changer with Dual Bead Rollers
The Rotary R1200 is a professional-grade leverless tire changer featuring synchronized dual bead rollers for precise, low-risk tire mounting and demounting. Engineered to service passenger and light truck wheels including low-profile, run-flat, reverse-mount, and high-value alloy rims, this system minimizes wheel damage while maximizing technician efficiency.
Key Features & Benefits

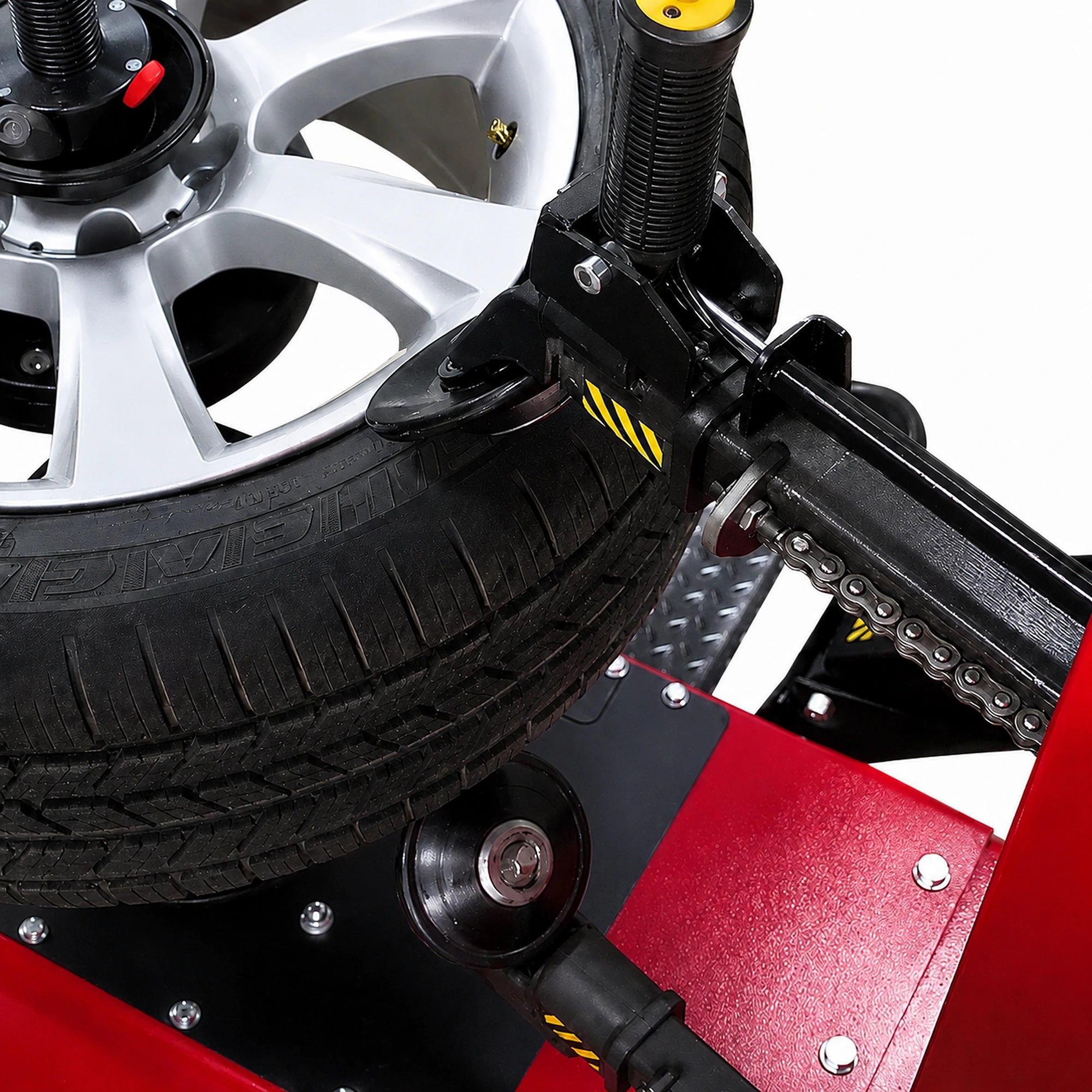

Synchronized Dual Bead Roller System
The R1200 features two coordinated bead rollers that work in tandem to separate tire from rim during demounting and guide tire onto rim during mounting. This synchronized configuration delivers 2,645 ft-lbs of breaking force per roller, providing balanced pressure distribution that prevents rim deformation and extends wheel life.
Traditional single-roller or tool-based changers apply uneven force, leading to increased rim damage and extended service times. The dual-roller architecture addresses this industry-wide challenge by distributing load symmetrically across the tire circumference, ensuring consistent, controlled bead separation regardless of tire stiffness or rim condition.
This enables faster cycling times while maintaining the precision required for premium wheel service. Technicians experience immediate feedback through smooth, predictable roller motion, reducing the skill variance between experienced and newer shop personnel.

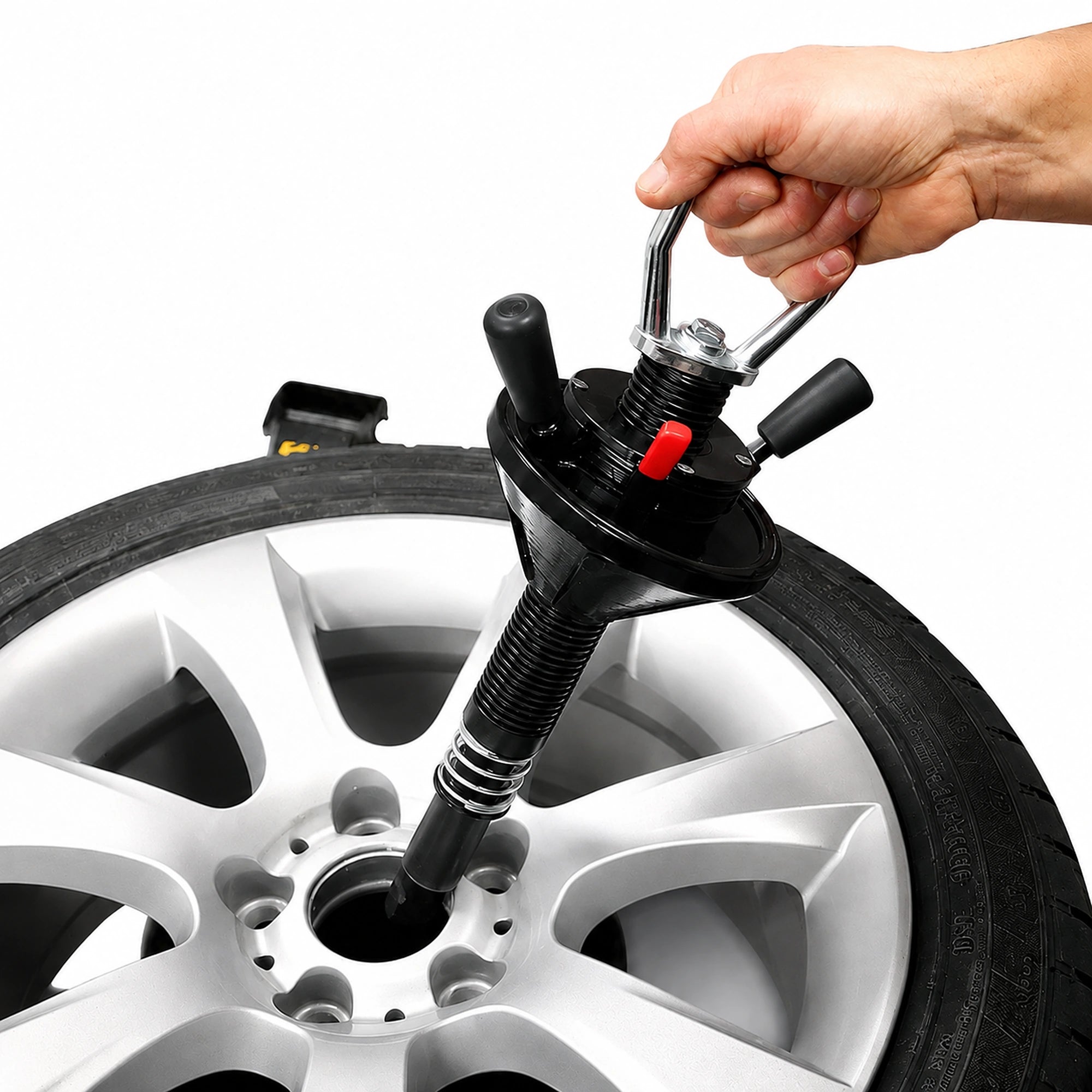

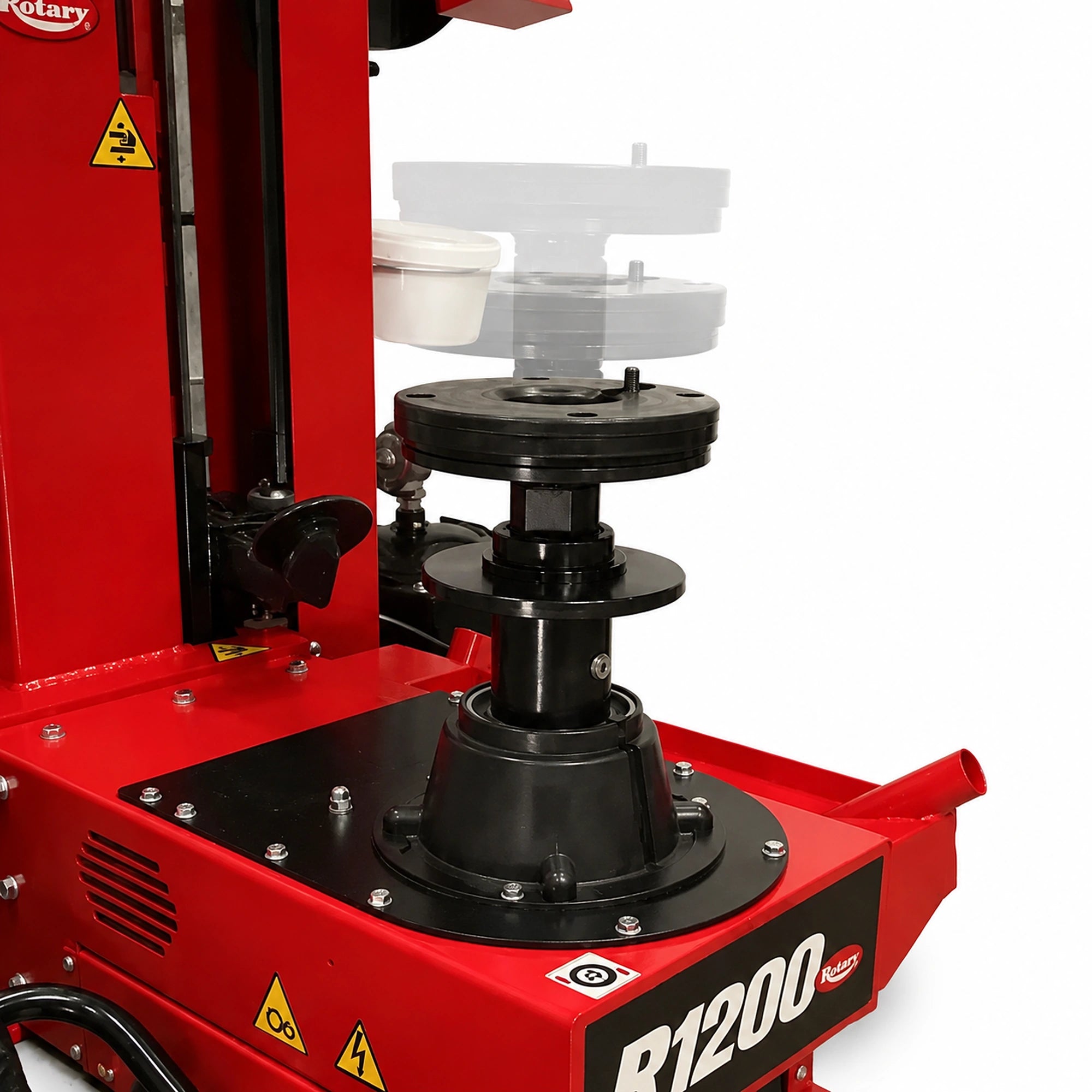

Auto Center-Post Clamping Architecture
The adjustable center-post clamping system uses automatic centering for precise wheel positioning during service operations. The quick-locking post accommodates wheels from 10 to 30 inches in diameter while maintaining rigid positioning throughout the mounting cycle, critical for maintaining bead roller alignment when handling reserve-mount or off-center wheels.
Traditional manual or fixed-height posts struggle with reverse-rim wheels and asymmetric load distribution. This auto-centering design addresses the growing demand for specialty wheel service by automatically compensating for rim variations while maintaining vertical stability, enabling shops to service premium performance wheels that require precision handling.
This eliminates manual repositioning and centering adjustments, reducing cycle time and improving consistency. The shop gains the flexibility to service a wider range of wheel types without additional setup or specialized fixtures.
Variable-Speed Inverter Motor with Precision Control
The 2 HP (1.5 kW) variable-speed inverter motor operates across a controlled range of 0-15 RPM, enabling technicians to adjust bead roller speed in real time based on tire stiffness, material, and mounting difficulty. Slow-speed operation (1-3 RPM) provides maximum control during low-profile or run-flat tire mounting, while higher speeds (8-15 RPM) accelerate standard tire service.
Fixed-speed or manually-controlled tire changers cannot adapt to the variety of modern tire constructions, from ultra-stiff run-flat compounds to soft performance tires. Variable-speed inverter technology addresses this by allowing technicians to dial in the exact speed needed for each tire type, preventing slippage, bead damage, and incomplete seating that plague speed-only systems.
This precision control improves customer satisfaction by protecting expensive wheels and sensitive tire sidewalls. The shop achieves faster throughput with fewer tire mounting failures and customer returns related to damage or improper seating.
Integrated Pneumatic Wheel Lift and Press System
The R1200 includes a built-in pneumatic wheel lift and pneumatic bead press arm as standard equipment, eliminating the need for external lift tables or manual tire positioning. Technicians simply roll the wheel into position on the pneumatic lift platform, engage the press arm, and begin the mounting cycle—reducing setup steps from 4-5 to a single action.
Shops without integrated lift systems require technicians to manually position wheels at working height, manage separate bead-breaking tools, and coordinate multiple equipment pieces. This adds fatigue, setup time, and introduces inconsistency. The integrated approach addresses ergonomic strain and throughput constraints by centralizing tire handling and bead preparation in one system.
This improves technician comfort during high-volume days, reduces musculoskeletal fatigue, and accelerates shop workflow. The system's pneumatic operation is responsive and requires minimal maintenance, directly supporting uptime and operator productivity.
Heavy-Duty Construction for High-Volume Service
The R1200 is engineered with robust structural components and heavily-forged steel bead rollers designed to withstand high-volume automotive tire shop operations. All wear surfaces are precision-machined, and the mounting base provides stable support for 45-inch diameter tires at maximum service load without deflection or instability during operation.
Entry-level tire changers use lighter construction materials and smaller bead roller assemblies, leading to accelerated wear, increased maintenance downtime, and inconsistent performance as the machine ages. The R1200's premium construction approach addresses the needs of shops handling 30-50+ tire services per day by delivering consistent performance across extended service cycles without degradation in grip force or bead roller alignment.
This translates to reduced maintenance intervals and extended equipment life. Shops benefit from improved reliability during peak volume periods and lower total cost of ownership when amortized across the equipment's operating life.
Inflation Station and Complete Tire Service Integration
The integrated inflation station allows technicians to mount, balance-check, and inflate tires in one location without moving wheels to separate workstations. The station includes pressure regulation and gauging, enabling operators to achieve proper inflation pressure immediately after mounting and before delivery to the customer.
Traditional workflows require moving tires to separate inflation or pressure-check areas, increasing material handling, setup time, and risk of incomplete service. Integrated inflation addresses this by consolidating the final service step, reducing cycle time and ensuring every tire leaves the shop properly inflated and ready for road testing.
This improves shop efficiency and customer satisfaction by eliminating the need for pressure verification during vehicle pickup. The consolidation also reduces the chance of mounting errors being missed, strengthening service quality and reducing customer returns for pressure or seating issues.
Product Demonstration
Applications & Use Cases
- High-Volume Automotive Tire Shops: Premium leverless performance for shops completing 30-50+ tire services daily, minimizing wheel damage and maximizing customer satisfaction with luxury vehicle fleets.
- Performance and Specialty Wheel Service Centers: Precision handling of exotic alloys, forged wheels, and custom finishes that demand careful rim protection and exact mounting control.
- Collision and Repair Facilities: Rapid tire service for vehicles requiring post-repair wheel/tire work, with capability to handle low-profile and run-flat tires common in modern collision repairs.
- Run-Flat and Low-Profile Tire Specialists: Variable-speed and dual-roller technology specifically addresses the mounting challenges of ultra-stiff tire constructions without sidewall damage.
- Dealership Service Centers: Multi-brand capability for passenger cars, SUVs, and light trucks with factory wheel protection requirements, supporting OEM service standards.
Technical Specifications
| Specification | Value |
|---|---|
| Tire Changer Type | Auto center-post leverless |
| Leverless Operation | Yes (no traditional tire irons) |
| Bead Roller System | Synchronized dual bead rollers |
| Wheel Diameter Range | 10-30 inches |
| Maximum Tire Width | Up to 19 inches (offset-dependent) |
| Maximum Tire Diameter | 45 inches |
| Bead Breaker Force (per roller) | 2,645 ft-lbs |
| Specification | Value |
|---|---|
| Rotation Motor | 2 HP / 1.5 kW inverter motor |
| Variable Speed Range | 0-15 RPM |
| Center Post | Adjustable height, quick-locking |
| Integrated Wheel Lift | Pneumatic (standard) |
| Bead Press Arm | Pneumatic (included) |
| Inflation Station | Included with pressure regulation |
| Specification | Value |
|---|---|
| Weight | 1,100 lbs (499 kg) |

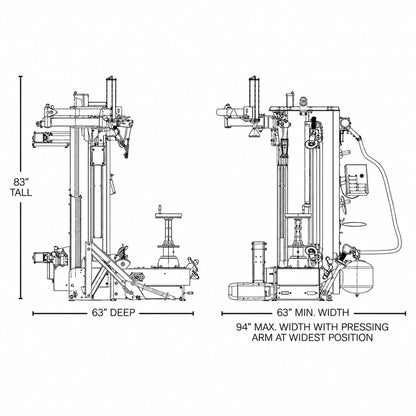

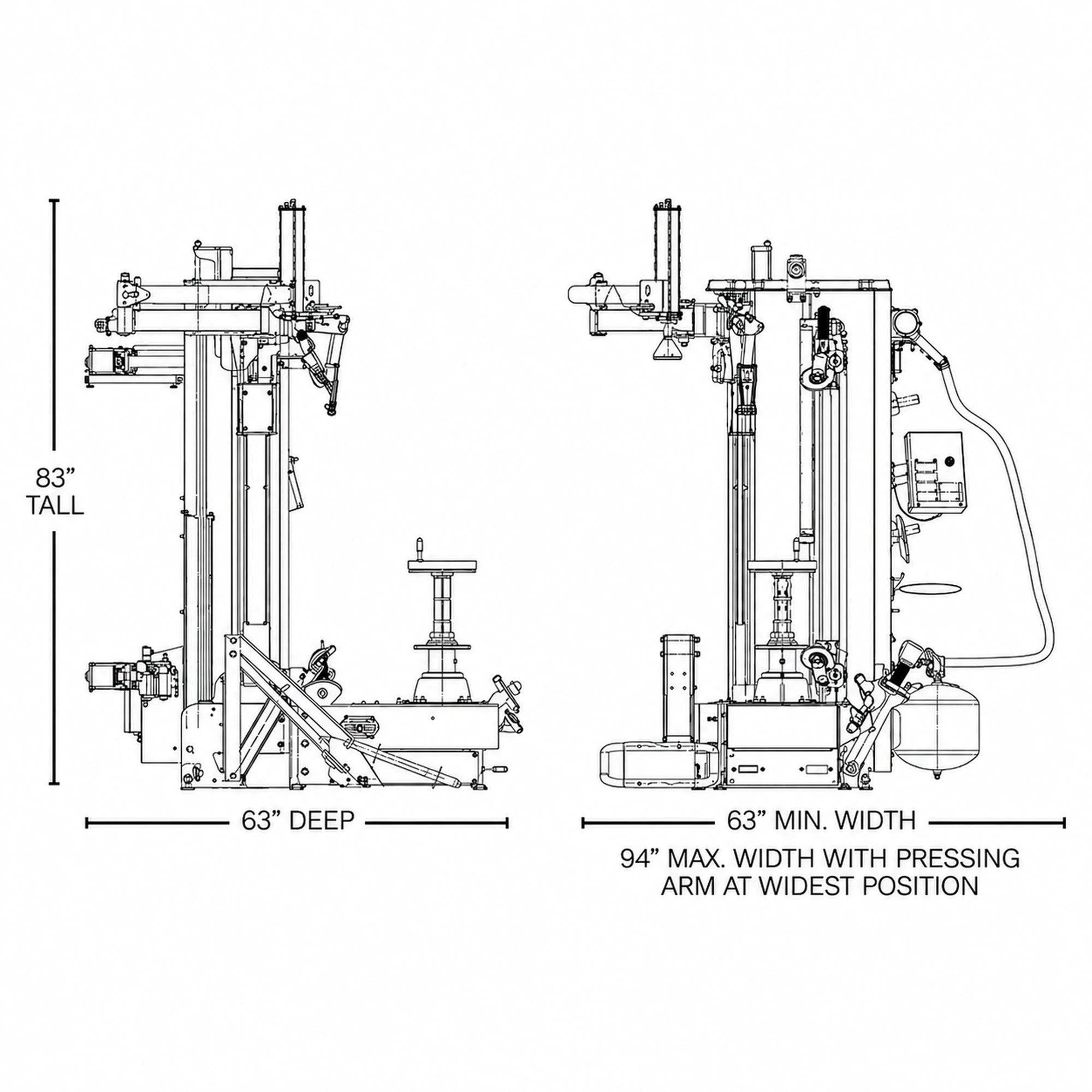

| Footprint | Compact center-post design |
Installation Requirements
Power Requirements
- Electrical Connection: 220V single-phase, 60 Hz
- Circuit Protection: Dedicated circuit with appropriate breaker rating (consult installation manual for exact amperage)
- Grounding: Equipment must be properly grounded per NEC standards and local electrical codes
Compressed Air Supply
- Operating Pressure: 115-145 PSI
- Supply Source: Dedicated shop air system capable of continuous demand during high-volume service
- Air Quality: Filtered and moisture-removed compressed air recommended for optimal pneumatic component life
Installation Space & Clearance
- Wheel Lift Clearance: Adequate overhead clearance for 45-inch tire diameter tire handling
- Work Surface: Level, stable shop floor capable of supporting 1,100 lbs concentrated load
- Technician Access: Sufficient space around all sides for wheel positioning and operator movement during service cycle
Installation Notes
- Professional Installation: Installation must be performed by qualified personnel following the manufacturer's detailed installation manual to ensure proper electrical connection, pneumatic setup, and operational safety.
- Permits: Verify local code compliance and permit requirements before installation. Electrical connection may require licensed electrician verification in some jurisdictions.
Shipping & Delivery
Freight Coverage
Shipping: LTL (less-than-truckload) freight delivery to 48 contiguous United States. Many dealers advertise free freight; verify terms with your authorized Rotary dealer.
Delivery Timeframe: Delivery typically requires 5-10 business days from order placement, subject to dealer inventory availability and regional freight schedules.
Geographic Coverage: Available to commercial shop addresses. Residential delivery may require additional coordination and cost.
Delivery & Receiving Requirements
Equipment Required: Forklift or pallet jack (minimum 2,000 lb capacity) required at delivery site for unloading. Curbside delivery is standard; inside delivery may require additional negotiation.
Receiving Inspection: Inspect the equipment and packaging before accepting delivery. Note any visible damage on the bill of lading before the driver departs your facility.
Documentation: Request freight bill and BOL documentation for installation follow-up and warranty registration purposes.
Concealed Damage Reporting
Within 15 Days: Report concealed damage (damage discovered after acceptance) to the freight carrier within 15 days for maximum coverage percentage.
Dealer Support: Contact your authorized Rotary dealer immediately if damage is suspected; they can facilitate claims processing and coordinate replacement or repair.
Warranty Coverage
3-Year Warranty Program
3 Years - Functional Parts: Coverage for structural components, bead rollers, center-post assembly, and pneumatic cylinders against manufacturing defects and mechanical failure under normal operation.
1 Year - Labor and Freight: Labor coverage for warranty repairs and freight charges for parts replacement at authorized service centers.
Warranty Requirements & Conditions
Installation: Equipment must be installed and operated per manufacturer specifications as detailed in the installation manual. Improper installation, modification, or operation voids warranty coverage.
Maintenance: Regular maintenance of pneumatic components (air filter cleaning/replacement) and general upkeep are the responsibility of the shop operator.
Coverage Scope: Covers manufacturing defects and mechanical failure; does not cover normal wear, maintenance items, or damage resulting from accident, misuse, or neglect.
Ready to Upgrade Your Shop?
Get expert guidance on the Rotary R1200 and whether it's the right fit for your facility. Our team can help with product selection, installation planning, technical specifications, and financing options.
Frequently Asked Questions
What is the wheel diameter range for the Rotary R1200?
The R1200 accommodates wheels from 10 to 30 inches in diameter, with support for tire diameters up to 45 inches maximum. Maximum tire width is 19 inches when offset-dependent conditions are met, covering most passenger cars, SUVs, and light truck applications.
What components are included with the R1200 tire changer?
The R1200 comes complete with leverless mounting tool with protective polymer interface, synchronized dual bead rollers, integrated pneumatic wheel lift, pneumatic bead press arm, adjustable center-post clamping system, inflation station, protective guards, pin protectors, tire paste, and application brush for immediate operational readiness.
What are the power and compressed air requirements for installation?
The R1200 requires a 220V single-phase electrical connection at 60 Hz and a compressed air supply capable of delivering 115-145 PSI continuously. A dedicated circuit with proper breaker protection and correctly grounded electrical connection are essential per NEC standards and local electrical codes.
Can the R1200 handle low-profile and run-flat tires?
Yes, the variable-speed inverter motor (0-15 RPM) and synchronized dual bead roller system are specifically designed for handling challenging tire constructions like low-profile and run-flat compounds without sidewall damage, providing the precision control needed for these demanding applications.
What warranty coverage does the Rotary R1200 include?
The R1200 includes 3 years of full coverage on functional parts including structural components, bead rollers, center-post assembly, and pneumatic cylinders against manufacturing defects and mechanical failure. Additionally, the warranty covers 1 year of labor costs for warranty repairs and freight charges for parts replacement at authorized Rotary service centers. Installation must follow manufacturer specifications as detailed in the installation manual to maintain warranty eligibility.
What are the key advantages of the dual bead roller system over single-roller changers?
The synchronized dual bead rollers deliver approximately 2,645 ft-lbs of breaking force per roller with balanced pressure distribution, preventing rim deformation and reducing wheel damage. This dual-roller architecture provides superior control when handling premium alloy wheels, reverse-mount designs, and specialty rims compared to single-roller or traditional tool-based systems.
What is the shipping method and delivery timeframe for the R1200?
The R1200 ships via LTL (less-than-truckload) freight to 48 contiguous United States, typically arriving 5-10 business days from order. Forklift or pallet jack (2,000 lb minimum capacity) is required for unloading at delivery. Inspect equipment before accepting delivery and report any visible damage to the freight carrier immediately.
Is professional installation required for the Rotary R1200?
Yes, installation must be performed by qualified personnel following the manufacturer's detailed installation manual. The R1200 requires a dedicated 220V single-phase electrical connection at 60 Hz and a compressed air supply capable of delivering 115-145 PSI continuously. The equipment weighs 1,100 lbs and needs adequate overhead clearance for 45-inch tire handling. A licensed electrician is required in many jurisdictions for the electrical connection. Proper installation is critical for safety, operational performance, and warranty validity. Verify local code compliance and permitting requirements before beginning installation.
