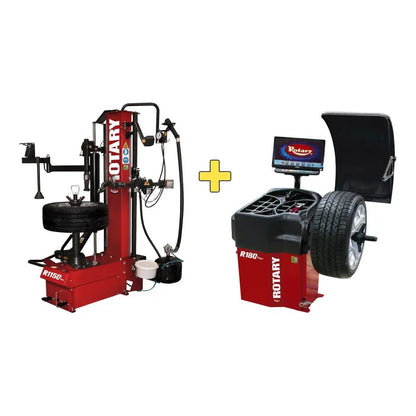

ROTARY R1150-R180 Leverless Tire Changer and Pro 3D Balancer COMBO
Rotary R1150R180 Leverless Tire Changer & Pro 3D Balancer Combo
The Rotary R1150R180 pairs a leverless tire changer with advanced 3D balancing technology for professional wheel service. This combo delivers precision wheel handling with reduced rim damage risk, handling 10" to 30" wheels with industry-leading accuracy for high-volume commercial operations.
Key Features & Benefits

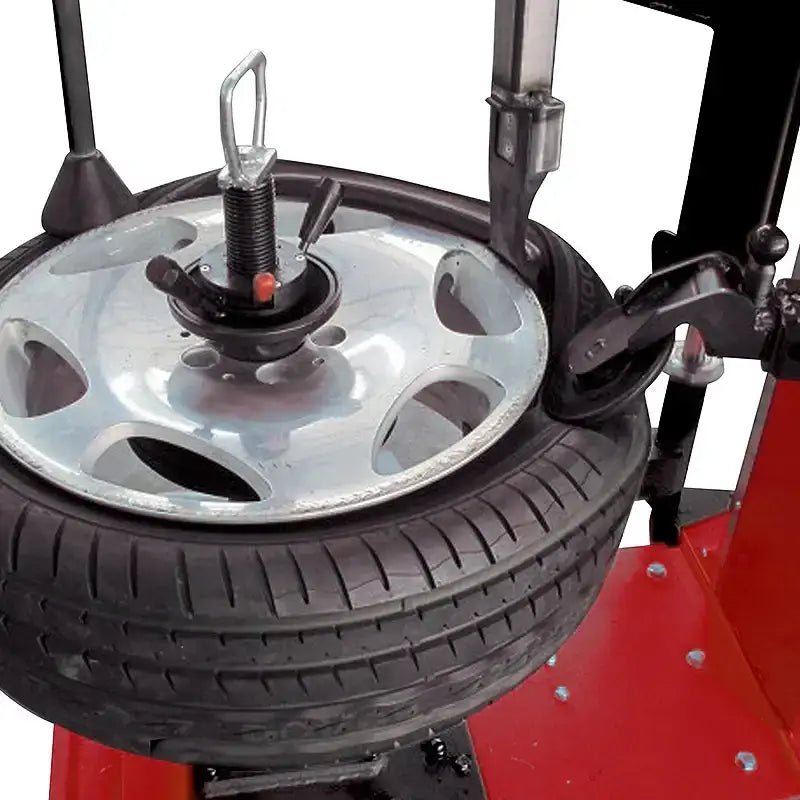

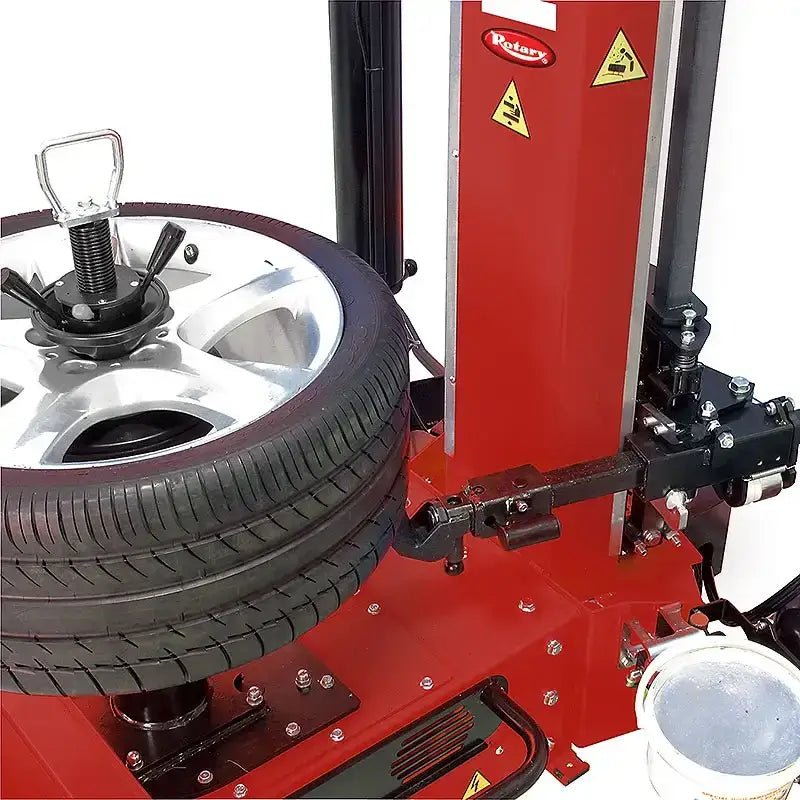

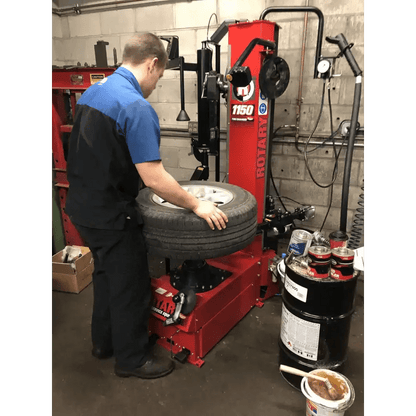

Leverless Tire Changing System

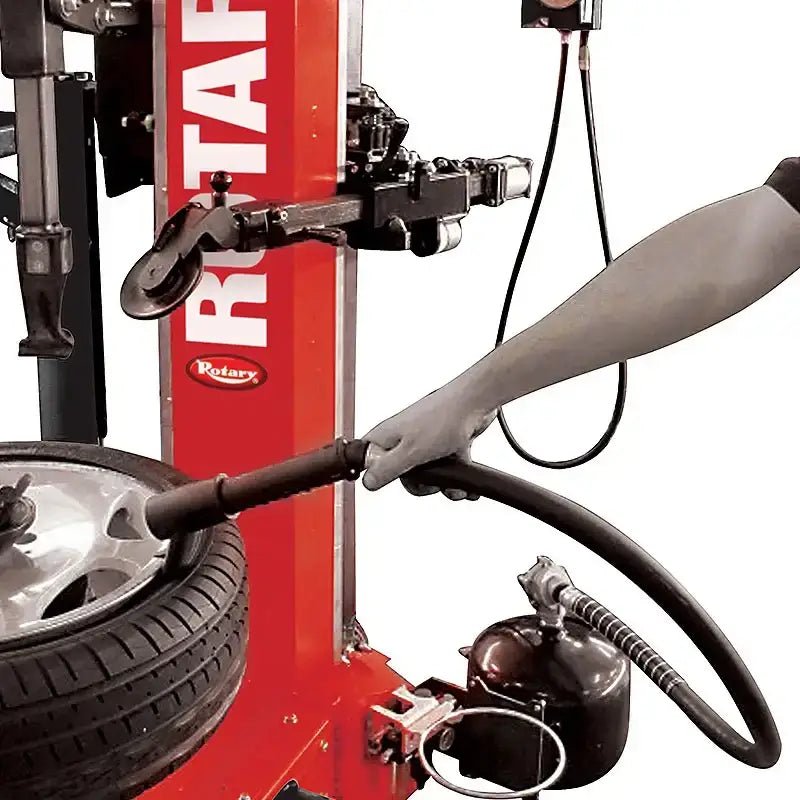

The R1150 leverless design uses a pneumatic bead breaker applying 2,645 lbs of force per arm without traditional metal-to-metal leverage contact. This engineering approach secures the wheel through controlled air pressure rather than manual or mechanical restraint, eliminating the metal contact point where rim damage typically occurs.
Traditional tire changers rely on metal levers that risk rim damage, especially when servicing fragile alloy wheels, performance rims, and specialty applications like run-flat tires. The leverless system addresses this industry-wide challenge by removing the direct contact mechanism where cosmetic and structural rim damage happens during bead breaking and tire mounting operations.
This enables safer service of high-value wheels and specialty equipment by preventing cosmetic and structural rim damage. Technicians can handle premium wheels, low-profile tires, and run-flat equipment with confidence, reducing liability and customer dissatisfaction from wheel damage during service.

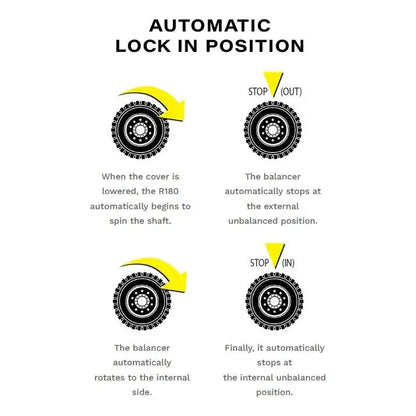

Pro 3D Automatic Wheel Balancing

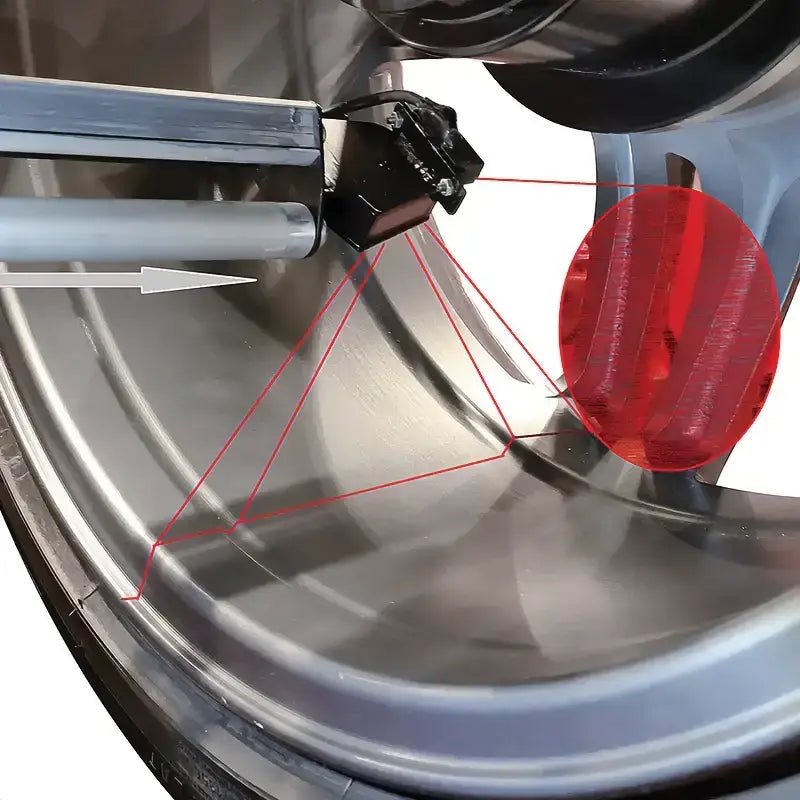

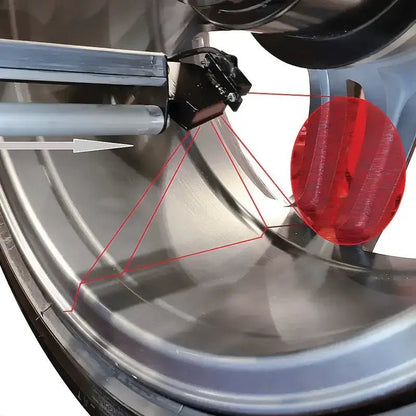

The R180 Pro 3D balancer combines laser rim scanning with sonar profiling technology to achieve 1 gram balancing accuracy with 6 second cycle times. This dual-profiling system automatically maps wheel geometry and applies weights with precision, eliminating manual wheel setup adjustments.
Traditional wheel balancers struggle with non-standard wheel profiles—oversized rims, variable widths, and specialty wheels require manual setup adjustments and extended balancing cycles. The Pro 3D system addresses this by automatically adapting to wheel geometry, reducing setup time and operator guesswork on complex wheel profiles.
This improves shop efficiency by cutting cycle time while maintaining premium balancing accuracy. The automatic geometry detection eliminates manual wheel adaptation, reducing operator error and rework cycles for specialty and variable-width wheels that require extended balancing procedures.
Dual Power System for Commercial Operation
The combo integrates two separate power supplies: the R1150 changer operates on 220 V / 1Ø / 60 Hz with a 2 HP inverter motor, while the R180 balancer runs on 110 V / 60 Hz. This configuration supports dedicated electrical distribution for high-volume shops with independent circuit requirements.
High-volume shops require equipment that can handle back-to-back service cycles without power surges or competition for electrical resources. Separate power circuits prevent electrical load conflicts that typically reduce motor efficiency or trigger breaker resets in standard installations where equipment shares power supply.
This enables consistent operation through peak service periods without electrical bottlenecks. The inverter motor on the changer maintains stable performance across variable loads, supporting sustained high-volume tire service without performance degradation during extended operating cycles.
Broad Wheel Size and Profile Compatibility

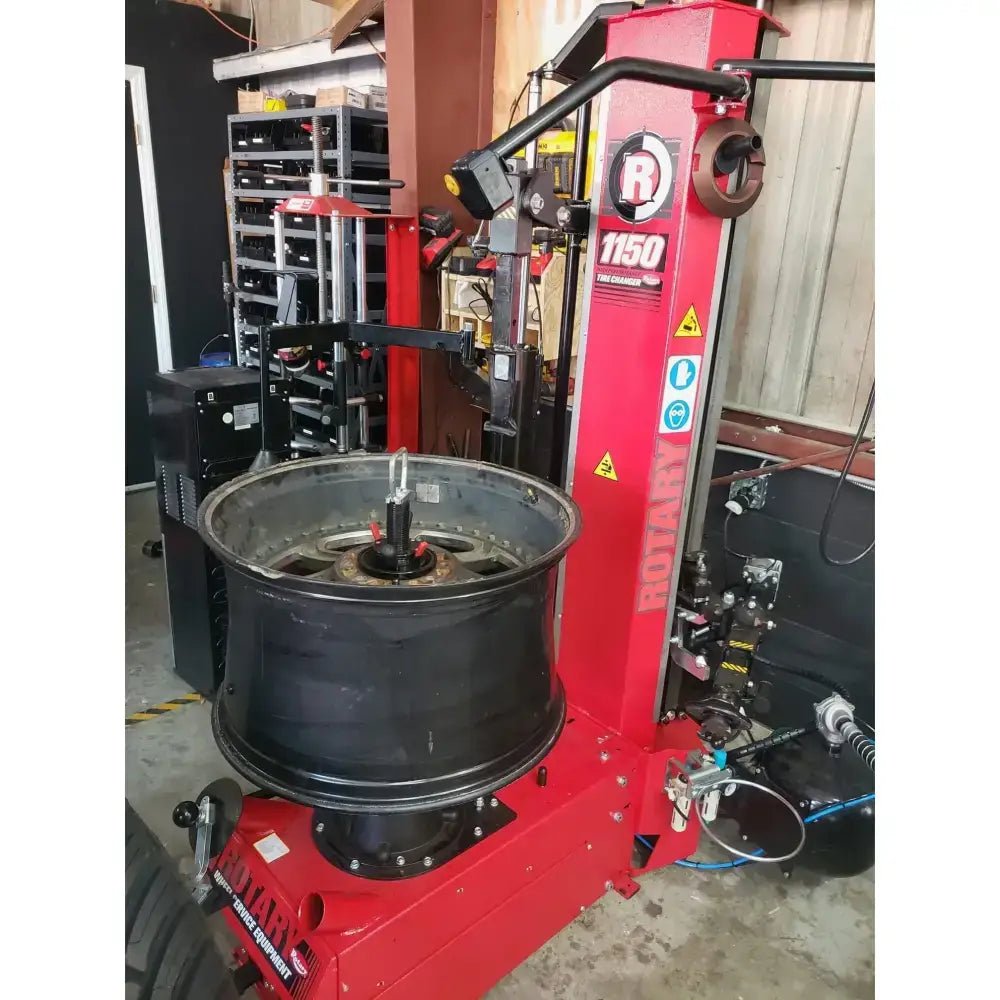

The R1150 changer handles wheels from 10" to 30" diameter with maximum wheel width of 15" and tire diameter up to 45". The R180 balancer handles wheel diameters from 10" to 30" with tire widths up to 22" and tire diameter up to 44". This combined range covers standard automotive wheels through performance and oversized applications.
Repair shops encounter diverse wheel types—OEM steel and alloy wheels, aftermarket high-performance rims, low-profile racing wheels, and specialty fleet equipment. A narrow wheel range forces shops to outsource specialty work or maintain multiple machines, fragmenting operations and increasing capital costs.
This enables a single machine pair to handle the full spectrum of wheel service work—from standard economy tire changes to premium performance and low-profile applications. The broad compatibility simplifies shop workflow and eliminates outsourcing for specialty wheel profiles and variable dimensions.
Reduced Operator Strain and Fatigue
The leverless system eliminates repetitive manual leverage motions required by traditional changers. Pneumatic bead breaking and automatic arm engagement reduce physical effort throughout the tire change cycle, particularly during heavy-duty applications with large diameter wheels and stiff tire sidewalls.
Manual tire changers create repetitive strain injuries—back stress from leverage motions, wrist fatigue from arm manipulation, and shoulder strain from sustained positioning. High-volume shops experience operator fatigue leading to slower cycle times, increased error rates, and worker compensation claims from cumulative strain injuries.
This improves shop productivity by reducing technician fatigue during peak service periods. Operators maintain consistent speed and precision across multiple back-to-back service cycles, supporting higher daily throughput without quality degradation or safety incidents from operator fatigue.
Applications & Use Cases
- Automotive Tire & Repair Shops: Full-service wheel maintenance for OEM, economy, and performance vehicles, including regular tire rotations, replacements, and repairs
- High-Performance & Low-Profile Wheel Service: Premium aftermarket rims, racing wheels, and specialty applications requiring precision handling and minimal rim damage risk
- Run-Flat & Specialty Tire Handling: Advanced tire types designed for extended driving without pressure, requiring specialized equipment and technique
- Fleet Service Centers: High-volume commercial operations managing diverse vehicle types, from light-duty trucks to medium-duty commercial vehicles requiring standardized wheel service protocols
Technical Specifications
| Specification | Value |
|---|---|
| Wheel Diameter Capacity | 10" to 30" |
| Maximum Wheel Width | 15" |
| Maximum Tire Diameter | 45" |
| Rotation Motor | 2 HP inverter motor |
| Bead Breaker Force Per Arm | 2,645 lbs |
| Air Supply Requirement | 115 to 145 PSI |
| Electrical | 220 V / 1Ø / 60 Hz |
| Specification | Value |
|---|---|
| Wheel Diameter Balanced | 10" to 30" |
| Maximum Tire Width | 22" |
| Maximum Tire Diameter | 44" |
| Balancing Accuracy | 1 g |
| Cycle Time | 6 seconds |
| Electrical | 110 V / 60 Hz |
Installation Requirements
Power Requirements
- R1150 Tire Changer: 220 V / 1Ø / 60 Hz on dedicated circuit
- R180 Wheel Balancer: 110 V / 60 Hz on dedicated circuit
- Installation: Professional installation recommended for electrical and pneumatic connections
Compressed Air Supply
- Pressure Range: 115 to 145 PSI for changer operation
- Supply Quality: Adequate shop air supply with proper pressure regulation
Space & Facility Requirements
- Floor Space: Adequate clearance for both units and wheel manipulation
- Access: Proper approach paths for wheel mounting and tire loading
- Installation: Professional installation recommended to ensure proper setup and operational safety
What's Included
Complete Combo Package
- R1150 Leverless Tire Changer — Complete unit with mounting system and pneumatic controls
- R180 Pro 3D Auto Wheel Balancer — Complete unit with laser scanning and sonar profiling technology

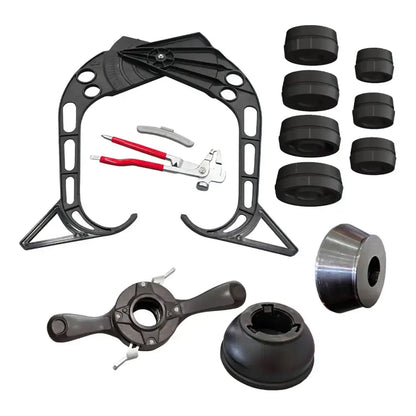

- Standard Balancer Accessories — Cones and adapters per dealer specification
Call to confirm specific included accessories and component details.
Warranty Coverage
Warranty Information
Coverage Terms: Warranty terms vary by authorized dealer. Some dealers reference up to 3-year functional and 1-year labor coverage for individual units. Verify specific warranty structure and eligibility requirements with your dealer at time of purchase.
Registration: Warranty activation and coverage terms may require product registration within specified timeframe.
Service: Coverage scope, conditions, and claim procedures vary by dealer. Confirm warranty details, parts covered, and any maintenance or operational requirements with seller.
Ready to Add Precision Wheel Service to Your Shop?
The Rotary R1150R180 combo delivers leverless tire changing with advanced 3D balancing for high-volume professional operations. Get expert guidance on setup, electrical requirements, and integration with your shop workflow.
Frequently Asked Questions
What wheel sizes does the Rotary R1150R180 handle?
The R1150 changer handles wheel diameters from 10" to 30" with maximum wheel width of 15" and tire diameter up to 45". The R180 balancer handles wheel diameters from 10" to 30" with tire widths up to 22" and tire diameter up to 44". This combined range covers standard automotive wheels through specialty performance and run-flat applications for diverse repair and fleet service environments.
What electrical requirements does this combo require?
The R1150 changer operates on 220 V / 1 Phase / 60 Hz and the R180 balancer operates on 110 V / 60 Hz. Both units require dedicated electrical circuits to prevent power conflicts during simultaneous operation. Professional electrical installation is recommended to ensure proper setup and safety compliance with your shop electrical codes and local building requirements.
What air supply does the tire changer need?
The R1150 requires compressed air supply of 115 to 145 PSI for proper bead breaker operation. Verify your shop's air compressor system can deliver consistent pressure within this range for optimal changer performance and reliable bead breaking across all tire change cycles. Pressure regulation is critical for maintaining the 2,645 lbs bead breaker force specification.
How does the leverless design reduce rim damage?
The leverless system uses pneumatic pressure delivering 2,645 lbs per arm to break the bead without traditional metal leverage contact. This eliminates the direct contact point where conventional changers cause rim cosmetic and structural damage, especially on premium alloy wheels and specialty applications like low-profile and run-flat tires. Metal levers create concentrated force points that crack and chip valuable rims during service operations.
What balancing accuracy does the Pro 3D balancer provide?
The R180 Pro 3D delivers 1 gram balancing accuracy with cycle times of 6 seconds per wheel. The dual laser and sonar profiling system automatically adapts to wheel geometry, improving accuracy on non-standard rim profiles and specialty wheels without requiring manual adjustment or extended setup procedures. Industry-standard balancing accuracy typically ranges from 2 to 5 grams.
Can I service run-flat and specialty tires with this combo?
Yes. The leverless R1150 changer is specifically designed for specialty applications including run-flat tires, low-profile wheels, and high-performance rims. The controlled pneumatic bead breaking system delivers 2,645 lbs force per arm, handling these tire types safely without the rim damage risk associated with traditional leverage changers. The broad wheel compatibility supports 10" to 30" diameters with tire widths up to 22".
What cycle time does the balancer provide for high-volume shop operations?
The R180 balancer provides 6 second cycle times for wheel balancing operations, enabling rapid throughput in high-volume shops. Combined with the leverless changer's pneumatic efficiency, the combo supports multiple back-to-back tire service cycles with consistent speed and 1 gram balancing accuracy throughout extended operating periods. The 6 second cycle time significantly reduces total service time per wheel.
What warranty is included with this combo?
Warranty coverage varies by authorized dealer, with typical coverage including 3-year functional and 1-year labor coverage for individual units. Contact your dealer to confirm specific warranty terms, coverage scope, registration requirements, and claim procedures at the time of purchase. Warranty activation may require product registration, and coverage scope and conditions vary significantly between authorized Rotary dealers.
