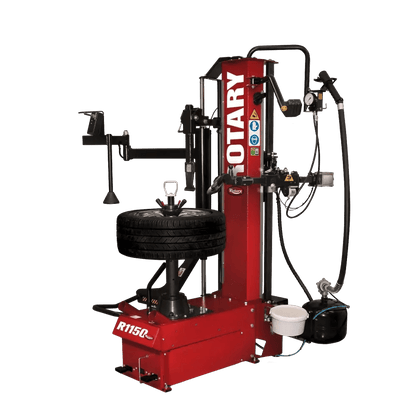

ROTARY R1150 Center-Post Leverless Tire Changer
Rotary R1150 - True Leverless Center-Post Tire Changer for Wheel Protection
The Rotary R1150 is a premium center-post leverless tire changer that eliminates traditional tire tools to reduce wheel damage and improve precision during tire mounting and demounting. Built for professional shops servicing high-value alloy, low-profile, and specialty wheels, this machine features a quick-locking center clamp, automatic bead breaker, and variable-speed inverter motor for controlled operation across a wide range of wheel and tire combinations.
Key Features & Benefits

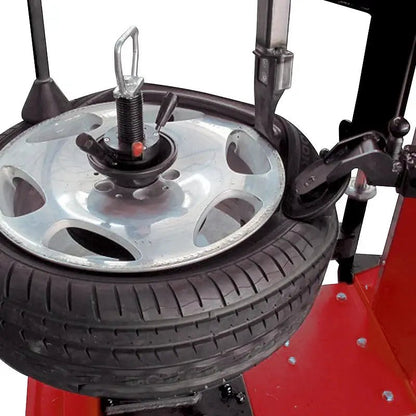

Leverless Mounting & Demounting System
The R1150 eliminates traditional tire irons and leverless mounting arms that make contact with the wheel surface. Instead, a center-post quick-locking clamp provides stable wheel retention during the entire mounting and demounting cycle, with all work performed at the bead rather than on the rim.
Traditional tire changers require technicians to use manual tire tools or swing-arm designs that risk contact with alloy wheels, especially low-profile and specialty designs where clearance is minimal. This leverless architecture addresses the industry-wide challenge of rim damage when servicing high-value wheels in modern vehicles.
This eliminates the risk of metal-to-wheel contact entirely. Technicians can safely mount and demount tires on expensive custom wheels, performance vehicle rims, and low-profile tire combinations without risk of cosmetic or structural damage.

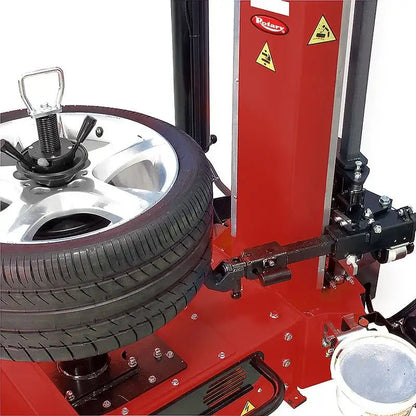

Center-Post Quick-Clamp System for Reverse Rims
The center-post clamp design provides quick-locking engagement without requiring manual tightening or tool changes. This system supports both standard and reverse rim designs, expanding the range of specialty wheels that can be serviced safely on this equipment.
Swing-arm clamping systems can struggle with reverse-facing rims or deep-dish custom wheels that shift the contact point away from conventional clamping surfaces. The R1150's center-post approach addresses this by anchoring the wheel at its mounting face, independent of rim design or custom styling.
This enables shops to service the full range of modern wheel designs without worrying about fitment compatibility or clamping limitations. Reverse rims, deep-dish wheels, and specialty custom designs can all be mounted and demounted with the same quick engagement process.

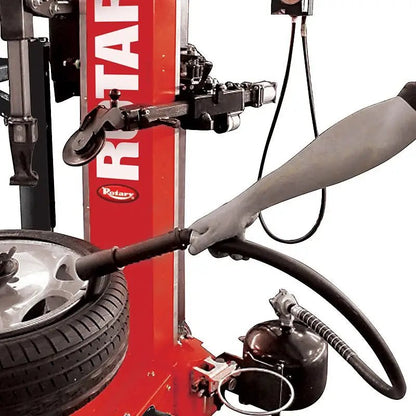

Automatic Bead Breaker with 2,645 lb Force per Arm
The automatic bead breaker applies 2,645 lb of force per arm to separate the tire from the rim in a single automated stroke. This power level is sufficient for run-flat tires, low-profile tires, and specialized tire constructions that resist traditional bead breaking methods.
Manual bead breakers require technician effort and produce inconsistent results when breaking stubborn tire-to-rim bonds. Tire constructions like run-flats and high-performance low-profile designs require significant force to separate cleanly without damage. The R1150 eliminates guesswork by applying consistent, measured force automatically.
This improves consistency and reduces technician fatigue by automating the most physically demanding step of the tire service process. Operators simply position the bead and engage the automatic system; the machine handles the force application without human strength limitations.
Variable-Speed Inverter Motor for Tire Control
The 2 HP (1.5 kW) inverter motor provides variable speed control from idle to full speed, enabling technicians to control mounting and demounting torque precisely. This variable-speed capability prevents sudden slippage when mounting tight-fitting tires or working with specialty tire profiles.
Standard single-speed tire changers apply constant rotational force, which can cause sudden shifts when mounting low-profile tires that require high rotational pressure. The variable-speed inverter motor addresses this by allowing operators to increase speed gradually, matching the tire engagement rate to the specific tire profile being mounted.
This enables safer mounting of difficult tire profiles including low-profile, high-performance, and specialty constructions. The operator controls mounting speed to ensure consistent, controlled engagement without sudden arm movements that could stress the wheel or tire.
Wheel Diameter Coverage from 10" to 30"
The R1150 accommodates wheel diameters from 10 inches to 30 inches, with three interchangeable configurations: 10"–26", 12"–28", and 14"–30". Maximum wheel width is 15 inches, supporting full-size tires on sedans, SUVs, trucks, and commercial vehicles. Maximum tire diameter capacity is 45 inches.
This range covers the vast majority of vehicles in service, from compact cars and performance vehicles to full-size trucks and heavy-duty commercial applications. The ability to service this complete diameter range eliminates the need for multiple machines or manual workarounds for oversized wheels.
This positions shops to handle any wheel service request without equipment limitations. A single R1150 can service your entire client base regardless of vehicle class or specialty wheel design.
Professional-Grade Design for Premium Wheel Protection
The R1150 is engineered as a center-post leverless tire changer specifically designed for shops that prioritize wheel protection. This positioning addresses the market segment of high-end service facilities, performance shops, and fleet operators that service valuable wheels and cannot accept rim damage risk.
Standard tire changers designed for high volume sacrifice wheel protection for speed. The R1150 inverts that priority—every design choice (leverless architecture, center-post clamping, variable-speed control) prioritizes zero contact with the wheel surface. This appeals to shops where customer satisfaction and equipment protection are worth the premium positioning.
This enables shops to differentiate their service offering by marketing wheel-protection capability to customers with expensive, custom, or specialty wheels. Fleet operators, performance shops, and luxury vehicle service centers can use the R1150 as a competitive differentiator in their service portfolio.
Product Demonstration
Applications & Use Cases
- Premium Tire Shops: High-end tire retailers serving customers with valuable alloy wheels, custom wheels, and specialty tire constructions where wheel protection is a core service differentiator.
- Performance & Specialty Vehicle Service: Performance shops and tuning facilities that specialize in high-end sports cars, luxury vehicles, and custom-built cars requiring wheel protection during tire service.
- Fleet & Commercial Operations: Fleet maintenance facilities managing mixed vehicle types where wheel damage liability is a concern, particularly for higher-value commercial vehicles with custom or specialty wheels.
- Dealerships & Luxury Service Centers: Dealerships for luxury automotive brands and service centers specializing in high-value vehicles where customer satisfaction depends on zero cosmetic damage during service operations.
Technical Specifications
| Specification | Value |
|---|---|
| Tire Changer Type | Center-post leverless |
| Wheel Diameter Range (Config 1) | 10" to 26" |
| Wheel Diameter Range (Config 2) | 12" to 28" |
| Wheel Diameter Range (Config 3) | 14" to 30" |
| Maximum Wheel Width | 15 inches (381 mm) |
| Maximum Tire Diameter | 45 inches (1,143 mm) |
| Specification | Value |
|---|---|
| Rotation Motor | 2 HP / 1.5 kW inverter motor with variable speed |
| Bead Breaker Force per Arm | 2,645 lb (1,200 kg) |
| Bead Breaker Operation | Automatic |
| Center-Post Clamp | Quick-locking |
| Leverless Operation | Yes (no traditional tire tools required) |
| Specification | Value |
|---|---|
| Electrical Supply | 220V, single-phase, 60 Hz |
| Compressed Air Supply | 115–145 PSI |
Installation Requirements
Power Requirements
- Electrical Supply: 220V, single-phase, 60 Hz electrical circuit dedicated to the R1150
- Circuit Capacity: Verify adequate amperage capacity before installation; consult with qualified electrician for proper wiring and breaker sizing
Compressed Air Supply
- Air Pressure Range: 115–145 PSI during operation
- Supply Line: Clean, dry compressed air from facility compressor; install moisture trap and regulator to maintain consistent pressure
- Line Sizing: Verify air line capacity is sufficient for sustained operation; undersized lines may cause pressure drop
Installation Notes
- Permits: Verify local code compliance and permit requirements before installation
- Professional Installation: Installation should be performed by qualified personnel following the manufacturer installation manual to ensure proper equipment setup and safety compliance
Warranty Coverage
Standard Warranty
Warranty Terms: Rotary provides manufacturer-backed parts warranty coverage with labor coverage defined by the selling dealer. Specific warranty program structure and duration may vary by dealer; contact your sales representative to confirm exact coverage terms and eligibility requirements for your purchase.
Ready to Add Premium Wheel Protection to Your Shop?
Get expert guidance on implementing leverless tire changer technology. Our team can help with product selection, facility compatibility verification, and technical specifications for your operation.
Frequently Asked Questions
What is the main advantage of leverless tire changer technology?
The leverless design eliminates traditional tire irons and swing-arm contact with the wheel surface, reducing damage risk to valuable alloy wheels, custom wheels, and specialty tire combinations. The center-post clamp system keeps all work at the tire bead rather than the rim. The R1150 handles wheels from 10" to 30" in diameter with zero metal-to-wheel contact, protecting expensive wheels during the mounting and demounting process.
What wheel sizes can the Rotary R1150 handle?
The R1150 offers three interchangeable configurations covering 10" to 30" wheel diameters: Configuration 1 handles 10"–26", Configuration 2 handles 12"–28", and Configuration 3 handles 14"–30". Maximum wheel width capacity is 15 inches and maximum tire diameter is 45 inches, enabling the machine to service sedans, SUVs, trucks, and commercial vehicles with a single equipment investment.
What is the automatic bead breaker force specification?
The automatic bead breaker applies 2,645 lb (1,200 kg) of force per arm, sufficient for run-flat tires, low-profile tires, and specialized tire constructions that resist traditional bead breaking methods. This force level ensures consistent, controlled bead separation without technician effort.
What are the electrical requirements for the R1150?
The R1150 requires a dedicated 220V, single-phase, 60 Hz electrical circuit. Before installation, consult with a qualified electrician to verify adequate circuit amperage capacity and ensure proper wiring and breaker sizing for safe operation. Undersized electrical circuits may cause voltage drop during operation, affecting motor performance and bead breaker function. Proper electrical setup ensures the inverter motor operates at full 2 HP capacity.
What compressed air supply does the R1150 need?
The R1150 requires compressed air at 115 PSI to 145 PSI during operation for the automatic bead breaker and pneumatic control systems. Your facility compressor must supply clean, dry air; install a moisture trap and regulator to maintain consistent pressure within this specified range. Undersized air lines may cause pressure drop during sustained operation, so verify your facility compressor capacity is adequate before installation.
Can the R1150 handle reverse rim wheels and custom wheel designs?
Yes. The center-post clamp system is specifically engineered to support both standard and reverse rim designs, with wheel width capacity up to 15 inches. This design expands compatibility with specialty wheels, deep-dish wheels, and other custom wheel styles that might have clearance or engagement issues with traditional swing-arm clamping systems. The leverless architecture enables shops to service the full spectrum of modern wheel designs without fitment limitations.
What types of shops typically use the Rotary R1150?
The R1150 is designed for premium tire shops, performance and specialty vehicle service centers, fleet operations, and dealerships where wheel protection and customer satisfaction are priorities. With a 2 HP inverter motor and 2,645 lb bead breaker force, it's ideal for shops serving high-value alloy wheels and specialty wheel designs requiring zero metal-to-wheel contact during the service process.
How does the variable-speed inverter motor improve tire mounting?
The variable-speed control allows technicians to increase mounting speed gradually, matching the tire engagement rate to the specific tire profile. This prevents sudden slippage and enables controlled mounting of difficult low-profile, high-performance, and specialty tire constructions without stressing the wheel.
