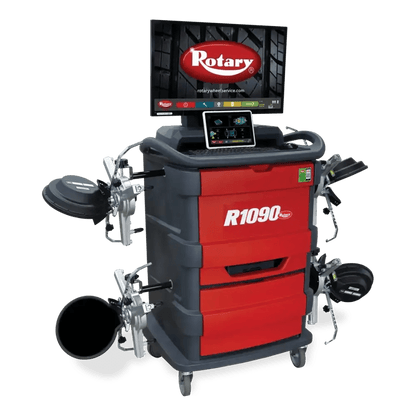

Rotary R1090 Pro 3D Wheel Aligner - Portable, Tower-Free Alignment System

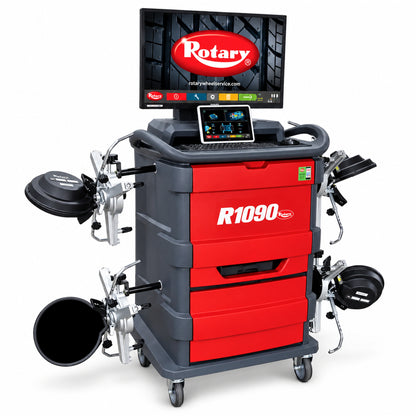

The Rotary R1090 is a high-performance, portable 3D wheel alignment system designed for professional automotive service shops, collision centers, and fleet facilities. Using Solid Vision 3D imaging technology with fixed cameras and tablet-based operation, this tower-free system delivers accurate alignment measurements while supporting modern ADAS workflows without requiring dedicated bay space.
Key Features & Benefits

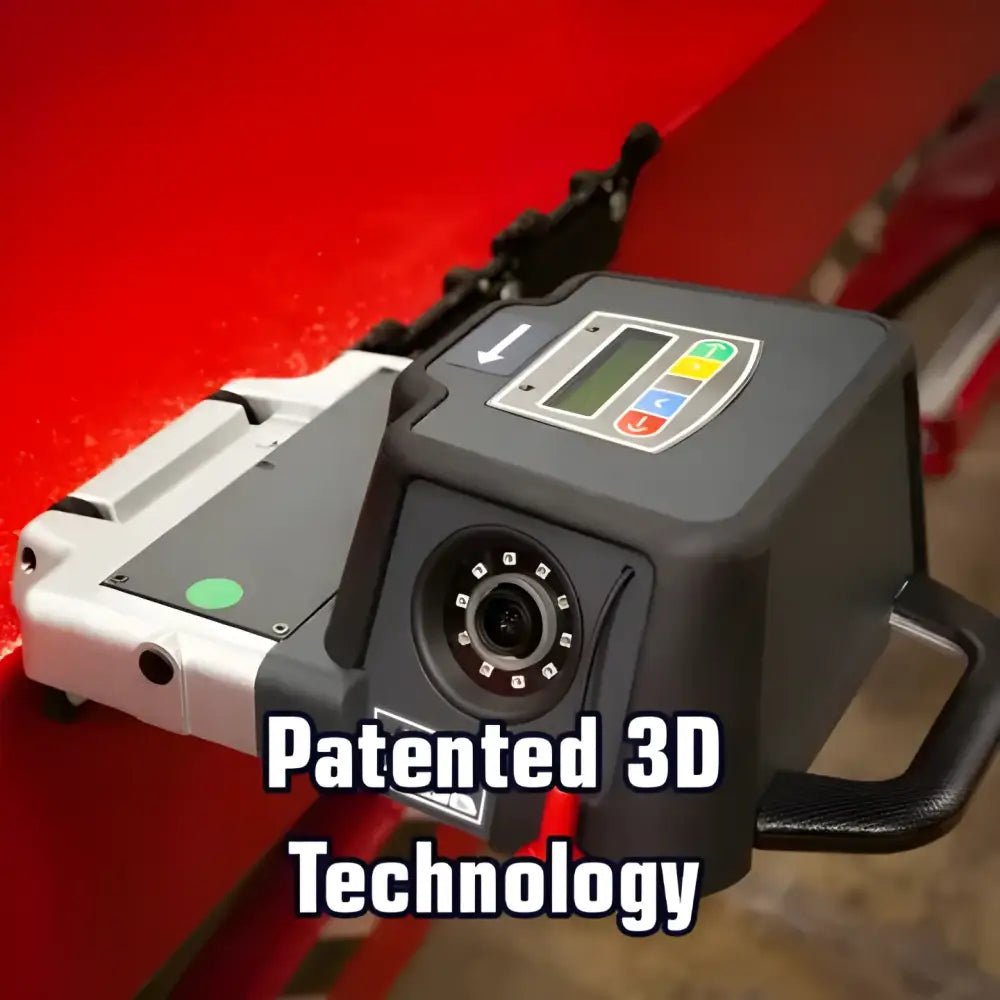

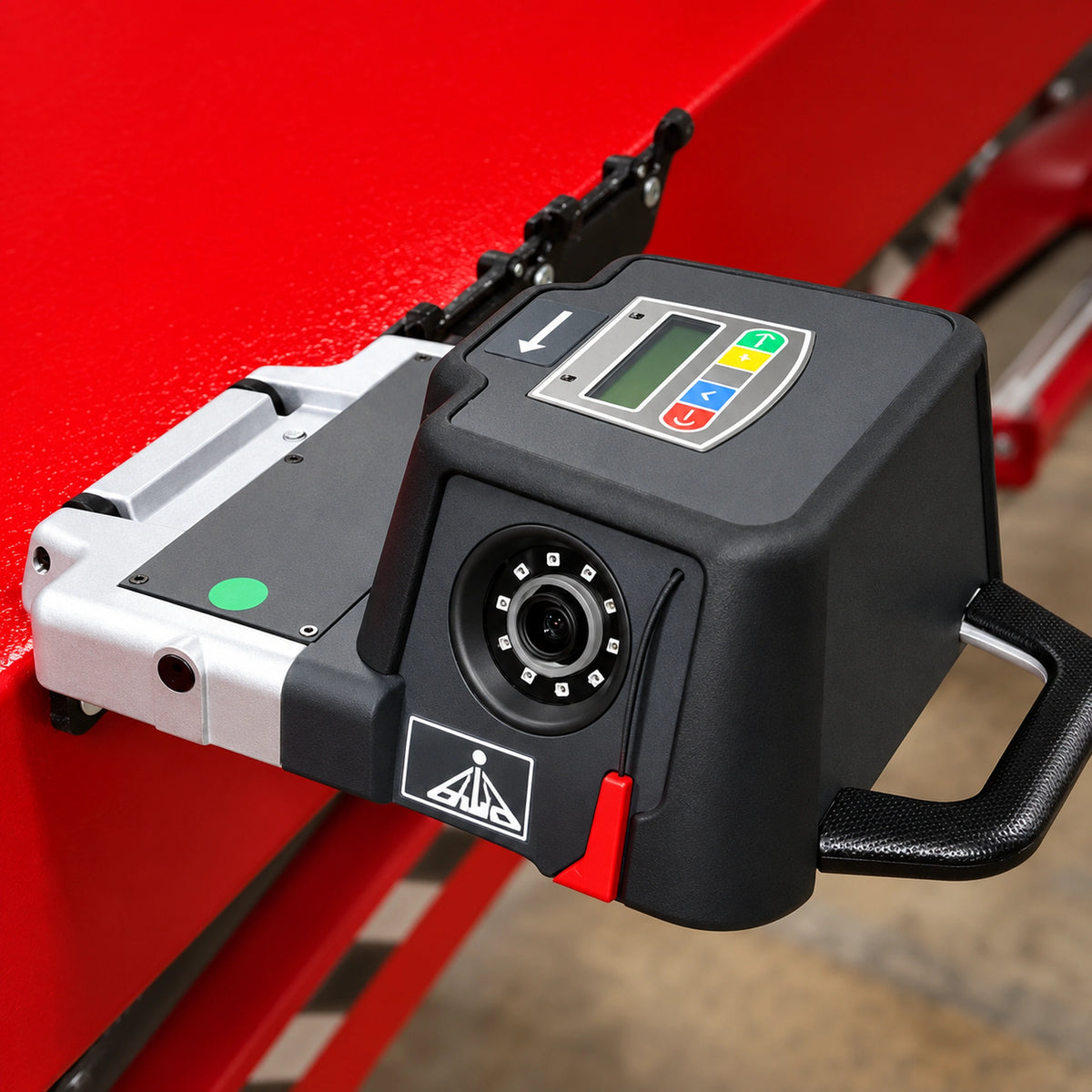

Solid Vision 3D Imaging Technology
The R1090 uses fixed-camera 3D imaging with proprietary Solid Vision technology that captures true three-dimensional target data, delivering accurate toe, caster, and camber measurements without requiring moving carriages or repositioning sensors. The system employs static measurement heads mounted on the vehicle to track alignment data across the full range of motion.
Traditional wheel alignment systems rely on simulated 3D data or require manual repositioning between measurements. Solid Vision eliminates these limitations by providing continuous 3D target recognition, ensuring consistent measurement accuracy whether the vehicle is stationary, driven, or suspended at height.
This enables faster, more reliable alignment procedures that reduce callback rates and improve shop efficiency. The fixed-camera approach also simplifies system calibration and reduces drift that can occur with moving optical systems over time.

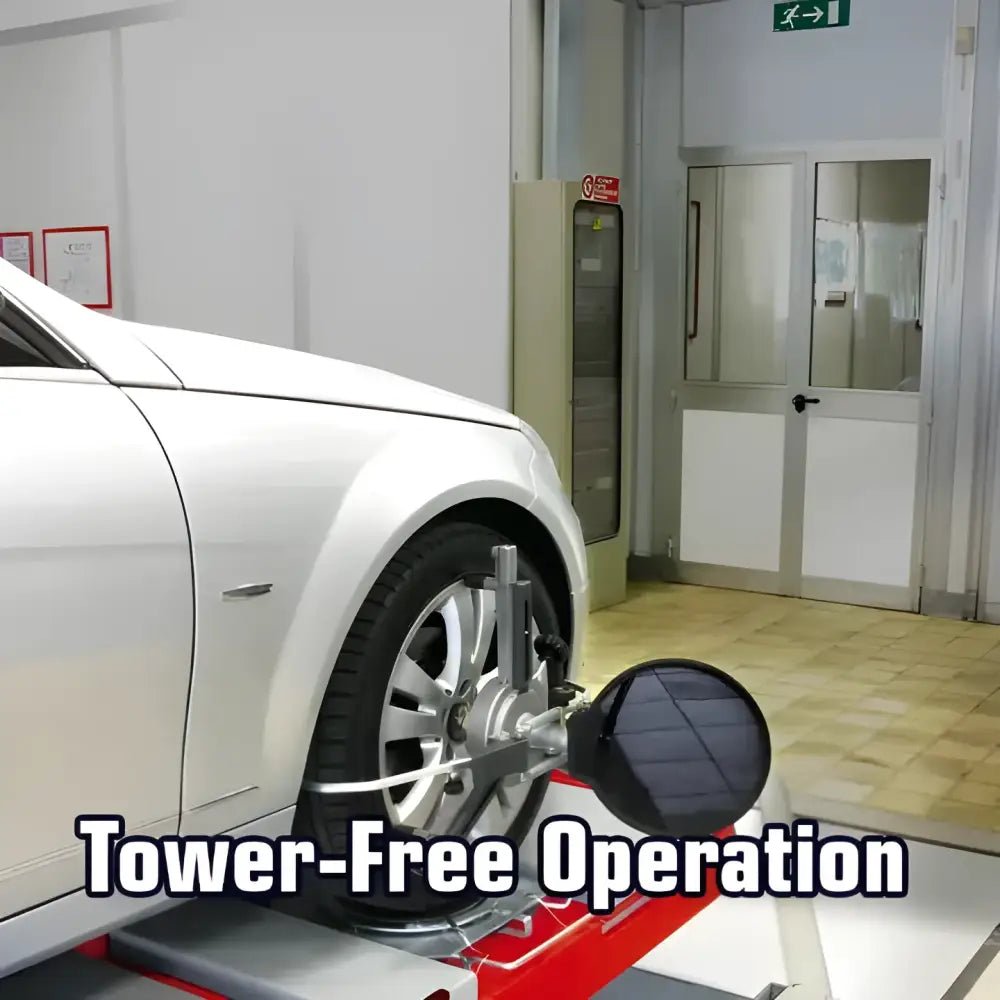

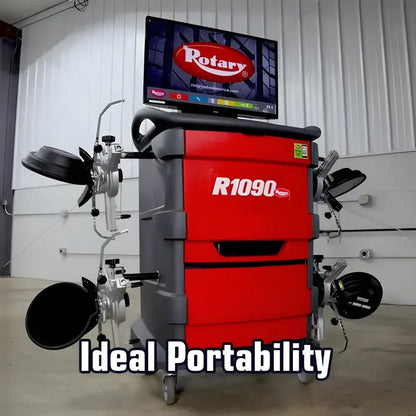

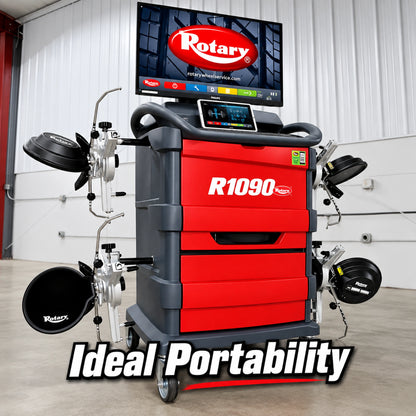

Portable Tower-Free Design
Unlike traditional alignment systems that require a dedicated structural tower anchored to the floor, the R1090 operates as a completely portable unit. The control cabinet, measuring heads, and targeting system are designed to coexist in any service bay with standard 110V power, requiring no minimum bay size or specialized mounting infrastructure.
This portable approach addresses the industry-wide constraint of bay flexibility. Service shops performing multiple disciplines—from wheel alignment to suspension work to tire mounting—can configure bays dynamically without permanently committing space to alignment equipment. The system works equally well for routine alignment, collision repair work, or ADAS calibration procedures.
This eliminates costly bay buildouts and allows shops to add alignment capability without facility renovation. Multi-bay shops gain operational flexibility to rotate the R1090 between locations as demand fluctuates.

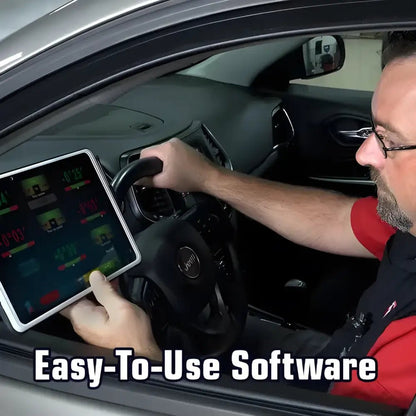

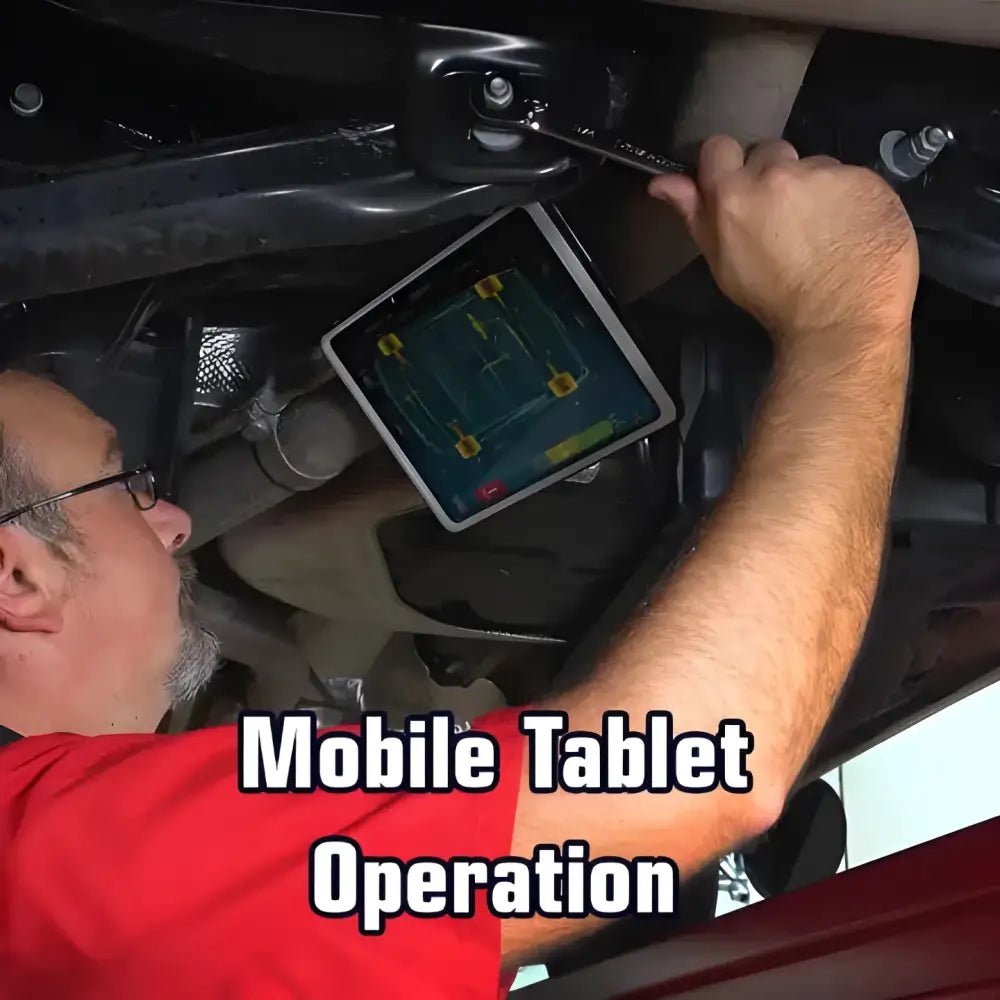

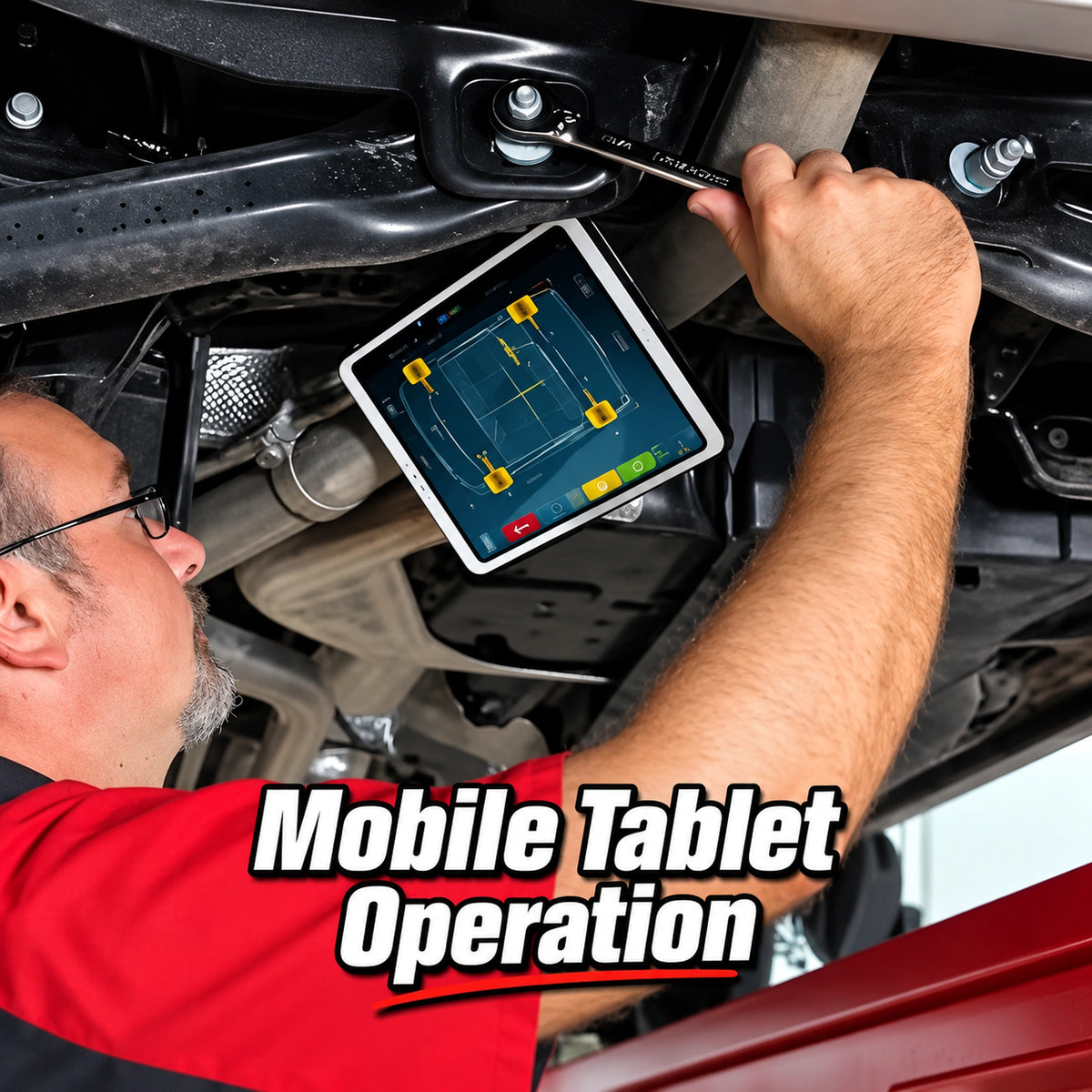

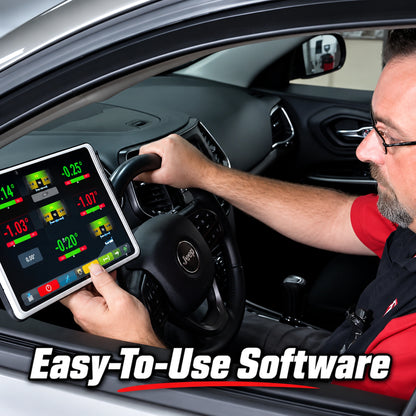

Android Tablet Remote Operation
The system operates through an Android tablet with Bluetooth and Wi-Fi wireless connectivity, allowing technicians to control measurement steps, view real-time alignment data, and adjust vehicle positioning from any location within the service bay. The tablet interface displays live camera feeds, target tracking, and alignment specifications in an intuitive touchscreen environment.
Traditional alignment systems require technicians to move between the operator console and the vehicle bay, increasing setup time and reducing visibility into vehicle positioning. The wireless tablet approach enables continuous technician presence during the alignment procedure, improving accuracy and reducing procedural errors during multi-step alignments or ADAS sensor calibration workflows.
This improves technician efficiency and reduces the cycle time for complete alignment procedures. The wireless connectivity also enables data logging and historical alignment records stored directly on the tablet or transferred to shop management systems.
ADAS-Ready Alignment Workflow
The R1090 is engineered to support modern advanced driver assistance system (ADAS) calibration requirements alongside traditional wheel alignment. The system measures and compensates for alignment angles that affect camera aiming, radar performance, and sensor baseline accuracy, with support for post-repair ADAS target validation integrated into the measurement process.
Collision centers and shops performing suspension or frame repair increasingly face ADAS recalibration mandates from manufacturers and insurance companies. Systems without ADAS integration require technicians to perform separate wheel alignment first, then outsource ADAS calibration to a specialist facility. The R1090 combines both functions into a single procedure, reducing cycle time and improving quality control.
This enables shops to achieve OEM compliance on ADAS-equipped vehicles without purchasing separate calibration systems or sending vehicles off-site. The integrated workflow improves profitability on collision repairs while ensuring customer safety and regulatory compliance.
On-Rack Test Drive Capability
The system enables wheel alignment validation while the vehicle remains on the lift, using remote vehicle movement commands through the tablet interface. Technicians can have the vehicle move forward, backward, or rock side-to-side to validate alignment angles under dynamic load conditions without lowering the vehicle to the ground.
Standard alignment systems require the vehicle to be lowered to the shop floor for test drive validation, adding 10-15 minutes to the alignment procedure and creating safety complexity around vehicle movement in the service bay. The on-rack test drive approach eliminates this step while improving measurement confidence that alignment angles remain stable during actual driving conditions.
This reduces overall alignment cycle time and improves the quality of repairs. Technicians can make real-time adjustments and validate corrections immediately without the operational complexity of ground test drives, making the alignment process faster and safer for high-volume shops.

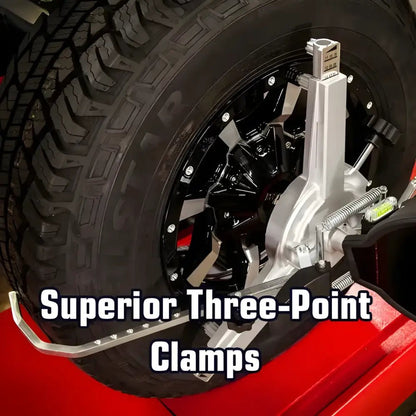

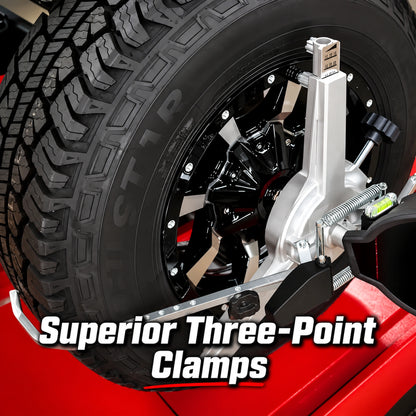

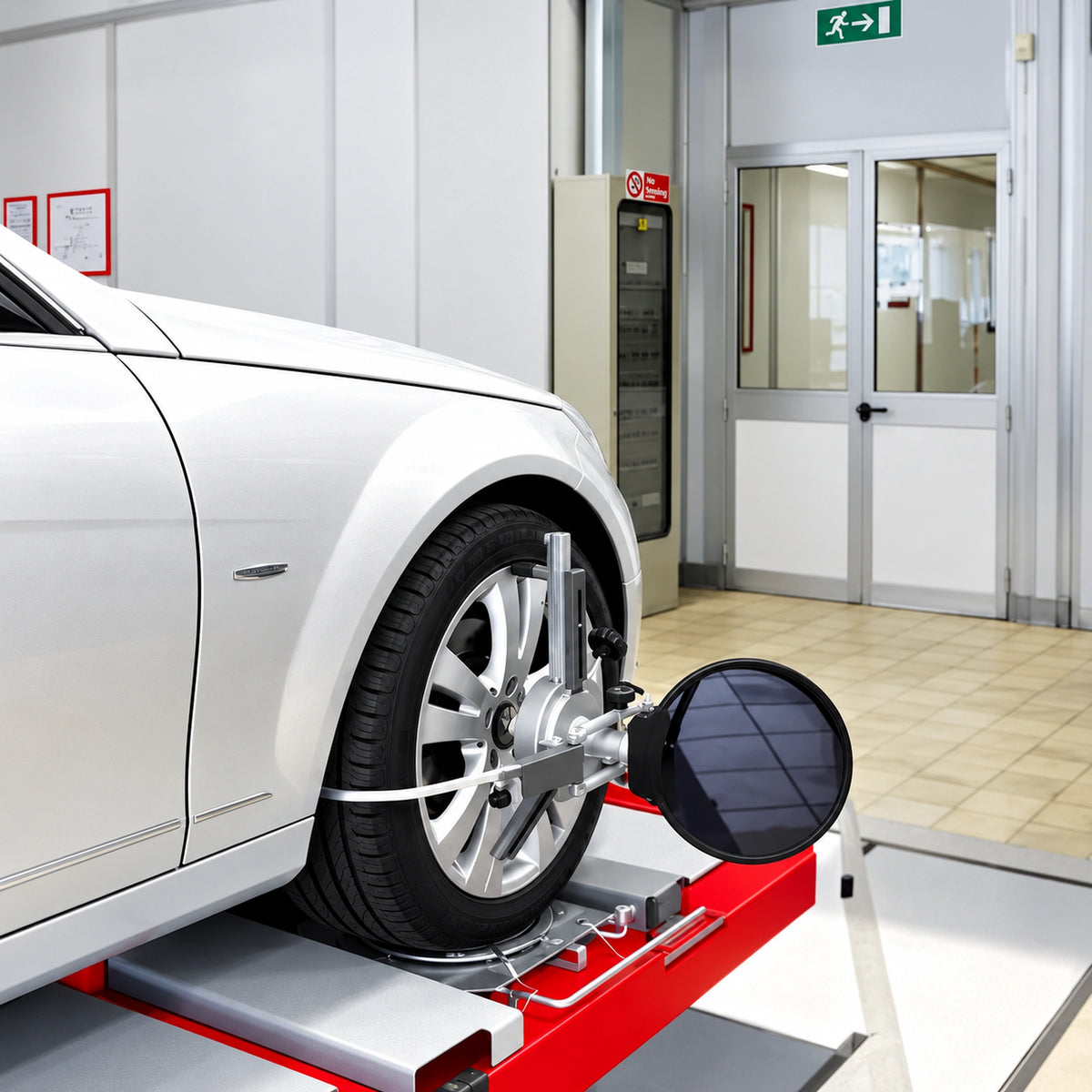

Tire Clamps & Measuring Head Accessories
The system includes 3-point quick-lock tire clamps with rapid-engagement design that secure wheels to the measuring heads, plus extension adapters for dually truck wheels and specialty vehicle configurations. The measuring heads mount directly to wheel surfaces without requiring vehicle frame access, simplifying setup for collision repairs where suspension geometry may be compromised.
Quick-lock clamps significantly reduce setup time compared to traditional frame-mounted adapters. The modular accessory approach allows the R1090 to accommodate pickup trucks, SUVs, performance vehicles, and specialty equipment without requiring separate alignment systems or extensive adapter inventories.
This versatility improves throughput for shops handling diverse vehicle types. The 3-point quick-lock design also improves measurement stability during dynamic test procedures, reducing measurement variance and improving alignment accuracy consistency.
Applications & Use Cases
- Automotive Repair & Service Shops: Provides precise alignment capabilities for routine maintenance, suspension work, and component replacement across passenger vehicles, SUVs, and light trucks without requiring dedicated alignment bay infrastructure.
- Collision Repair Centers: Enables wheel alignment and ADAS sensor calibration validation on post-repair vehicles, supporting OEM compliance requirements and insurance standards for collision-damaged vehicles returning to service.
- Fleet Service Facilities: Supports high-volume alignment procedures for commercial vehicle fleets, delivery trucks, and utility vehicles requiring routine maintenance and alignment checks to extend tire life and reduce fuel consumption.
- ADAS Calibration Workflows: Integrated camera and sensor targeting support allows alignment and ADAS baseline validation in a single procedure, reducing calibration cycle time and complexity for suspension repairs affecting sensor orientation.
Technical Specifications
| Specification | Value |
|---|---|
| System Type | High performance Pro 3D wheel alignment system |
| Design Configuration | Portable, tower-free |
| Measurement Technology | Solid Vision 3D imaging with fixed cameras |
| System Control | Android tablet with Bluetooth and Wi-Fi connectivity |
| Vehicle Compatibility | Passenger vehicles, SUVs, light trucks |
| Wheel Alignment Accuracy - Toe | ±2 minutes |
| Power Supply | 110V, single-phase, 60 Hz |
| Battery System | Quick-release batteries with approximately 8-hour runtime |
| Display | 32 inches (typical configuration) |
| Component | Description |
|---|---|
| Control Unit | PC and 32-inch display monitor |
| Android Tablet | Alignment software interface with wireless control |
| Measuring Heads | 3D target system with fixed-camera imaging |
| Tire Clamps | 3-point quick-lock style wheel fastening system |
| Batteries | Extra battery set with charger |
| Accessories | Brake pedal depressor, steering wheel lock, dually wheel extensions |
Installation Requirements
Electrical Power
- Voltage: 110V, single-phase, 60 Hz standard workshop supply
- Outlet Configuration: Standard dedicated circuit outlet rated for continuous operation
- Installation: No specialized electrical infrastructure required; connects to standard workshop electrical service
Bay Configuration & Space
- Minimum Bay Requirement: No dedicated bay size minimum due to portable, tower-free design
- Floor Surface: Level service bay floor suitable for standard lift operations
- Mobility: System can be positioned in any service bay and relocated as needed
Installation Notes
- Setup: Follow manufacturer installation manual for complete system assembly, calibration, and tablet pairing procedures
- First Use: Initial system calibration performed per OEM protocol before first vehicle alignment
- Professional Installation: Installation by qualified service equipment personnel is recommended to ensure proper system calibration and wireless connectivity optimization
Warranty Coverage
Standard Warranty Program
3 Years - Parts: Covers component failure and defects in materials and workmanship for structural and functional components.
1 Year - Labor: Covers warranty service labor performed by authorized service technicians at Rotary service locations or authorized dealers.
Warranty Requirements
Registration: Product registration recommended to activate full warranty coverage and access support resources.
Eligibility: Warranty valid for the original equipment purchaser. Coverage conditions and exclusions apply per manufacturer warranty documentation.
Ready to Add Advanced Alignment Capability to Your Shop?
The Rotary R1090 delivers professional-grade 3D alignment with the flexibility of portable equipment. Get expert guidance on system selection, facility compatibility, and ADAS workflow integration.
Frequently Asked Questions
What alignment accuracy does the R1090 deliver?
The system provides wheel alignment accuracy of plus or minus 2 minutes for toe measurements, using Solid Vision 3D imaging with fixed cameras for consistent, repeatable measurements. This level of precision exceeds typical alignment system standards and ensures vehicles leave your facility with OEM-spec wheel angles, reducing tire wear and improving fuel economy for customers.
Does the R1090 require dedicated bay space or alignment tower installation?
No. The R1090 is completely portable and tower-free, requiring only standard 110V workshop electrical service and no minimum bay size. The system can be positioned in any service bay and relocated to other locations as needed, providing the flexibility to add alignment capability without expensive facility renovation or bay reconstruction.
What components are included with the R1090 system?
The standard system includes the control unit with 32-inch display, Android tablet with alignment software, 3D measuring heads with fixed-camera imaging, 3-point quick-lock tire clamps, extra batteries with charger, and accessories including brake pedal depressor, steering wheel lock, and dually wheel extensions. All components arrive ready to integrate into your service bay.
Can the R1090 perform ADAS sensor calibration and alignment in one procedure?
Yes. The system is engineered to support ADAS calibration workflows alongside traditional wheel alignment, allowing shops to validate camera and sensor baseline accuracy while performing alignment measurements. This combined procedure reduces overall cycle time compared to separate alignment and calibration steps, improving profitability on collision repair work and ensuring OEM ADAS compliance.
What vehicle types are compatible with the R1090 alignment system?
The R1090 is designed for passenger vehicles, SUVs, and light trucks. The modular tire clamp and measuring head system includes extensions for dually truck wheels and specialty vehicle configurations, accommodating a wide range of vehicle types in single- and multi-bay shop environments. The quick-lock clamp design simplifies setup regardless of wheel size or vehicle class.
What warranty coverage is provided with the R1090?
The system includes a 3-year warranty on parts covering component defects and workmanship failures, plus 1-year labor warranty covering service technician time at authorized Rotary service locations or authorized dealers. Product registration is recommended to activate full coverage and access technical support resources. Coverage conditions and exclusions apply per manufacturer documentation.
Can technicians operate the alignment system from a distance using the Android tablet?
Yes. The Android tablet operates via Bluetooth and Wi-Fi wireless connectivity, allowing technicians to control measurement steps, view live camera feeds, and direct vehicle positioning from any location within the service bay while maintaining visibility of the vehicle and alignment process. This wireless operation improves technician efficiency and enables continuous supervision of the alignment procedure.
Does the R1090 support on-rack vehicle test drives for alignment validation?
Yes. The system enables alignment angle validation while the vehicle remains on the lift using remote movement commands through the tablet interface. Technicians can direct the vehicle to move forward, backward, or rock side-to-side without lowering it to the floor, reducing cycle time and improving safety while validating alignment angles under dynamic load conditions.
