ROTARY R1085 Portable Wheel Aligner, Pro 3D Alignment System
Rotary R1085 - Tower-Free 3D Wheel Alignment System for Flexible Shop Layouts
The Rotary R1085 delivers portable 3D wheel alignment capability without requiring a fixed alignment tower or dedicated bay. Featuring passive 3D targets, Android tablet-based control with Bluetooth and WiFi connectivity, and 4-point quick-lock wheel clamps, this system enables precise alignment work in any lift-equipped bay with total toe accuracy within ±2 minutes.
Key Features & Benefits
Tower-Free Portable Architecture

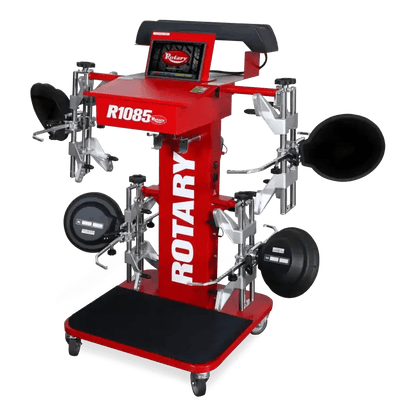

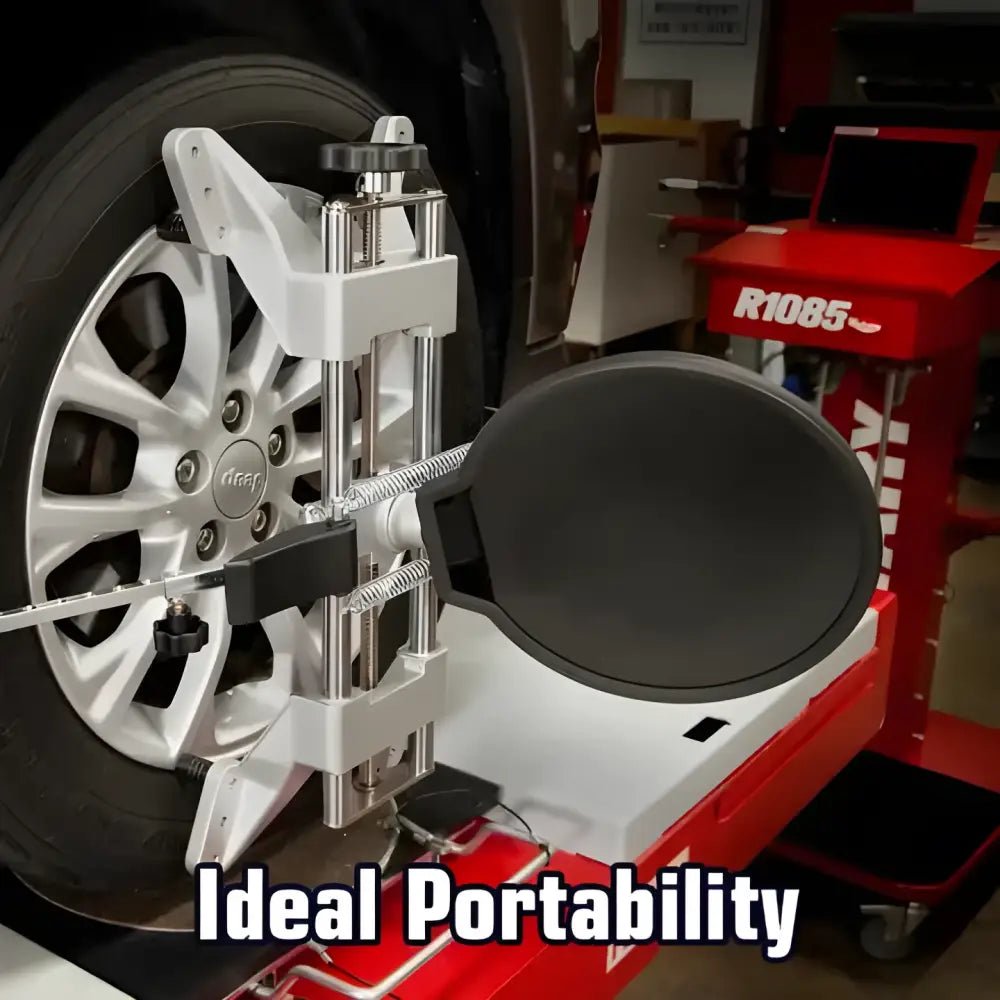

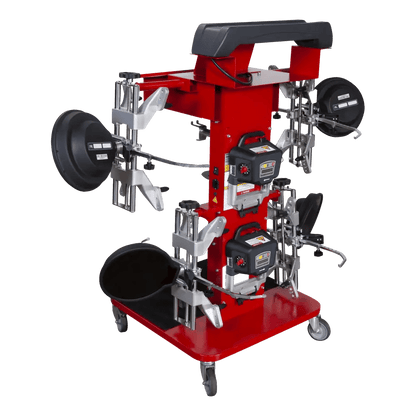

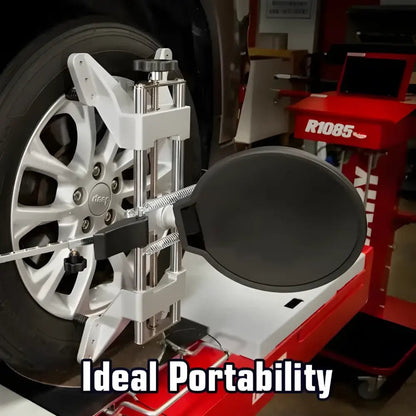

The R1085 eliminates the need for a fixed alignment tower through a portable design using passive 3D targets and mobile alignment heads. This architecture requires no permanent bay modifications and works with any standard alignment lift, operating on standard 110V workshop power, allowing shops to perform alignment services without dedicating a specific bay to alignment work.
Traditional alignment systems require permanent tower installations that lock a bay into single-purpose use. The R1085 addresses this challenge by enabling shops with limited space to offer alignment services without sacrificing general repair capacity. The system can be moved between bays or stored when not in use.
This enables smaller shops to add alignment capability without major facility modifications. The portable design reduces upfront installation costs and provides flexibility to reconfigure shop layout as business needs change.
Passive 3D Target System

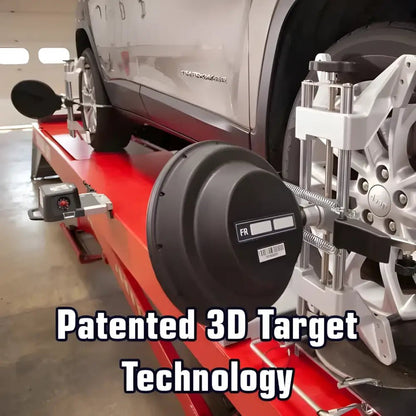

The system uses passive, non-electronic 3D targets that require no batteries, charging, or internal electronics. These targets are designed to be read by the alignment heads through optical recognition while maintaining ±2 minutes total toe accuracy, eliminating the maintenance and calibration demands associated with active electronic targets found in traditional systems.
Electronic targets in conventional systems require regular battery replacement, charging cycles, and periodic recalibration when electronics drift or fail. The R1085's passive design addresses these operational interruptions by removing electronic components from the target assemblies entirely.
This reduces long-term maintenance costs and eliminates downtime caused by dead batteries or electronic target failures. Technicians can begin alignment work immediately without checking target charge status or performing electronic synchronization procedures.
Android Tablet-Based Operation

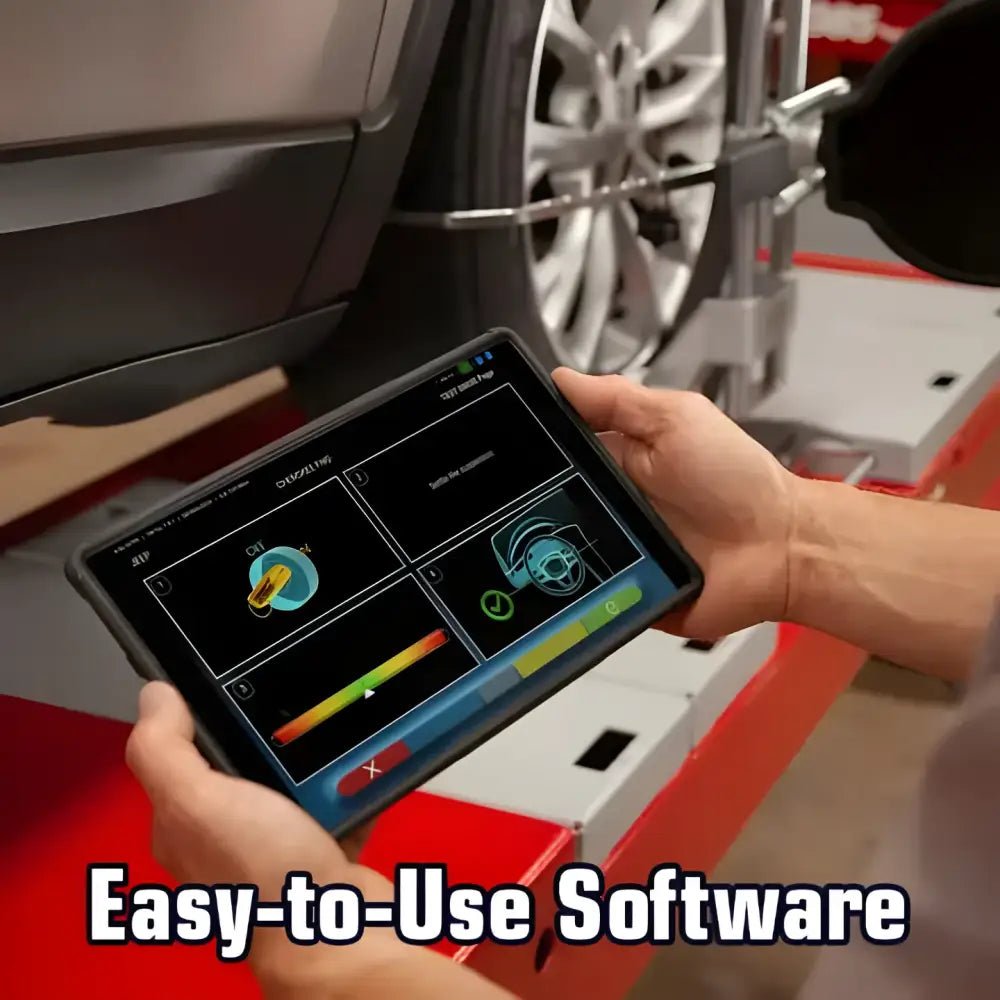

The R1085 operates through an integrated Android tablet with Bluetooth and WiFi connectivity, allowing technicians to control the system and view alignment data from anywhere in the service bay. The tablet includes a magnetized mount for convenient positioning during alignment procedures.

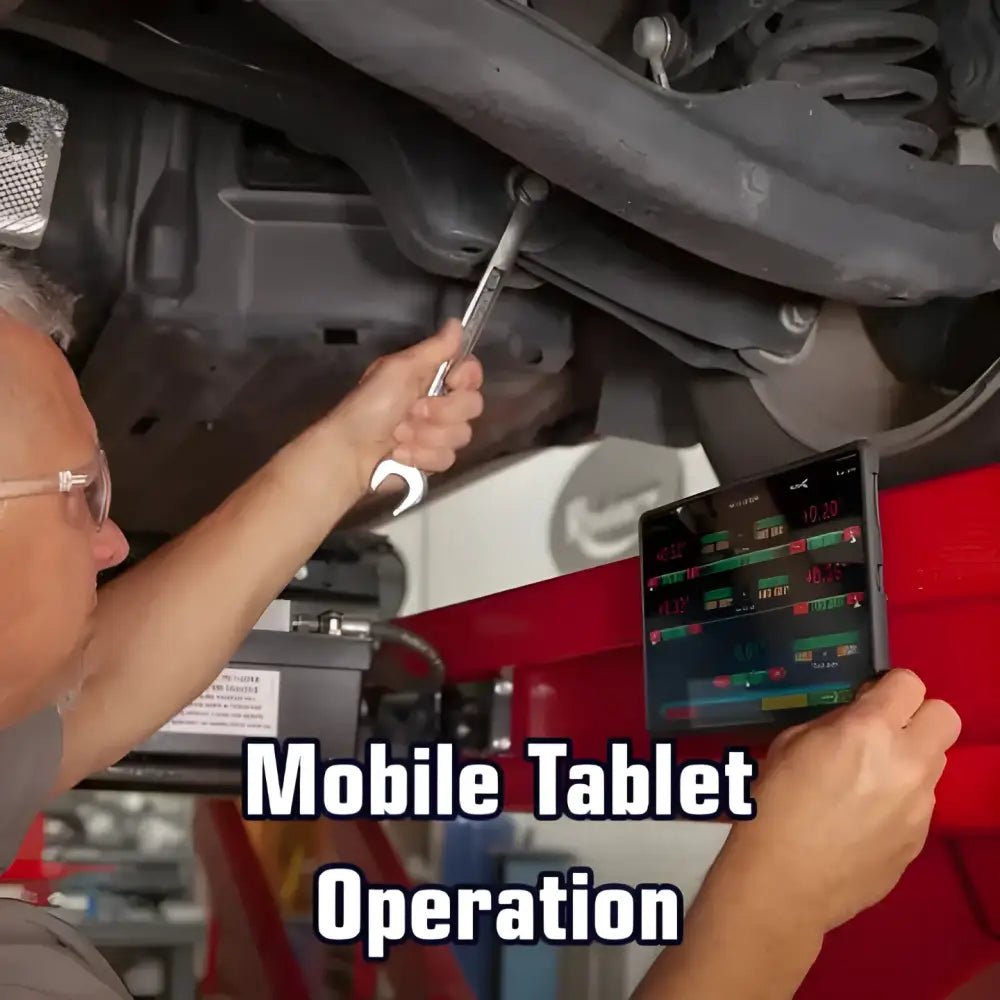

Fixed alignment consoles force technicians to walk back and forth between the vehicle and a stationary screen during adjustment procedures. The tablet-based interface addresses this workflow inefficiency by bringing controls and real-time alignment readings directly to the point of adjustment, whether at the wheel, under the vehicle, or monitoring from multiple positions.
This improves alignment workflow efficiency by reducing unnecessary movement and enabling technicians to make adjustments while viewing live feedback. The wireless design also supports easier vehicle positioning and reduces cable management concerns in the alignment bay.
4-Point Quick-Lock Wheel Clamps

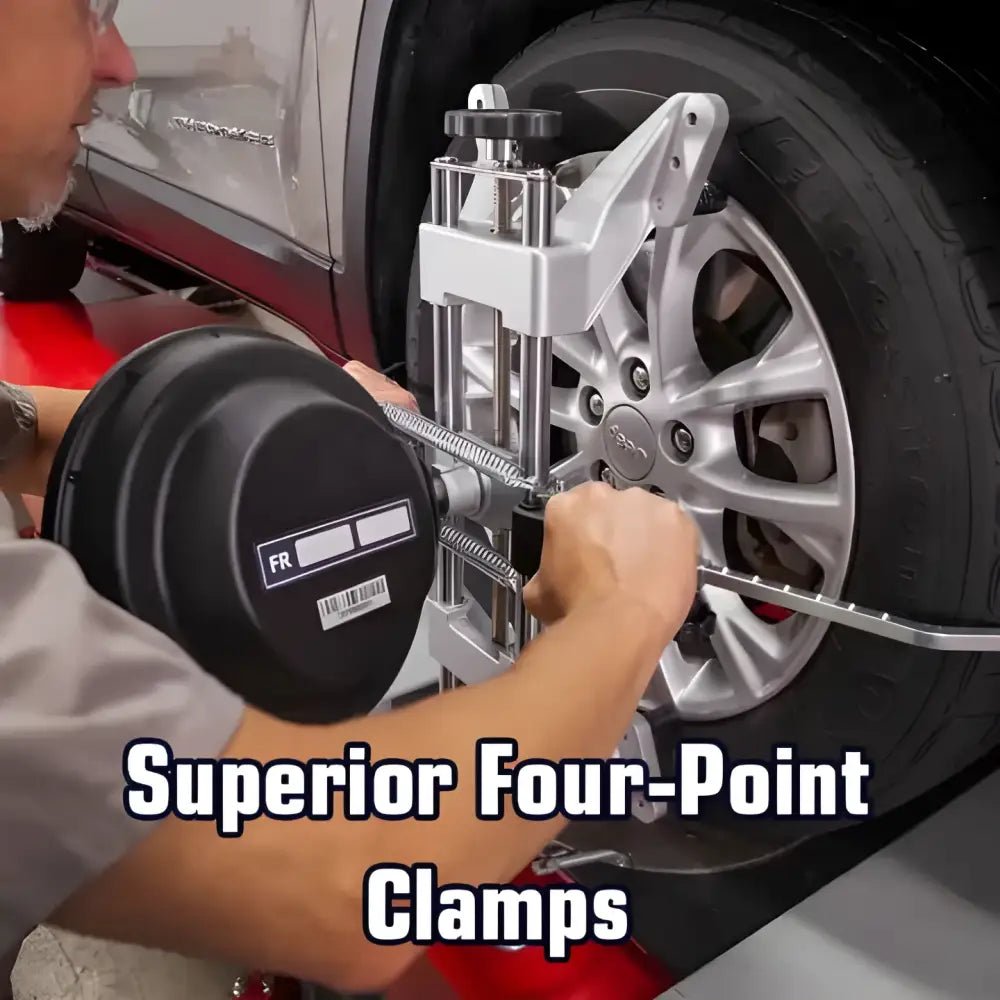

The system includes 4-point quick-lock wheel clamps (one for each wheel) designed to secure alignment targets to wheels while minimizing rim contact and setup time. The clamp design is engineered to work across a range of wheel sizes and styles without requiring multiple adapter sets, distributing clamping force across four contact points rather than concentrating pressure on fewer areas.
Traditional alignment clamps can be time-consuming to install and may contact wheel finishes in ways that risk damage to specialty wheels. The quick-lock mechanism addresses this by providing rapid engagement while distributing clamping force across four points rather than concentrating pressure on fewer contact areas.
This enables faster target mounting at the start of each alignment job and reduces the risk of wheel finish damage on custom or high-value wheels. The reduced setup time allows shops to increase alignment throughput during busy periods.
Product Demonstration
Applications & Use Cases
- Automotive Repair Shops: General repair facilities performing alignments on passenger cars, crossovers, and SUVs without dedicated alignment bay space
- Light Truck Service Centers: Shops servicing light-duty trucks and vans requiring alignment capability alongside other mechanical services
- Fleet Maintenance Operations: Fleet service facilities needing portable alignment capability across multiple service bays or locations
Technical Specifications
| Specification | Value |
|---|---|
| System Type | Portable 3D wheel alignment system |
| Design Architecture | Tower-free, no dedicated bay required |
| Target Type | Passive, non-electronic 3D targets |
| Total Toe Accuracy | ±2 minutes |
| Wheel Clamps | 4-point quick-lock design |
| Specification | Value |
|---|---|
| Control Interface | Integrated Android tablet |
| Connectivity | Bluetooth and WiFi |
| Tablet Mount | Magnetized mount included |
| Specification | Value |
|---|---|
| Power Supply | 110V, single-phase, 60 Hz |
| Lift Compatibility | Compatible with standard alignment lifts |
| Bay Requirements | No permanent tower or bay modifications required |
| Component | Description |
|---|---|
| Android Tablet | Integrated control tablet with magnetized mount |
| Wheel Clamps | Four 4-point quick-lock wheel clamps |
| Brake Pedal Depressor | Included |
| Steering Wheel Lock | Included |
Installation Requirements
Power Requirements
- Voltage: 110V, single-phase, 60 Hz
- Electrical Supply: Standard workshop electrical supply
Facility Requirements
- Lift Compatibility: Compatible with standard alignment lifts
- Bay Modifications: No permanent tower or bay modifications required
- Installation Type: Portable system, no fixed installation necessary
Installation Notes
- Setup: System can be moved between bays or stored when not in use
- Professional Installation: Follow manufacturer setup procedures for optimal performance
Warranty Coverage
Standard Warranty Program
3 Years - Machine Warranty: Complete coverage on system components and hardware
1 Year - Labor Warranty: Labor coverage for repairs and service
Ready to Add Alignment Capability?
Get expert guidance on portable alignment systems and installation planning. Our team can help with product selection, facility requirements, and technical specifications. Call to confirm included accessories and verify compatibility with your specific shop layout.
Frequently Asked Questions
What are the power requirements for the Rotary R1085?
The R1085 requires 110V, single-phase, 60 Hz standard workshop electrical supply. No special electrical modifications are needed beyond standard shop power. The system operates on the same electrical infrastructure used for other shop equipment like air compressors and diagnostic tools, making installation straightforward for facilities with existing automotive service capabilities.
What components are included with the Rotary R1085 wheel aligner?
The system includes an integrated Android tablet with magnetized mount for wireless control and data display, four 4-point quick-lock wheel clamps for securing alignment targets, a brake pedal depressor to hold brake position during measurements, and a steering wheel lock to maintain wheel position. All components necessary for complete alignment operations are included in the package, eliminating the need for separate accessory purchases to begin performing alignments.
Does the R1085 require a dedicated alignment bay or tower installation?
No, the R1085 is a tower-free portable system that requires no permanent bay modifications, dedicated alignment tower, or fixed installation hardware. It works with any standard alignment lift and can be moved between bays or stored when not in use, providing maximum flexibility for shops with limited space. This portable design allows facilities to offer alignment services without dedicating a specific bay exclusively to alignment work, enabling the same bay to handle general repair work when alignment services are not needed.
What types of vehicles can the Rotary R1085 align?
The R1085 is designed for light vehicles including passenger cars, crossovers, SUVs, light-duty trucks, and vans typically found in automotive repair shops and fleet operations. It is suitable for automotive repair shops handling consumer vehicles, light truck service centers working on commercial delivery vehicles and work trucks, and fleet maintenance operations managing mixed vehicle types. The system handles the full range of wheel sizes and configurations commonly found on light-duty vehicles used in commercial and personal transportation applications.
How accurate is the Rotary R1085 alignment system?
The R1085 delivers total toe accuracy within ±2 minutes, providing precise alignment measurements for professional wheel alignment work.
What are the advantages of passive 3D targets?
Passive targets contain no electronics, batteries, or charging requirements, eliminating the ongoing maintenance burden of battery-powered electronic targets. This design eliminates maintenance needs like regular battery replacement and charging cycles, reduces calibration demands associated with electronic drift, and prevents downtime from electronic component failures that can halt alignment operations. Technicians can begin alignment work immediately without checking target charge status or waiting for targets to sync, improving workflow efficiency and reducing the operational costs associated with maintaining electronic target systems over the equipment's service life.
What warranty coverage does the Rotary R1085 include?
The R1085 includes a 3-year machine warranty covering system components, hardware, and mechanical assemblies, plus a 1-year labor warranty for repairs and service performed by authorized technicians. This warranty structure provides coverage for the alignment heads, targets, wheel clamps, control tablet, and all system components against manufacturing defects and material failures during normal operation, giving shops confidence in the equipment's long-term reliability and manufacturer support.
How does the tablet-based control system work?
The R1085 operates through an integrated Android tablet with Bluetooth and WiFi connectivity that communicates wirelessly with the alignment heads and targets. The tablet provides wireless control of all alignment functions and displays real-time alignment data including toe, camber, and caster measurements, allowing technicians to work from anywhere in the bay without returning to a fixed console. A magnetized mount is included for convenient tablet positioning at the vehicle, on the lift, or on nearby tool carts, improving workflow efficiency by bringing controls and live measurement feedback directly to the point of adjustment.
