Rotary R1065 Mobile Tablet Aligner - Wireless CCD Wheel Alignment Without Fixed Infrastructure
The Rotary R1065 is a portable, tablet-operated wheel alignment system designed for automotive repair and service shops. This mobile solution delivers accurate alignment measurements using CCD sensor technology, Bluetooth/Wi-Fi communication, and a tablet interface that requires no stationary PC or tower setup. The system includes four alignment sensor heads with eight CCD cameras total, four wheel clamps, and comprehensive reporting capabilities.
Key Features & Benefits
Wireless Tablet Control Interface

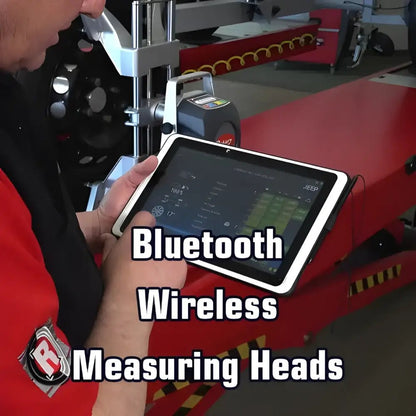

The R1065 operates through a 10-inch Android tablet connected via Bluetooth or Wi-Fi to the measurement sensors. This wireless architecture eliminates the need for a stationary PC tower, reducing shop clutter and simplifying installation complexity. The tablet includes integrated Wi-Fi router and charging capabilities for the four sensor heads.

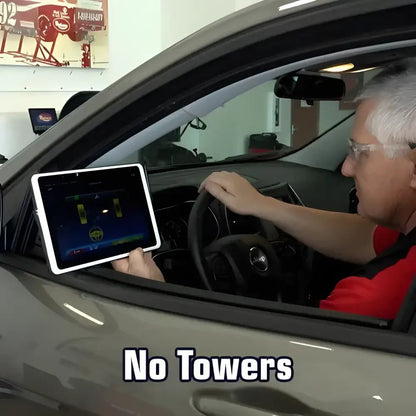

Traditional alignment systems require fixed PC workstations, infrastructure cabling, and dedicated floor space. The wireless tablet approach addresses this industry-wide challenge by enabling technicians to position the control interface anywhere in the service bay or office without hardwired connections or installation constraints.
This enables flexible shop layouts where the alignment system can move between bays without losing functionality. The tablet provides real-time measurement feedback, automatic calibration, and immediate alignment reporting without waiting for PC processing cycles.
Eight-Camera CCD Sensor Technology
The system features four measuring heads, each equipped with two CCD cameras, for a total of eight cameras delivering multi-dimensional alignment data. CCD imaging provides superior accuracy compared to conventional mechanical wheel gauges or single-camera systems by capturing high-resolution positional data from multiple angles simultaneously.
Typical competitor alignment systems utilize two-camera designs or mechanical encoder feedback, which limit measurement precision and require extended calibration cycles when shop conditions change. The dual-camera approach per measuring head addresses this limitation by providing redundant measurement paths that cross-verify alignment angles, toe, camber, and thrust angle readings.
This enables alignment tolerances within vehicle manufacturer specifications even on heavily worn suspension systems. The eight-camera configuration eliminates measurement ambiguity from single-point sensor errors and reduces the need for recalibration between wheel service operations.
Mobile Cart with Integrated Charging

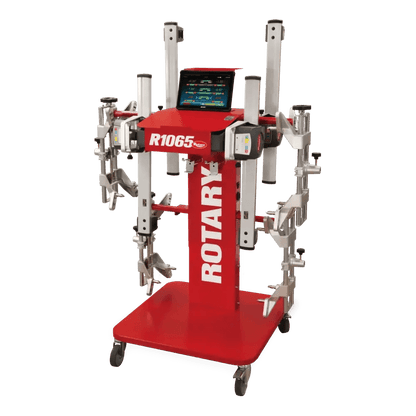

The R1065 ships with a mobile storage and alignment cart featuring built-in sensor charging. The cart design consolidates the four measuring heads, tablet, Wi-Fi router, and power management into a single transportable unit. Charging occurs automatically when sensor heads are docked in the cart, eliminating manual battery management and extending sensor uptime.
Fixed pedestal systems require permanent mounting and consume valuable floor space that could accommodate additional service equipment. The mobile cart approach enables technicians to roll the entire system between bays, store it compactly when not in use, and deploy it for scheduled alignment work on demand.
This improves shop efficiency by allowing the same R1065 system to service multiple bays throughout a day without transportation downtime. The docking-based charging design reduces maintenance requirements and extends sensor operating life compared to systems requiring external chargers or tethered power.
Wi-Fi-Based Personalized Alignment Reporting
The R1065 generates customized alignment reports that can be emailed directly to customers or printed wirelessly via compatible Wi-Fi printers. Reports include before-and-after alignment angles, vehicle specification compliance status, technician notes, and service recommendations. The digital format eliminates paper output requirements and enables immediate customer communication during the service visit.
Conventional alignment systems require USB export to office workstations, print job queuing, or manual report generation that delays customer handoff. The integrated Wi-Fi reporting addresses this workflow challenge by eliminating intermediate steps and enabling technicians to provide documentation at the vehicle while the customer waits.
This improves customer confidence by demonstrating specific alignment improvements with supporting measurement data. The wireless output capability reduces administrative overhead and enables alignment records to be archived digitally as part of each vehicle's service history.
Complete Four-Point Wheel Clamp System

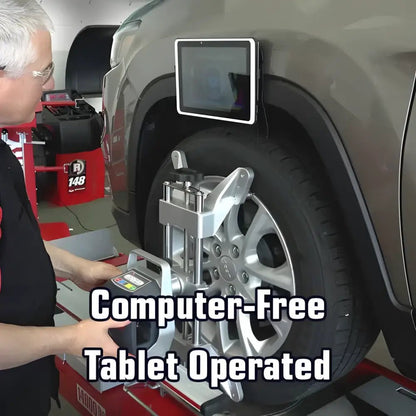

The system includes four STDA33EU four-point wheel clamps specifically engineered for the R1065 measurement geometry. Each clamp features adjustable positioning arms that secure wheels at consistent angles regardless of vehicle wheelbase or track width variations. The clamps accommodate standard passenger vehicle wheels from compact cars through full-size trucks.
Undersized or generic clamp systems fail to maintain wheel position stability during measurement cycles, requiring technicians to manually readjust wheel placement and causing repeated measurement errors. The purpose-built STDA33EU clamps address this by providing indexed positioning that prevents wheel drift during sensor scanning operations.
This eliminates measurement errors caused by wheel movement and reduces setup time between vehicles. The four-clamp architecture ensures symmetric loading, preventing suspension geometry distortion from uneven clamping forces.
Brake Pedal Depressor and Steering Wheel Lock Accessories
The R1065 includes a brake pedal depressor and steering wheel lock designed to maintain vehicle suspension at rest during alignment measurement. The brake depressor prevents brake system pressure loss during extended measurement cycles by holding the pedal in the released position. The steering wheel lock maintains consistent front axle centerline geometry independent of steering column friction or road camber effects.
Technicians typically use manual blocking or weight-loading methods to maintain brake pedal pressure and steering position during alignment work. These improvised approaches introduce variability in suspension loading and steering angles, requiring measurement recycles when conditions change. The purpose-built accessories address this by providing positive, consistent mechanical restraint.
This enables repeatable measurements on subsequent visits to the same vehicle and provides objective documentation that suspension geometry was measured under controlled conditions. The included accessories eliminate the need for external tools or improvisation during the alignment process.
Product Demonstration
Applications & Use Cases
- Automotive Repair Facilities: Full-service shops performing comprehensive alignment services for customer vehicles. The wireless tablet interface and mobile cart enable shared access across multiple service bays without fixed infrastructure investment.
- Tire Service Centers: Dedicated tire retailers integrating alignment as a complementary service. The portable design accommodates tire installation bays equipped with or without existing alignment systems.
- Collision Repair Shops: Post-accident vehicle suspension verification and corrective alignment following frame straightening and suspension component replacement. The tablet reporting capability documents alignment compliance for insurance claim documentation.
- Quick-Lube and Service Chains: Multi-location operators requiring consistent alignment equipment without franchise-wide infrastructure standardization. The mobile system supports deployment across locations with varying facility layouts and electrical configurations.
Technical Specifications
| Specification | Value |
|---|---|
| System Type | Mobile tablet-operated wheel alignment system (wireless) |
| Control Interface | 10-inch Android tablet with Wi-Fi/Bluetooth |
| Measuring Heads | Four alignment heads with 2 CCD cameras each (8 cameras total) |
| Wireless Communication | Bluetooth and Wi-Fi (no cables required between sensors and tablet) |
| Wheel Clamps Included | 4 STDA33EU 4-point wheel clamps |
| Additional Accessories | Brake pedal depressor, steering wheel lock |
| Reporting Capability | Personalized alignment reports via email or Wi-Fi printer |
| Power Requirements | 110 V / 1 Phase / 60 Hz |
| Warranty Coverage | 3 years parts / 1 year labor (standard) |
Installation Requirements
Electrical Requirements
- Power Supply: 110 V / 1 Phase / 60 Hz
- Installation Location: Flat shop floor with direct access to standard electrical outlet
- Optional Equipment: Wi-Fi compatible printer for on-site report output (not required for email delivery)
Setup Considerations
- Floor Space: Mobile cart accommodates standard service bay dimensions; no permanent mounting required
- Network Connectivity: Tablet operates with Wi-Fi router included in system; compatible with facility networks if network integration desired
- Operating Environment: Indoor climate-controlled environment recommended for optimal sensor performance
Warranty Coverage
Standard Warranty Program
3 Years - Parts: Comprehensive parts coverage including sensor heads, tablet electronics, clamps, and mechanical components. Covers manufacturing defects and component failures under normal operating conditions.
1 Year - Labor: Factory labor support for warranty-eligible repair or replacement. Covers technician time and service center diagnostics during the first year of ownership.
Warranty Terms
Warranty is valid for the original equipment purchaser and applies to standard commercial shop use. Coverage excludes misuse, unauthorized repairs, and damage from customer-caused impacts or electrical surges. Registration may be required to activate warranty coverage - verify current requirements with Rotary Solutions or authorized dealer at time of purchase.
Ready to Upgrade Your Alignment Capabilities?
Get expert guidance on integrating the Rotary R1065 into your facility. Our team can help with product selection, installation planning, wireless network configuration, and technical support.
Frequently Asked Questions
What are the electrical requirements for the Rotary R1065?
The R1065 requires 110 V / 1 Phase / 60 Hz power supply. Standard North American shop electrical outlets provide adequate capacity without upgrading existing circuits in most facilities. Connection to a nearby 110V outlet is all that's required - no special hardwiring, dedicated circuits, or voltage conditioning is necessary. The system draws standard single-phase power compatible with typical automotive shop electrical panels.
What components are included with the R1065 system?
The complete package includes a mobile storage cart with integrated sensor charging, 10-inch Android tablet with Wi-Fi router, four measuring heads with two CCD cameras each (eight cameras total), four STDA33EU wheel clamps, brake pedal depressor, steering wheel lock, and alignment software. All components mount and operate from the included mobile cart. This represents a complete ready-to-use system requiring only electrical outlet access and floor space.
How does the wireless tablet interface work?
The R1065 communicates via Bluetooth or Wi-Fi between the 10-inch Android tablet and the four measuring head sensors. The tablet includes an integrated Wi-Fi router for local network connectivity, eliminating the need for external routers or facility network integration. No computer workstation or cables are required between components. The wireless architecture enables the tablet to be positioned anywhere in the service bay during alignment measurement, providing technicians with mobile control and real-time measurement feedback.
What types of vehicles can the R1065 align?
The four measuring heads and four STDA33EU wheel clamps accommodate passenger vehicles from compact cars through full-size trucks. The clamps feature adjustable positioning arms that secure wheels at consistent angles across varying wheelbase and track width dimensions. This universal clamp design provides measurement capability across the full range of standard North American vehicles. Refer to the manufacturer specification guide for specific vehicle compatibility matrices and any suspension type limitations.
Can I generate customer reports with the R1065?
Yes, the system generates personalized alignment reports displaying before-and-after measurements, vehicle specification compliance status, and service recommendations. Reports can be emailed directly to customer email addresses or printed wirelessly via compatible Wi-Fi printers. Digital output eliminates paper and enables immediate customer communication during the service visit. Technicians can provide comprehensive alignment documentation with supporting measurement data at the vehicle, improving customer confidence in the alignment work performed.
What warranty coverage does the R1065 include?
The system includes a standard 3-year parts warranty and 1-year labor warranty. The 3-year parts coverage includes sensor heads, tablet electronics, clamps, and mechanical components against manufacturing defects under normal operating conditions. The 1-year labor warranty covers factory technician support and service center diagnostic costs. Warranty is valid for the original purchaser under standard commercial shop use. Parts replacement and labor support are processed through Rotary Solutions or authorized service centers. Verify registration requirements at time of purchase.
Do I need a computer workstation to operate the R1065?
No. The R1065 operates entirely from the 10-inch Android tablet, which includes its own integrated Wi-Fi router for sensor communication. No fixed PC tower, desktop workstation, or facility network connection is required. The tablet provides the complete alignment interface and can be positioned anywhere in the service bay during measurement cycles. This eliminates the infrastructure constraints and floor space requirements of traditional PC-based alignment systems, enabling flexible shop layouts and multi-bay deployment.
How does the mobile cart design improve shop efficiency?
The R1065 mobile cart consolidates four measuring heads, tablet, Wi-Fi router, and charging equipment into a single transportable unit with built-in sensor docking and automatic charging. This design eliminates permanent mounting requirements and enables the entire system to be rolled between service bays on demand. A single R1065 unit can service multiple bays throughout the day without fixed-location constraints. The cart stores compactly when not in use, preserving valuable shop floor space while maintaining full system availability for alignment operations. Technicians deploy the system only when alignment work is scheduled.
About the Brand
