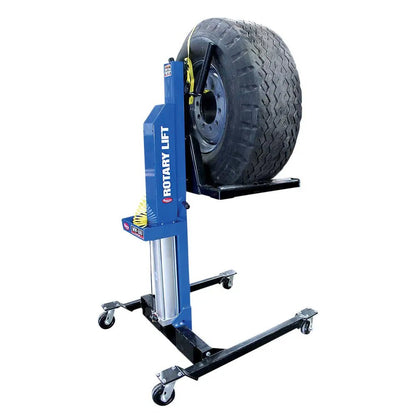

Rotary MW500 Mobile Tire & Wheel Lift - 500 lb Capacity Air-Powered Wheel Handler
The Rotary MW500 is a pneumatic, mobile lifting solution designed to safely lift, transport, and position heavy wheels and tires up to 500 lb, supporting safer and more efficient service of large commercial vehicles. This heavy-duty unit combines ergonomic positioning with integrated safety systems, reducing technician strain during complex wheel and tire service operations.
Key Features & Benefits
Pneumatic Air-Powered Operation
The MW500 operates on compressed air at 100 psi, delivering smooth, controlled lifting without electric motors, batteries, or hydraulic fluid. The integrated pressure regulator automatically manages load forces throughout the lifting cycle, ensuring consistent performance across varying wheel weights and configurations.
Air-powered systems eliminate common drawbacks of electric or manual lifting approaches—no electrical installation required, no batteries to maintain, and no fluid leaks to contaminate the shop floor. This simplicity makes the MW500 ideal for facilities with existing compressed air infrastructure.
This enables faster, safer wheel handling with minimal mechanical complexity. Technicians benefit from the smooth, predictable motion that pneumatic systems provide, reducing hand fatigue during repetitive positioning adjustments throughout the service operation.
Redundant Internal Safety Cables
The MW500 incorporates internal redundant lifting cables as a fail-safe mechanism, protecting against load loss if primary lifting components fail. Heavy forged steel cable construction and multi-point attachment geometry distribute load forces across multiple anchor points, preventing single-point failure modes.
Traditional mobile wheel lifts often rely on single pressure cylinders or mechanical restraints, creating concentrated load paths that fail under the extreme forces generated when handling dually wheels or oversized truck tires. Redundant cable systems address this industry-wide challenge by providing automatic load security without manual locking or engagement.
This eliminates the risk of sudden load drop during service operations, providing peace of mind for technicians working beneath or near suspended wheels. The redundancy also reduces maintenance requirements by distributing wear across multiple cable segments.

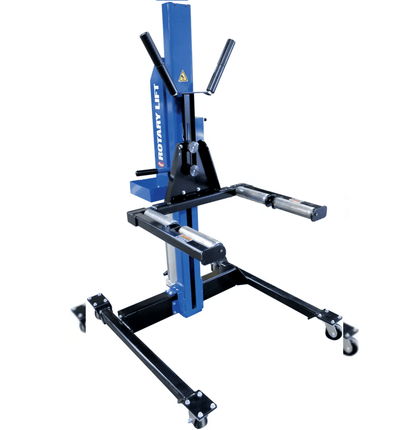

Split Roller Design for Dually Wheel Support
The MW500 features specialized split tire rollers engineered to securely grip and position dually wheel configurations, which present unique handling challenges due to their narrow profile and dual-tire geometry. The rollers are spaced and angled to prevent tire slippage and provide stable lateral support throughout positioning adjustments.
Standard wheel lifts use fixed-width rollers designed for single tires, failing to accommodate dually or oversized commercial wheel assemblies. The split roller design enables technicians to service complex wheel configurations including stacked dual truck tires, bus wheels, and construction equipment tires without requiring multiple lifting devices or manual repositioning.
This enables efficient handling of modern heavy-duty vehicle wheels with minimal repositioning or manual adjustment. The secure grip provided by split rollers reduces the need for additional tie-down straps or manual stabilization during tire dismounting, installation, or repair operations.
Adjustable Backstop for Precise Wheel Positioning
The backstop height adjusts through 5 inches of vertical range, enabling technicians to position wheels at optimal working heights for tires of varying diameters and construction types. The adjustment mechanism is smooth and low-friction, allowing quick repositioning between different wheel service tasks without manual disassembly.
Fixed-height wheel lifts force technicians to work at uncomfortable angles when servicing tires with different profile heights, leading to increased fatigue and reduced work precision. The adjustable backstop addresses this ergonomic challenge by enabling proper positioning for truck tires, bus wheels, agricultural tires, and specialty commercial wheels all with the same unit.
This improves technician comfort and workflow efficiency by reducing body strain and enabling more controlled tire removal and installation procedures. The precise positioning provided by the backstop reduces the risk of tire damage during mounting and dismounting operations.
Heavy-Duty Steel Frame Construction
The MW500 frame is constructed from heavy-duty US steel, engineered to withstand the extreme compression and shear forces generated by 500 lb wheel assemblies in professional service environments. The structural geometry uses reinforced load paths and cross-bracing to prevent deflection or deformation during continuous operation.
Commercial shop equipment endures thousands of load cycles, thermal stress from temperature variations, and impact forces from wheels being dropped or repositioned. The welded steel frame distributes these forces across the entire structure rather than concentrating stress at connection points, extending service life and maintaining load precision over years of heavy use.
This ensures the MW500 maintains structural integrity and lifting accuracy throughout its operational life. The robust construction also simplifies field repairs—technicians can replace wear components without requiring structural replacement, reducing total cost of ownership.
Mobile Base with 40-Inch Vertical Stroke
The unit includes an integrated mobile base providing 40 inches of vertical stroke, enabling the MW500 to be positioned and repositioned throughout the service bay without requiring permanent installation. The pneumatic lifting system raises and lowers the entire unit while maintaining load centering and stability on the shop floor.
Fixed wheel lifts require dedicated mounting locations, limiting shop layout flexibility and creating workflow bottlenecks when multiple vehicles or heavy wheels require simultaneous service. The mobile design enables technicians to move the unit from station to station, supporting flexible shop operations and maximizing equipment utilization across different service areas.
This improves shop workflow efficiency by eliminating repositioning delays and enabling technicians to bring the lift to the work rather than moving heavy wheels to fixed equipment locations. The self-contained design also simplifies shop relocation if layout changes occur.
Applications & Use Cases
- Large Truck Service: Handling wheels, tires, and tire assemblies for heavy-duty trucks, including tractor units, dump trucks, flatbeds, and tanker vehicles up to commercial weight classifications.
- Bus Fleet Maintenance: School bus, transit bus, and shuttle fleet wheel and tire service including tire changes, repairs, rotation procedures, and component maintenance on commercial-grade wheels.
- Construction & Industrial Equipment: Wheel and tire handling for backhoes, loaders, graders, excavators, telescopic handlers, and specialized construction equipment with oversized or specialty tires.
- Dually Wheel Configurations: Dual rear axle truck wheels including super single tire systems and stacked dual tire assemblies requiring specialized positioning and support.
- Fleet Service Facilities: Multi-vehicle tire centers, fleet maintenance departments, truck stops, and commercial service shops performing high-volume wheel and tire operations.
Technical Specifications
| Specification | Value |
|---|---|
| Model | MW-500 |
| Maximum Load Capacity | 500 lb |
| Operating Pressure | 100 psi |
| Vertical Lifting Stroke | 40 inches |
| Backstop Height Adjustment Range | 5 inches |
| Specification | Value |
|---|---|
| Overall Height | 72 inches |
| Overall Width | 42 inches |
| Overall Length | 47.5 inches |
| Unit Weight | 336 lb |
| Specification | Value |
|---|---|
| Frame Material | Heavy-duty US steel |
| Tire Rollers | Split rollers for dually wheel configurations |
| Safety System | Internal redundant lifting cables |
| Pressure Regulation | Integrated pressure regulator for overload protection |
Installation Requirements
Compressed Air Supply
- Operating Pressure: 100 psi regulated compressed air supply
- Supply Connection: Integrated air hose with quick-disconnect coupling
- Shop Infrastructure: Facility must have existing compressed air compressor and distribution system; no additional electrical power required
- Pressure Regulator: Integrated into unit; ensures safe operation across load ranges
Floor & Positioning Requirements
- Floor Surface: Designed for use on flat, level shop floors with adequate load-bearing capacity
- Floor Condition: Clean, debris-free surface recommended to prevent tire slippage during positioning adjustments
- Operational Space: Sufficient clearance around the unit for technician access and wheel positioning
- Permanence: No permanent anchoring, mounting, or foundation work required; unit is mobile and repositionable
Installation Notes
- Setup: Connect compressed air supply to integrated hose coupling and verify 100 psi pressure at regulator before operation
- Initial Checkout: Test lifting and lowering cycles under no load to confirm smooth operation and cable engagement
- Operators: Technicians should review basic operational procedures before first use to ensure familiarity with backstop adjustment and wheel positioning
Shipping & Delivery
Freight Coverage & Delivery
Shipping Method: Shipped via LTL (less-than-truckload) freight due to unit size and weight. Freight terms and lead times vary by dealer location and customer proximity.
Delivery Location: Curbside delivery is standard. Inside delivery and placement may be available through dealer for additional fees.
Receiving Requirements: Inspect all packaging before signing bill of lading. Note any visible shipping damage on the BOL before the driver departs.
Concealed Damage Reporting
15-Day Window: Report any concealed damage discovered after delivery within 15 days for full replacement coverage of damaged parts and freight costs.
30-Day Window: Claims filed between 15-30 days are eligible for partial replacement coverage (shared cost arrangement).
After 30 Days: No coverage available; customer responsible for parts and freight costs for any damage discovered after 30 days.
Warranty Coverage
Manufacturer Warranty
Coverage: Rotary-backed warranty coverage provided through authorized dealers. Warranty terms and duration are determined by dealer and subject to manufacturer eligibility requirements.
Registration: Warranty validity may require product registration with the dealer or manufacturer within specified timeframe after purchase.
Eligibility: Original purchaser only; non-transferable to subsequent owners. Valid only when unit is operated according to manufacturer installation manual and safety guidelines.
Coverage Scope
Covered Components: Defects in workmanship and materials affecting lifting cylinders, valves, safety cables, frame welds, and structural components.
Excluded Items: Tire rollers and wear surfaces subject to higher wear rates and may require periodic replacement outside warranty scope.
For Specific Warranty Terms: Contact your authorized dealer or Rotary Solutions for detailed warranty documentation and registration requirements.
Ready to Upgrade Your Shop?
Get expert guidance on the right wheel lift for your facility. Our team can help with product selection, installation planning, compressed air requirements, and technical specifications.
Frequently Asked Questions
What is the maximum load capacity of the Rotary MW500?
The MW500 is engineered for a maximum load capacity of 500 lb, supporting the heaviest commercial truck wheels, bus wheels, dually wheel configurations, and construction equipment tires. This 500 lb capacity exceeds typical portable wheel lift designs, making the MW500 suitable for the widest range of heavy commercial vehicle wheels and assemblies without any load limitations.
Does the MW500 require electrical power to operate?
No. The MW500 is powered entirely by compressed air at 100 psi. It requires only a regulated compressed air supply—no electrical outlets, batteries, or external power sources needed. Facilities with existing shop air infrastructure can operate the MW500 immediately without additional electrical installation, making it ideal for shops with established compressed air systems.
What compressed air pressure is required for the MW500?
The MW500 operates at 100 psi (pounds per square inch) regulated compressed air. The unit's integrated pressure regulator automatically manages load forces and provides overload protection throughout the lifting cycle. Your facility's compressed air system should deliver stable pressure at 100 psi during operation. The pressure regulator ensures consistent performance across varying load conditions and wheel weights.
Can the MW500 handle dually wheels and specialized tire configurations?
Yes. The MW500 features split tire rollers specifically engineered for dually wheel configurations, dual rear axle tires, and specialty commercial wheels. The adjustable 5-inch backstop and split roller design accommodate various tire diameters, stacked dual tire assemblies, and oversized commercial wheels. This specialized design enables technicians to service complex wheel configurations without requiring multiple lifting devices.
What safety features does the MW500 include?
The MW500 incorporates internal redundant lifting cables as a fail-safe mechanism, preventing load loss if primary lifting components fail. The integrated pressure regulator provides automatic overload protection. These redundant systems eliminate the risk of sudden load drop during service operations. The heavy forged steel cable construction and multi-point attachment geometry distribute load forces across multiple anchor points, preventing single-point failure modes.
What are the physical dimensions and weight of the MW500?
The unit measures 72 inches in height, 42 inches in width, and 47.5 inches in length, with a weight of 336 lb. These compact dimensions allow the MW500 to fit efficiently in most shop environments. The mobile base enables positioning throughout the shop without permanent installation or anchoring, providing flexibility for multi-station service layouts.
Is the MW500 mobile or does it require permanent installation?
The MW500 is fully mobile with an integrated base that requires no permanent mounting, anchoring, or foundation work. The unit can be positioned and repositioned throughout the service bay as needed, providing complete flexibility for multi-station shop layouts and enabling workflow optimization based on your facility's specific service requirements.
What is the vertical lifting stroke of the MW500?
The unit provides 40 inches of vertical lifting stroke, enabling comprehensive wheel positioning and access for tire removal, installation, repair, and component service on various commercial vehicles. The adjustable backstop adds an additional 5-inch adjustment range for fine-tuning wheel position based on tire diameter and service task requirements.
