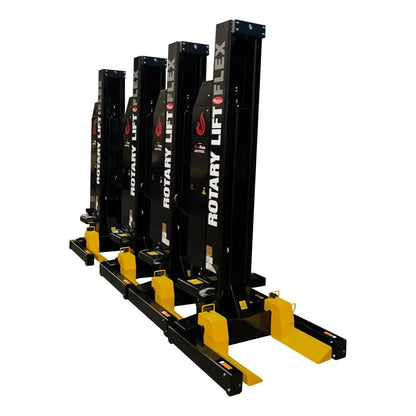

ROTARY MCHM19 19K Flex MAX Wireless Remote Control Mobile Column Lift System (Set of 4)

Rotary

ROTARY MCHM19 19K Flex MAX Wireless Remote Control Mobile Column Lift System (Set of 4)

$59,495.00

Product variants

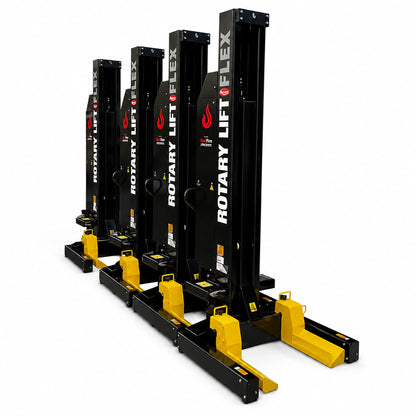

ROTARY | MCHM19 | 19K Flex MAX Wireless Remote Control Mobile Column Lift System (Set of 4)

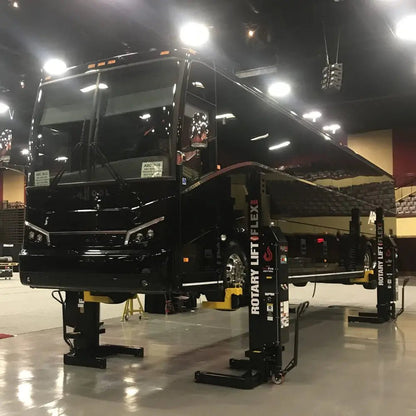

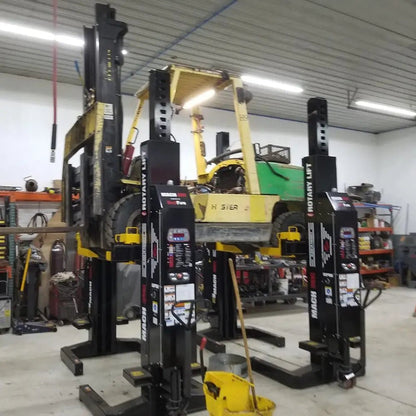

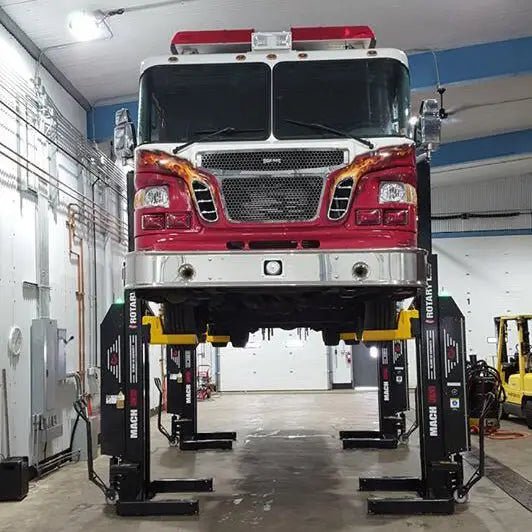

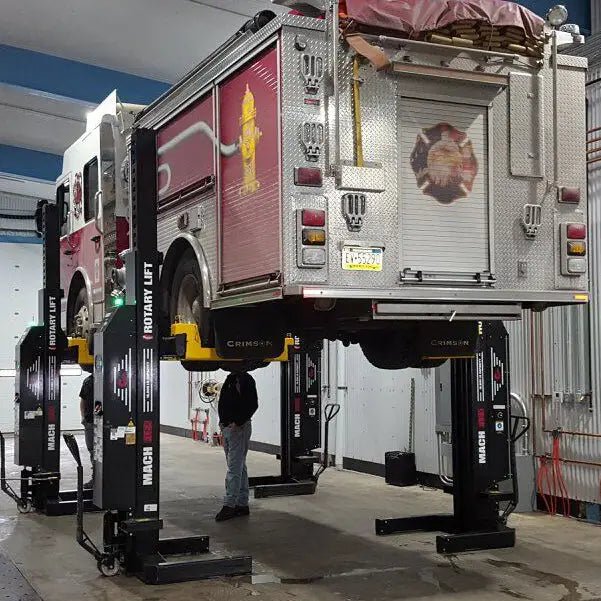

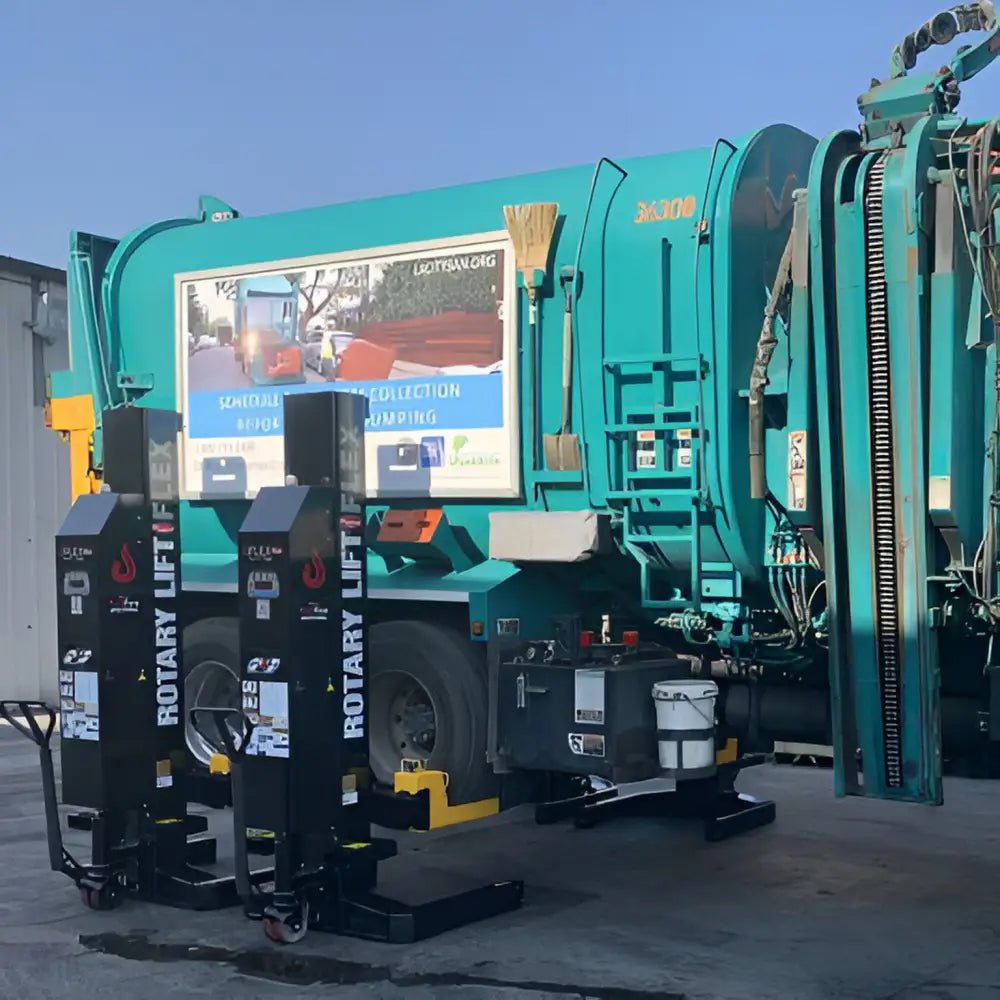

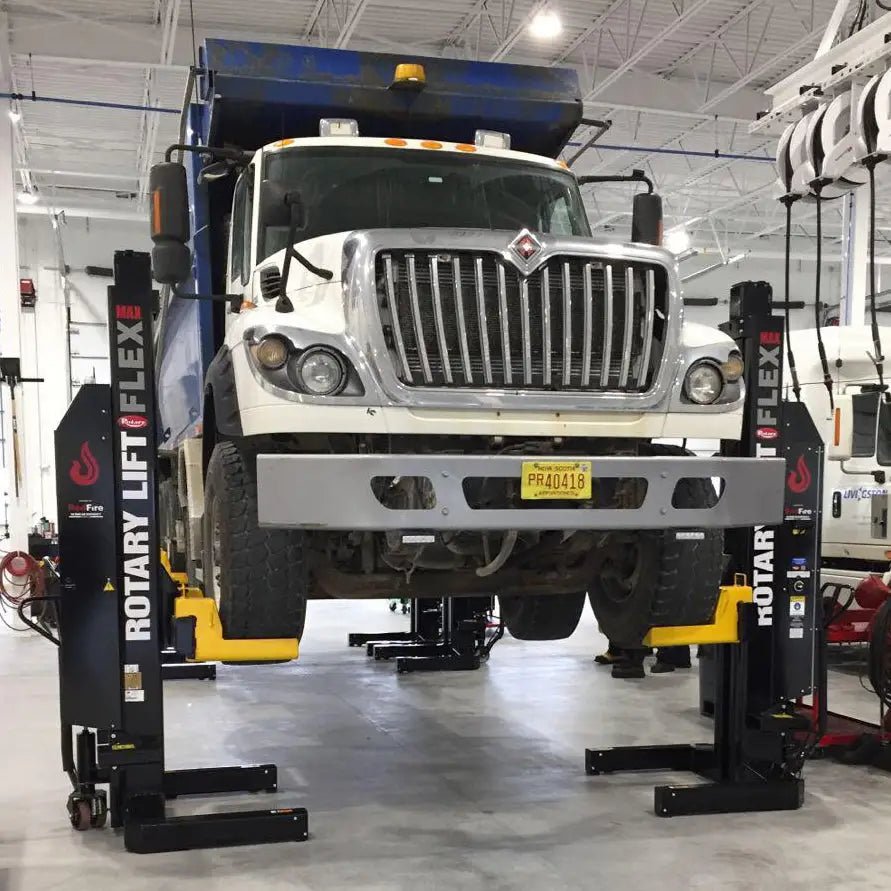

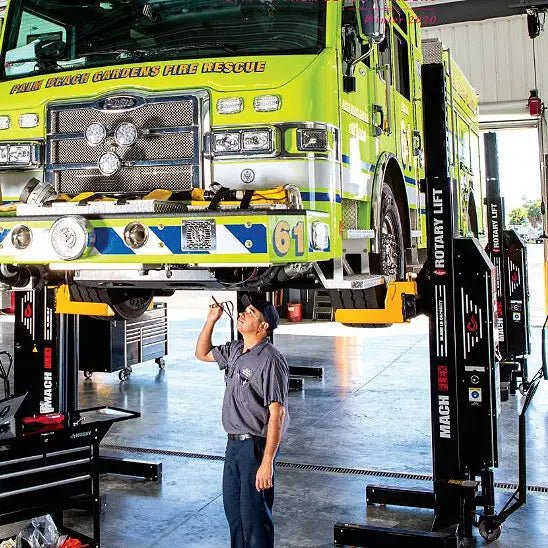

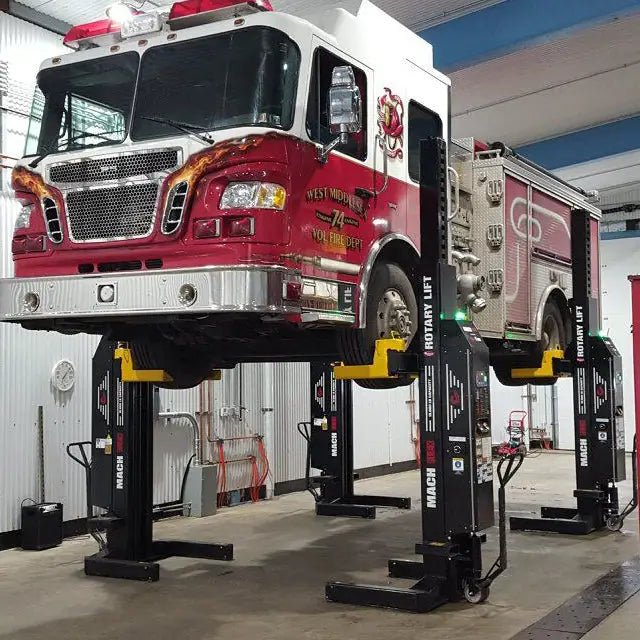

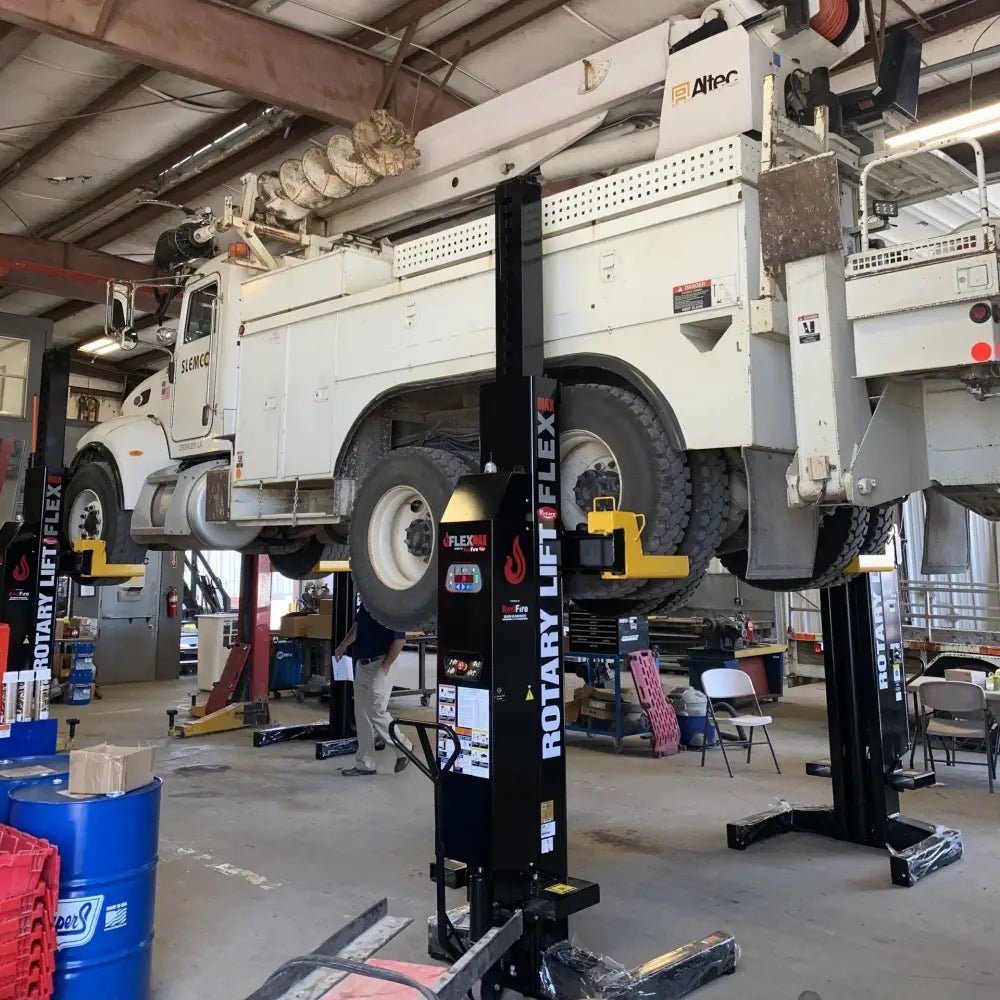

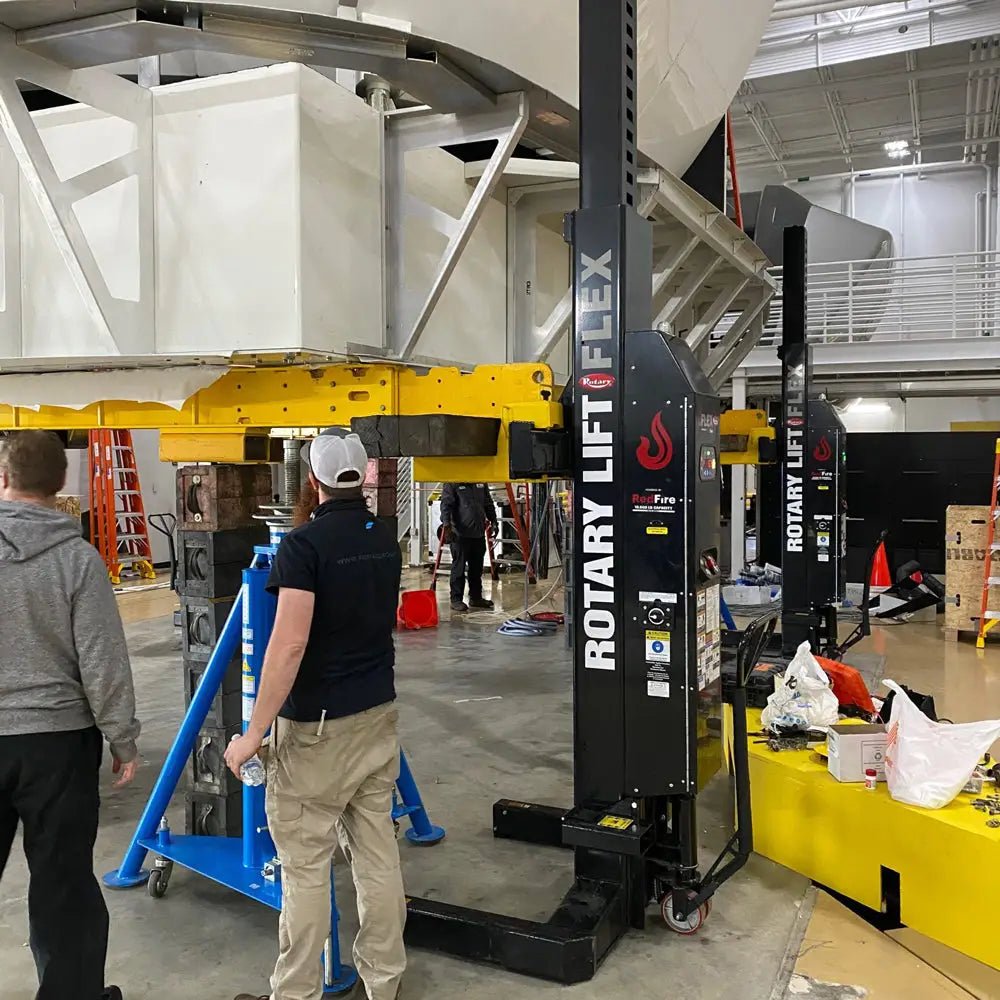

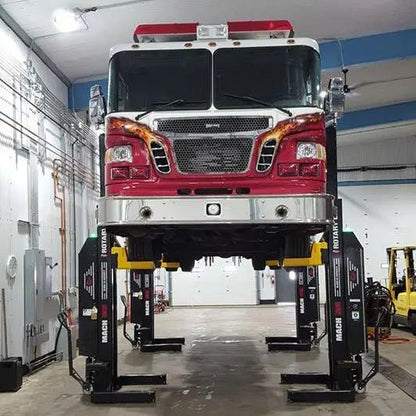

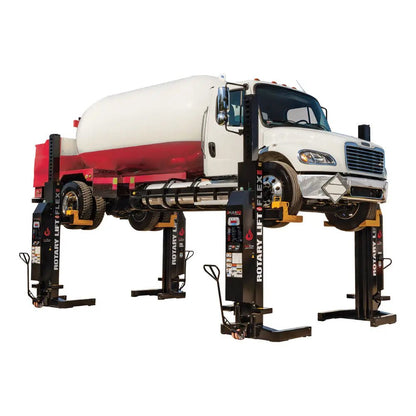

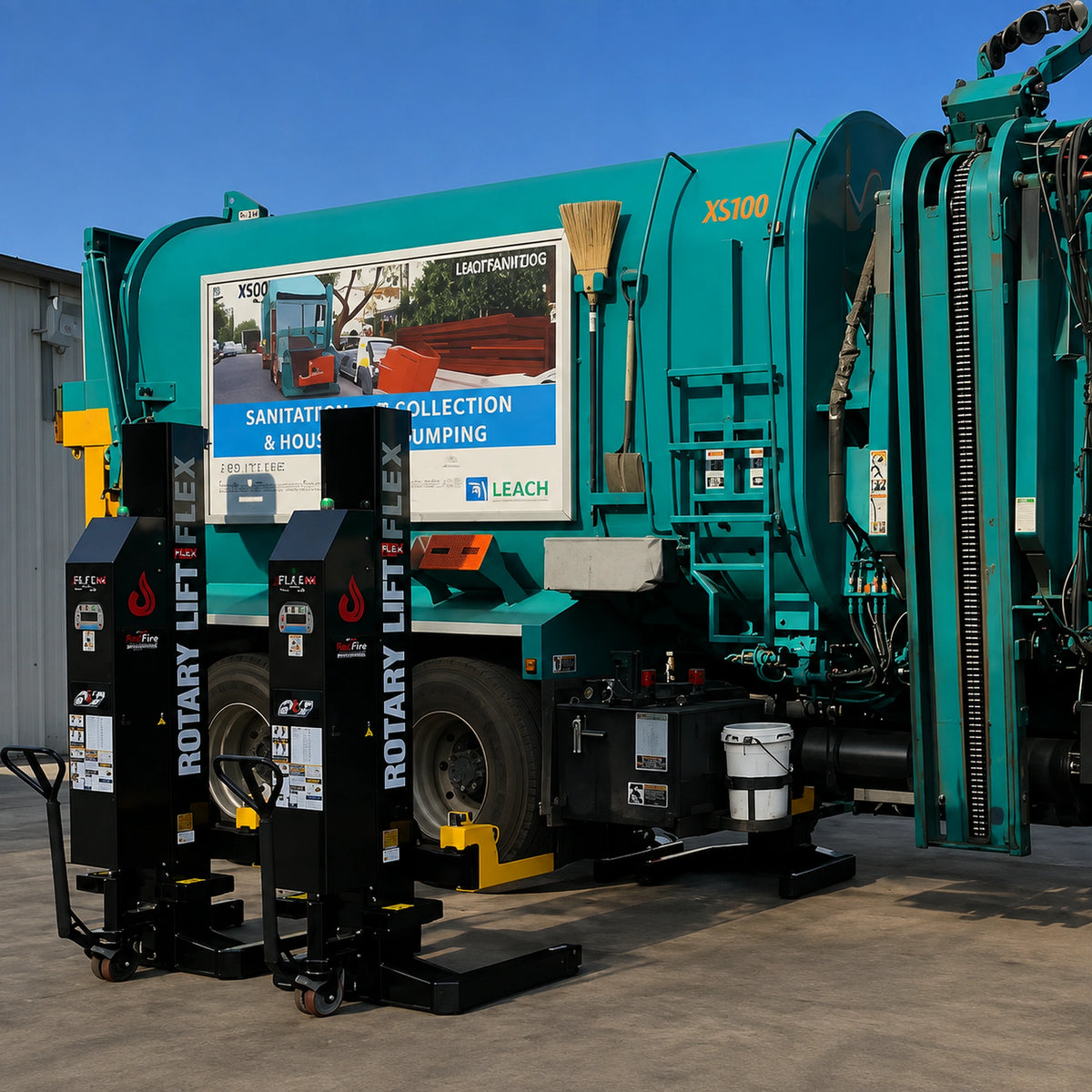

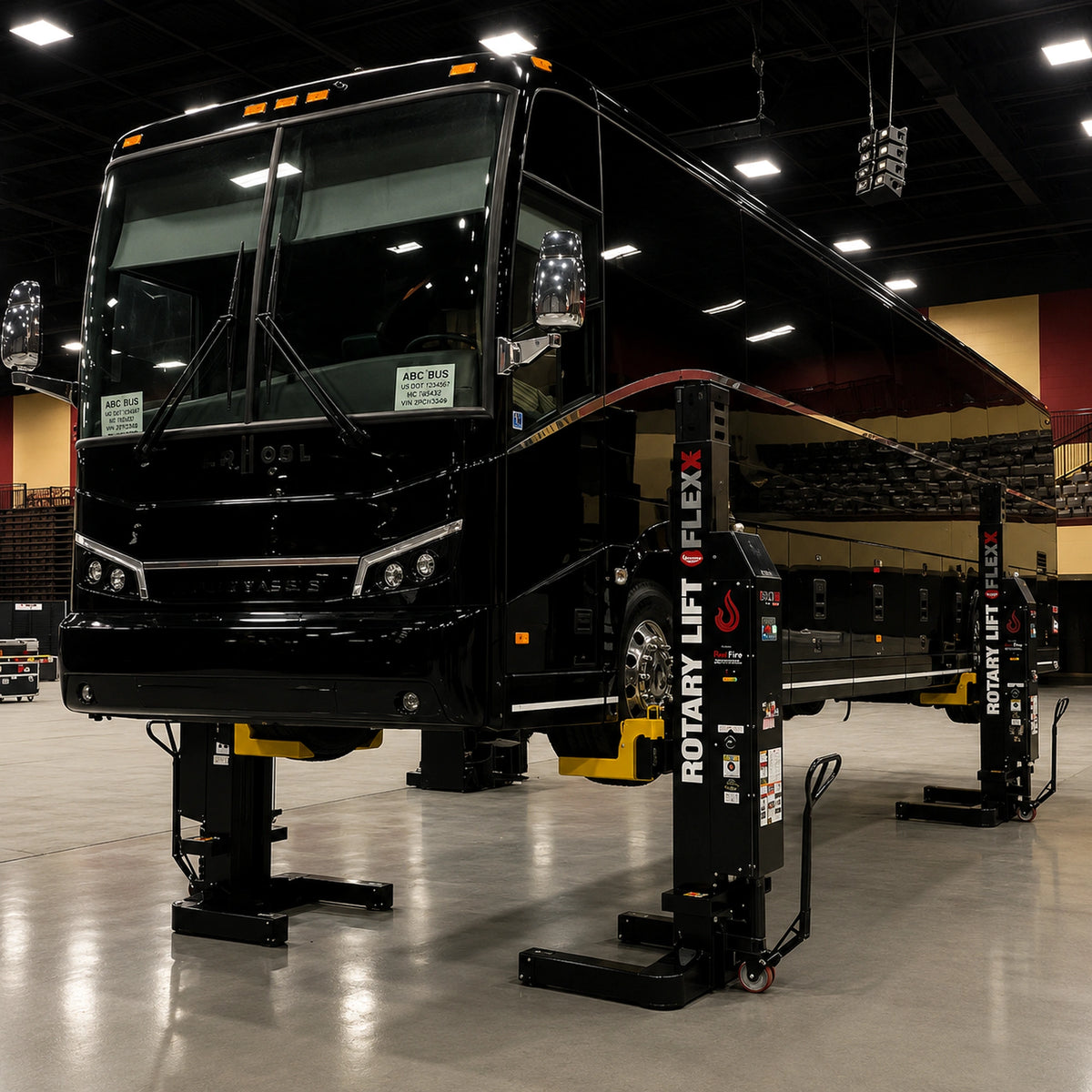

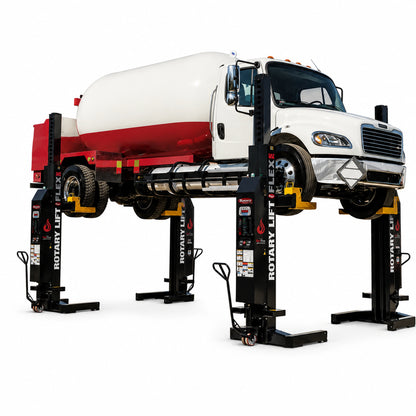

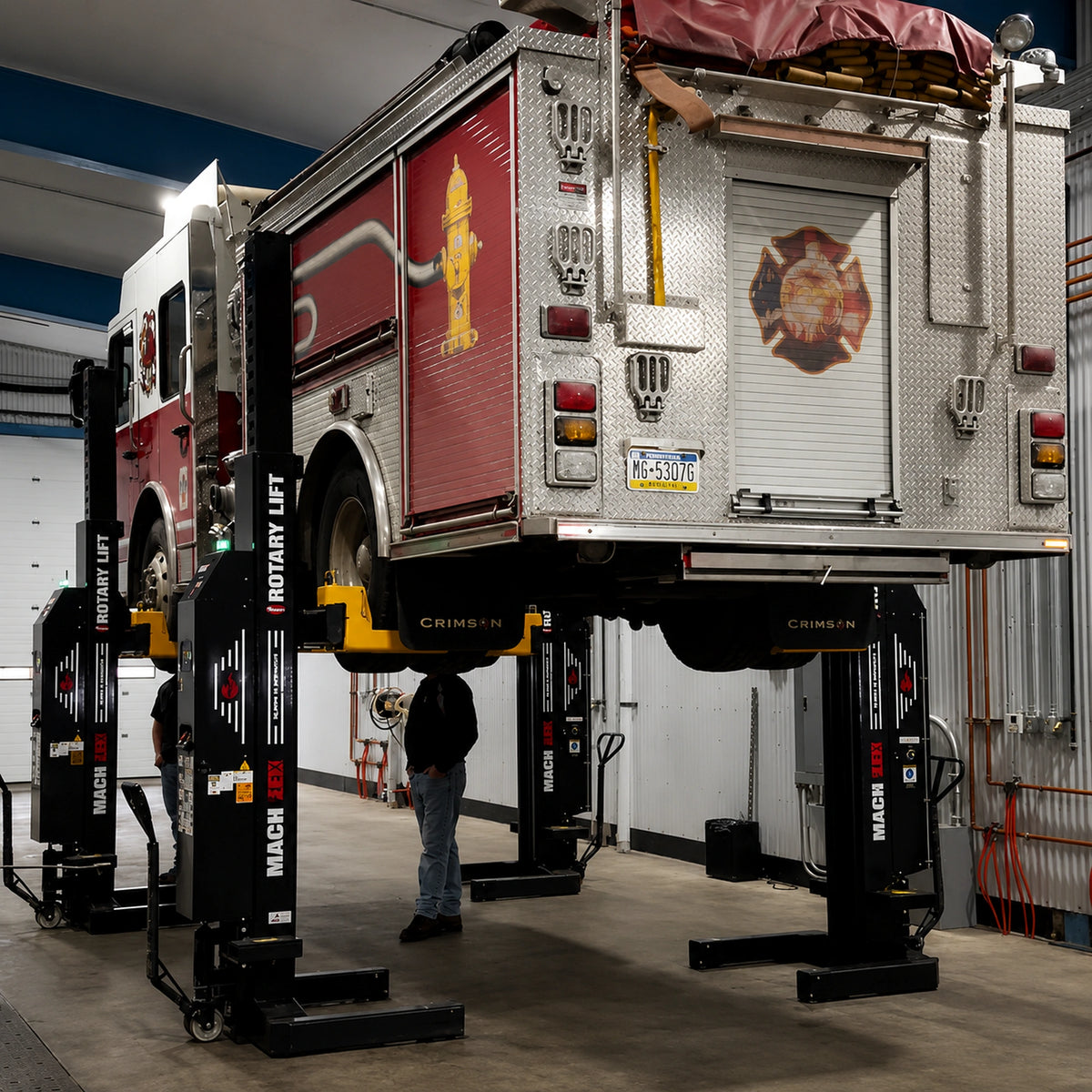

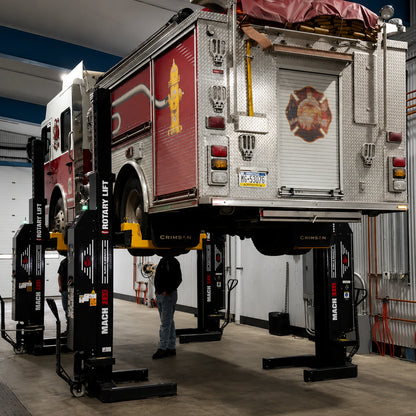

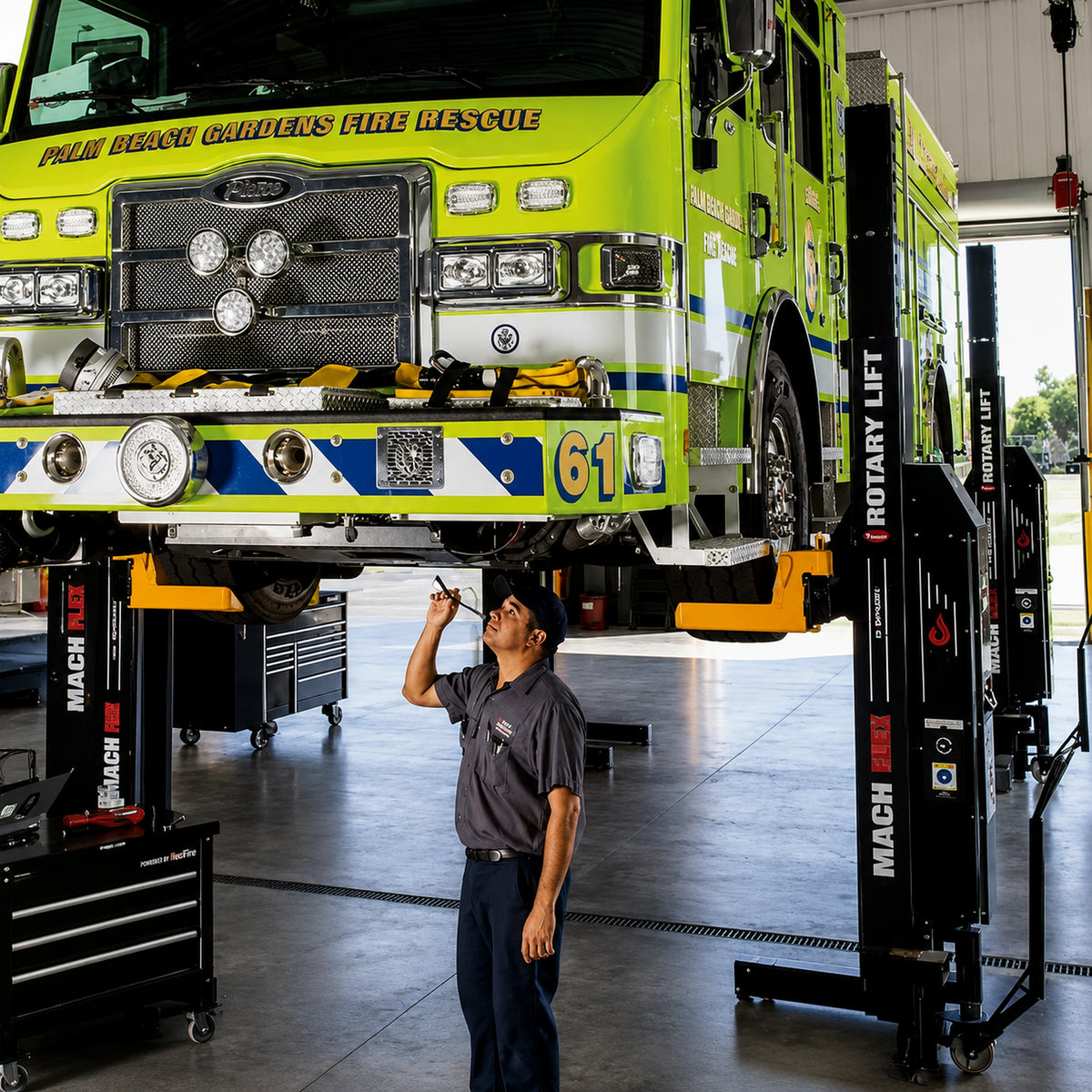

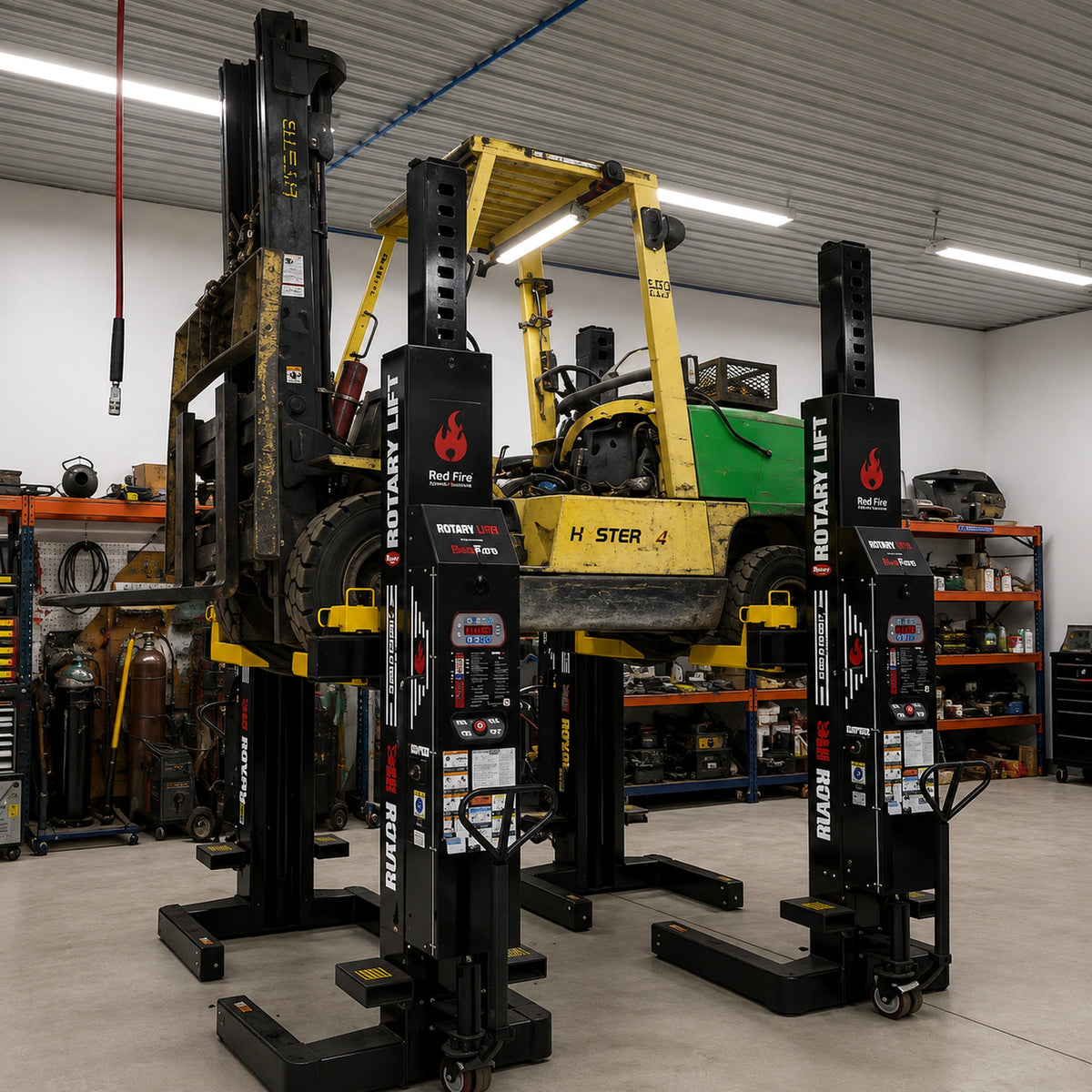

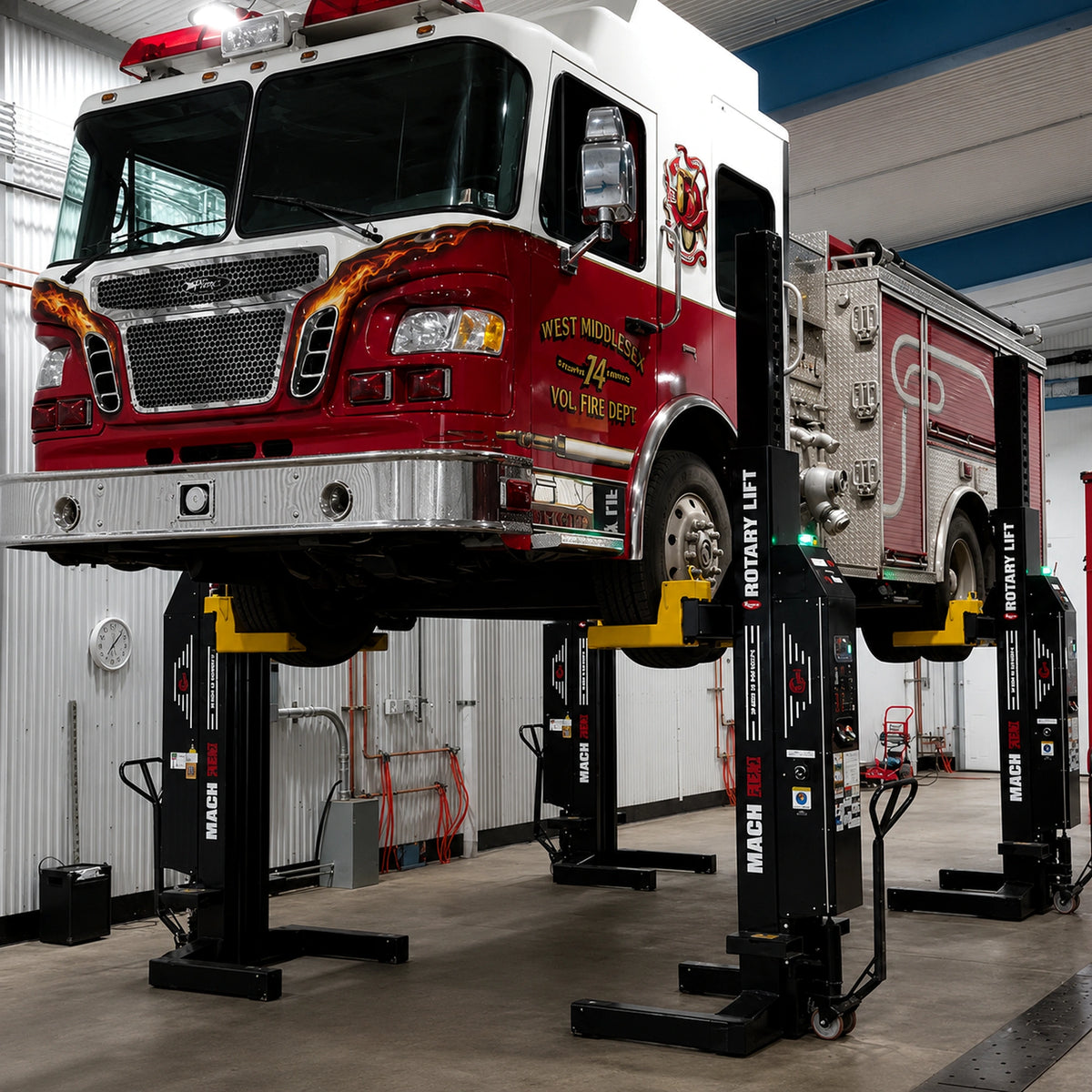

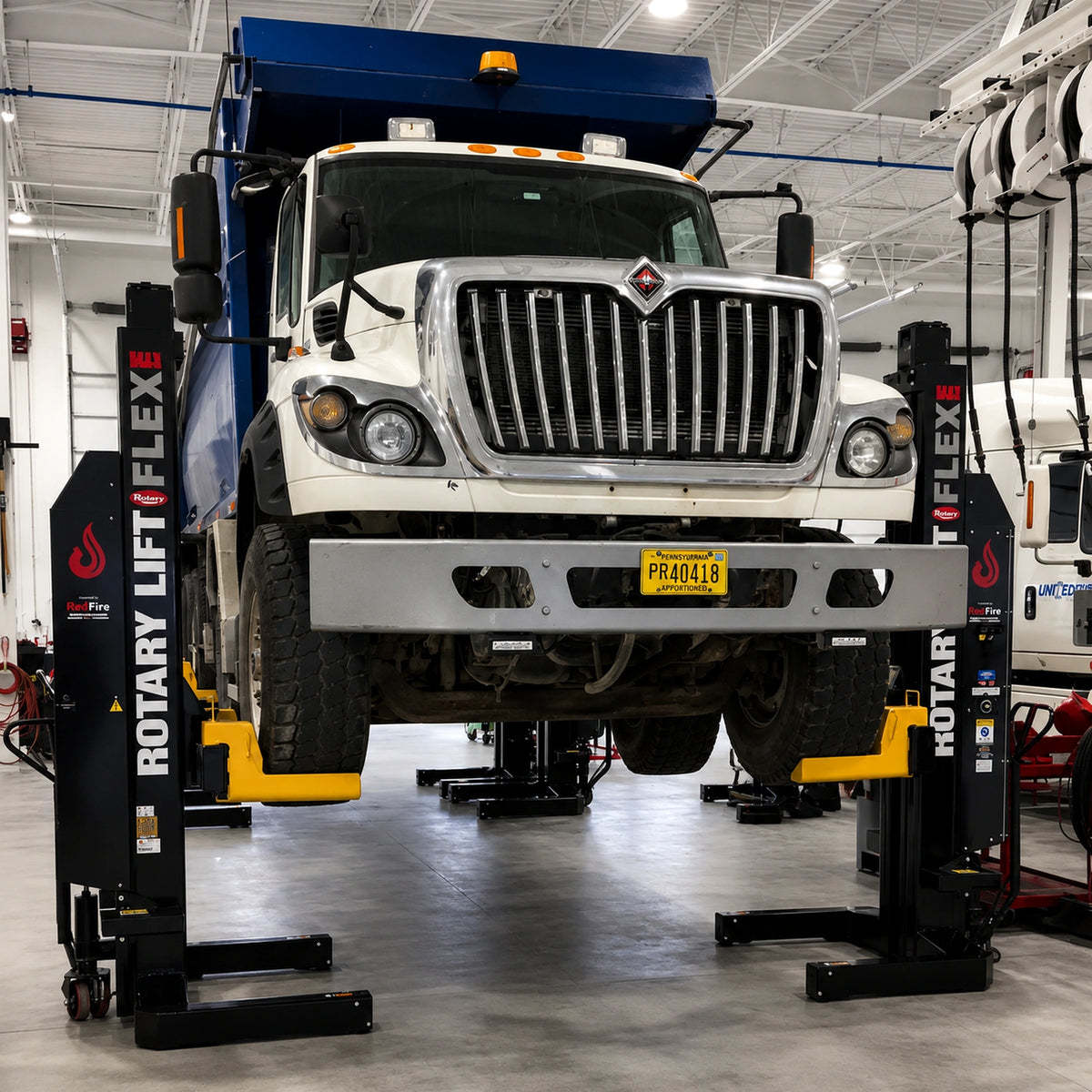

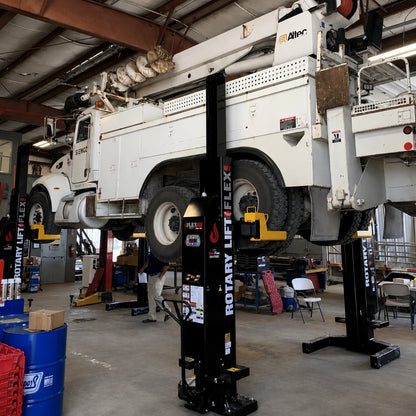

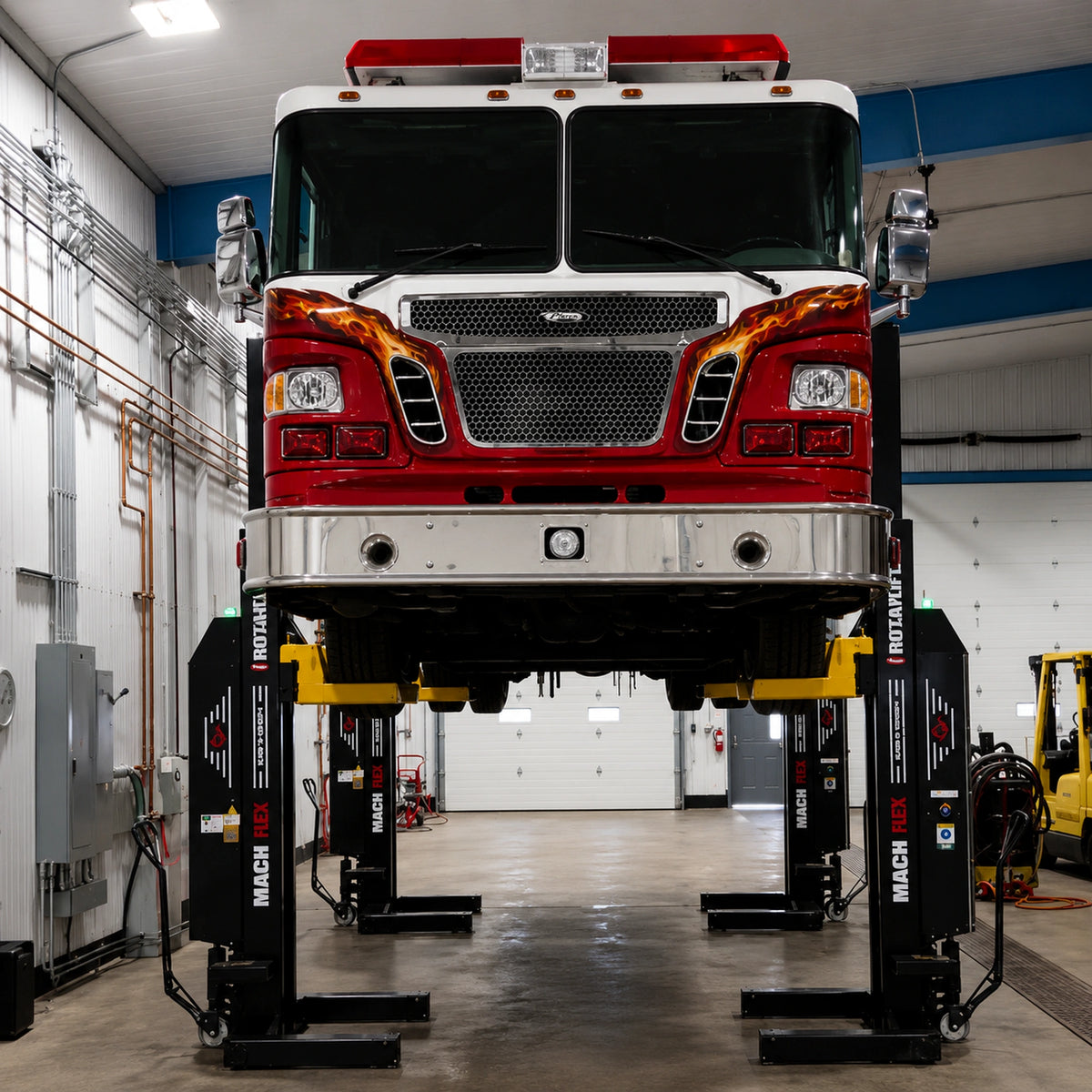

The Rotary MCHM19 19K Flex MAX Wireless Remote Control Mobile Column Lift System is a versatile and efficient solution for lifting heavy-duty vehicles. With a capacity of 18,800 lbs per column, it accommodates various vehicle types, including trucks, vans, and buses. Its wireless remote control and operational controls at each column enhance productivity and safety in vehicle maintenance operations.

MCHM19 Features

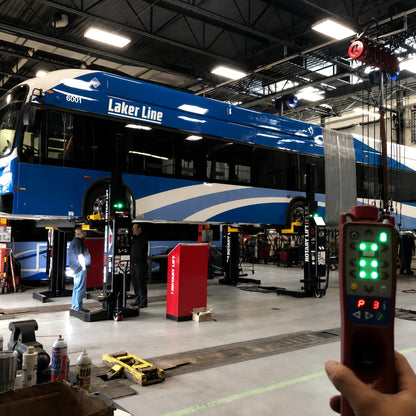

Wireless Handheld Remote

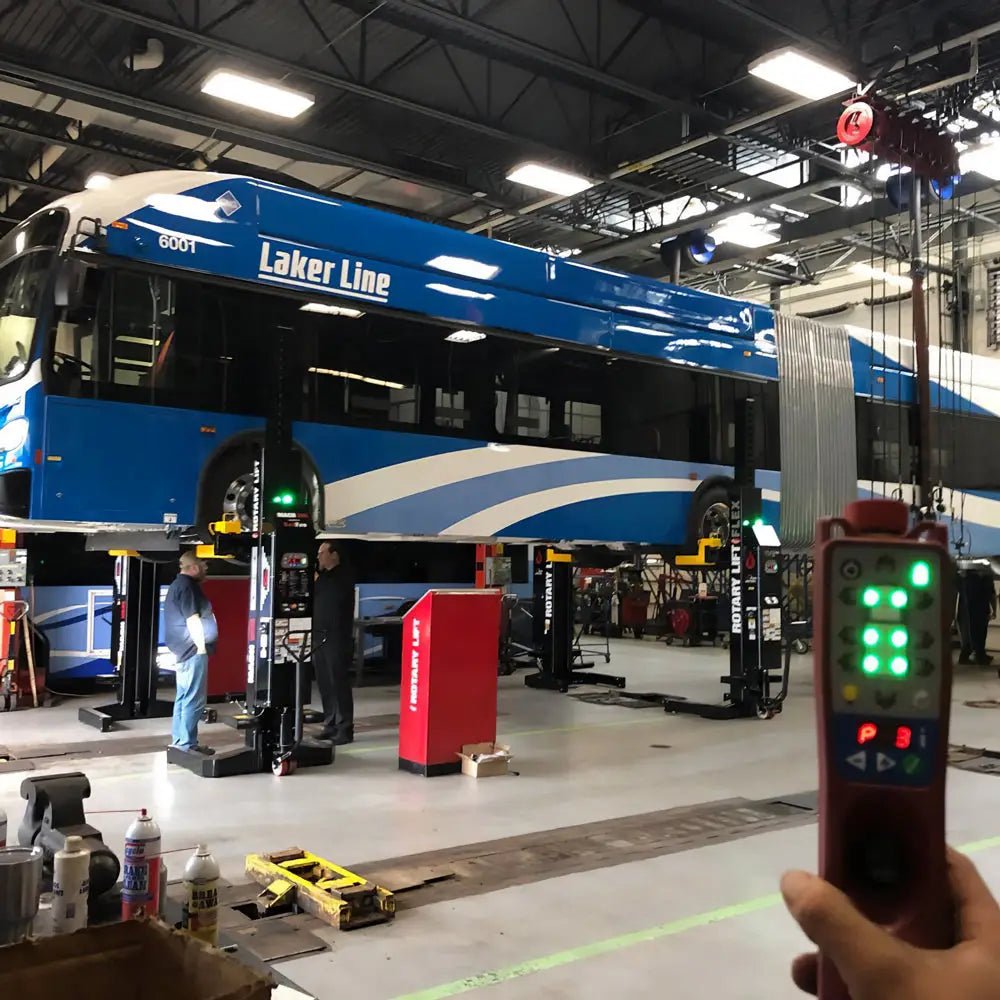

Our standard wireless handheld remote control walks technicians through system setup, including status lights to indicate standby or paired columns. This feature-not offered by competitors-enables technicians to have clear visibility while keeping a safe distance from the vehicle during lift operation. Technicians can also easily locate the handheld remote thanks to its built-in tracking alarm.

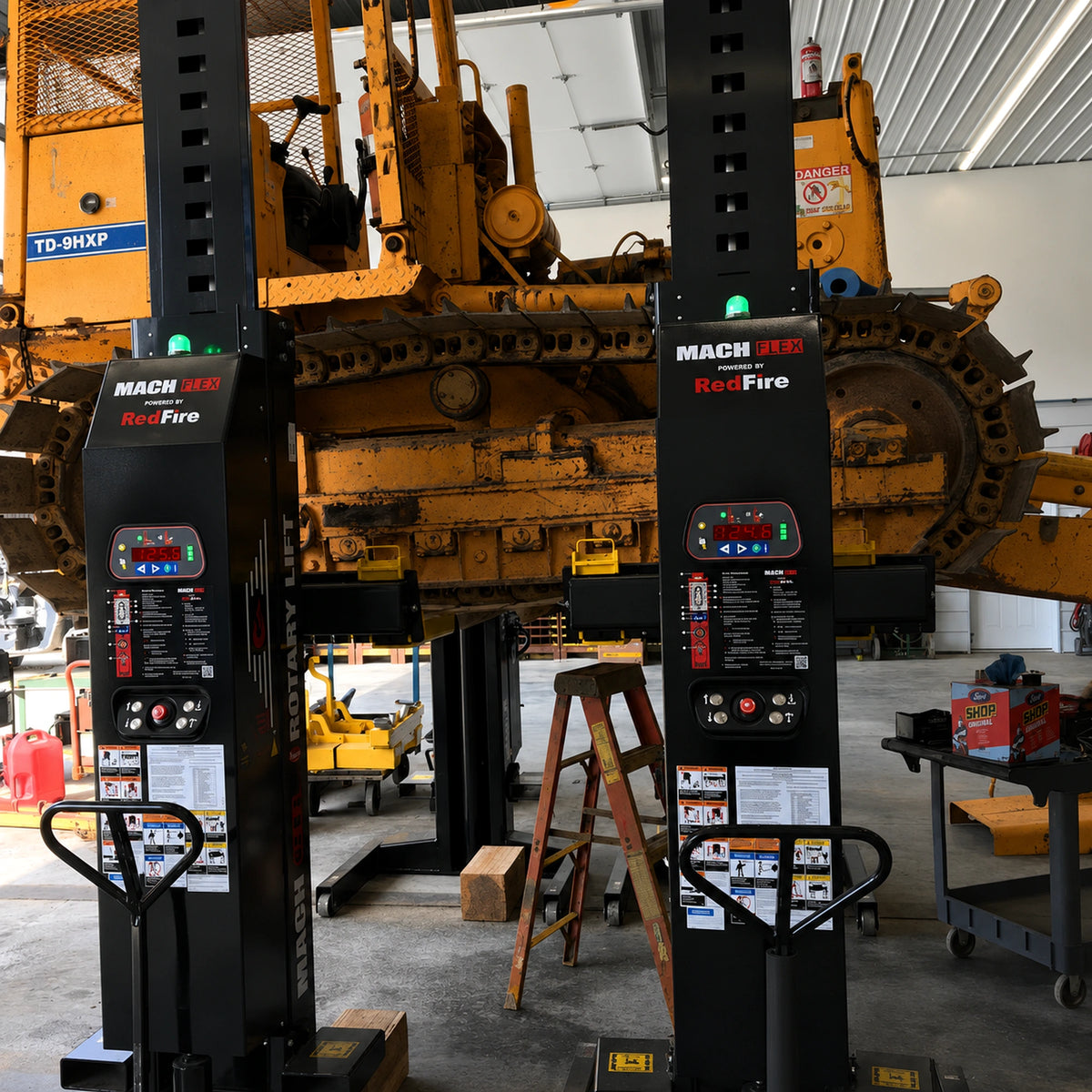

Operational Controls at Each Column

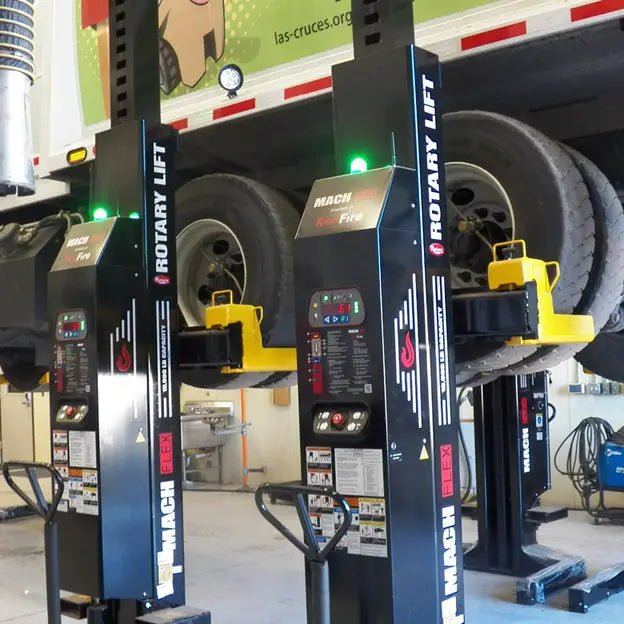

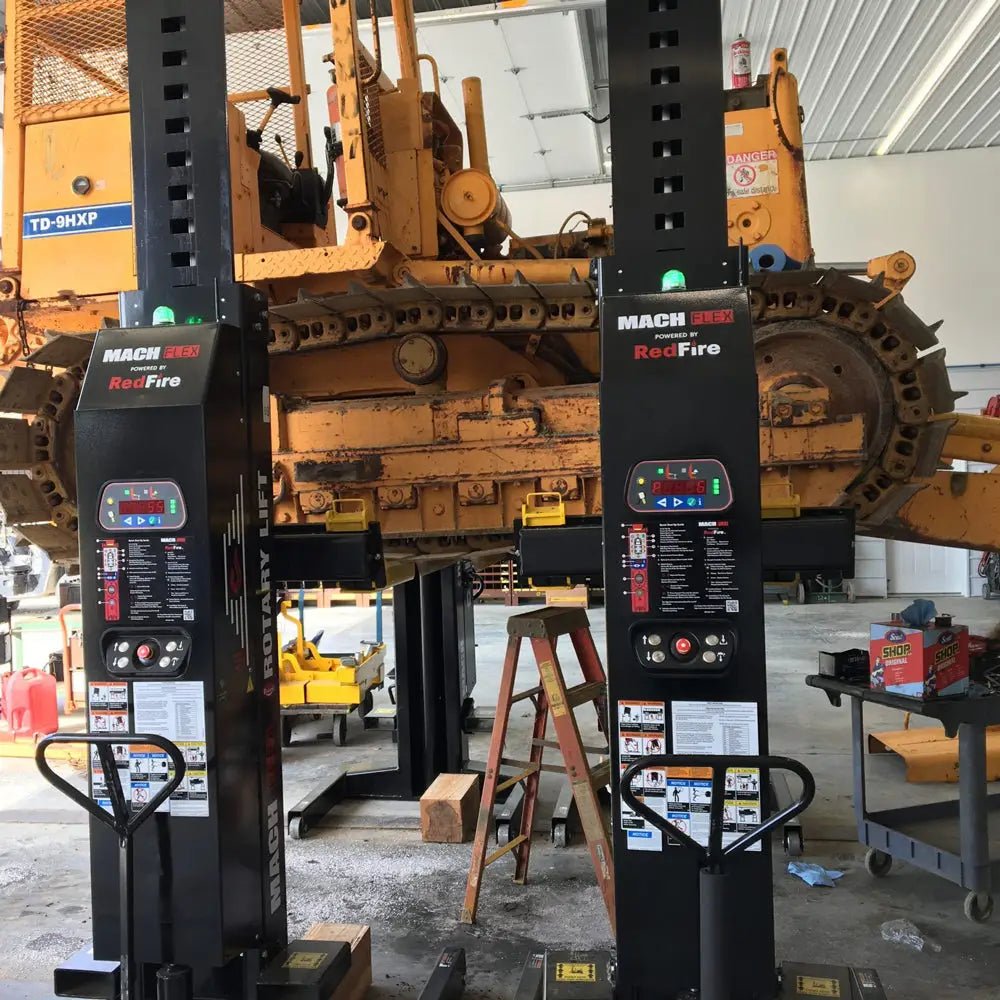

Flex MAX™™ single-column controls allow users to set up and cycle lifts from any column. The large digital screen display is easily operated and visible even from a distance, and it also serves as a backup to clear error codes.

LockLight™™ for Safety

A highly visible light indicates when a column is on its locks. This feature provides added confidence that a load is locked and secure. LockLight™™™ verifies a technician is working safely and supports a safer work environment. This light comes standard with Flex™™ MAX Mobile Columns.

Powered by Redfire®

Redfire® is Rotary's trademarked software and communication system for our Flex MAX™™ mobile column lifts. Redfire's superior interface helps provide the versatility that's creating loyal users across industries. The Xbee 99 channel system allows for secure and reliable communication at a frequency with less interference.

Faster Setup Our

Flex MAX™ Mobile Column Lifts require no extra jacking or raising, saving you time so you can make more money.

Inverted Hydraulic Cylinder

Rod Located inside the carriage, our inverted hydraulic cylinder rod protects the chrome piston rod from debris and damage. This feature, not offered by most competitors, extends the cylinder's life and reduces maintenance and repair costs.

MCHM19 Specifications

Specification	MCHM19
Capacity per Column	18,800 lbs
Column Configuration	2, 4, 6, or 8 columns
Rise	70 inches
Column Width	45.5 inches
Wheel Rim Size Compatibility	9 to 24 inches
Clearance (Fork to Column)	10 inches
Speed of Rise	78 seconds
Charging Voltage	110V onboard charger
