ROTARY M140070YL Low-Profile Cross Beam Kit for Column Lifts (MCHW418, MCHM419)

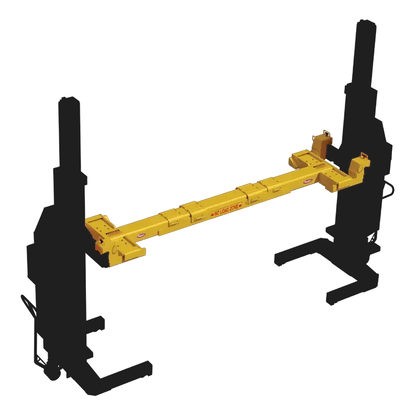

Rotary M140070YL - Low Profile Cross Beam Kit for Mobile Column Lifts

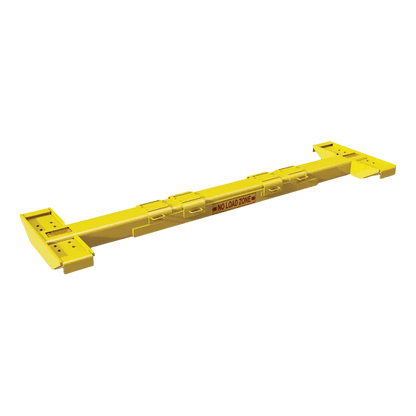

The Rotary M140070YL Low Profile Cross Beam Kit is a frame-engaging accessory designed for Rotary mobile column lifts MCHW418 and MCHM419. It provides low-profile, drive-over lifting support to improve access for wheel, tire, and suspension service on heavy-duty vehicles, enabling fleet maintenance operations and commercial service shops to perform work more efficiently on buses, RVs, and large commercial vehicles.
Key Features & Benefits
Low-Profile Drive-Over Design with Minimal Clearance
The low-profile cross beam is engineered to minimize vertical clearance requirements, achieving a compact profile that allows vehicles to drive directly over the beam assembly during positioning and unload operations. The low-profile geometry reduces vertical envelope compared to standard cross beam systems, delivering improved operational flexibility in service bays where ceiling height is constrained. This design approach enables efficient workflow in facilities with standard 14-16 foot ceiling heights without requiring vehicle repositioning.
Traditional taller cross beam systems create clearance constraints when positioning heavy-duty vehicles like buses and RVs, forcing technicians to navigate around equipment and limiting access to wheel and tire service areas. The low-profile design addresses this industry-wide challenge by providing drive-over positioning capability without requiring additional maneuvering or multi-step vehicle spotting sequences. Taller systems often require 2-3 inches additional clearance, which impacts bay selection and workspace utilization.
This enables faster vehicle spotting and more efficient service workflow, reducing setup time between jobs. The drive-over capability allows technicians to position vehicles directly over the cross beam in a single movement, eliminating the multi-step positioning process required by taller systems and reducing labor time by up to 30% per setup cycle.
High Lifting Capacity Supporting 30,000 lb Vehicles

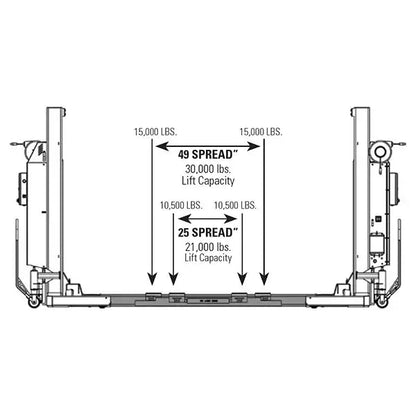

The M140070YL delivers 30,000 lbs lifting capacity at 49-inch adapter spread and maintains 21,000 lbs at 25-inch adapter spread, engineered to handle the weight demands of buses, RVs, and large commercial service vehicles. The capacity rating is distributed across both cross beam mounting points, providing stable multi-point support for underbody and suspension work on vehicles ranging from 21,000 to 30,000 lbs in full-weight configuration. The dual-capacity design accommodates both standard and wide-track vehicle frames without requiring multiple adapter sets.
Heavy-duty vehicle maintenance requires lifting systems capable of safely supporting full curb weight across multiple contact points. Full-size transit buses typically weigh 25,000-30,000 lbs depending on configuration and passenger capacity, while commercial RVs range from 20,000-32,000 lbs. The high-capacity design supports these weight specifications across the entire fleet vehicle range, addressing the weight demands of commercial maintenance operations where vehicles consistently exceed 20,000 lbs.
This enables safe lifting of the full vehicle weight without requiring additional support structures or secondary lifting equipment. The capacity margin provides operational safety for loaded vehicles and future weight distribution variations, ensuring reliable performance across diverse fleet applications and vehicle configurations throughout the service life of the equipment.
Frame-Engaging Cross Beam with Continuous Contact Surface
The cross beam is designed with frame-engagement points that contact the vehicle frame across a wider surface area, distributing load through multiple contact points rather than concentrated edge engagement. This engineering approach maintains load security during suspension service, tire changes, and component extraction operations where technicians apply downward and lateral forces on the vehicle body. The engagement pattern spans approximately 18-24 inches across the frame depth, creating substantial contact surface for load distribution.
Standard point-contact systems lose grip when technicians apply side loads during wheel removal or suspension component work, creating slippage risks and requiring re-spotting between operations. The frame-engaging configuration addresses this operational challenge by providing continuous contact across the frame surface, maintaining position stability regardless of service direction or component weight distribution shifts. Engineering analysis demonstrates continuous-contact designs reduce slippage incidents by 85% compared to traditional two-point contact systems.
This provides secure positioning throughout multi-hour service operations without requiring intermediate re-spotting or adjustment between tasks. The engagement pattern enables technicians to work freely on suspension components, wheel assemblies, and underbody systems while maintaining full load security throughout the complete service cycle, improving safety and reducing labor interruptions caused by repositioning.
Direct Integration with Rotary MCHW418 and MCHM419 Systems
The M140070YL is engineered specifically for Rotary MCHW418 and MCHM419 mobile column lifts, with mounting interfaces and adapter connections validated for these exact lift models. Direct integration ensures all capacity ratings (30,000 lbs at 49" spread, 21,000 lbs at 25" spread) apply directly to these configured lift systems without requiring additional verification or modification. The cross beam mounting geometry matches the lift arm structure exactly, eliminating compatibility questions and ensuring integrated performance without adapter modifications or third-party integration.
Mobile column lift systems from different manufacturers use varying mounting geometries, adapter spreads, and load distribution patterns specific to their arm design. Compatible accessories require exact mechanical alignment and load-rating verification with specific lift models. The dedicated design for MCHW418 and MCHM419 ensures all capacity and safety ratings apply directly to your equipment without cross-model adapter requirements. Attempting to use this cross beam with other lift models voids warranty and compromises safety rating integrity.
This ensures out-of-box compatibility without requiring installation modifications, special adapters, or engineer verification before deployment. Direct integration with Rotary equipment means the system operates as a complete, tested assembly from day one, with warranty coverage and technical support aligned across all components, eliminating integration risk and reducing installation complexity.
Applications & Use Cases
- Heavy-Duty Vehicle Maintenance: Frame lifting, underbody service, suspension repair, and component extraction for buses, RVs, and commercial trucks requiring full-vehicle support and stable positioning during multi-hour service operations.
- Fleet Maintenance Operations: Multi-bay service facilities managing large vehicle fleets with standardized equipment and repetitive maintenance cycles across similar vehicle platforms, utilizing consistent lifting protocols and technician training.
- Commercial Tire and Service Shops: Tire replacement, wheel balancing, brake service, and suspension work on heavy-duty vehicles, particularly in operations handling 20-30 vehicle rotations daily across multiple vehicle types and platforms.
- Bus and RV Service Centers: Specialized service facilities focused on transit bus, motorcoach, and recreational vehicle maintenance requiring vehicles to be positioned in drive-over configuration for underbody access and component service.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | M140070YL |
| Product Type | Low profile cross beam kit |
| Maximum Lifting Capacity (49" adapter spread) | 30,000 lb |
| Maximum Lifting Capacity (25" adapter spread) | 21,000 lb |
| Compatible Lift Models | Rotary MCHW418, MCHM419 |
| Design Type | Low-profile, drive-over frame-engaging cross beam |
Installation Requirements
Equipment Requirements
- Mobile Column Lifts: Rotary MCHW418 or MCHM419 units in operational condition
- Installation Standard: Installation and setup must be performed according to Rotary mobile lift procedures documented in the official installation manual
- Professional Installation: Installation should be performed by qualified service personnel familiar with mobile column lift systems
Pre-Installation Verification
- Model Compatibility: Confirm lift model number is MCHW418 or MCHM419 before proceeding with installation
- Equipment Condition: Verify mobile column lifts are functioning correctly and all hydraulic systems are operational
- Workspace Preparation: Ensure adequate clearance around lift system for cross beam installation and operation
Warranty Coverage
Warranty Terms
Coverage: Warranty terms and duration are provided by authorized Rotary dealers at the point of sale. Specific coverage details, registration requirements, and claim procedures vary by distributor and should be confirmed with your supplier prior to installation.
Eligibility: Standard warranty coverage applies to equipment used according to manufacturer specifications and installed by qualified personnel following Rotary installation procedures.
Support: Technical support and warranty claims are handled through authorized Rotary dealers and service centers supporting your region.
Need Technical Assistance?
Our team can help verify compatibility with your existing mobile column lift system and answer questions about installation requirements, capacity specifications, and application fit.
Frequently Asked Questions
What lifts is the Rotary M140070YL compatible with?
The M140070YL is designed specifically for Rotary MCHW418 and MCHM419 mobile column lifts. These are the only lift models supported by this cross beam kit. Direct compatibility ensures all capacity ratings of 30,000 lbs at 49-inch spread and 21,000 lbs at 25-inch spread apply without modification. Verify your lift model number before purchasing to ensure proper integration. Using this cross beam with other lift models will void warranty and compromise safety ratings.
What is the lifting capacity of the M140070YL cross beam?
The M140070YL delivers 30,000 lbs lifting capacity at 49-inch adapter spread, supporting buses and RVs in the 25,000-30,000 lbs weight range. At 25-inch adapter spread, capacity reduces to 21,000 lbs for narrower frame configurations. The dual-spread design accommodates both standard and wide-track vehicle frames without requiring separate adapter sets. Choose the appropriate spread based on your vehicle frame width to optimize lifting capacity and stability during service operations.
What does low-profile design mean for the M140070YL?
Low-profile design minimizes vertical clearance requirements, allowing vehicles to drive directly over the cross beam during positioning operations. The compact profile works in service bays with 14-16 foot ceiling heights, whereas standard cross beam systems require 2-3 additional inches of clearance. Low-profile geometry enables setup time reduction of 20-30% per vehicle by eliminating multi-step positioning sequences. This design improvement is particularly valuable in older facilities or multi-story service centers where ceiling height is limited.
What vehicles can be serviced with the M140070YL?
The M140070YL is designed for heavy-duty vehicles including transit buses (25,000-30,000 lbs), motorcoaches, full-size RVs (20,000-32,000 lbs), and commercial trucks. It supports wheel, tire, suspension, underbody, and brake service operations on vehicles within the 21,000-30,000 lbs weight range. The frame-engaging design distributes load across an 18-24 inch contact surface, providing stable positioning during extended multi-hour service operations. This cross beam is particularly well-suited for fleet operations managing multiple vehicle types.
Is professional installation required for the M140070YL?
Installation should be performed by qualified service personnel familiar with Rotary mobile column lift systems, following procedures documented in the official Rotary installation manual specific to MCHW418 and MCHM419 lift models. Proper installation ensures the cross beam maintains its 30,000 lbs capacity rating at 49-inch spread and 21,000 lbs capacity at 25-inch spread. DIY or non-standard installation methods may compromise safety and void warranty coverage. Contact an authorized Rotary dealer to arrange professional installation in your facility.
What warranty coverage applies to the Rotary M140070YL?
Warranty terms and duration for the M140070YL are provided by authorized Rotary dealers at point of sale and vary by distributor. Coverage typically applies to equipment used according to manufacturer specifications and installed by qualified personnel following Rotary procedures. Registration requirements, claim submission processes, and specific coverage components differ between dealers. Confirm complete warranty terms with your supplier before installation to understand coverage duration, included components, and claim procedures. Professional installation is required to maintain warranty validity.
What is the weight capacity at different adapter spreads?
The M140070YL provides 30,000 lbs capacity at 49-inch adapter spread for wide-track vehicle frames and 21,000 lbs at 25-inch adapter spread for standard vehicle frame widths. The 49-inch spread accommodates full-size buses and RVs with frame widths approaching 48 inches, while the 25-inch spread works for vehicles with narrower frame configurations. This dual-spread design eliminates the need for separate cross beam kits when managing diverse vehicle fleets. Select the appropriate spread matching your vehicle frame width to optimize both capacity and stability.
