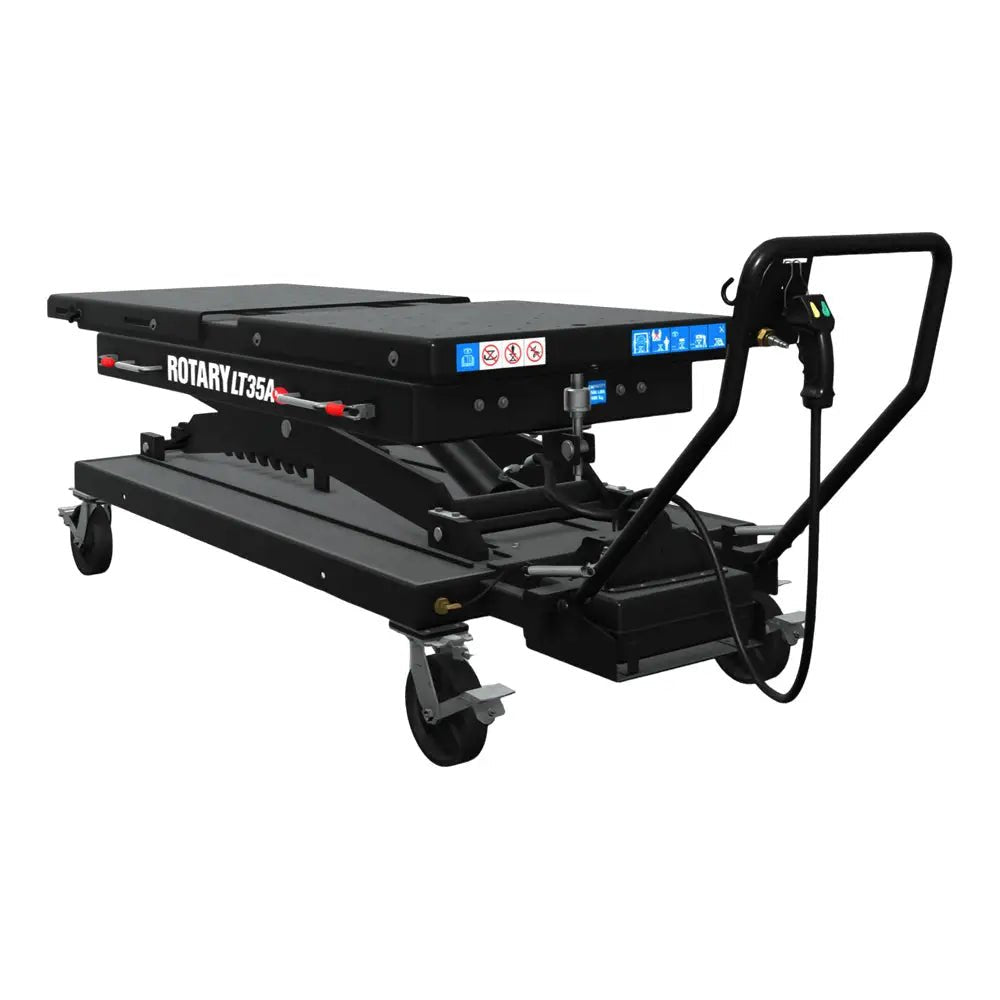

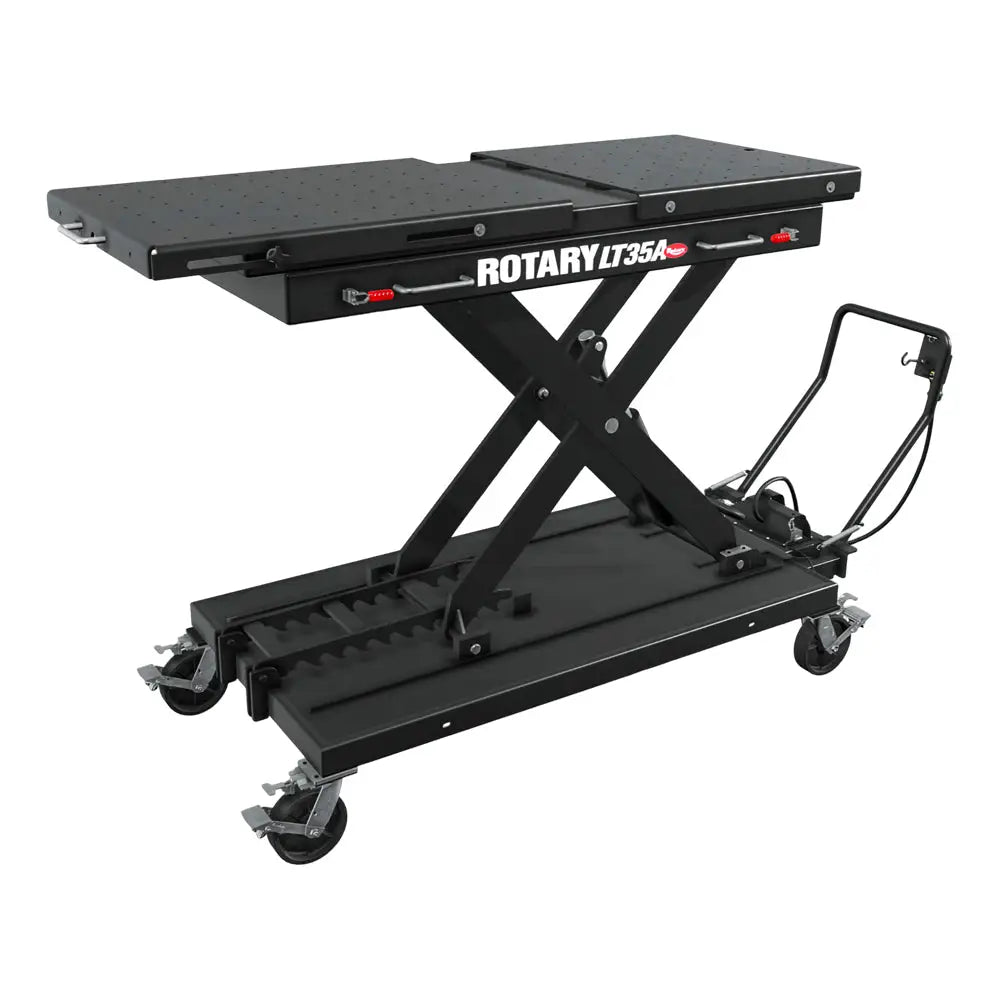

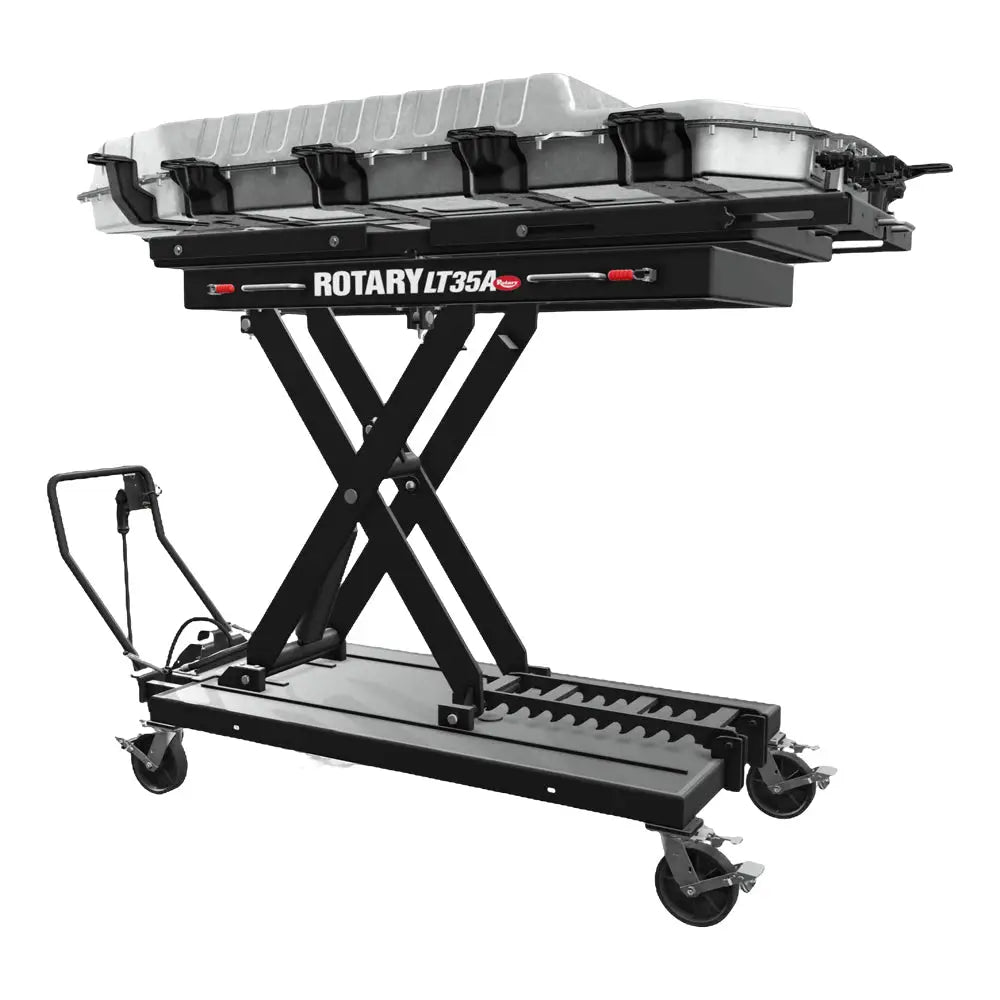

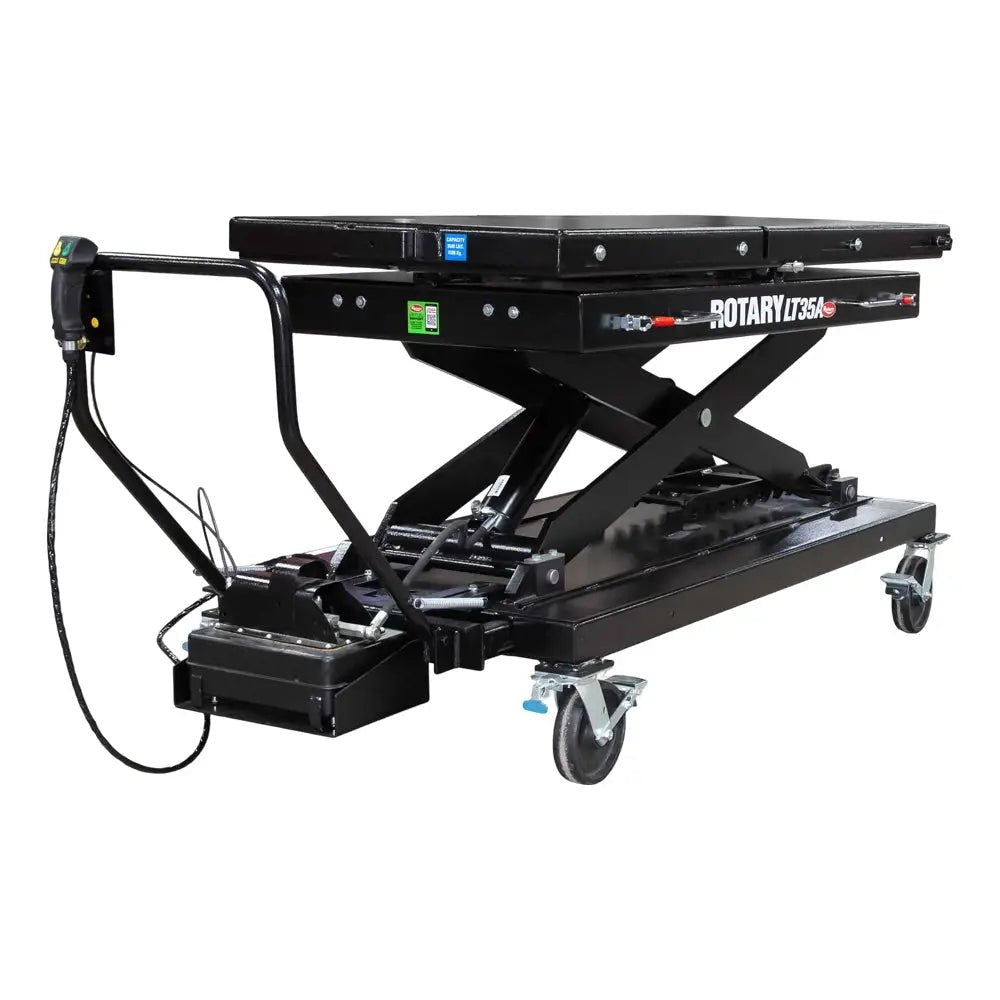

ROTARY LT35A Air/Hydraulic Lifting Table (3,500 lbs; 27-67″ Height)

ROTARY LT35A Air/Hydraulic Lifting Table (3,500 lbs; 27-67″ Height)

Name: ROTARY LT35A Air/Hydraulic Lifting Table (3,500 lbs; 27-67″ Height)
Brand: Rotary
SKU: RTY-LT35A
Availability: InStock

$11,750.00 $12,690.99

Product variants

Starting at $490/mo or 0% APR with Affirm.

ROTARY | LT35A | Air/Hydraulic Lifting Table (3,500 lbs; 27-67” Height)

The LT35A is a versatile tool designed to enhance efficiency in automotive service environments. With a lifting capacity of 3,500 lbs and an adjustable height range from 27 to 67 inches, it accommodates a wide variety of vehicle components and assemblies. This lifting table is particularly useful for tasks such as engine removal, transmission work, and other under-vehicle services, providing a stable and adjustable platform to facilitate these operations.

LT35A Features

Easy Maneuverability

The LT35A has 8" lockable, 360-degree, low- friction casters on all four corners, making turning and maneuvering easier and more accurate while providing ample floor and base clearance under load.

Unique Secondary Platform

The LT35A features a secondary platform, which can be unlocked for fine platform positioning without caster movement. This secondary platform has level adjustments to align with batteries and car components. Most competitor products don't have a platform like this and require adjustment by moving the casters.

Ergonomic Handheld Pendant Control

The LT35A Lift Table is designed with an extra- long, handheld pendant control that allows for easy and comfortable operation, allowing the operator to move around freely with a clear view of the workspace to confirm that each load is correctly on the platform.

Split-Sliding Top X CLOSE

The lift platform extends an additional 8", allowing the table to shift in sections, eliminating the need to move the entire table for large load multi-positioning. This feature enables sliding between components attached to either platform side to facilitate disassembly and reassembly.

Advanced Platform Tilt Adjustment

The LT35A lift table offers side-to-side tilt alignment and fore-and-aft tilt adjustment and can be positioned while under load without removing the table's heavy load. The table platform's adjustments can also be fine-tuned and locked in place with swivel locks on both sides of the platform.

Air-Released Mechanical Locks

Our air-released mechanical locks are an additional safety measure and locking security so that your technicians do not rely solely on the hydraulic system. With nine locking positions every 2-3/4", the mechanical system begins with an initial lock at a tabletop height of 32".

LT35A Specifications

Specification	LT35A
Lifting Capacity	3,500 lbs
Operation	Air-operated hydraulic system
Compatibility	RT30 repair table
Usage	Electric vehicles and heavy component handling
Base Type	Extra-wide for stability
