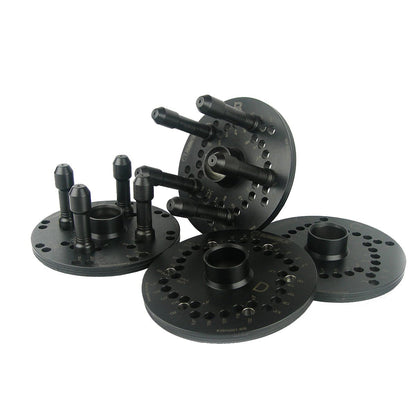

Rotary HW200299409 North American Flange Plate Kit for 40 mm Shaft Balancers
The Rotary HW200299409 is a wheel balancer accessory kit designed to improve mounting accuracy for lug-centric and chrome-clad wheels. Featuring multi-pattern flange plates and a dedicated storage stand, this kit enables professional tire shops, dealerships, and fleet service facilities to balance a wide range of passenger and light truck wheels with improved precision and repeatability.
Key Features & Benefits
Lug-Centric Wheel Mounting System
Lug-centric flange plates grip wheels by their factory lug holes, providing repeatable and accurate wheel centering without reliance on the cone-only mounting approach. This method directly contacts the mounting surface that vehicles use in daily operation, creating a more realistic balancing environment.
Traditional cone-centric systems fail to account for variations in wheel bore diameters and manufacturing tolerances. This addresses an industry-wide challenge when shops handle chrome-clad wheels or specialty wheels with unusual bore geometries, where cone-only systems can introduce centering errors that carry through to the balanced vehicle.
This enables technicians to achieve factory-accurate balance results that reduce vibration after installation. Vehicles exit the shop with smoother operation and improved steering feel, directly improving customer satisfaction and reducing warranty balancing claims.
Multi-Pattern Flange Plate Design
The kit includes four flange plates with multiple bolt-pattern configurations, eliminating the need for separate adapter sets or pattern-specific kits. Each plate accommodates a range of common bolt patterns used across passenger cars and light trucks, reducing inventory complexity.
Shops traditionally maintain separate adapter inventories for different wheel types and patterns, creating storage and cost management challenges. This multi-pattern design consolidates that need into a single integrated kit, addressing equipment space constraints in busy service departments.
This improves workflow efficiency by keeping all necessary patterns accessible in one place. Technicians spend less time swapping adapters and searching for the correct configuration, enabling faster throughput on wheel balancing operations without sacrificing accuracy.
40 mm Shaft Professional Standard Compatibility
The kit is engineered specifically for wheel balancers with 40 mm spindle shafts, the most common professional standard in automotive service environments. This direct compatibility ensures proper fit and secure mounting without adapter extensions or workarounds.
The 40 mm shaft size has become the industry standard for mid-range to professional balancers used in dealerships and high-volume tire shops. Designing specifically for this measurement ensures that shops using standard equipment can integrate the kit without modification or additional equipment purchases.
This eliminates compatibility concerns and streamlines equipment integration. The flange plates mount directly and securely, providing the precision centering required for high-accuracy wheel balancing on a wide variety of modern vehicles.
Integrated Storage Stand for Organization
A dedicated storage stand is included to house the four flange plates and removable mounting pins when not in use. The stand keeps all components organized, accessible, and protected from damage during the workday.
Wheel balancer accessories scattered across workbenches or stored in equipment drawers create workflow disruptions and increase the risk of misplaced components. This organization challenge is especially acute in busy multi-bay service departments where tool control becomes a production bottleneck.
This improves workshop efficiency by creating a defined storage location that technicians immediately recognize. Locating the correct plate becomes a two-second task instead of a hunt through drawers, reducing downtime and keeping service velocity consistent throughout the day.
Applications & Use Cases
- Professional Tire Shops: Multi-bay operations balancing a high volume of passenger vehicle wheels daily, requiring broad compatibility with varying wheel specifications and bolt patterns.
- Dealership Service Departments: OEM service departments that balance wheels from manufacturer-specific inventory including specialty wheels, chrome-clad variants, and OEM wheels from multiple vehicle lines.
- Fleet and Commercial Vehicle Maintenance: Fleet service facilities that perform preventive wheel maintenance on commercial vehicles, light trucks, and specialty equipment requiring repeatable, accurate balancing.
- Shops Handling Specialty Wheels: Service operations that routinely work with chrome-clad, specialty alloy, or non-standard bolt-pattern wheels where lug-centric mounting provides superior accuracy over cone-only systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Wheel balancer flange plate kit |
| Compatible Shaft Size | 40 mm |
| Flange Plates Included | Four multi-pattern plates |
| Mounting Configuration | Lug-centric (hub hole mounting) |
| Wheel Type Support | Lug-centric and chrome-clad wheels |
| Removable Pins | Included with each plate |
| Storage Solution | Dedicated stand for plates and pins |
| Manufacturer | Rotary |
Installation Requirements
Balancer Compatibility
- Spindle Shaft Size: 40 mm shaft diameter on your wheel balancer
- Balancer Setup: Balancer must be properly calibrated and maintained per manufacturer instructions before use with this kit
- Mounting Clearance: Adequate spindle height clearance to accommodate flange plate assembly and mounted wheel
Setup Instructions
- Plate Selection: Select the appropriate flange plate configuration for your wheel's bolt pattern
- Pin Installation: Install removable mounting pins into the selected flange plate
- Spindle Mounting: Slide the assembled plate onto the 40 mm balancer shaft and secure per balancer manufacturer guidelines
- Wheel Mounting: Center the wheel on the lug holes of the flange plate and secure using the removable pins
Ready to Improve Wheel Balancing Accuracy?
Get expert guidance on integrating this flange plate kit with your balancer or confirm compatibility with your equipment. Our team can assist with product questions, component details, and setup recommendations.
Frequently Asked Questions
What shaft size is this flange plate kit compatible with?
This kit is designed for wheel balancers with a 40 mm spindle shaft, the professional standard used in most tire shops and dealership service departments. Confirm your balancer's shaft diameter before ordering.
What components are included in the kit?

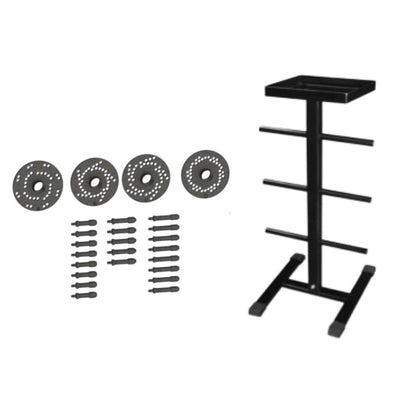

The Rotary HW200299409 includes four multi-pattern flange plates for flexible bolt pattern mounting, removable mounting pins for each plate, and a dedicated storage stand to keep all components organized and protected when not in use.
How does lug-centric mounting improve balance accuracy?
Lug-centric mounting centers wheels on their factory lug holes, matching how wheels are mounted on vehicles. This eliminates centering errors from bore diameter variations, providing more accurate balance results that translate to smoother operation after installation.
What wheel types can be balanced with this kit?
The kit supports lug-centric and chrome-clad wheels from passenger cars and light trucks. The multi-pattern design accommodates a range of common bolt patterns, making it suitable for diverse vehicle inventories in tire shops and dealerships.
Can this kit work with balancers that have a different shaft size?
No. This kit is engineered specifically for 40 mm shafts. Using it on balancers with different shaft sizes will result in improper mounting and accuracy loss. Verify your balancer's specifications before purchase.
Does the storage stand keep plates protected from damage?
Yes. The included storage stand is designed to house all four flange plates and removable pins, keeping them organized, accessible, and protected from impact or accidental damage during storage and daily workshop use.
How do I select the correct flange plate for a specific wheel?
Each plate includes multiple bolt-pattern configurations. Select the plate matching your wheel's bolt pattern hole count and spacing. The removable pins secure the wheel to the selected configuration. Consult your wheel specifications if uncertain about the correct pattern.
Is professional installation required for this kit?
No. The kit mounts directly to your existing 40 mm balancer spindle following standard wheel mounting procedures. Setup is straightforward and does not require special tools or professional technician services.
