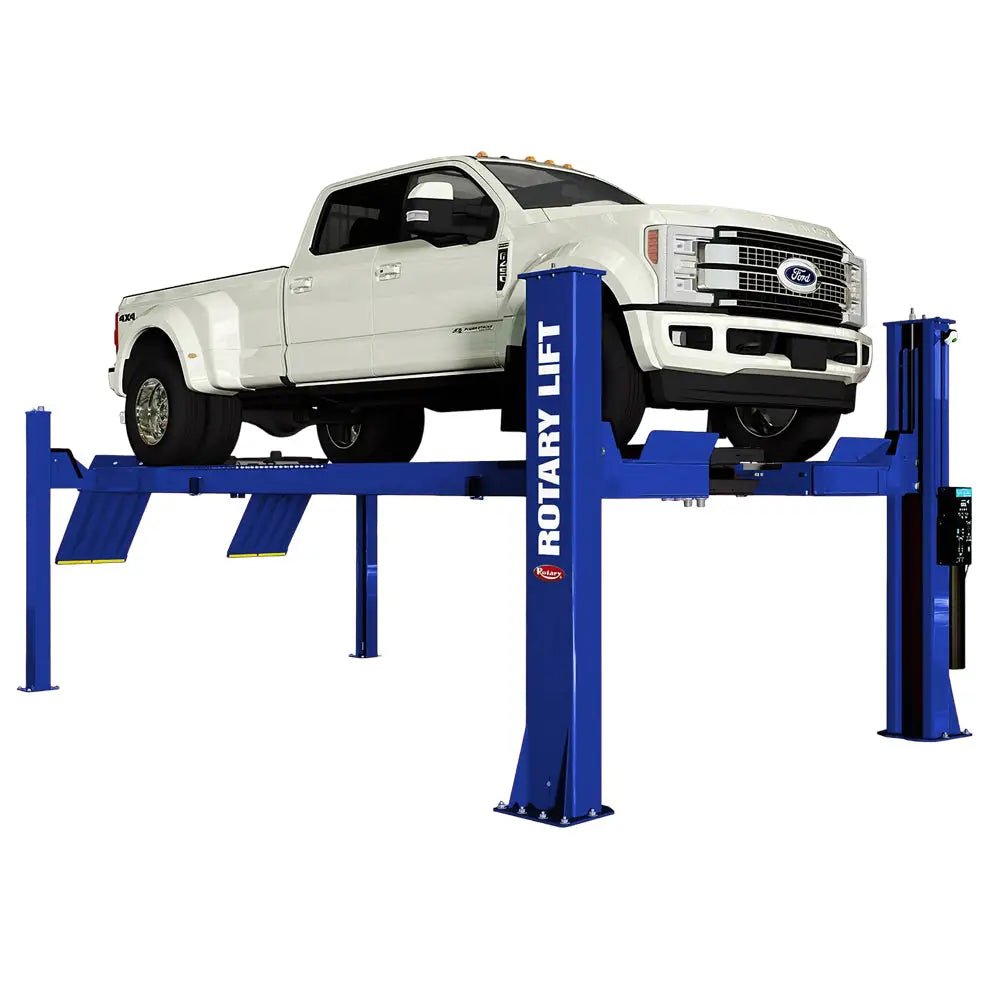

ROTARY | ARO22 | HD 4-Post Alignment Lift, 22K, Open Front

The Rotary ARO22 HD 4-Post Alignment Lift is a robust solution for automotive service centers, offering a substantial 22,000-pound lifting capacity. Its open-front design provides unobstructed access, facilitating seamless maintenance and alignment tasks. This lift accommodates a wide range of vehicles, from passenger cars to commercial trucks, enhancing versatility in your service offerings.

Key features include air-locking rear slip plates and integrated LED runway lighting, which improve alignment precision and under-vehicle visibility. The patented articulating roller system ensures balanced load distribution, promoting longevity and consistent performance.

Elevate your workshop's efficiency and service capabilities with the Rotary ARO22. Contact us today to learn more about integrating this advanced lifting solution into your operations.

ARO22 Features

Air-Operated Feature

Innovative Runway Lighting

Integrated into the runways, the adjustable lighting system Illuminates the under vehicle workspace with the capability to adjust to the ambient lighting conditions. Dimmer controls enable Lumen adjustment ideal for every application.

Equipment Included

Stainless Steel Radius Gauges

Radius gauge pockets allow for 27.6" of adjustment from center-to-center of the radius gauge. Other leading brands only have stationary radius gauge pockets.

Equipment Included

Smaller Footprint

The ARO22 has a smaller footprint than leading competitor lifts when combined with our alignment systems.

Compatibility

Superior Wheelbase Range

The ARO22's wheelbase range exceeds the leading competitors' offerings for general service, two-wheel, and four-wheel alignments.

Patented Articulating Roller System

The patented articulating roller system balances roller loads extending lift life. Oversized columns make this the most rigid system available. 5/8" cables utilize US premium wire stands with internal lubrication. Large cast sheaves extend cable life.

ARO22 Specifications

Specification Standard (ARO22N000) Extended (ARO22N001)
Lift Capacity 22,000 lbs 22,000 lbs
Rise 74" 74"
Width Overall 147 7/8" 147 7/8"
Length Overall 272 5/32" 308 5/32"
Max. Wheelbase 194" 230"
Max. Two-Wheel Alignment 177" 213"
Min/Max Four-Wheel Alignment 63" – 162" 63" – 198"
Width of Runways 26" 26"
Height of Runways 8 5/16" 8 5/16"
Width Between Runways 40" 40"
Inside of Columns 122" 122"
Between Columns 119 3/4" 119 3/4"
Height Overall 107 3/8" 107 3/8"
Ramp Length 41" 41"
Motor 4 HP / 208–230V 4 HP / 208–230V
Voltage Single Phase 208–230V Single Phase 208–230V
Time of Full Rise 105 seconds 105 seconds
Min. Bay Size 13' x 27' 13' x 30'
