Product highlights
- Spin the Wheel for Easier Alignment
- Heavy-Duty Welded Steel
- Tread Pattern Guidance
TRAC Roller Plate for Gaither TRAC Tire Jack
SKU: GAI-GTRP01
$129.23
Save 2% with ACH / Wire Payment. Call for details
Financing options available
Financing estimates are based on the product price; selected add-ons and delivery services are excluded.
Talk to a parts specialistFit and compatibility help before you order855-498-2147
- Price Match Guaranteefind it lower and we will beat it
- No Sales Tax Collected Outside PAPA orders include sales tax

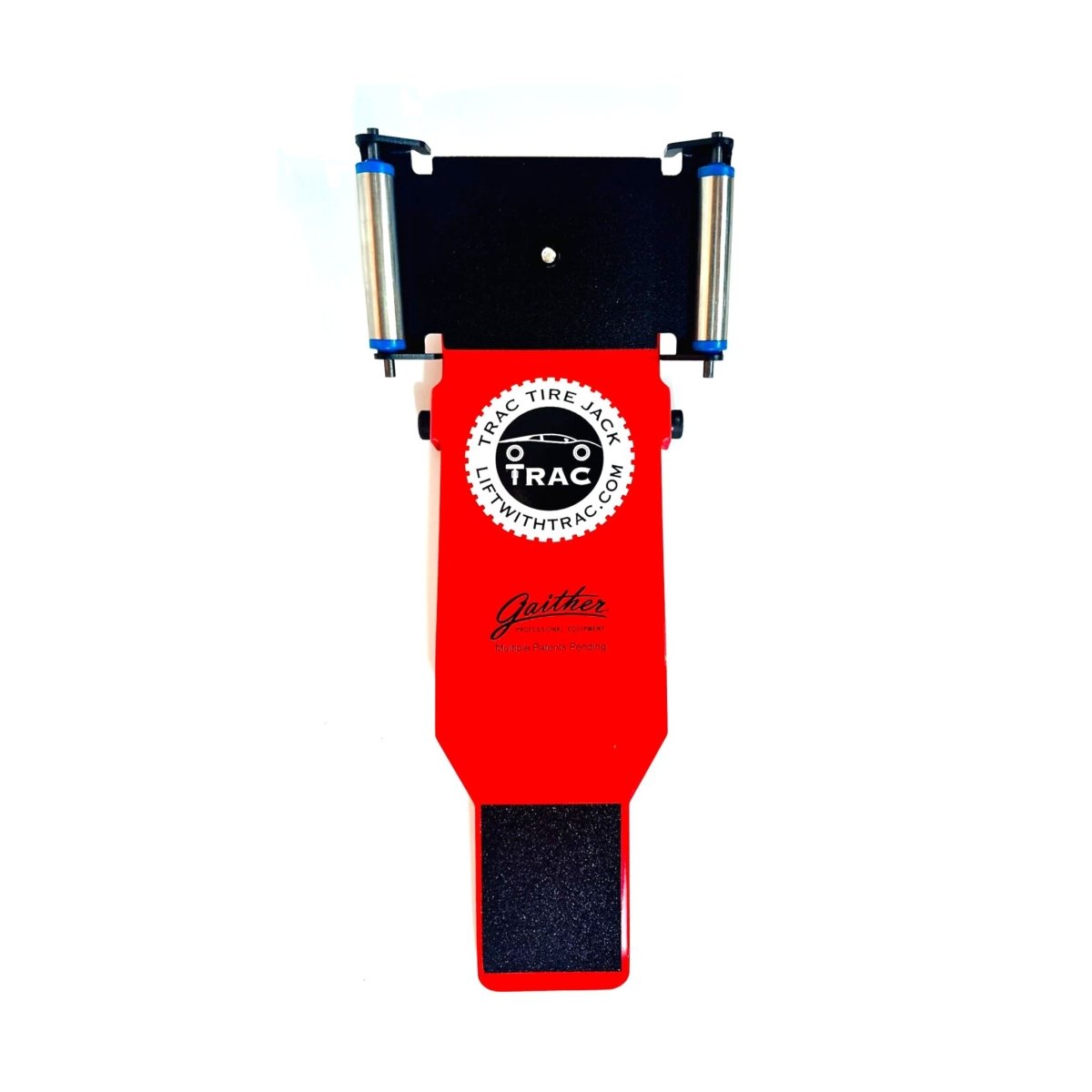

When a wheel is supported on the TRAC Tire Jack, lining its holes up with the hub studs can still take fine positioning. The TRAC Roller Plate adds two rollers so the wheel can spin on the tool for easier hole-to-stud alignment.

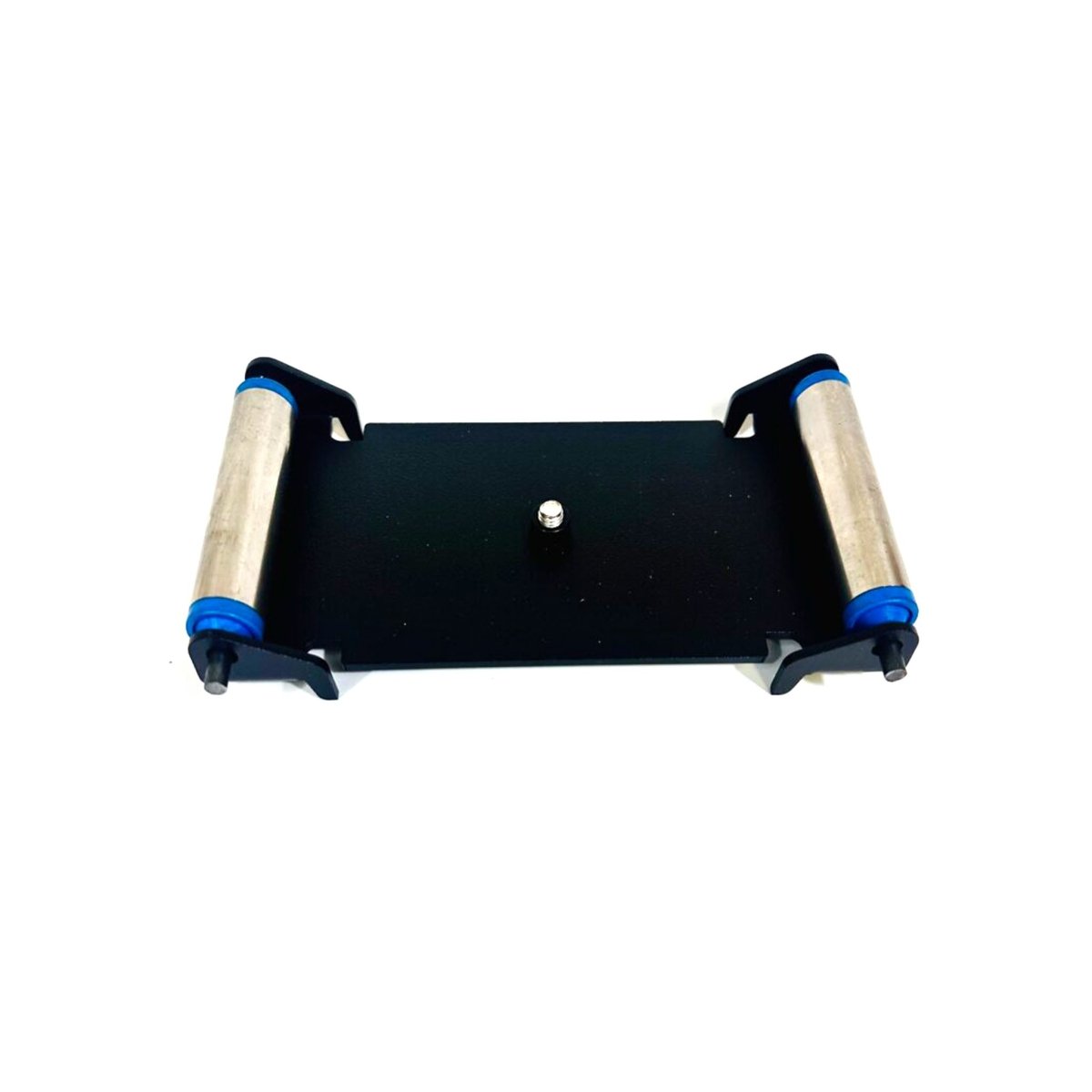

Built from heavy-duty welded steel, the plate measures 8 x 5 x 1.25 in and weighs 2 lb. It is for use with the Gaither TRAC Tire Jack GTJ-01, which is required and sold separately. Gaither recommends the roller plate for all-terrain tread patterns; for mud-terrain or aggressive treads, use the jack alone because the tread may catch in the rollers.
Features
Spin the Wheel for Easier Alignment
Two rollers let the wheel rotate while it is supported on the TRAC Tire Jack, making it easier to line the wheel holes up with the hub studs.
Heavy-Duty Welded Steel
The welded steel plate is built for use with the Gaither TRAC Tire Jack during wheel installation work.
Compact Roller Plate
The plate measures 8 x 5 x 1.25 in and has a listed product weight of 2 lb.
Tread Pattern Guidance
Gaither recommends the roller plate for all-terrain tread patterns. For mud-terrain or aggressive treads, use the TRAC Tire Jack alone because the tread may catch in the rollers.
Specifications
| Product Type | TRAC Tire Jack roller plate accessory |
|---|---|
| Construction | Heavy-duty welded steel |
| Roller Configuration | Two rollers |
| Roller Material | Stainless steel |
| Roller Size | 20 mm diameter x 105 mm long |
| Product Weight | 2 lb |
| Dimensions | 8 in L x 5 in W x 1.25 in H |
| Manufacturer Part Number | GTRP-01 |
|---|---|
| GSG SKU | GAI-GTRP01 |
| Identification Marking | Multiple Patents Pending |
| Compatible Equipment | Gaither TRAC Tire Jack |
|---|---|
| Compatible Model | GTJ-01 |
| Required Mating Product | TRAC Tire Jack, sold separately |
| Tread Guidance | Recommended by Gaither for all-terrain tread patterns; use the jack alone with mud-terrain or aggressive treads |
What's Included
- TRAC Roller Plate x1
Not Included
- Gaither TRAC Tire Jack GTJ-01
Documents
Frequently Asked Questions
How does the TRAC Roller Plate install on the TRAC Tire Jack?
Position the GTRP-01 Roller Plate on the GTJ-01 as shown in Gaither's installation diagram, then secure it at the center mounting point with the single M8 screw into the plate's threaded boss. Follow the manufacturer diagram for the correct plate orientation.
Can the TRAC Roller Plate be used with mud-terrain tires?
Gaither recommends the roller plate for all-terrain tread patterns. For mud-terrain or aggressive treads, Gaither recommends using the TRAC Tire Jack alone because the tread may catch in the rollers.
