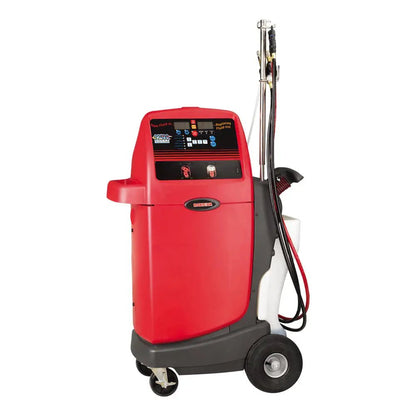

Robinair 92500 Transmission Fluid Exchanger - Complete 32 Quart System
The Robinair 92500 Transmission Fluid Exchanger is the professional solution for high-volume transmission maintenance, delivering complete automatic transmission fluid exchanges in under 20 minutes. Featuring a unique dipstick-based exchange approach that avoids rusty fittings and engine damage, the 92500 includes a 32-quart supply tank and 34-quart waste tank for maximum capacity. The innovative three-mode operation supports dipstick-only, cooler line, or combination flushing, with precision 1/10-quart metering for accurate fluid level management. Complete with microprocessor controls, digital keypad interface, low fluid alarm, drain waste pump, and adapters for Ford, GM, Chrysler, European, and Asian vehicles, the 92500 is engineered for professional shops that demand efficiency, accuracy, and reliability in transmission service.

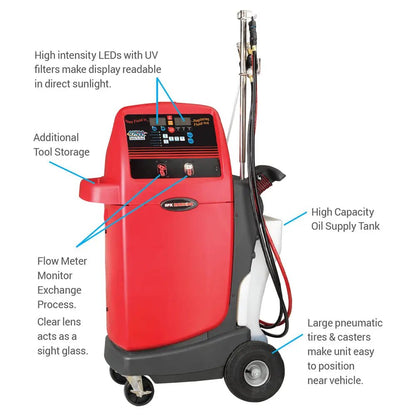

Robinair 92500 Features
Dipstick-Based Exchange Method
Unique approach exchanges transmission fluid through the oil dipstick without breaking loose rusty cooler line fittings. This eliminates damage risk to engine components and provides convenient, safe access to transmission fluid with zero risk of cross-contamination from external fittings.
Three Operating Modes for Flexibility
Dipstick-only mode exchanges fluid before it passes through the transmission filter. Cooler-line mode provides traditional inline flushing. Combination mode uses both approaches for maximum thoroughness. Reversible hose connections prevent incorrect hookup, ensuring safe operation every time.
32-Quart Supply and 34-Quart Waste Tanks
Large capacity tanks handle high-volume transmission service without frequent refilling. 32-quart supply tank stores fresh ATF for multiple vehicle services. 34-quart waste tank collects used fluid. The generous capacity maximizes shop productivity for busy transmission service operations.
Precision 1/10-Quart Metering System
Unprecedented metering capability allows accurate fluid adjustment in 1/10-quart increments via the top-off feature. This fine-grain control ensures exact transmission fluid levels, preventing over-fill or under-fill conditions that damage transmissions or reduce performance.
Microprocessor Controls with Digital Display
Intuitive microprocessor-based system with digital keypad and LED indicators makes operation simple and reliable. Low fluid alarm with indicator light alerts technicians before service interruption. All controls are ergonomically positioned for comfortable operation throughout extended service procedures.
Automatic Drain Waste and Drain Pan Features
Drain waste pump automatically transfers used fluid from the machine to an external waste container without manual intervention. Drain pan feature rapidly drains transmission fluid for filter replacement tasks, making the entire maintenance process clean and efficient.
Robinair 92500 Applications
- Scheduled Transmission Maintenance: Complete fluid exchanges during regular transmission service intervals to remove degraded fluid, sludge, and contaminants that accumulate over time and reduce transmission performance.
- Transmission Filter Replacement: Fluid exchange combined with drain pan feature enables quick filter replacement with minimal mess and no spillage of transmission fluid onto service bay floors.
- Pre-Repair System Preparation: Perform complete fluid flush before major transmission repairs to remove debris and contamination that could damage newly repaired or replaced transmission components.
- High-Volume Fleet Service: Under 20-minute exchange cycle time enables fleet maintenance facilities to service multiple transmission systems per day without service bay bottlenecks.
- Multi-Vehicle Transmission Service: Three operating modes and complete adapter sets for Ford, GM, Chrysler, European, and Asian vehicles enable shops to serve all customer transmission types from a single machine.
Robinair 92500 Specifications
| Specification | Value |
|---|---|
| Exchange Time | Under 20 minutes per vehicle |
| Exchange Accuracy | Plus-minus 1/4 quart |
| Metering Precision | 1/10-quart increments for adjustment |
| Operating Modes | Three modes: dipstick only, cooler line, or combination |
| Component | Specification |
|---|---|
| Supply Tank | 32 quarts (24.6 liters) |
| Waste Tank | 34 quarts (26.6 liters) |
| Pump Type | Positive displacement gear pump |
| Pump Maximum Flow | 2 gallons per minute |
| Specification | Value |
|---|---|
| Power Supply | 12V DC electrical |
| Control System | Microprocessor with digital keypad |
| Display | LED indicators for status and alerts |
| Low Fluid Alarm | Automatic alert with indicator light |
| Specification | Value |
|---|---|
| Height | 52 inches |
| Width | 33 inches |
| Depth | 20 inches |
| Weight | 158 pounds |
| Component | Specification |
|---|---|
| Exchange Hoses | 91 inches black and red |
| Transfer Tube | 76 inches white straw |
| Adapter Set | Ford, GM, Chrysler, European, and Universal (Asian) |
| Fluid Compatibility | All types of automatic transmission fluid |
Robinair 92500 Installation Requirements
Electrical Power Supply
12V DC electrical connection required for microprocessor operation. Standard 12V power supply with adequate current capacity for pump motor operation. Installation should route power safely to prevent extension cord hazards near the service bay.
Service Bay Positioning
Floor space: 33" W x 20" D minimum with 52" total height. Position in accessible service bay area with adequate room for technician operation around all machine controls and connections. Level flooring is essential for proper pump operation and accurate fluid level monitoring.
Adapter and Hose Connections
Included adapters connect to Ford, GM, Chrysler, European, and Asian vehicle transmission fittings. 91-inch exchange hoses and 76-inch transfer tube provide adequate reach to most vehicle engine bays. Additional specialty adapters are available for vehicles requiring non-standard connections.
Waste Fluid Management
Position the machine within convenient reach of waste fluid containers for drain waste pump operation. The 34-quart waste tank capacity enables collection of multiple vehicle services before manual transfer to bulk waste containers is required.
What's Included with the Robinair 92500
- 92500 Transmission Fluid Exchanger with microprocessor control system
- 32-quart supply tank with level sight glass
- 34-quart waste tank with drain valve
- Positive displacement gear pump system (2 gallons per minute maximum)
- 91-inch black and red exchange hoses
- 76-inch white transfer tube (straw)
- Complete adapter set for Ford, GM, Chrysler, European, and Asian vehicles
- Digital keypad with LED display controls
- Low fluid alarm system with indicator light
- Drain waste pump for automatic used fluid transfer
- Drain pan feature for filter replacement
- Integral hose and tool compartment with drain
- Top-off feature for 1/10-quart adjustments
- Complete operation manual and documentation
Optional Accessories: Specialized adapter fittings for non-standard vehicle connections, replacement hose kits, fluid level monitoring equipment, and extended maintenance service plans available separately.
Not Included: Automatic transmission fluid supply, additional adapter sets beyond standard kit, professional installation labor, 12V power supply connection, or waste fluid collection containers.
Robinair 92500 Shipping and Delivery
Freight Shipping
Coverage: Free freight LTL shipping to commercial addresses in the 48 contiguous United States. Lead Time: 5-10 business days after order. International: Contact sales for international shipping quote and availability arrangements.
Delivery Requirements
Unloading: Forklift or loading dock recommended - unit weighs 158 pounds and should be positioned in service area. Delivery Type: Curbside LTL freight delivery standard. Call-before-delivery and inside delivery may require additional charges. Inspection: Inspect unit for any damage before accepting delivery and note any issues on receipt.
Returns and Restocking
Returns accepted within 30 days of delivery if unopened in original packaging with receipt. Restocking fees up to 50 percent apply based on condition. Buyer is responsible for return freight costs. Contact customer service for return authorization number before shipping returns.
Robinair 92500 Warranty
Limited Manufacturer Warranty
All Robinair 92500 machines are warranted for one year parts and labor against defects in material and workmanship under normal use and service conditions. The warranty covers all components including pump systems, electrical controls, display, tanks, and hose assemblies for manufacturing defects.
- Coverage Period: One year from date of purchase
- Scope: Parts and labor for manufacturing defects under normal use
- Exclusions: Wear items, consumables, user damage, misuse, or lack of maintenance
- Service: Warranty service available through authorized Robinair service centers
Requirements: Proof of purchase date required for all warranty claims. Warranty applies to product in normal usage situations only as described in owner's manual. Machine must be serviced and maintained as specified to maintain warranty coverage.
Documents
Click to open in a new tab.
Questions About the Robinair 92500?
Our transmission service equipment specialists can help with installation planning, multi-vehicle compatibility, fluid type selection, and service workflow optimization for your professional automotive service facility.
Robinair 92500 FAQ
How long does a complete transmission fluid exchange take with the 92500?
A complete transmission fluid exchange takes under 20 minutes from initial connection to final top-off adjustment. This rapid exchange cycle enables shops to service multiple vehicles per day, significantly improving service bay productivity and customer satisfaction through fast turnaround times.
What are the three operating modes and when should I use each one?
Dipstick-only mode exchanges fluid through the transmission pan before it reaches the filter, ideal for routine maintenance. Cooler-line mode provides inline flushing through transmission cooler lines. Combination mode uses both approaches for maximum thoroughness on heavily contaminated systems requiring complete restoration.
How accurate is the fluid exchange and what is the metering precision?
Exchange accuracy is plus-minus 1/4 quart, ensuring proper transmission fluid levels. The top-off feature provides unprecedented 1/10-quart metering precision, allowing exact fluid level adjustment in small increments to prevent over-fill or under-fill conditions that could damage the transmission.
What vehicle manufacturers are supported by the included adapters?
The complete adapter set covers Ford, GM, Chrysler, European, and Universal adapters for most Asian imports. These standard adapters enable the 92500 to service the vast majority of vehicles on North American roads from a single machine with no additional adapter purchases necessary.
Can the 92500 handle all types of automatic transmission fluid?
Yes. The machine is designed to work with all types of automatic transmission fluid commonly used in automotive applications. The system is compatible with Dexron, Mercon, Chrysler ATF, European fluids, and Asian transmission fluids without modification or concern.
Why is the dipstick-based exchange method superior to traditional cooler line flushing?
The dipstick approach avoids breaking loose rusty cooler line fittings that can damage engine components. It exchanges fluid before it reaches the transmission filter, removing contamination more effectively. The method is safer, cleaner, and eliminates the risk of cross-contamination from external fittings.
What is the capacity of the supply and waste tanks?
The supply tank holds 32 quarts of fresh automatic transmission fluid for multiple vehicle services. The waste tank collects 34 quarts of used fluid. These large capacities enable high-volume transmission service without frequent tank emptying or refilling interruptions.
How does the low fluid alarm help during service operations?
The automatic low fluid alarm with indicator light alerts technicians before fluid runs out during exchange operations. This prevents service interruption mid-cycle and ensures every vehicle receives the complete fluid exchange it requires for optimal transmission performance.
What makes the drain pan feature valuable for transmission service?
The drain pan feature rapidly drains transmission fluid for filter replacement tasks without spillage onto service bay floors. This makes the entire transmission maintenance process cleaner, safer, and more efficient when combined with fluid exchange operations.
How does the microprocessor control system improve ease of operation?
The digital keypad interface with LED indicators makes operation intuitive for technicians of all experience levels. The microprocessor automates the complex fluid exchange process, while LED displays provide clear status feedback throughout the service cycle, eliminating guesswork.
What pump system does the 92500 use and what is its flow rate?
The machine uses a positive displacement gear pump with a maximum flow rate of 2 gallons per minute. This robust pump design ensures reliable, consistent performance even under heavy daily use in high-volume transmission service environments.
What is the warranty coverage for the Robinair 92500?
The 92500 includes one year parts and labor warranty against defects in material and workmanship under normal use and service. The warranty covers all components including pump systems, electrical controls, displays, tanks, and hose assemblies for manufacturing defects during the first year of ownership.
