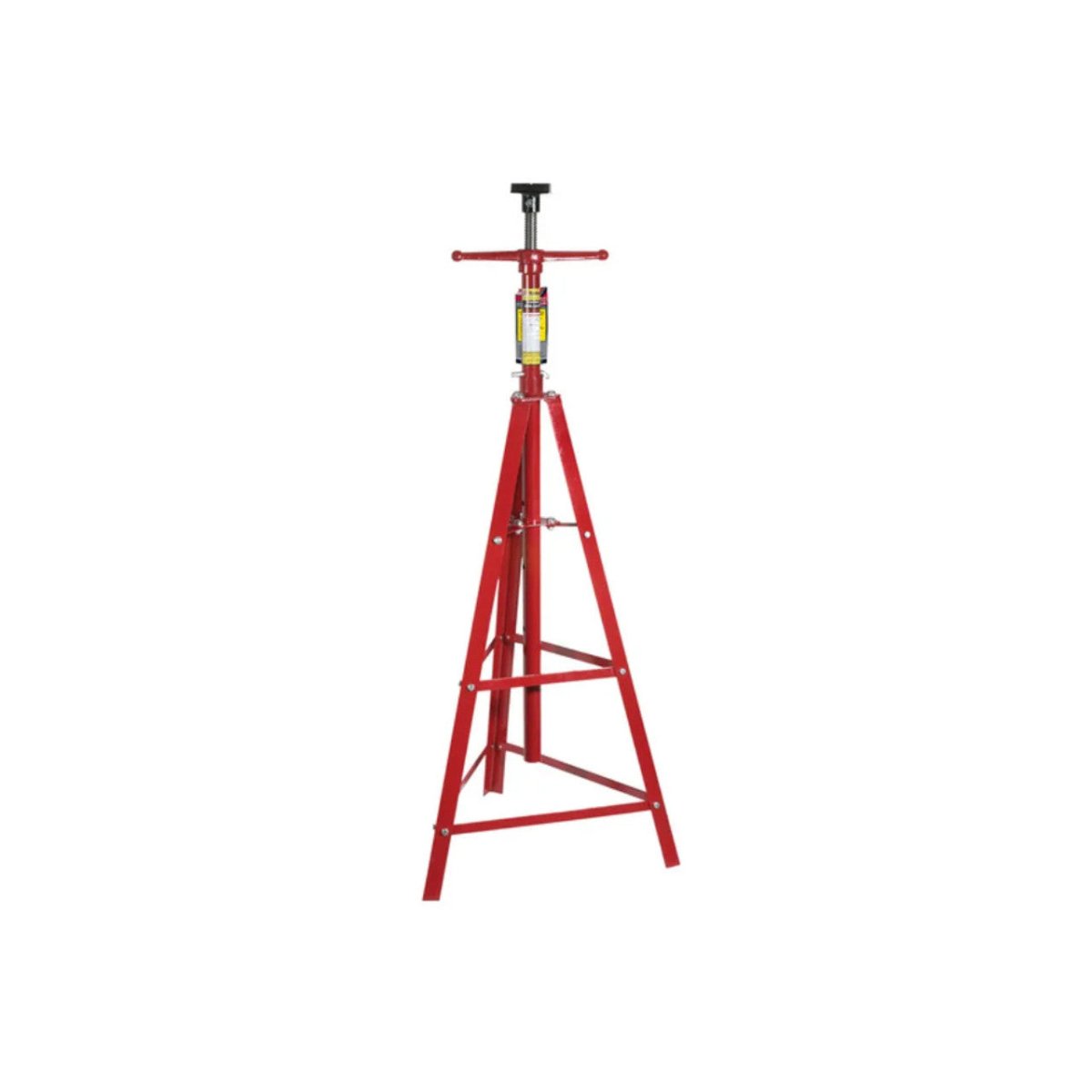

RANGER RJS-2TH 2-Ton High Reach Tripod Jack Stand
Professional Vehicle Stabilization - Ranger RJS-2TH 2-Ton Tripod Jack Stand (Model 5150125)
Heavy-Duty Support for Lifted Vehicle Service
The Ranger RJS-2TH tripod jack stand supports up to 4,000 lbs for vehicles on two-post or four-post lifts. This automotive jack stand adjusts from 55" to 87" height, ideal for transmission service, engine work, and exhaust repairs.
Key Benefits & Performance Features
Applications & Use Cases
- Transmission removal and installation.
- Engine service work requiring stabilization.
- Exhaust system repairs.
- Wheel service between four-post lift runways.
- Drive-train component positioning.
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 4,000 lbs (2 tons) |
| Height Range | 55" - 87" (1,397 mm - 2,210 mm) |
| Base Dimensions | 24" x 24" (610 mm x 610 mm) |
| Weight | 50 lbs (22.7 kg) |
| Material | Heavy-duty steel construction |
| Color | Safety orange |
| Model Number | 5150125 / RJS-2TH |
| Adjustment Mechanism | Hardened ACME screw with thrust bearing |
Professional Vehicle Stabilization Equipment
Designed for professional automotive shops requiring reliable 4,000 lb support capacity for lifted vehicle service work. Order your Ranger RJS-2TH tripod jack stand for secure vehicle stabilization during critical repairs.
Frequently Asked Questions
How does this tripod jack stand compare to traditional jack stands?
This tripod design offers greater stability and extended height reach (55"-87") compared to standard ground-level jack stands, making it specifically designed for supporting vehicles already lifted on car lifts rather than ground-level use. The triangular base configuration provides enhanced resistance to tipping forces during heavy component work.
Can this support the weight when removing heavy components like transmissions?
Yes, with a 4,000 lb capacity, this jack stand easily handles the additional load shifts that occur when removing transmissions, engines, or other heavy drivetrain components from lifted vehicles. The hardened ACME screw mechanism maintains structural integrity under varying loads while the wide base distributes weight effectively.
Will this work with both two-post and four-post car lifts?
Absolutely. The adjustable height range and tripod base design make it compatible with both lift types, and it can even support vehicles between four-post runway gaps. The 55"-87" adjustment range accommodates most standard automotive lift configurations while the compact base fits between lift posts and runway systems.
What makes the ACME screw adjustment mechanism superior?
The hardened ACME screw with thrust bearing provides smooth, precise height adjustments while maintaining strength under load, offering better durability and easier operation than standard threaded mechanisms. This design reduces wear, prevents binding, and allows for fine-tuned positioning even when supporting heavy vehicle loads.
