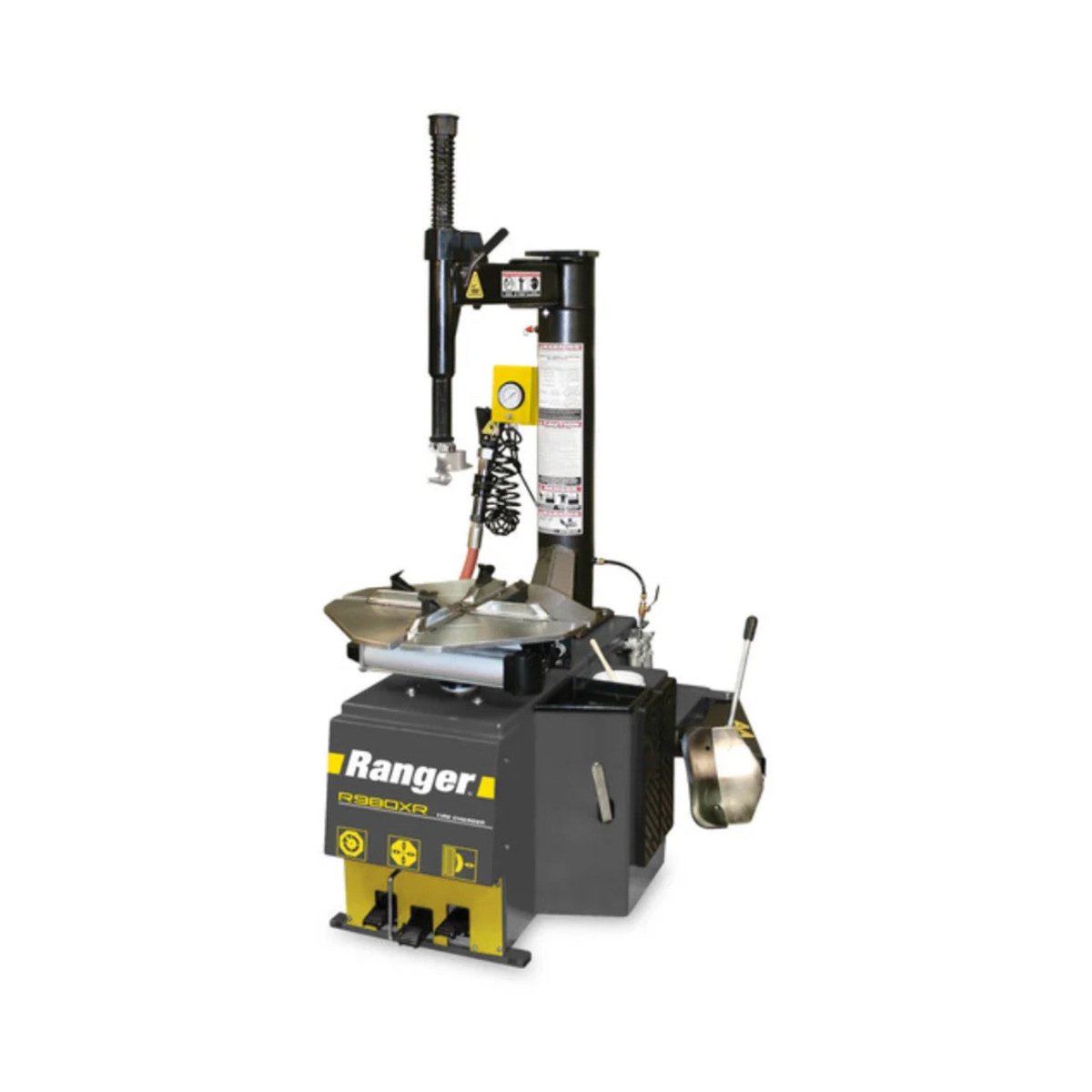

Ranger R980XR Swing Arm Tire Changer 30 Inch Capacity
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Ranger R980XR NEXTGEN Swing-Arm Tire Changer - 30" Capacity for Professional Automotive Shops
The Ranger R980XR is a space-saving swing-arm tire changer engineered for shops servicing everyday commuter cars, pickups, and SUVs. Featuring a powerful 3 HP electric motor and high-torque electric turntable, this machine handles wheels from 10" to 30" with inside clamping and accommodates tire diameters up to 50". The rigid swing-arm tower design allows installation closer to walls than tilt-back machines, maximizing valuable shop floor space. Equipped with Ranger's exclusive TurboBlast bead seating system, RimGuard wheel clamps, and included non-marring polymer duck heads, the R980XR delivers fast, safe tire changes backed by Ranger's comprehensive warranty.
Ranger R980XR Features
High-Torque Electric Turntable
The R980XR features a powerful electric turntable with reversible direction control for faster tire changes. Variable speed control allows low-profile and run-flat beads time to relax during service, virtually eliminating the main cause of tire damage during mounting and demounting procedures.
TurboBlast Bead Seating System
Ranger's exclusive TurboBlast system uses a powerful air blast from the welded-steel 8-gallon surge tank to seat stubborn beads quickly. The non-marring nylon discharge barrel features a contoured tab that locks securely on the rim edge for precise control during air discharge.
RimGuard Wheel Clamps
Ranger's exclusive RimGuard clamps expand from 10" to 30" internally and 9" to 28" externally. Constructed from hardened steel with two sets of multi-teeth jaws and vertical mounting bolts, these clamps provide secure grip while protecting wheel finishes during service.
Dual Mount/Demount Heads
The equi-dimensional hardened alloy steel mount/demount head features a micro-smooth surface for seamless bead gliding. A rugged polymer mount/demount head with adapter is also included to protect fragile aluminum wheels and custom rims from metal-to-metal contact damage.
Pneumatic Bead Breaker System
Bilateral pneumatic accelerators deliver incredible bead-breaker speeds in both directions. The stainless steel bead-breaker cylinder resists moisture corrosion, while the multi-axis adjustable blade accommodates various tire and wheel combinations with a large dual-flange axle that eliminates blade flex.
Maintenance-Free Gearbox
The newly designed gearbox features a large oil and grease reservoir for efficient heat dissipation and improved lubrication. Precision helical gears operate more smoothly and quietly than typical spur gear transmissions, with internal baffles and a constant seating stress flange gasket ensuring leak-free operation.
Ranger R980XR Applications
- General Automotive Repair Shops: Ideal primary tire changer for shops servicing everyday commuter vehicles, handling standard passenger car and light truck wheels efficiently.
- Quick Lube and Tire Centers: High-torque turntable and ergonomic controls maximize throughput for high-volume tire service operations.
- Dealership Service Departments: Professional-grade construction and included polymer head protect OEM wheels while maintaining fast service times.
- Fleet Maintenance Facilities: Robust 30" capacity handles trucks, vans, and SUVs common in commercial fleet applications with reliable daily performance.
- Backup Machine for Specialty Shops: Space-saving swing-arm design makes the R980XR an excellent secondary machine alongside more sophisticated equipment for run-flats and low-profile tires.
Ranger R980XR Specifications
| Specification | Value |
|---|---|
| Inside (Wheel) Clamping Range | 10" - 30" (254 mm - 762 mm) |
| Outside (Wheel) Clamping Range | 9" - 28" (229 mm - 762 mm) |
| Maximum Rim Width | 15" (381 mm) |
| Maximum Tire Diameter | 50" (1,270 mm) |
| Specification | Value |
|---|---|
| Motor | 3 HP (220 VAC 50-60 Hz) |
| Drive System Type | Electric / Air |
| Air Requirement | 140-165 PSI (10-11 BAR) |
| Specification | Value |
|---|---|
| Recommended Footprint | 55" x 50" x 78" (1,397 mm x 1,270 mm x 1,981 mm) |
| Shipping Dimensions | 45" x 50" x 68" (1,143 mm x 1,270 mm x 1,727 mm) |
| Shipping Weight | 742 lbs (337 kg) |
| Feature | Included |
|---|---|
| Wheel Clamping Method | 4 Clamps - Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Pneumatic Blade / Dual |
| Tower Design | Rigid / Fixed |
| Bead Seating System | TurboBlast Bead Seating |
| Alloy-Steel Mount/Demount Head | Yes |
| Plastic-Polymer Mount/Demount Head | Yes |
| Inflation Gauge With Air Dump Valve | Yes |
Ranger R980XR Installation Requirements
Electrical Requirements
Power: 220 VAC, 50-60 Hz single-phase power supply required. A licensed electrician must install and verify the electrical supply meets local codes and manufacturer specifications.
Air Supply Requirements
Compressed Air: 140-165 PSI (10-11 BAR) continuous air supply required. Ensure your shop compressor can maintain adequate pressure during peak operation. Install appropriate moisture traps and filters as specified in the manual.
Space Requirements
Recommended Footprint: 55" x 50" x 78" (W x D x H). The swing-arm design allows placement closer to walls than tilt-back machines, maximizing available floor space. Ensure adequate clearance for operator movement and tire handling.
Professional Installation
Professional installation is recommended to ensure proper electrical connections, air line setup, and machine calibration. Refer to the installation manual for complete requirements and safety procedures.
What's Included with the Ranger R980XR
- R980XR Tire Changer Unit
- Hardened alloy-steel mount/demount head
- Rugged polymer mount/demount head with adapter
- TurboBlast bead seating system with 8-gallon surge tank
- Non-marring nylon discharge barrel
- Soap bucket and brush
- Plastic wheel protector kit with turntable jaw covers
- Bead-breaker blade boots
- Specialized mount/demount head covers
- Hardened steel tire iron
- Bead lever tool
- Clip-on valve chuck with inflation hose
- Installation and operation manual
Optional Accessories: Motorcycle turntable clamps (sold separately) for servicing motorcycle tires.
Not Included: Electrical installation, compressed air supply system, professional installation labor.
Ranger R980XR Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 3-5 business days. Shipping Weight: 742 lbs. International: Contact sales for quote.
Delivery Requirements
Unloading: Forklift or loading dock required due to 742 lb shipping weight. Delivery Type: Curbside delivery standard. Inspection: Inspect all packages for damage before signing BOL. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Ranger R980XR Warranty
Ranger Wheel Service Equipment Warranty
Ranger Products backs the R980XR with comprehensive warranty coverage for peace of mind:
- Structure and Frame: Protected against defects in materials and workmanship
- Electrical and Mechanical Components: Coverage for motor, gearbox, and pneumatic systems
- Wear Items: Limited coverage on components subject to normal wear
Requirements: Warranty coverage requires proper installation per manufacturer specifications and normal use in accordance with operating instructions. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Ranger R980XR?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Ranger R980XR FAQ
What is the maximum wheel size the R980XR can handle?
The Ranger R980XR accommodates wheels from 10" to 30" using internal clamping and 9" to 28" using external clamping. It handles maximum rim widths of 15" and tire diameters up to 50", making it suitable for most passenger cars, pickups, and SUVs.
What are the electrical requirements for the R980XR?
The R980XR requires 220 VAC, 50-60 Hz single-phase power. A licensed electrician should install and verify the electrical supply meets local codes and the manufacturer's specifications before operating the machine.
What air pressure is required to operate the R980XR?
The R980XR requires a continuous compressed air supply of 140-165 PSI (10-11 BAR). Ensure your shop compressor can maintain adequate pressure during peak operation for optimal bead breaking and seating performance.
How much floor space does the R980XR require?
The recommended footprint is 55" x 50" x 78" (W x D x H). The swing-arm tower design allows the machine to be installed closer to walls than tilt-back style machines, helping maximize available shop floor space.
Does the R980XR come with wheel protection accessories?
Yes, the R980XR includes a rugged polymer mount/demount head with adapter to protect aluminum and custom wheels from metal-to-metal contact. It also comes with a plastic wheel protector kit, turntable jaw covers, and specialized mount/demount head covers.
What is the TurboBlast bead seating system?
TurboBlast is Ranger's exclusive bead seating system that uses a powerful air blast from an 8-gallon welded-steel surge tank to seat stubborn tire beads quickly. The non-marring nylon discharge barrel locks securely on the rim edge for precise control during inflation.
Can the R980XR change motorcycle tires?
Yes, with optional motorcycle turntable clamps sold separately. These clamps allow the R980XR to securely hold motorcycle wheels for tire service, expanding the range of customers you can serve.
What is the shipping weight and how is it delivered?
The R980XR ships at 742 lbs with dimensions of 45" x 50" x 68". Free freight shipping is included to commercial addresses in the 48 contiguous states. A forklift or loading dock is required for unloading. Curbside delivery is standard.
Is professional installation required?
While not strictly required, professional installation is recommended to ensure proper electrical connections, air line setup, and machine calibration. This helps ensure optimal performance and maintains warranty coverage.
What maintenance does the R980XR require?
The R980XR features a maintenance-free gearbox with a large oil and grease reservoir designed for long service life. Regular maintenance includes keeping the machine clean, checking air lines and connections, and following the maintenance schedule in the operation manual.
How does the swing-arm design compare to tilt-back machines?
The rigid swing-arm tower design allows the R980XR to be installed closer to walls than tilt-back machines, saving valuable floor space. While tilt-back machines offer advantages for low-profile and run-flat tires, the swing-arm design is ideal for shops primarily servicing standard passenger vehicles.
What warranty coverage comes with the R980XR?
The R980XR is covered by Ranger's wheel service equipment warranty, which protects against defects in materials and workmanship. Coverage includes the structure, frame, electrical components, and mechanical systems. See the warranty document for complete terms and conditions.
