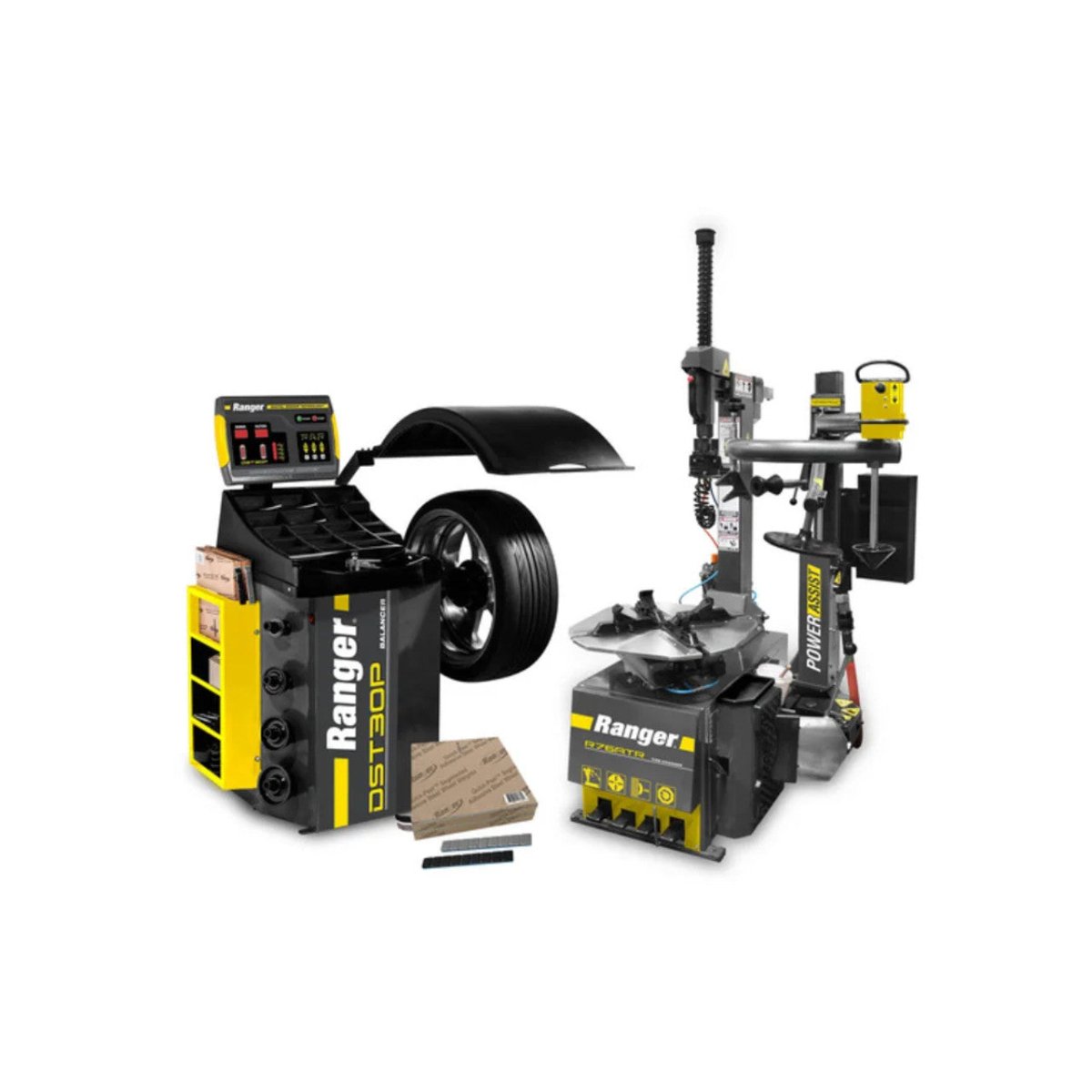

RANGER R76ATR and DST30P Wheels and Tires Package Deal
Complete Shop Package - Ranger Tire Changer and Wheel Balancer Combo (R76ATR & DST30P)
Professional Tire Equipment with 1,400-Piece Weight Kit Included
Your shop needs equipment that works as hard as you do. This tire changer wheel balancer combo delivers professional-grade performance with the R76ATR's tilt-back design handling tires up to 43" and the DST30P achieving perfect balance in just 6 seconds.
The package includes everything needed to start servicing vehicles immediately: both machines, 1,400 adhesive weights, complete cone sets, and all professional tools.
Built for shops servicing 20+ vehicles daily, this tire machine and balancer combo eliminates the bottlenecks that kill productivity. The R76ATR's power assist tower and RimGuard™ clamps protect expensive wheels while the DST30P's 64-tooth encoder delivers twice the accuracy of standard 32-tooth models, virtually eliminating comeback jobs.
Key Features and Benefits - Complete Combo Package

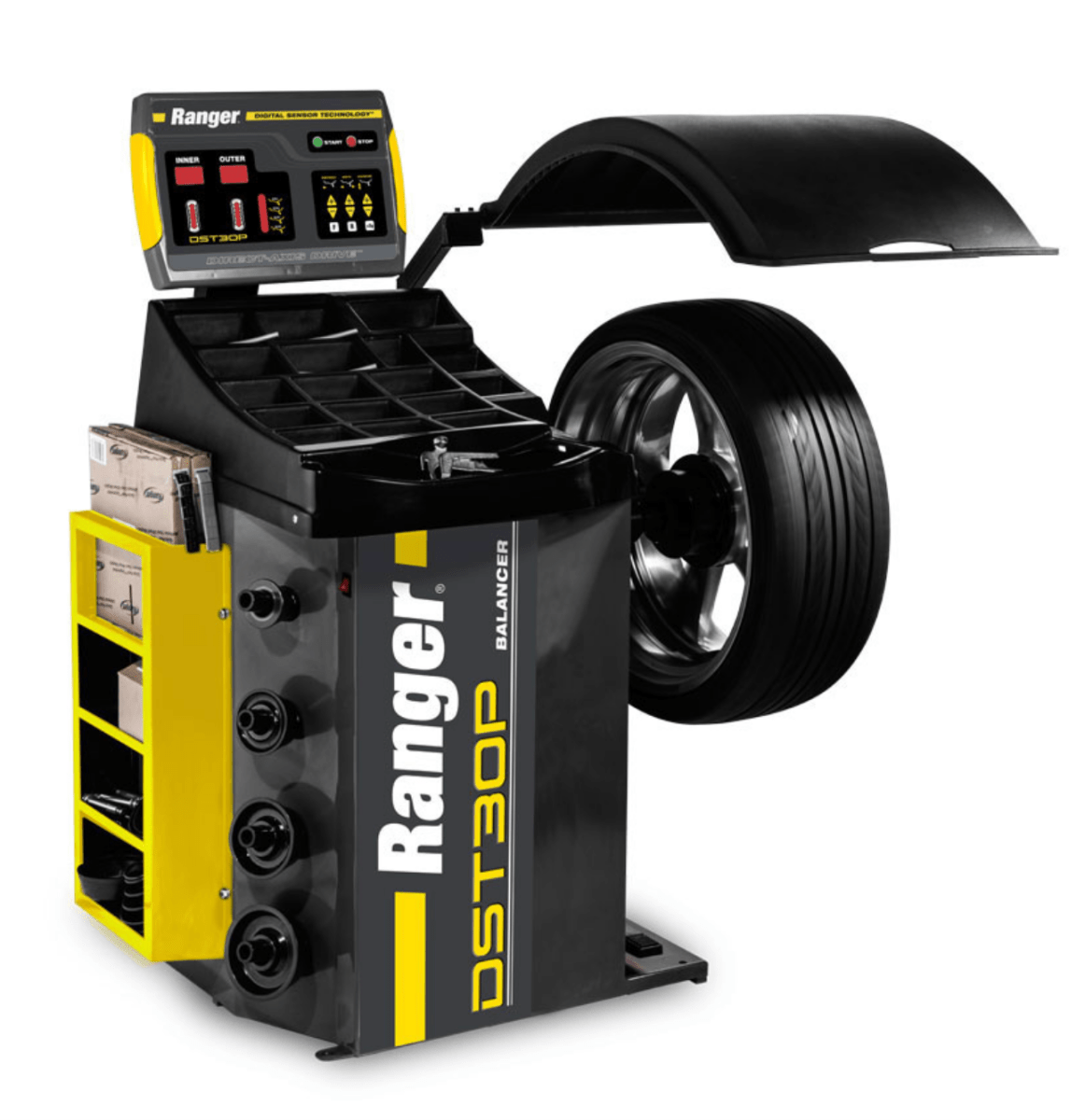

DST30P: 6-Second Balance Cycles - Complete more jobs with rapid precision
The DST30P wheel balancer achieves perfect balance in just 6 seconds using its advanced 64-tooth magnetic encoder. The automatic data wand measures wheel distance and diameter on contact, feeding precise inputs for error-free setup.
This doubles the weight placement accuracy compared to standard 32-tooth models while cutting cycle time in half. The direct-axis drive system with automatic braking positions wheels precisely at 12 o'clock for weight placement, allowing you to balance one wheel while mounting the next tire.
R76ATR: Tilt-Back Tower Design - No adjustments needed between wheel sizes
The R76ATR's tilt-back tower revolutionizes tire changing efficiency. Once positioned, the pneumatic-lock tool head stays in place for entire sets of matching tires, eliminating constant readjustments.
The precision-machined mount and demount head safely lifts and removes tires with plastic inserts preventing metal-to-metal contact - perfect for aluminum or painted rims. This design saves 5-10 minutes per set compared to conventional fixed-tower machines, dramatically increasing your daily throughput.
R76ATR: RimGuard™ Wheel Protection - Eliminate expensive damage claims
The R76ATR's adjustable bead breaker delivers precise pressure to separate even tough beads without damaging the rim. Compatible with tire widths from 1.5" to 16", it improves speed and safety across commercial or performance applications.
The RimGuard™ clamp system features polymer contact points that prevent metal-to-metal contact while securing wheels from 10" to 30" externally. Combined with nylon mount-demount heads and plastic tool head inserts, shops report 95% reduction in wheel damage incidents after switching to this equipment.
Dual Power Systems - High-torque turntable meets precision balancing
The R76ATR's high-torque 220V electric turntable delivers smooth, controlled rotation even under heavy loads, while the adjustable RimGuard™ wheel clamps accommodate both internal (8"-26") and external (10"-30") clamping.
The DST30P operates on switchable 110V or 220V power, providing installation flexibility while maintaining consistent 6-second cycle times. Both machines feature foot-operated controls for hands-free operation.
R76ATR: TurboBlast™ Bead Seating - Instant inflation for stubborn tires
The R76ATR's TurboBlast™ bead seating system channels a high-velocity air burst into the tire cavity for instant sealing. Designed specifically for low-profile, high-performance, or stiff sidewall tires that conventional inflation methods struggle with.
The system creates immediate bead-to-rim seal without excessive pressure that could damage TPMS sensors, minimizing delays during mounting and saving 3-5 minutes per difficult tire. This technology is essential for modern run-flat and ultra-low-profile applications.
DST30P: Quick-Mount Centering System - Tool-free wheel mounting in seconds
The DST30P's quick-release hub with ergonomic red locking handles enables secure, tool-free wheel mounting that speeds up cycle time without sacrificing precision.
The no-mar pressure cup and comprehensive cone set (1.75" to 5.00") protect wheels while ensuring perfect centering. This system works in perfect harmony with the R76ATR's mounting process, creating a seamless workflow where wheels move from changer to balancer with minimal handling time.
Complete Shop Organization - Everything has its place for maximum efficiency
Both machines feature integrated storage solutions that keep your workspace professional and efficient.
The DST30P includes vertical cone holders, rear storage shelf for tools and accessories, and built-in weight dispensers for the included 1,400-piece weight kit. The R76ATR provides tool trays, soap bucket placement, and accessory storage.
This complete organization system means technicians spend less time searching for tools and more time servicing vehicles.
Turn-Key Package with 1,400 Weights - Start servicing immediately
Unlike competitors who nickel-and-dime with add-ons, this complete package includes everything: both machines fully equipped, 1,400 adhesive tape weights (700 black, 700 silver), complete cone sets from 1.75" to 5.00", calibration weight, mounting/demounting tools, and all installation hardware.
That's enough weight inventory to balance approximately 350 vehicles before reordering. The included accessories represent significant value, reducing your total investment while ensuring you're ready to work from day one.
Professional Shop Applications
Perfect for high-volume shops that demand reliability and efficiency:
- Independent Tire Shops: Handle 30-50 vehicles daily with the synchronized workflow between tire changer and balancer
- Auto Dealership Service Centers: Service everything from compact cars to full-size trucks with professional results
- Fleet Maintenance Facilities: Maintain mixed commercial fleets with equipment that handles up to 43" tires
- Performance and Custom Shops: Mount low-profile tires on expensive wheels without damage using RimGuard™ protection
- Quick Lube Centers: Add profitable tire services with equipment that's easy to learn and operate
- Mobile Tire Services: Durable construction withstands transport and field use
- Motorcycle Shops: Optional accessories expand capability for specialty applications
- Municipal Garages: Single solution for diverse vehicle fleets from passenger cars to light trucks
Complete Technical Specifications
| Power Supply | 220V, 3HP Motor, 50-60 Hz |
|---|---|
| Air Requirements | 110-175 PSI (8-12 BAR) |
| Internal Clamping | 8" - 26" (203mm - 660mm) |
| External Clamping | 10" - 30" (254mm - 762mm) |
| Max Tire Diameter | 43" (1,092mm) standard |
| Max Rim Width | 15" (381mm) |
| Bead Breaker Range | 1.5" - 16" tire width |
| Tower Type | Tilt-Back with Pneumatic Lock |
| Footprint | 60" x 50" x 78" |
| Shipping Weight | 920 lbs (417 kg) |
| Power Supply | 110V or 220V (Switchable), 1.5HP |
|---|---|
| Balance Time | 6-second cycle time |
| Wheel Diameter | 12" - 30" (305mm - 762mm) |
| Wheel Width | 4" - 15" (102mm - 381mm) |
| Max Wheel Weight | 143 lbs (65 kg) |
| Shaft Diameter | 40mm hardened steel |
| Encoder Type | 64-tooth magnetic transducer |
| Balance Modes | Dynamic, Static, ALU1, ALU2, Performance |
| Accuracy | ±1 gram (0.035 oz) |
| Included Cones | 1.75"-2.75", 2.75"-3.50", 3.50"-4.25", 4.50"-5.00" |
Installation and Setup Requirements
-
Electrical: R76ATR requires 220V/15-amp dedicated circuit; DST30P operates on 110V or 220V (switchable)
-
Compressed Air: 110-175 PSI supply with minimum 10 CFM capacity
-
Floor Space: Minimum 10' x 12' area with 8' ceiling clearance
-
Floor Type: Level concrete with maximum 1/4" variance over 10 feet
-
Setup Time: Professional installation typically 4-6 hours including calibration
-
Anchoring: DST30P requires floor anchoring for accuracy (3 anchor points)
Both machines include comprehensive setup instructions and Ranger provides technical support during installation. Most shops can accommodate this equipment without major modifications.
Why This Tire Changer Wheel Balancer Combo Is Worth the Investment
At typical shop rates, this complete package pays for itself after servicing approximately 350 vehicles. Most busy shops achieve ROI within 60-90 days. The synchronized workflow between the R76ATR and DST30P enables you to complete 8-10 additional jobs daily, significantly increasing daily revenue.
Long-term value considerations:
- Reduced Labor Costs: 40% faster service times mean lower labor cost per vehicle
- Elimination of Comebacks: DST30P's precision virtually eliminates vibration complaints
- Damage Prevention: RimGuard™ protection saves thousands in wheel damage claims annually
- Minimal Maintenance: Maintenance-free gearbox and direct-drive systems reduce downtime
- 15+ Year Lifespan: Commercial-grade construction provides decades of reliable service
- Complete Package Value: Included weights and tools represent significant immediate savings
How This Combo Compares to Alternatives
| Feature | Ranger R76ATR + DST30P | Coats 70X + 950 | Hunter TC39 + RB24 |
|---|---|---|---|
| Package Price | $10,890 | $12,495 | $13,990 |
| Max Wheel Size | 30" diameter | 28" diameter | 28" diameter |
| Balance Time | 6 seconds | 8 seconds | 7 seconds |
| Encoder Accuracy | 64-tooth precision | 32-tooth standard | 48-tooth |
| Tilt-Back Tower | Yes - Included | Fixed tower | Yes - Optional |
| Power Assist | Included | +$1,200 option | +$1,500 option |
| Wheel Weights | 1,400 pieces included | 200 pieces | Not included |
| Warranty | Comprehensive coverage | Parts only | Limited warranty |
The Ranger package delivers superior value with more included features and better specifications at a lower price point than premium competitors.
Ready to Upgrade Your Tire Service Equipment?
Join thousands of professional shops using Ranger equipment for reliable daily operation. This complete tire changer and wheel balancer combo ships ready to install with everything needed for immediate productivity. Flexible financing available with instant approval for qualified businesses.
Free Shipping to Lower 48 States • Professional Installation Available
Call (855) 498-2147 for Current Pricing and Installation Scheduling
Frequently Asked Questions
What electrical and air requirements do I need for this tire equipment package?
The R76ATR requires 220V power with a 15-amp dedicated circuit and 110-175 PSI compressed air. The DST30P can operate on either 110V or 220V (switchable) with a 10-amp circuit. You'll need a minimum 5HP air compressor with 60-gallon tank delivering 10 CFM at 90 PSI for optimal performance.
Can this combo handle run-flat and low-profile performance tires?
Yes, the R76ATR's power assist tower is specifically designed for stiff sidewalls found on run-flats and ultra-low-profile tires. The assist arm holds the bead in the drop center during mounting, while the TurboBlast™ system provides instant bead seating. The RimGuard™ clamps and nylon heads protect expensive wheels throughout the process.
How does this compare to buying a used tire changer and balancer?
While used equipment costs less initially, this new package includes warranty protection, modern safety features, and technology older machines lack. The DST30P's 64-tooth encoder provides twice the accuracy of older models, reducing comebacks. The R76ATR's tilt-back design saves 5-10 minutes per job. Plus, the included 1,400 weights ($400 value) and manufacturer support aren't available with used equipment.
What's the typical payback period for this investment?
At average shop rates of $45 per complete tire service, the equipment pays for itself after approximately 350 vehicles. For shops servicing 15-20 vehicles daily, that's 60-90 days. The 40% time savings allows you to complete 8-10 additional jobs daily, accelerating ROI. Many shops report full payback within 10-12 weeks.
Is professional installation required or can we set it up ourselves?
While professional installation is recommended for optimal performance and calibration, experienced technicians can self-install using the comprehensive manuals provided. Professional installation typically takes 4-6 hours and includes calibration, testing, and basic training. Ranger provides phone support during self-installation if needed.
What maintenance is required to keep this equipment running?
Daily: Check air pressure and apply lubricant to moving parts. Weekly: Clean mount/demount heads and check for wear. Monthly: Verify DST30P calibration using the included weight. Annually: Professional inspection recommended. The R76ATR features a maintenance-free gearbox and the DST30P uses a direct-drive system, minimizing ongoing maintenance needs.
Can I add motorcycle or ATV capabilities to this package later?
Yes, the ATV/motorcycle clamp kit (SKU# 5328425) expands the R76ATR's external clamping range by 4 inches for specialty wheels. This and other accessories like plastic tool heads, wheel protection kits, and mounting flanges can be added anytime without modifying the base equipment.
Warranty and Support
Industry-Leading Wheel Service Equipment Warranty
The Best Warranty in the Business - You Have Our Word
Coverage Duration:
- 2 Years: Complete warranty on equipment structure
- 1 Year: Full warranty on all operating components
- 1 Year: Labor warranty on-site or at factory
- 1 Year: Free shipping on ground-freight charges related to warranty performance
What's Covered:
All manufacturer defects due to material and/or workmanship. Ranger will repair or replace (at their option) any defective component or unit during the warranty period. Labor costs are covered for the first 12 months.
What's Not Covered:
- Damage from abuse, neglect, or failure to follow operating instructions
- Normal maintenance items (lubricants, oil, etc.)
- General wear parts (rubber/plastic protectors, cutting tips, trays) unless due to manufacturer defect
- Shipping damage or damage from improper installation
- Component failure from environmental factors (rain, humidity, corrosion)
- Damage from incorrect voltage or improper wiring
- Cosmetic defects that don't affect functionality
Your Responsibilities:
- Provide dated proof of purchase and maintenance records
- Use reasonable care in operation and maintenance as described in owner's manual
- Cover freight costs after 12 months if component shipping is required
*Equipment structure includes non-moving frame and permanently affixed sub-structures. **Free shipping applies to direct shipping points within lower 48 states. This warranty applies to all Ranger tire changers and wheel balancers manufactured after 11/1/2011.
For warranty service or technical support, contact us at (855) 498-2147 or email support@garagesupplyguys.com. Professional installation and training services are available nationwide through Ranger's certified technician network.
Full warranty documentation is available at: Ranger Products Complete Warranty Terms
This Ranger tire changer and wheel balancer combo represents the smart investment for professional shops seeking reliable, efficient tire service equipment. With its complete package approach, advanced features like the tilt-back tower and 64-tooth encoder, plus the included 1,400-piece weight kit, you're getting everything needed for profitable tire service operations.
The combination of the R76ATR and DST30P creates a synchronized workflow that maximizes productivity while protecting expensive wheels, making this the ideal tire machine and balancer combo for shops that demand professional results.
