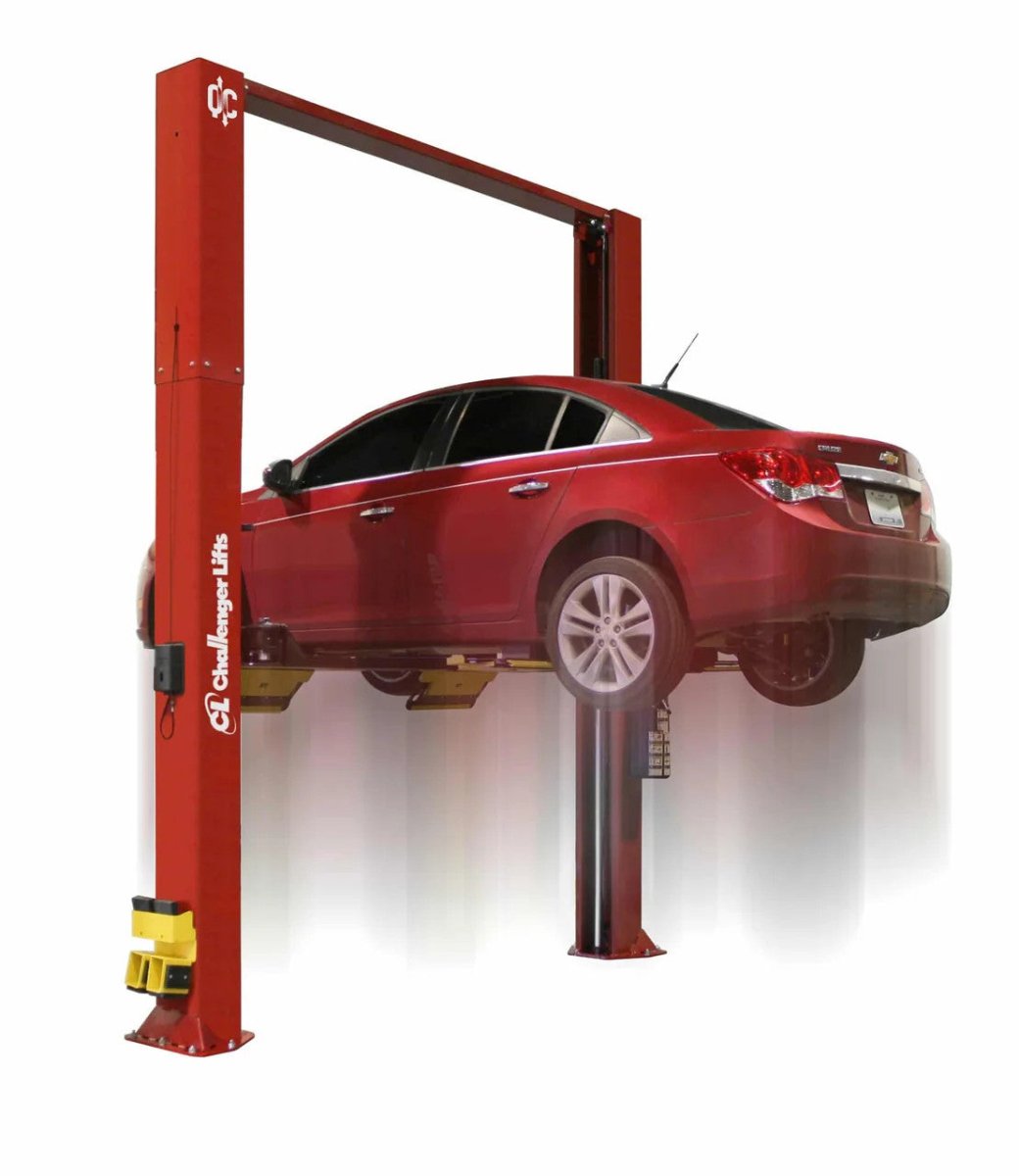

Challenger CL10-XP9-3-DPC Two-Post Lift 9,000 lb Express
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Challenger CL10-XP9-3-DPC 9,000 lb Two-Post Lift for Express Service Operations
The Challenger CL10-XP9-3-DPC delivers 9,000 lb capacity in a surface-mounted, ALI/ETL certified two-post lift engineered for high-throughput express service environments. Featuring a drive-on express pad system with flip-up ramps for rapid vehicle spotting, dual pendant controls for operator flexibility, and a factory-installed 3-foot column extension package, this lift provides 70 inches of rise height with a 176-inch total height that fits standard 15-foot ceiling commercial buildings. Ideal for quick lube facilities, tire shops, and inspection lanes where speed and efficiency drive profitability. Backed by Challenger's comprehensive warranty and American manufacturing quality.
Challenger CL10-XP9-3-DPC Features
Express Service Throughput Optimization
The drive-on express pad eliminates traditional swing arm positioning, featuring a 2.25-inch low-profile platform with reinforced flip-up ramps that extend to three configurations (58", 66.5", and 75") for wheelbase adaptability. This fixed-platform design accommodates vehicles with as little as 3.5-4 inches of ground clearance, including sports cars, lowered vehicles, and EVs. In high-volume operations processing 30 vehicles daily, this system recaptures 60-150 minutes of lost productivity by enabling first-try vehicle spotting without any arm adjustment.
Dual Pendant Control Workflow Efficiency
The portable dual pendant power control system allows lift operation from either column, featuring single-point mechanical lock release accessible from both positions. Each pendant includes raise, lower, and safety lock controls with padded overhead shutoff protection that triggers at maximum rise height to prevent over-travel. This configuration eliminates the 15-30 seconds per lift cycle lost walking around vehicles to access single-pendant controls.
176-Inch Height for Standard Buildings
The factory-installed 3-foot column extension package achieves 176 inches (14'8") total height while delivering the full 70-inch rise capacity, enabling installation in standard 15-foot ceiling commercial buildings. This configuration maintains 90-inch drive-through clearance for tall vehicles and service vans while fitting within typical building codes. Eliminates the $15,000-40,000 cost of ceiling modifications required by higher-capacity lifts.
ALI/ETL Third-Party Certification
This lift carries ALI (Automotive Lift Institute) Gold Label certification meeting ANSI/ALI ALCTV-2011 safety standards and ETL certification by Intertek Testing Services to ANSI/UL 201 and CAN/CSA C22.2 electrical safety standards. Independent third-party testing validates structural integrity, load distribution, safety system function, and electrical compliance for full commercial insurance coverage and OSHA 1910.147 lockout/tagout compliance.
Application-Specific Express Service Design
The fixed drive-on pad configuration prioritizes speed over positioning flexibility, using a 48-inch elongated carriage with oversized 5-inch diameter pulleys and heavy-duty 5/16-inch equalization cables engineered specifically for repetitive lift cycles in high-volume express service applications. This design enables shops to reduce average service time by 5-8% through eliminated positioning steps, directly increasing daily vehicle capacity.
Complete Included Accessory Package
Ships with (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, and (2) column-mounted storage caddies for organized block storage at each column position. Dual integrated rubber door guards protect vehicle doors from column contact during entry and exit, while reinforced front and rear flip-up locking access ramps provide stable drive-on entry. Eliminates the $200-400 cost of aftermarket adapter kits.
Challenger CL10-XP9-3-DPC Applications
- Quick Lube and Express Oil Change: Rapid undercarriage access for oil changes, filter replacements, and fluid services on passenger cars, light trucks, and SUVs under 9,000 lb with minimal vehicle positioning time.
- Tire Service and Rotation: Fast vehicle elevation for tire mounting, dismounting, balancing, and rotation services with unobstructed wheel access from both sides of the vehicle.
- Brake Inspection and Service: Comprehensive brake work including disc and drum inspection, pad replacement, rotor service, and caliper maintenance with full undercarriage visibility.
- State Safety and Emissions Inspection: Compliant undercarriage inspection access for state safety programs, emissions testing, and annual vehicle certification lanes with dual-side control flexibility.
- Light Maintenance and Undercarriage Repair: Suspension work including shocks and struts, exhaust system service including mufflers and catalytic converters, and general undercar maintenance within the 9,000 lb capacity limit.
Challenger CL10-XP9-3-DPC Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lb (4,082 kg) |
| Certification | ALI/ETL Certified |
| Specification | Value |
|---|---|
| Rise Height | 70" (1,778 mm) |
| Overall Height | 176" (14'8") |
| Drive-Through Clearance | 90" |
| Platform Height | 2.25" (low-profile) |
| Ramp Configurations | 58", 66.5", 75" |
| Carriage Length | 48" (elongated) |
| Specification | Value |
|---|---|
| Column Extension | 3-foot factory-installed |
| Pulley Diameter | 5" (oversized) |
| Equalization Cables | 5/16" heavy-duty |
| Mounting Type | Surface-mounted |
| Specification | Value |
|---|---|
| Control System | Dual pendant controls |
| Lock Release | Single-point mechanical (both positions) |
| Safety Features | Padded overhead shutoff protection |
| Door Protection | Dual integrated rubber door guards |
Challenger CL10-XP9-3-DPC Installation Requirements
Electrical Requirements
Power: Refer to the installation manual for specific voltage, phase, and amperage requirements for your configuration. A licensed electrician must install and verify the electrical supply meets all local codes and manufacturer specifications.
Concrete Foundation
Anchoring: Minimum 4-inch thick reinforced concrete with 3,000 PSI compressive strength required. Concrete must be fully cured and in good condition without cracks or deterioration at anchor points. Surface-mounted installation requires proper anchor bolt placement per the installation manual.
Space Requirements
Ceiling Height: Minimum 15-foot ceiling required for full 70-inch rise operation with the 176-inch total height configuration. Drive-Through Clearance: 90 inches accommodates tall vehicles and service vans. Allow adequate clearance around columns for door opening and technician movement.
Professional Installation
Professional installation by a qualified lift technician is strongly recommended to ensure proper setup, calibration, and safety system verification. Improper installation may void warranty coverage and create safety hazards. Contact Garage Supply Guys for installation service recommendations in your area.
What's Included with the Challenger CL10-XP9-3-DPC
- Challenger CL10-XP9-3-DPC two-post lift with factory-installed 3-foot column extension
- Drive-on express pad system with reinforced flip-up ramps
- Dual pendant power control system
- (4) 1.5-inch rubber spotting blocks
- (4) 3-inch rubber spotting blocks
- (2) Column-mounted storage caddies
- Dual integrated rubber door guards
- Front and rear flip-up locking access ramps
- Anchor bolts and mounting hardware
- Installation and operation manual
Optional Accessories: Contact sales for available accessory options including additional spotting blocks and adapter kits.
Not Included: Electrical work and wiring, concrete work or floor preparation, installation labor, and any permits or inspections required by local authorities.
Challenger CL10-XP9-3-DPC Shipping and Delivery
Freight Shipping
Coverage: Free freight shipping to commercial addresses in the 48 contiguous United States. Lead Time: Ships within 5-10 business days. International: Contact sales for international shipping quotes and availability.
Delivery Requirements
Unloading: Forklift or loading dock required for unloading. Delivery Type: Curbside delivery standard; liftgate service available for additional fee if needed. Inspection: Inspect all packages for damage before signing the bill of lading. Note any visible damage on the delivery receipt immediately.
Returns
Returns accepted within 30 days of delivery. Product must be unopened in original packaging with receipt. 20% restocking fee applies. Buyer responsible for return freight costs.
Challenger CL10-XP9-3-DPC Warranty
Challenger Lifts Warranty
Challenger Lifts backs their equipment with comprehensive warranty coverage for professional service facilities.
- 5 Years: Structural components including columns, carriages, and frames
- 2 Years: Mechanical components including cables, pulleys, and lifting mechanisms
- 1 Year: Hydraulic and electrical components including power units, cylinders, and controls
Requirements: Warranty coverage requires proper installation by qualified personnel, use within rated capacity, and adherence to recommended maintenance schedules. Commercial use in professional service facilities only. See warranty document for complete terms, conditions, and exclusions.
Documents
Click to open in a new tab.
Questions About the Challenger CL10-XP9-3-DPC?
Our equipment specialists can help with installation planning, specifications, and product selection for your shop.
Challenger CL10-XP9-3-DPC FAQ
What is the lifting capacity of the CL10-XP9-3-DPC?
The Challenger CL10-XP9-3-DPC has a rated lifting capacity of 9,000 lb (4,082 kg). This capacity is ALI certified, meaning it has been independently tested and verified by the Automotive Lift Institute to meet ANSI/ALI ALCTV-2011 safety standards. The lift is designed for passenger cars, light trucks, SUVs, and crossovers within this weight limit.
What ceiling height do I need for this lift?
The CL10-XP9-3-DPC requires a minimum 15-foot ceiling height. With the factory-installed 3-foot column extension, the lift has a total height of 176 inches (14'8") and delivers the full 70-inch rise capacity. This configuration is specifically designed to fit standard commercial building ceiling heights without requiring costly structural modifications.
What are the electrical requirements?
Specific electrical requirements vary by configuration. Refer to the installation manual for exact voltage, phase, and amperage specifications. All electrical work must be performed by a licensed electrician and must meet local electrical codes. The lift includes dual pendant controls with padded overhead shutoff protection.
Does the lift require professional installation?
Professional installation by a qualified lift technician is strongly recommended. Proper installation ensures correct setup, calibration, and safety system verification. Improper installation may void warranty coverage and create safety hazards. The lift must be anchored to a minimum 4-inch thick reinforced concrete floor with 3,000 PSI compressive strength.
What does the warranty cover?
Challenger provides tiered warranty coverage: 5 years on structural components (columns, carriages, frames), 2 years on mechanical components (cables, pulleys, lifting mechanisms), and 1 year on hydraulic and electrical components (power units, cylinders, controls). Warranty requires proper installation, use within rated capacity, and adherence to maintenance schedules.
What accessories are included with the lift?
The lift ships complete with (4) 1.5-inch rubber spotting blocks, (4) 3-inch rubber spotting blocks, (2) column-mounted storage caddies, dual integrated rubber door guards, front and rear flip-up locking access ramps, anchor bolts, mounting hardware, and the installation and operation manual. No additional adapter kits are required for standard operation.
How is the lift shipped and delivered?
The lift ships via freight with free delivery to commercial addresses in the 48 contiguous United States. Lead time is typically 5-10 business days. A forklift or loading dock is required for unloading. Curbside delivery is standard; inspect all packages for damage before signing the bill of lading and note any damage on the delivery receipt.
Can this lift accommodate lowered vehicles and sports cars?
Yes. The 2.25-inch low-profile drive-on platform accommodates vehicles with as little as 3.5-4 inches of ground clearance, including sports cars, lowered vehicles, and EVs that cannot navigate standard 4-6 inch drive-on ramps. The flip-up ramps extend to three configurations (58", 66.5", 75") for wheelbase adaptability.
What makes this lift different from standard two-post lifts?
The CL10-XP9-3-DPC features a fixed drive-on express pad system instead of traditional swing arms. This design eliminates the 2-5 minutes per vehicle spent positioning swing arms, making it ideal for high-volume express service operations. The dual pendant controls allow operation from either column, further improving workflow efficiency in quick lube and tire service environments.
Is this lift ALI certified?
Yes. The CL10-XP9-3-DPC carries ALI (Automotive Lift Institute) Gold Label certification meeting ANSI/ALI ALCTV-2011 safety standards and ETL certification by Intertek Testing Services to ANSI/UL 201 and CAN/CSA C22.2 electrical safety standards. This certification is required by most commercial insurance underwriters and meets OSHA equipment standards.
What maintenance does the lift require?
Regular maintenance includes inspecting cables, pulleys, and safety locks; lubricating moving components; checking hydraulic fluid levels; and verifying proper operation of all safety systems. Follow the maintenance schedule in the operation manual to ensure safe operation and maintain warranty coverage. Annual inspection by a qualified lift technician is recommended.
Can I return the lift if it doesn't work for my shop?
Returns are accepted within 30 days of delivery. The product must be unopened in original packaging with receipt. A 20% restocking fee applies, and the buyer is responsible for return freight costs. Contact Garage Supply Guys customer service before returning to obtain a return authorization.
