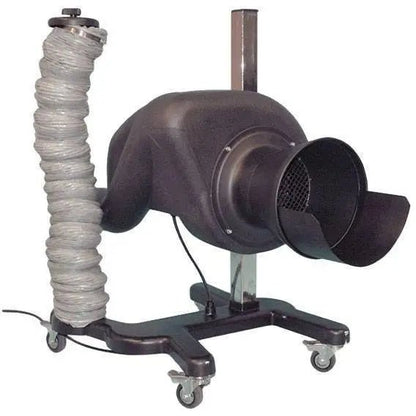

JohnDow EV-5100 Portable Exhaust Extraction System
Exhaust fumes in an enclosed shop aren't just uncomfortable - they're a serious health hazard. The JohnDow EV-5100 portable exhaust extraction system gives you a fast, flexible way to capture vehicle exhaust at the source and push it up to 30 feet away from your work area. Your team stays safe, your shop stays compliant, and you're not locked into a fixed extraction point on the wall or ceiling.

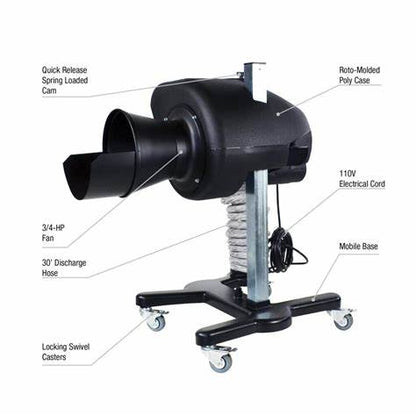

The 3/4-HP motor moves 330 CFM of airflow, which is enough to handle standard vehicle exhaust without straining. The fan rides inside a roto-molded polyethylene case - tough enough to take bumps around the shop floor. Roll it up behind any vehicle with the mobile base, set your height with the quick-release cam lock, and you're capturing fumes before they have a chance to spread. When the job's done, the 30-foot discharge hose stores right on the unit.
One detail worth knowing: the EV-5100 handles fume temperatures up to 300°F, so it's not limited to cold-start situations. Diesel warmups, extended idle diagnostics, emissions testing - this portable vehicle exhaust extraction system handles the heat without issue. And if you're working on a dual-exhaust vehicle, an optional Y hose adapter keeps both pipes covered with one unit.
Free shipping to the lower 48 means no freight surprises. When you buy from Garage Supply Guys, you're getting direct access to a team that stocks parts and can answer application questions before and after the sale - not just a checkout button.
Specifications
| Dimensions | 24" W x 24" D x 35" H |
| Motor | 3/4 HP |
| Airflow | 330 CFM |
| Max Fume Temp | 300°F |
| Hose Length | 30 ft |
| Electrical | 110V |
| Weight | 86 lbs |
What's Included
- EV-5100 portable exhaust extractor unit
- 30-ft discharge hose (stored on unit)
- Mobile base with rolling casters
- Quick-release spring-loaded cam height adjuster
Note: Y hose adapter for dual-exhaust vehicles is available separately. Call to confirm accessory availability before ordering.
Installation & Setup
Setup is straightforward. The EV-5100 runs on standard 110V shop power - no dedicated circuit, no hard-wiring, no electrician needed. Plug it into any standard outlet, roll the unit into position behind the vehicle with the mobile base, and connect the discharge hose to route fumes away from the work area.
Height adjustment is handled by the quick-release, spring-loaded cam. Dial in the position to line up with the tailpipe, lock it, and you're set. The 86-lb unit is substantial but fully self-contained - no wall mounting, no ceiling track, no permanent installation required. That's the point: you move it where you need it, not the other way around.
When you're done, the 30-foot discharge hose stores neatly on the unit itself so it's not draped across the floor between uses.
Applications
Roll behind any bay for oil changes, diagnostics, or emissions testing. One unit covers multiple bays without a fixed installation at each station.
Diesel warmups and extended idling push high fume volumes. The 300°F max temp rating means the EV-5100 handles diesel exhaust heat without degrading the hose or fan.
Vehicles idle through the full test cycle. Capture fumes continuously with the 330 CFM airflow and exhaust them 30 feet away from the testing area and staff.
When a wall-mounted extraction system isn't practical or in-budget, this portable exhaust extraction system gives you a code-compliant solution you can set up the same day it arrives.
Shipping
The JohnDow EV-5100 ships free to addresses in the contiguous lower 48 states. Our team coordinates the freight shipment and helps manage scheduling details.
Need a specific delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
JohnDow covers this unit for 1 year from the date of purchase against defects in material and workmanship. Units that prove defective within that period may be returned freight prepaid for repair, replacement, or credit at JohnDow's discretion.
This warranty does not cover normal wear, damage from misuse, abrasion, negligence, accident, faulty installation, or tampering. If JohnDow inspection finds no defect in material or workmanship, repair, replacement, or return will be made at standard charges.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Order?
Our team can help you confirm fitment, accessories, and delivery details. Call us at (855) 498-2147.
Frequently Asked Questions
What voltage does the EV-5100 require?
The EV-5100 runs on 110V standard power. No dedicated circuit or hard-wiring is required - plug it into any standard 110V outlet in your shop and you're ready to go.
How far does the discharge hose reach?
The included discharge hose is 30 feet long. That's enough to route exhaust fumes out a bay door, into an overhead duct, or safely away from your work area and staff without moving the unit far from the vehicle.
Can I use this on a dual-exhaust vehicle?
Yes - JohnDow offers an optional Y hose adapter specifically for dual-exhaust vehicles. It lets you capture both pipes with a single unit. Call us at (855) 498-2147 to confirm availability before ordering.
Is the EV-5100 suitable for diesel vehicles?
Yes. The EV-5100 handles fume temperatures up to 300°F, which covers diesel exhaust during warmups and extended idling. The 330 CFM airflow is sufficient for standard diesel exhaust volumes in a shop bay setting.
Does this unit require permanent installation?
No permanent installation is needed. The EV-5100 sits on a mobile base with rolling casters. You roll it into position, adjust the height with the quick-release cam, and plug it in. It moves anywhere in the shop you need it.
How much does the EV-5100 weigh, and is it easy to move?
The unit weighs 86 lbs. The mobile base with casters is what makes it manageable - you're rolling it, not carrying it. One person can reposition it around the shop floor without difficulty.
What does the warranty cover?
JohnDow covers defects in material and workmanship for 1 year from the date of purchase. The warranty does not cover normal wear, damage from misuse, accidents, or faulty installation. Defective units may be returned freight prepaid for repair, replacement, or credit.
Does this ship free?
Yes - the EV-5100 ships free to addresses in the contiguous lower 48 states. If you need liftgate service, a residential delivery, or a scheduled delivery window, contact us at (855) 498-2147 before ordering to confirm delivery details and any applicable accessorial charges.
