What air pressure does this system need? A: Runs on 70-115 PSI inlet air, 348 PSI max output from the 3:1 ratio pump.

Q: What air pressure does this system need? Runs on 70-115 PSI inlet air, 348 PSI max output from the 3:1 ratio pump.

What fluids can it run? A: Motor oil, synthetic oil, hydraulic oil, and ATF.

Q: What fluids can it run? Motor oil, synthetic oil, hydraulic oil, and ATF.

Does this fit any drum? A: Built specifically for 16-gallon drums, model JDI-JDOL-16, with a matched drum cover JD-3566A.

Q: Does this fit any drum? Built specifically for 16-gallon drums, model JDI-JDOL-16, with a matched drum cover JD-3566A.

How far does the delivery hose reach? A: 10-ft delivery hose.

Q: How far does the delivery hose reach? 10-ft delivery hose.

What connections are needed? A: 1/4 in NPT female air inlet, 1/2 in NPT male outlet.

Q: What connections are needed? 1/4 in NPT female air inlet, 1/2 in NPT male outlet.

John Dow JDOL-16 Pneumatic Oil Delivery System for 16 Gal Drum - 3:1 Pump

John Dow JDOL-16 Pneumatic Oil Delivery System for 16 Gal Drum - 3:1 Pump

Johndow Industries

SKU: JDI-JDOL-16

$558.95 $674.70

Product variants

$ Save 2% with ACH / Wire Payment. Call for details

Financing options available

Financing estimates are based on the product price; selected add-ons and delivery services are excluded.

Talk to a parts specialistFit and compatibility help before you order855-498-2147

Price Match Guaranteefind it lower and we will beat it
No Sales Tax Collected Outside PAPA orders include sales tax

Quick Navigation Overview/ Key Features/ Specifications/ What's Included/ Applications/ FAQ

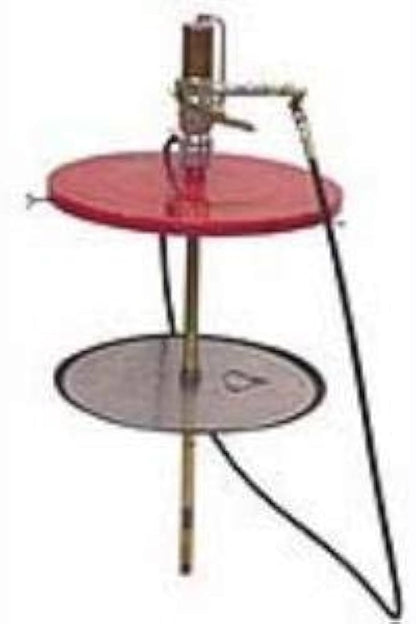

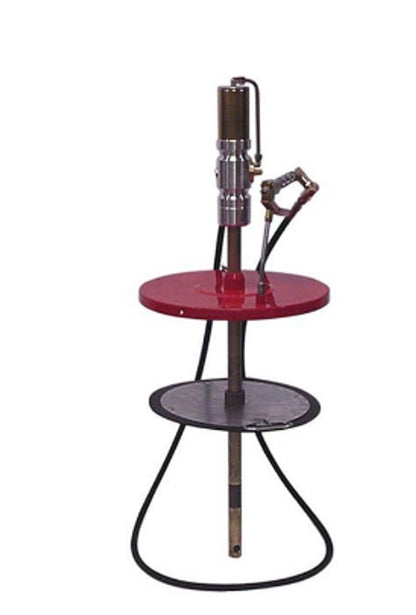

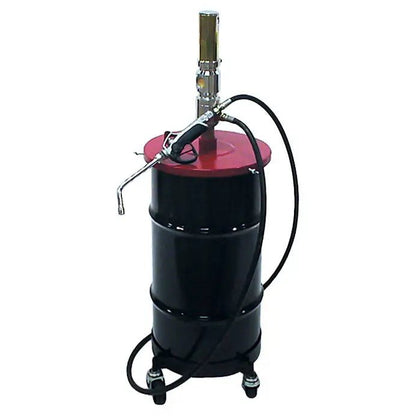

JohnDow Pneumatic Oil System for 16 Gallon Drums

Switching between quarts and hand pumps slows down every fluid change. The JohnDow Pneumatic Oil System for 16 gallon drums (model JDI-JDOL-16) mounts straight to your drum and runs on shop air, so you're dispensing motor oil, synthetic oil, hydraulic oil, or ATF as fast as you can pull the trigger. It's a complete package. Pump, hose, delivery gun, and drum cover all included, built to work together instead of piecing parts together yourself.

A 3:1 ratio medium-pressure pump does the work, and the differential air motor keeps the pumping smooth instead of pulsing at you every stroke. Run it at 70-115 PSI shop air and the heavy-duty control valve shuts flow off cleanly, no dripping gun left in your hand. The 10-foot delivery hose gives you enough reach to work the bay without dragging the drum around behind you.

Key Features & Benefits

3:1 Ratio Medium-Pressure Pump	Steady, consistent output for motor oil, synthetic oil, hydraulic oil, and ATF.
Differential Air Motor	Smooth pumping action without surging as you dispense.
Heavy-Duty Control Valve	Clean shutoff so you're not left holding a dripping gun.
10-Foot Delivery Hose	Enough reach to work the bay without moving the drum.

Specifications

Model	JDI-JDOL-16
Container	16-gallon drum
Pressure Ratio	3:1
Air Inlet Pressure	70-115 PSI
Air Inlet Connection	1/4 in NPT, Female
Air Motor Effective Diameter	2.49 in / 63 mm
Max Pressure	348 PSI
Outlet Connection	1/2 in NPT, Male
Weight	26 lbs

What's Included

3:1 ratio pump (JD-3610)
10-ft delivery hose (JDM-1038)
Delivery gun (JD-3930)
Drum cover (JD-3566A)

Applications

Built to move more than one type of fluid off the same drum setup:

Motor oil dispensing for routine service
Synthetic oil dispensing
Hydraulic oil transfer
ATF (automatic transmission fluid) dispensing
Automotive and industrial service bays running high fluid volume

Questions Before You Buy?

Call us at (855) 498-2147. Our team can help confirm fit for your drum setup, and we keep replacement pumps, hoses, and delivery guns in stock if you ever need a part down the road.

Frequently Asked Questions

What air pressure does this system need to run?

It runs on 70-115 PSI shop air at the inlet. The 3:1 ratio pump can produce up to 348 PSI max output at the top of that range.

What fluids can I run through this system?

It's built for motor oil, synthetic oil, hydraulic oil, and ATF, so one setup covers most of the fluids you're dispensing in a day.

Does this fit any drum, or just 16-gallon drums?

This system, model JDI-JDOL-16, is built specifically for 16-gallon drums, including a matched drum cover (JD-3566A) sized for that container.

How far can I reach with the delivery hose?

The delivery hose runs 10 feet, giving you enough slack to work across the bay without repositioning the drum.

What connections do I need to hook this up?

Air inlet is 1/4 in NPT female, and the outlet connection is 1/2 in NPT male, both standard fittings for shop air setups.
