What size hydraulic presses does this gauge work with? A: This gauge works with Norco 12-ton and 20-ton hydraulic shop presses. It connects through the standard 1/4 inch NPT fitting found on these press models, providing accurate pressure monitoring for pressing operations including bearing installation, bushing work, and metal forming.

Q: What size hydraulic presses does this gauge work with? This gauge works with Norco 12-ton and 20-ton hydraulic shop presses. It connects through the standard 1/4 inch NPT fitting found on these press models, providing accurate pressure monitoring for pressing operations including bearing installation, bushing work, and metal forming.

Shop Equipments - Norco Hydraulic Gauge With Fittings

Norco Industries

NORCO HYDRAULIC GAUGE WITH FITTINGS

Q: How accurate are the pressure readings on this gauge? A: The gauge provides +/- 2.5% accuracy tolerance, meeting standard requirements for shop force measurements. The wet-type design maintains consistent readings by dampening vibrations and protecting internal components from mechanical shock during press operations. This accuracy level supports repeatable results in bearing installation and metal forming tasks.

Q: How accurate are the pressure readings on this gauge? The gauge provides +/- 2.5% accuracy tolerance, meeting standard requirements for shop force measurements. The wet-type design maintains consistent readings by dampening vibrations and protecting internal components from mechanical shock during press operations. This accuracy level supports repeatable results in bearing installation and metal forming tasks.

Q: What does the wet-type design mean for durability? A: Wet-type gauges contain liquid filling that dampens vibrations and protects internal components from mechanical shock and temperature fluctuations. This design extends gauge life in shop environments where hydraulic presses create vibration and impact forces during operation. The liquid filling also helps maintain measurement accuracy over extended use compared to standard dry gauges.

Q: What does the wet-type design mean for durability? Wet-type gauges contain liquid filling that dampens vibrations and protects internal components from mechanical shock and temperature fluctuations. This design extends gauge life in shop environments where hydraulic presses create vibration and impact forces during operation. The liquid filling also helps maintain measurement accuracy over extended use compared to standard dry gauges.

Q: Does this gauge show both pressure and force measurements? A: Yes, the dial displays internal hydraulic pressure in PSI and corresponding pounds of force at the ram end simultaneously. This dual-scale feature eliminates manual calculations, allowing operators to monitor both pressure input and force output directly during operations. The 4-inch face provides clear visibility for both measurement scales during pressing tasks.

Q: Does this gauge show both pressure and force measurements? Yes, the dial displays internal hydraulic pressure in PSI and corresponding pounds of force at the ram end simultaneously. This dual-scale feature eliminates manual calculations, allowing operators to monitor both pressure input and force output directly during operations. The 4-inch face provides clear visibility for both measurement scales during pressing tasks.

$268.00

Product variants

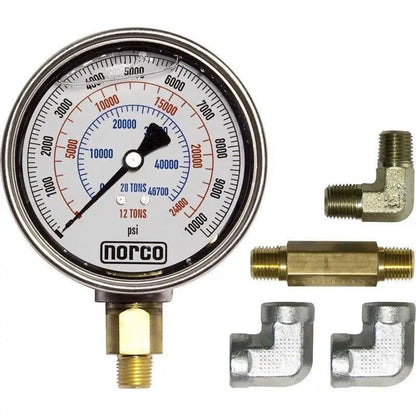

Norco 4-inch hydraulic pressure gauge with fittings showing analog dial face

Norco Hydraulic Gauge with Fittings - Precision Pressure Monitoring (Model 78021)

Professional Hydraulic Pressure Measurement for Shop Presses

The Norco Hydraulic Gauge with Fittings is a 4-inch pressure measurement instrument designed for Norco 12-ton and 20-ton hydraulic shop presses. This wet-type gauge delivers pressure readings with +/- 2.5% accuracy, displaying both internal hydraulic pressure in PSI and corresponding force output at the ram end. The standard 1/4" NPT fitting ensures compatibility with Norco hydraulic systems.

Key Features and Benefits

Clear Reading - 4-inch face allows measurement reading from working distance.

Accurate Measurement - Wet-type design provides +/- 2.5% accuracy for consistent results.

Dual Display - Shows both hydraulic pressure and corresponding ram force.

Applications

Bearing installation and removal operations.
Bushing pressing and extraction tasks.
Metal forming and straightening work.
Hydraulic press calibration.

Technical Specifications

Norco Hydraulic Gauge Specifications
Specification	Details
Model Number	78021
Diameter	4 inches (102 mm)
Weight	2 lbs (0.9 kg)
Fitting Size	1/4" NPT
Accuracy	±2.5%
Gauge Type	Wet-type design
Compatibility	Norco 12-ton and 20-ton presses

Installation

Thread the gauge into the 1/4" NPT pressure port on your Norco press hydraulic system. Position for clear dial visibility during operation and ensure secure connection to prevent leaks.

Order Your Norco Hydraulic Gauge with Fittings

Model 78021 with +/- 2.5% accuracy and 1/4" NPT fitting for Norco presses.

Add to cart for hydraulic pressure monitoring.

Frequently Asked Questions

What size hydraulic presses does this gauge work with?

This gauge works with Norco 12-ton and 20-ton hydraulic shop presses. It connects through the standard 1/4" NPT fitting found on these press models, providing accurate pressure monitoring for pressing operations including bearing installation, bushing work, and metal forming.

How accurate are the pressure readings on this gauge?

The gauge provides +/- 2.5% accuracy tolerance, meeting standard requirements for shop force measurements. The wet-type design maintains consistent readings by dampening vibrations and protecting internal components from mechanical shock during press operations. This accuracy level supports repeatable results in bearing installation and metal forming tasks.

What does the wet-type design mean for durability?

Wet-type gauges contain liquid filling that dampens vibrations and protects internal components from mechanical shock and temperature fluctuations. This design extends gauge life in shop environments where hydraulic presses create vibration and impact forces during operation. The liquid filling also helps maintain measurement accuracy over extended use compared to standard dry gauges.

Does this gauge show both pressure and force measurements?

Yes, the dial displays internal hydraulic pressure in PSI and corresponding pounds of force at the ram end simultaneously. This dual-scale feature eliminates manual calculations, allowing operators to monitor both pressure input and force output directly during operations. The 4-inch face provides clear visibility for both measurement scales during pressing tasks.
