NORCO LOW PROFILE BOTTLE JACK

Q: What's the difference between the 12-ton and 20-ton models? A: The 20-ton model provides higher lifting capacity for heavier equipment. It starts at 8.27 inches versus 6.69 inches, reaches 14.96 inches versus 13.19 inches maximum height, and weighs 25 pounds compared to 15 pounds. Both include identical safety features and zinc-plated handle construction.

Q: What's the difference between the 12-ton and 20-ton models? The 20-ton model provides higher lifting capacity for heavier equipment. It starts at 8.27 inches versus 6.69 inches, reaches 14.96 inches versus 13.19 inches maximum height, and weighs 25 pounds compared to 15 pounds. Both include identical safety features and zinc-plated handle construction.

Q: How does this compare to a regular bottle jack? A: Low profile bottle jacks have shorter collapsed heights for limited clearance access. The 12-ton model starts at 6.69 inches versus typical bottle jacks at 8-10 inches. This allows access to lowered vehicles and equipment with minimal clearance while maintaining full lifting capacity.

Q: How does this compare to a regular bottle jack? Low profile bottle jacks have shorter collapsed heights for limited clearance access. The 12-ton model starts at 6.69 inches versus typical bottle jacks at 8-10 inches. This allows access to lowered vehicles and equipment with minimal clearance while maintaining full lifting capacity.

Q: What vehicles can this jack lift safely? A: Both models safely handle trucks, construction equipment, and agricultural machinery within rated capacity. The 12-ton lifts vehicles up to 24,000 pounds while the 20-ton handles up to 40,000 pounds. Always verify vehicle weight and use proper jacking points before lifting.

Q: What vehicles can this jack lift safely? Both models safely handle trucks, construction equipment, and agricultural machinery within rated capacity. The 12-ton lifts vehicles up to 24,000 pounds while the 20-ton handles up to 40,000 pounds. Always verify vehicle weight and use proper jacking points before lifting.

Q: Does the safety overload system prevent damage? A: Yes, the 50% safety overload factor means the jack is tested to 1.5 times rated capacity before failure. The oil bypass system automatically relieves pressure to prevent cylinder damage and stops ram overextension, protecting both jack and vehicle during operation.

Q: Does the safety overload system prevent damage? Yes, the 50% safety overload factor means the jack is tested to 1.5 times rated capacity before failure. The oil bypass system automatically relieves pressure to prevent cylinder damage and stops ram overextension, protecting both jack and vehicle during operation.

$149.70

Capacity: 12 Ton

12 Ton
20 Ton

Low, High: 6.69" / 13.19"

6.69" / 13.19"
8.27" / 14.96"

Product variants

Norco Low Profile Bottle Jack (12 & 20 Ton Models) – Heavy-Duty Lifting Power

Professional Hydraulic Jack for Tight Clearance Applications

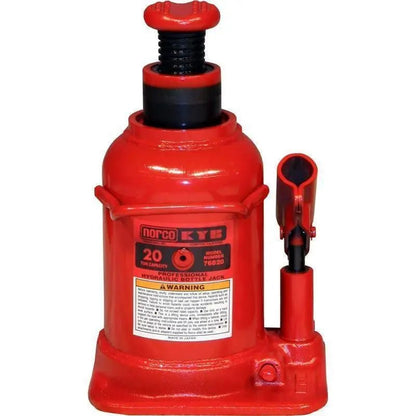

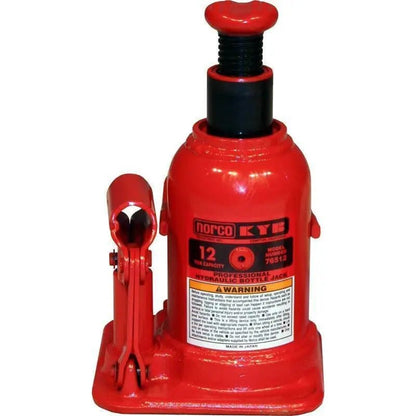

The Norco low profile bottle jack delivers reliable 12-ton and 20-ton lifting capacity with a compact design that fits under vehicles with limited clearance. Built for trucking, construction, automotive, and industrial professionals who need dependable lifting power in confined spaces, this hydraulic bottle jack is constructed with Parkerized components to improve corrosion resistance and tested to a 50% safety overload factor for reliable operation.

Key Features and Benefits

Superior Corrosion Protection - Features zinc-plated handle and Parkerized pump piston, ram, and extension screw that prevent rust and extend service life in harsh working conditions.

Leak-Proof Construction - Uniweld manufacturing process creates seamless, no-leak joints that maintain hydraulic pressure and reduce maintenance requirements over time.

Enhanced Safety Systems - Built-in 50% safety overload factor and oil bypass system prevent cylinder damage and ram overextension, protecting both equipment and operators.

Perfect Applications

Ideal for professionals working in tight spaces who need reliable lifting power:

Heavy-duty truck maintenance and repair.
Construction equipment service and positioning.
Agricultural machinery lifting and maintenance.
Mobile home setup and leveling operations.
Automotive shop work requiring low-profile access.
Marine equipment lifting and positioning.

Technical Specifications

Norco Low Profile Bottle Jack Models Comparison
Specification	Model 76512B (12 Ton)	Model 76820B (20 Ton)
Lifting Capacity	12 tons	20 tons
Low Lift Height	6.69 in (170 mm)	8.27 in (210 mm)
High Lift Height	13.19 in (335 mm)	14.96 in (380 mm)
Stroke Length	3.74 in (95 mm)	3.94 in (100 mm)
Screw Extension	2.76 in (70 mm)	2.76 in (70 mm)
Base Dimensions	5.51 x 5.51 in	6.57 x 6.06 in
Weight	15 lbs (6.8 kg)	25 lbs (11.3 kg)
Carry Handle	Yes	Yes
Size/Quantity	Two capacity options: 12 ton, 20 ton
Compatibility	Suitable jacking points on trucks, construction and agricultural equipment within rated capacity

Professional Lifting with the Norco Low Profile Bottle Jack

Engineered with Parkerized components and a tested 50% overload protection system.

Order your Norco low profile bottle jack now for reliable lifting performance.

Frequently Asked Questions

What's the difference between the 12-ton and 20-ton models?

The 20-ton model provides higher lifting capacity for heavier equipment. It starts at 8.27 inches versus 6.69 inches, reaches 14.96 inches versus 13.19 inches maximum height, and weighs 25 pounds compared to 15 pounds. Both include identical safety features and zinc-plated handle construction.

How does this compare to a regular bottle jack?

Low profile bottle jacks have shorter collapsed heights for limited clearance access. The 12-ton model starts at 6.69 inches versus typical bottle jacks at 8-10 inches. This allows access to lowered vehicles and equipment with minimal clearance while maintaining full lifting capacity.

What vehicles can this jack lift safely?

Both models safely handle trucks, construction equipment, and agricultural machinery within rated capacity. The 12-ton lifts vehicles up to 24,000 pounds while the 20-ton handles up to 40,000 pounds. Always verify vehicle weight and use proper jacking points before lifting.

Does the safety overload system prevent damage?

Yes, the 50% safety overload factor means the jack is tested to 1.5 times rated capacity before failure. The oil bypass system automatically relieves pressure to prevent cylinder damage and stops ram overextension, protecting both jack and vehicle during operation.
