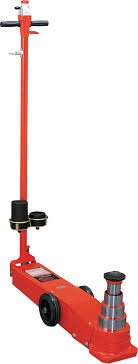

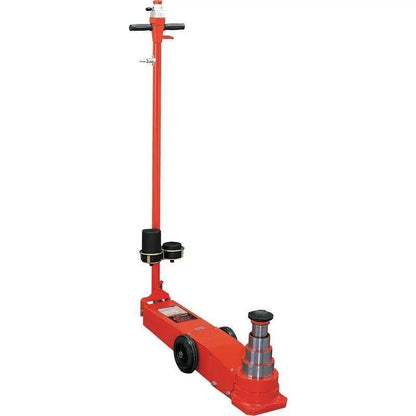

Norco 12-55 Ton Air Hydraulic Telescopic Floor Jack
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147
Telescoping Floor Jack Rated Up to 55 Tons
You're trying to get under a bus, a rail car, or a piece of construction equipment that barely clears the ground, and a standard jack either won't fit under it or runs out of lift before the axle comes free. This Norco telescoping floor jack is built for exactly that gap. It's rated at 55 tons on its first stage and steps down through 37, 23, and 12 tons as the ram telescopes higher, so you get serious capacity right where the job actually needs it.
The 61.75" T handle reaches under trailers and equipment with low overhang without you crawling underneath to line the jack up first. Lock the handle vertical, horizontal, or at 45 degrees with the locking lever, whatever angle the job calls for. A double acting pump gets the ram up to the load fast instead of wasting stroke on empty travel, and vacuum operated retraction brings the ram back down without you standing there cranking a release valve.
Rust inhibitive coating on the rams keeps this jack running after years of picking up water and grime off a shop floor. An integrated filter keeps contamination out of the air motor, and a safety overload system stops the cylinder from taking damage if you push past rated capacity. If something goes sideways mid-lift, the safety button at the top of the handle cuts operation immediately, no fumbling for a separate shutoff.
Buy this telescoping floor jack through GSG and you've got a direct line for replacement parts and support if anything on it ever needs attention down the road.
Specifications
| Low Lift Height | 6" |
| High Lift Height | 15.375" |
| Length | 39.25" |
| Width | 8.625" |
| Piston Stroke | 9.5" |
| PSI Range | 100-175 |
What's Included
- Telescopic jack with 61.75" T handle
- Removable 2-3/4" diameter saddle
- 2-9/16" extension
- 5-7/8" extension
- Extension holder
Applications
From techs at Norco Industrial Salt Lake City to Norco Industrial Ogden, this telescopic jack shows up wherever low clearance and heavy loads meet in the same job.
The long T handle gets under low overhang without you crawling underneath first to position the saddle.
Telescoping capacity handles the weight and limited clearance that come with rail car work.
Same low overhang challenge as trucks, and the same reach and capacity to handle it.
Multi ton capacity across the telescoping stages covers heavy loads at a range of lift heights.
Questions Before You Buy?
Call us at (855) 498-2147 and we'll help you confirm this is the right jack for your shop before you order.
Frequently Asked Questions
What's the lift range on this jack?
It lifts from a low height of 6" up to a high lift height of 15.375".
How much weight can it lift?
It's rated at 55 tons on the first stage, stepping down through 37, 23, and 12 tons as the ram telescopes up to its 15.375" high lift height.
Does it come with the saddle and extensions?
Yes. It includes a removable 2-3/4" diameter saddle plus 2-9/16" and 5-7/8" extensions with a holder to store them.
Do I need shop air to run this jack?
Yes. It's an air/hydraulic pump jack that operates within a 100 to 175 PSI range, so you'll need a shop air line hooked up.
Can I lock the handle in different positions?
Yes, the locking lever secures the 61.75" handle vertical, horizontal, or at a 45 degree angle depending on how you need to work.
Does the ram lower on its own?
Yes, vacuum operated retraction brings the ram down without you manually cranking a release valve.
Is there an emergency stop if something goes wrong mid-lift?
Yes, a safety button at the top of the handle stops jack operation immediately.
Will it fit under vehicles with low ground clearance?
Yes, the 61.75" T handle is built to position the jack under vehicles and equipment with low overhang.
What keeps the jack from taking damage if it's overloaded?
A safety overload system prevents the cylinder from taking damage if you push past rated capacity.
How does it hold up to shop floor conditions?
The rams carry a rust inhibitive coating for long-term durability, and an integrated filter protects the air motor from contamination.
