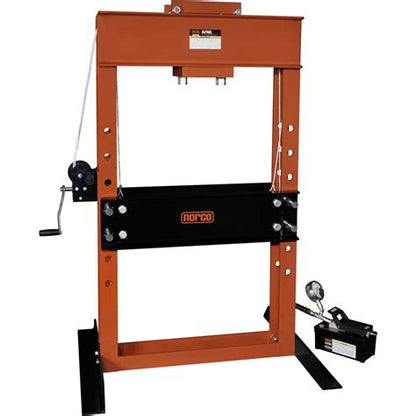

Norco 78058A 50-Ton Shop Press with 6-1/4" Stroke
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

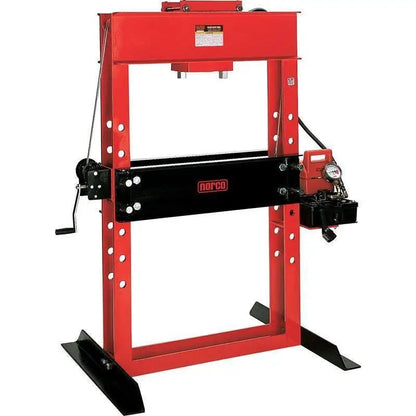

Norco 78058A 50 Ton Shop Press Overview
You're straightening bent shafts, pressing bearings, or breaking down assemblies that fight back. A hand-crank press wastes your afternoon. The Norco 78058A 50 ton shop press swaps that crank for a high-speed electro/hydraulic foot pump, so you're pumping the ram to full force with your foot while your hands stay on the workpiece. That's the difference between a job that takes minutes and one that takes your whole morning.
This shop press 50 ton unit ships welded, fully assembled, and tested. No bolting a frame together in your bay before you can use it. A 6-1/4" stroke and a hand-operated winch that raises and lowers the bed mean you're not fighting to line up oddball parts at awkward heights. A liquid-filled gauge reads ram force in pounds and tons, so you know exactly how much pressure you're putting into a press fit instead of guessing and hoping you didn't just crack something.
The self-retracting ram rides on bearings for lateral movement across the head channel, and a built-in safety overload system protects the power unit when you push it hard. Built in the USA, this press is made for truck garages and industrial shops running press jobs daily, not the occasional weekend project.
| Capacity | 50 Tons |
| Stroke / Ram Travel | 6.25 in (15.9 cm) |
| Min Throat Height | 7.5 in (19.1 cm) |
| Max Throat Height | 32.625 in (82.9 cm) |
| Throat Width | 34.5 in (87.6 cm) |
| Bed Height Adjustment | 7 x 5 in (17.8 x 12.7 cm) |
| Distance Between Uprights | 5.625 in (14.3 cm) |
| Distance Between Bed Rails | 7.375 in (18.7 cm) |
| Base Width | 50 in (127 cm) |
| Base Depth | 40 in (101.6 cm) |
| Overall Height | 72.75 in (184.8 cm) |
| Pump Type | Electro/Hydraulic Foot Pump |
| Hose Length | 10 ft |
What's Included
Call to confirm included accessories.
Applications
Straighten bent shafts, brackets, and frame components with controlled, gauge-monitored force instead of a hammer and guesswork.
Press bearings, bushings, and pins in and out cleanly. The winch-adjustable bed lines up odd-length parts without shimming.
Built for the heavier press jobs that come with truck and diesel work, where a bench-top press runs out of throat room and tonnage fast.
Handles daily press-fit and forming work in production environments where a hand-crank unit can't keep pace.
Questions Before You Buy?
Call us at (855) 498-2147 and we'll help you confirm fit, freight details, or anything else before you order.
Frequently Asked Questions
How much throat depth and width does this press give me?
You get a maximum throat height of 32.625 inches and a throat width of 34.5 inches, so you can work longer shafts and wider parts than a compact bench press allows.
Does the ram retract on its own after a press cycle?
Yes. The ram is self-retracting and bearing mounted, which lets it move laterally across the head channel as you reposition your work.
How do I know how much force I'm applying?
A liquid-filled gauge on the press reads ram force in both pounds and tons, so you can dial in the exact pressure a press fit calls for.
Does the bed adjust for different part lengths?
Yes. A hand-operated winch raises and lowers the bed, with 7 x 5 inch adjustment, so you can position parts at the right height without stacking blocks.
Is this press hydraulic or manual?
It runs on a high-speed electro/hydraulic foot pump with a 10-foot hose, so your hands stay free on the workpiece while your foot drives the ram.
Does it come assembled or do I need to build the frame?
It ships fully assembled, welded, and tested, so it's ready to bolt down and use without frame assembly in your bay.
What stops me from overloading the pump?
A safety overload system built into the unit protects the power unit if you push past its rated limits.
How much floor space does this press need?
The base measures 50 inches wide by 40 inches deep, with an overall height of 72.75 inches, so plan a clear footprint of roughly that size plus room to work around it.
Is this press rated for daily industrial use or occasional jobs?
It's built for truck garages and industrial workshops running press jobs regularly, not just occasional weekend use.
What should I do about delivery and freight for a press this size?
Call us at (855) 498-2147 before you order so we can walk you through delivery details for a unit this size and weight.
