Norco 78022E 20 Ton Hand Pump Shop Press
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

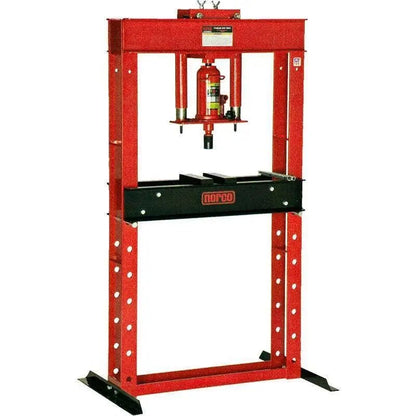

Norco 78022E 20 Ton Shop Press Overview
You've got a bearing that won't budge, a bushing that needs seating, and a bent shaft that has to come back true today. The Norco 78022E 20 ton shop press is the tool that handles all three without complaint. It's a welded steel H frame shop press that arrives fully assembled, tested, and ready to work the moment it lands on your floor. No hunting for missing hardware, no all-afternoon build. Uncrate it and go.
What sets this 20 ton hydraulic shop press apart is the detail work you don't see until you own it. The manual pump power unit rides on bearings, so it slides horizontally along the head channel to line up over whatever you're pressing. The pump piston, ram, and extension screw are Parkerized to keep rust out of the hydraulic system. A pair of bed plates comes in the box for setup flexibility, and shielded heavy-duty ram return springs keep the plunger retracting cleanly job after job.
This is a made-in-the-USA press built on a zero-distortion structural steel frame, which is the difference between a 20 ton shop press that stays square under load and one that walks out of alignment over time. If you're comparing 20 ton hydraulic shop press options for an automotive shop press setup or a heavier industrial bay, the 78022E gives you professional-grade rigidity in a manual shop press that doesn't need shop air to earn its keep.
Buy it from us and you get free freight to the lower 48 and a real person on the phone who knows this equipment, not a call center. We help you confirm fit and delivery before you order so the press shows up right the first time.
Specifications
| Model | 78022E |
| Ram Travel | 6.625 in |
| Min. Throat Height | 7.125 in |
| Max. Throat Height | 35.5 in |
| Throat Width | 30 in |
| Bed Height Adjustment | 7 x 4.75 in |
| Between Uprights | 6 in |
| Between Bed Rails | 7 in |
| Base Width | 40 in |
| Base Depth | 28 in |
| Overall Height | 70.625 in |
| Shipping Weight | 394 lbs |
| Power | Manual hand pump |
| Origin | Made in the USA |
What's Included
- Norco 78022E welded steel H frame press, fully assembled
- Manual pump power unit with Parkerized piston, ram, and extension screw
- Pair of bed plates
- Shielded heavy-duty ram return springs
- Two-piece handle
Installation & Setup
Setup on this floor shop press is about as simple as it gets. Drop the two-piece handle into the pump's handle receiver and you're ready. Because the press ships assembled and tested, there's no frame build to work through before your first job.
One thing to know out of the box: air can get trapped in the hydraulic system during shipping, which makes the pump feel spongy and prevents full strokes. Purging it takes a minute. Open the release valve two full turns counterclockwise, pump the handle ten full strokes, close the valve tight, then run the ram to full extension. Repeat if it still feels soft.
In use, adjust the bed height so the pins fully seat in the upright frame holes and support the bed channel flanges before you load anything. Loosen the two wing nuts on the power unit to slide it into position over your work, then tighten them down. Always use a guard or protective blanket during pressing to shield against flying parts.
Applications
Press out worn wheel bearings, seat new ones, and swap bushings and gears. A dependable auto shop press for daily driveline and suspension work.
Straighten bent stock and bend components to spec. The rigid H frame keeps pressure square where you put it.
Install and remove pressed-fit parts on machinery. Built for shops that lean on their hydraulic shop presses every shift.
Handle bearings and bushings that need controlled, repeatable force without a power source or shop air line.
Shipping
Free shipping to the lower 48. Our team coordinates the freight shipment and helps manage scheduling details.
Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
This press is covered by Norco's Limited Lifetime Warranty. Norco warrants its products and parts against defects in materials and workmanship for the life of the product or part, for buyers who purchase for resale or use in the ordinary course of business.
The warranty does not cover products that have been abused, misused, worn out, neglected, altered, or used in a manner inconsistent with the instructions. Chains, batteries, and electric motors are excluded and, where applicable, warranted separately by their own manufacturers. If a product or part is found defective, Norco will repair or replace it at its option as the exclusive remedy.
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Manual
Sale Sheet
Talk to a Specialist
Questions about fit, freight, or which press is right for your bay? Call us at (855) 498-2147 and we'll help you get it right the first time.
Frequently Asked Questions
Does this shop press come assembled?
Yes. The 78022E ships fully assembled and tested. Insert the two-piece handle into the pump receiver and it's ready to work. You will likely need to purge trapped air from the hydraulic system on first use, which takes about a minute of pumping through the release valve procedure.
How is this press powered?
It uses a manual hand pump, so no electricity or shop air is required. The power unit is bearing mounted and slides horizontally along the head channel to position over your work.
What's the maximum working height under the ram?
The maximum throat height is 35.5 in and the minimum is 7.125 in, with bed height adjustment of 7 x 4.75 in. Ram travel is 6.625 in, giving you a wide adjustable range for different sized parts.
How wide is the working area between the frame?
The throat width is 30 in, with 6 in between the uprights and 7 in between the bed rails. That gives you room for larger assemblies while keeping the frame rigid.
Do I need to buy bed plates separately?
No. A pair of bed plates is included with the press for setup flexibility. You can position them to support parts of different sizes across the bed rails.
How big is this press and how much does it weigh?
Overall height is 70.625 in, base width is 40 in, and base depth is 28 in. Shipping weight is 394 lbs, so plan for freight handling and adequate floor space.
Does it ship as freight, and is shipping free?
Yes to both. At 394 lbs it ships as LTL freight with free shipping to the lower 48. Contact us before ordering if you need a delivery window, residential delivery, or liftgate service.
Is a force or pressure gauge included?
No. Standard presses are not equipped with a pressure gauge. If you need to monitor applied force, Norco offers the optional Model 78021 gauge with adapters. Never operate the press beyond its rated capacity.
What kind of maintenance does it need?
Lubricate moving parts once a month with general purpose grease, but not the bed plate bearing surface or ram plunger. Store it in a protected area, inspect before each use, and only top off fluid if there's an external leak, which should be repaired by qualified hydraulic personnel.
What warranty covers this press?
It carries Norco's Limited Lifetime Warranty against defects in materials and workmanship for buyers using it in the ordinary course of business. Abuse, misuse, alteration, and normal wear are excluded, along with chains, batteries, and electric motors.
