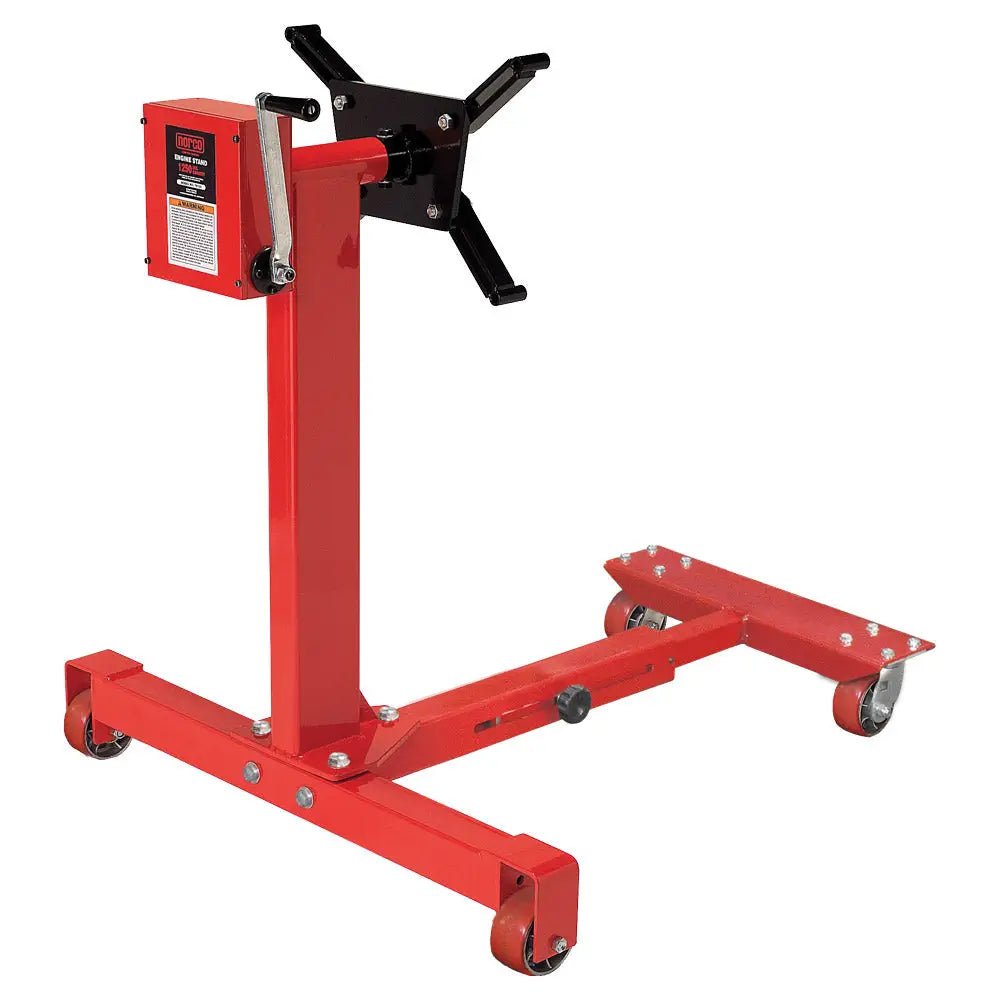

Heavy Duty Engine Stand With 75:1 Gear-Driven Rotation
You've got a big block sitting on the shop floor and no clean way to flip it for a valve job or a rebuild. That's the problem this heavy duty engine stand solves. The Norco 78155 handles up to 1,250 lbs, so whether you're working a gas V8 or something in diesel territory, you're not second-guessing whether the stand can take the load.
The 75:1 gear-driven crank is what separates this from the stands that make you fight the engine into position. Turn the hand crank and the mounting head rotates a full 360 degrees, smooth and controlled, with no sudden drops and no straining to hold a heavy block mid-rotation. That ratio does the work for you, which matters when you're flipping the same engine multiple times during a teardown.
Mobility is where a lot of engine stands heavy duty enough to handle real capacity fall apart. This one doesn't. Two rigid wheels in back and two swivel casters up front give it stability under load, and the locking caster means it stays put once you've got it positioned. The telescopic base locks into four different length settings, so you can extend it out for extra stability when the engine calls for it and collapse it back down when you need to move through a tighter aisle.
Polyurethane wheels mean you're not chewing up epoxy or tile floors every time you roll this rotating engine stand across the shop. For a shop that's invested in its floor, that's not a small detail.
Specifications
| Model | Norco 78155 |
| Capacity | 1,250 lbs |
| Gear Ratio | 75:1 |
| Height | 42 in |
| Width (Front) | 21.25 in |
| Width (Rear) | 40 in |
| Length (Retracted) | 38.25 in |
| Length (Extended) | 53.25 in |
| Stand Weight | 179 lbs |
What's Included
Call to confirm included accessories.
Applications
Built for the kind of engine work that doesn't stop at one make or one displacement. Here's where this heavy duty rotating engine stand earns its spot in the bay.
Full 360-degree rotation puts every bolt, gasket, and mating surface at a workable angle without wrestling the block by hand.
The 1,250 lb capacity and 75:1 gearing give you the margin a heavy duty diesel engine stand needs for larger diesel blocks.
Locking caster and telescopic base mean it holds its ground on a busy shop floor with multiple engines in rotation.
Polyurethane wheels roll clean across epoxy and tile without marking or gouging the surface.
Questions Before You Order?
Call us at (855) 498-2147 and we'll help you get the right setup for your shop.
Frequently Asked Questions
How much weight can this engine stand actually hold?
The Norco 78155 is rated for 1,250 lbs, which covers the vast majority of gas V8s and many diesel blocks. Always double-check your specific engine's dressed weight against that number before mounting it.
Is this stand rated for diesel engines?
Yes. The 1,250 lb capacity and 75:1 gear ratio make it a solid fit as a diesel engine stand for many diesel applications. If you're working with an especially heavy diesel block, weigh it first to confirm it's under the 1,250 lb limit.
How does the rotation mechanism work?
A hand crank drives a 75:1 ratio gearbox connected to the mounting head. Turning the crank rotates the head a full 360 degrees in controlled increments, so you're never fighting momentum or holding a heavy engine mid-turn.
Will this stand roll easily and stay put when I need it to?
It runs on two rigid rear wheels and two front swivel casters, with one of the casters lockable. That combination gives you easy maneuvering around the shop and a stand that won't drift once you've locked it in place.
Will the wheels damage my shop floor?
No. The wheels are polyurethane, which is built to roll across epoxy and tile floors without scuffing or gouging them, unlike hard rubber or steel casters.
Can I adjust the length of the stand for different engine sizes?
Yes. The telescopic base locks into four different positions, letting you extend the stand from 38.25 in up to 53.25 in for added stability when a longer or heavier engine calls for it.
How much does the stand itself weigh?
The stand weighs 179 lbs on its own, which is worth factoring in if you're planning to move it between bays or load it for transport.
Is the mounting head adjustable for different engine shapes?
Yes, the mounting head is fully adjustable, which lets you position the mounting points to match the bolt pattern and shape of the engine you're working on.
Does this come assembled?
Call to confirm assembly requirements and included accessories before ordering.
