MT-RSR 20-PROSB-40 SpeedPlate Pro storage board holding plates, spacers, nuts, and hardware set.

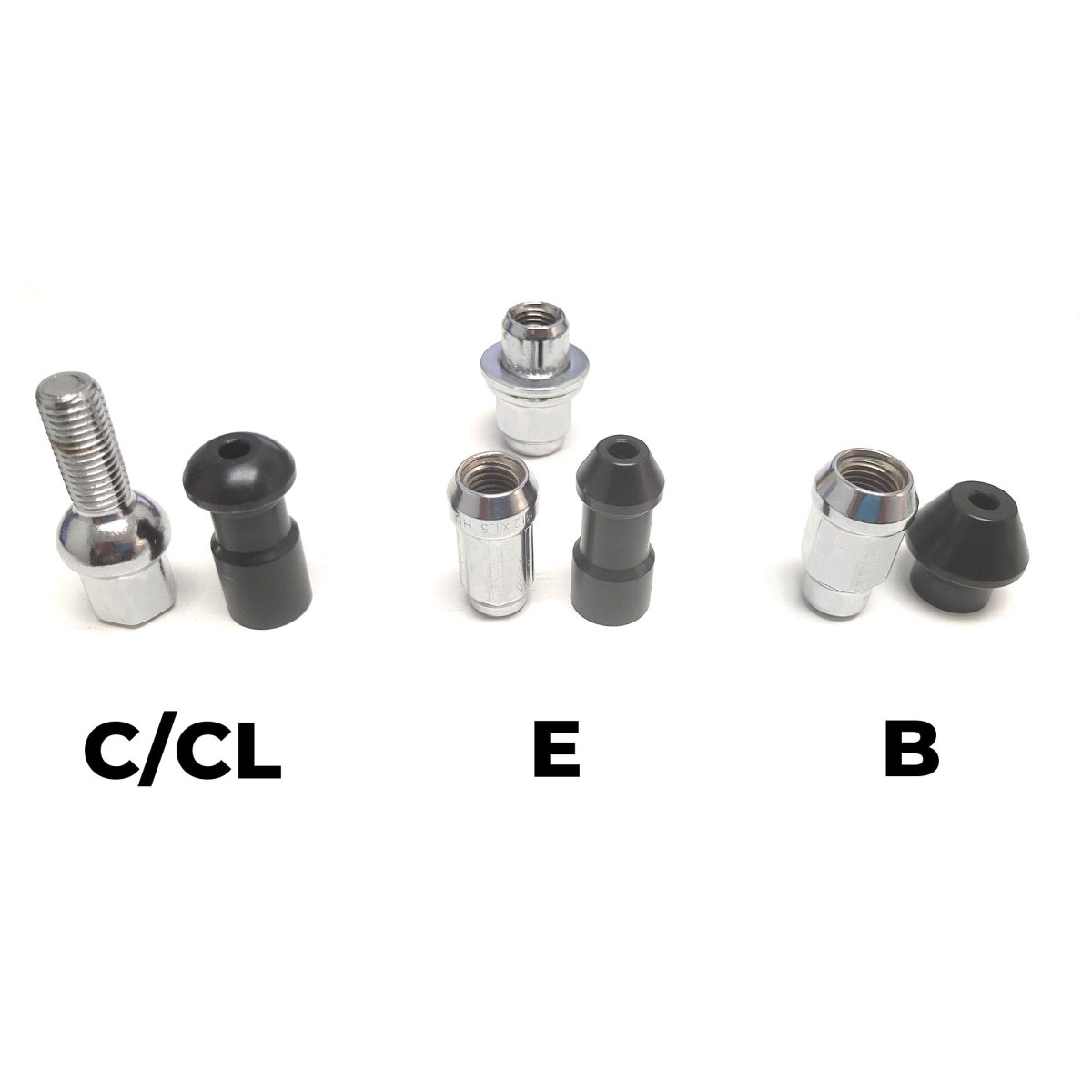

MT-RSR 20-PROSB-40 kit hardware laid out: studs, cones, and nuts for SpeedPlate Pro wheel mounting.

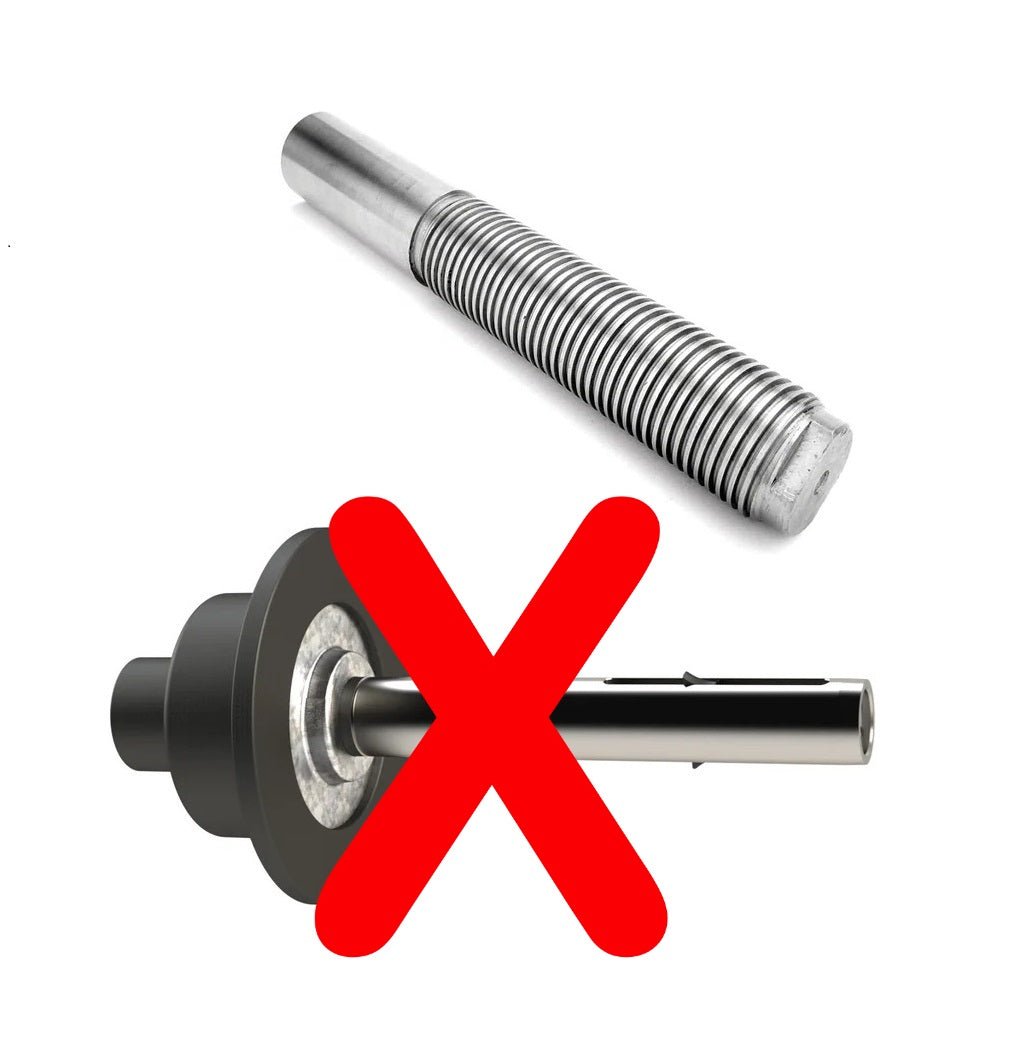

MT-RSR 20-PROSB-40 threaded shaft displayed with a red X graphic over a different shaft.

MT-RSR 20-PROSB-40 SpeedPlate Pro System, Standard Threaded Shaft w/ Storage Board for 4-8 Lug Wheels

$1,153.01

Product variants

MT-RSR | 20-PROSB-40 | SpeedPlate Pro System | Standard Threaded Shaft & Storage Board for 4-8 Lug Wheels

MT-RSR SpeedPlate Pro System: Precision Wheel Balancing

Revolutionize Your Wheel Balancing Process

The MT-RSR SpeedPlate Pro System offers a significant upgrade in speed, accuracy, and durability for professional wheel balancing. Designed to accommodate 4-lug, 5-lug, 6-lug, and 8-lug wheels, this system is perfect for a broad range of vehicles, including passenger cars, SUVs, and light trucks with bolt patterns (PCD) from 95.25mm to 180mm (3.75” to 7.08”).

Experience Superior Performance and Efficiency

Forget traditional, cumbersome quick plates and pin plates. The SpeedPlate Pro System introduces seamless, one-handed operation with rapid bolt pattern adjustments, rivaling the speed of pressure cups while delivering superior accuracy and long-lasting durability.

Key Features:

Universal Compatibility: Supports 4-lug, 5-lug, 6-lug, and 8-lug wheels. Wide Bolt Pattern Range: Fits PCDs from 95.25mm to 180mm (3.75”–7.08”). Robust Construction: Made with high-precision, durable plastic and metal. Impact-Resistant Design: Quick disassembly upon impact prevents damage and allows for rapid reassembly. Effortless Adjustment: One-finger adjustment system for fast setup and operation. Extended Lifespan: Tested for over 400,000 cycles, exceeding the average balancer lifespan. Precise Seating: Ensures even pressure on all lug holes for accurate, straight seating.

What’s Included:

SpeedPlate for 4-lug and 8-lug wheels SpeedPlate for 5-lug wheels SpeedPlate for 6-lug wheels (6) Torque Tips – Style B (6) Torque Tips – Style C (Ball Seat) (6) Torque Tips – Style C Long (Ball Seat) (6) Torque Tips – Style E Storage Board

Why Choose the MT-RSR SpeedPlate Pro System?

Ultra-fast setup with intuitive one-handed adjustments. Exceptional durability and impact resistance, as demonstrated in our drop test videos. High-accuracy wheel clamping for optimal balancing results. Ideal for high-volume automotive shops requiring speed and precision.

Comparable to OEM Part Numbers:

Snap-On: EEWB3-1A, EAK0309J38D, EAK0309J33C VBS: E400-400-60, 400-400-60 Corghi: 900200400A, 900200500A Haweka: WB4029-40, HW210 400 002, 210 400 002 Coats: 8113841 Hunter: 20-2123-2

Interchangeable Part Numbers:

200.001.400A E400-400-60

Pro Tip – MT-RSR Usage Insights:

Optimize efficiency by keeping Ball Seat Torque Tips (Style C) on the 5-lug plate for both ball seat and conical seat wheels. Utilize Style E Tips on 4-lug plates for standard passenger vehicles. Employ Style B Tips for truck applications, particularly on 4-lug and 6-lug plates, minimizing the need for frequent tip changes.
