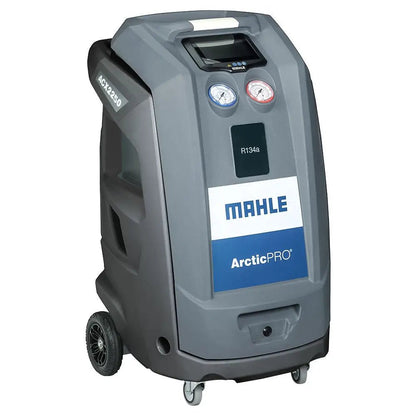

MAHLE ArcticPRO ACX2250 R1234yf Hybrid Refrigerant Handling System
You're not buying an A/C machine to babysit it. The MAHLE ArcticPRO ACX2250 handles R1234yf refrigerant with a fully automatic cycle, so you set it up and move to the next bay instead of standing over the unit watching gauges. That's the difference between an A/C job that eats your afternoon and one that clears in a fraction of the time.
The 7 inch capacitive touch display runs the show. No stacked menus, no guessing which button does what. You tap through recovery, vacuum, and recharge, and the unit does the math. An LED status light on the housing tells you and everyone else in the shop exactly where that job stands without walking over to check.
Hybrid and EV work isn't a side job anymore, it's a growing share of what rolls through the door. The ACX2250 is certified for hybrid function, so you're covered whether the car on the lift has a traditional drivetrain or a hybrid A/C system with different servicing requirements.
Oil management is handled automatically too. The unit weighs recovered oil as it comes out, so you replenish the exact amount removed instead of eyeballing it. That's fewer comebacks from over or under-filled systems.
Specifications
| Certifications | SAE J2843, SAE J2888, UL 1963 |
| Charge Accuracy | +/- 0.5 oz at 70 to 75°F (+/- 15g at 21 to 24°C) |
| Recovery Rate | 95% at 70 to 75°F (21 to 24°C) within 30 minutes |
| Operation | Fully Automatic |
| Charging Cylinder | 30 lb (13.6 kg) DOT |
| Compressor | 3/8 HP - 0.279 kW |
| Dimensions (H x W x D) | 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm) |
| Weight | 215 lb (98 kg) |
| Display | Color, 7 in Capacitive Touch Screen |
| Filter Drier Capacity | 150 lb (68 kg) spin-on type |
| Hoses | 9 ft (2.75 m) |
| Hybrid Function | Certified |
| Display Languages | English, French, Spanish |
| Operating Range | 50°F to 122°F (10°C to 50°C) |
| Power Source | 120 VAC, 60 Hz, 12 Amp |
| Printer | Optional |
| Vacuum Pump | 2 CFM, dual stage |
What's Included
Call to confirm included accessories.
Applications
Handles standard R1234yf A/C service for daily volume, from quick recovery-and-recharge jobs to full system evacuations.
Certified hybrid function means the same unit covers conventional and hybrid A/C systems without swapping equipment between vehicle types.
Network printing and data logging let you track services across technicians and bays from one machine.
The non-integrated identifier lets you sample refrigerant through a dedicated third hose before it ever touches the machine's internals.
Warranty
This unit is backed by a 2 Years Limited Warranty from MAHLE.
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Buy?
Call us at (855) 498-2147 and we'll help you confirm this is the right R1234yf machine for your shop.
Questions Before You Order?
Call us at (855) 498-2147 and we'll walk you through fit, setup, or anything else before you buy.
Frequently Asked Questions
Does the ACX2250 handle both hybrid and conventional A/C systems?
Yes. The unit carries certified hybrid function, so the same machine services standard R1234yf systems and hybrid A/C systems without needing separate equipment.
How accurate is the charge on this machine?
Charge accuracy is rated at plus or minus 0.5 oz (plus or minus 15g) at 70 to 75°F, so you're not guessing on refill amounts.
What's the recovery rate like on a typical job?
The ACX2250 recovers 95% of refrigerant within 30 minutes at 70 to 75°F, which keeps most jobs moving without long wait times between vehicles.
Do I need WiFi for this unit to work?
No. WiFi enables automatic software updates and remote MAHLE support access, but the unit's core recovery, vacuum, and recharge functions run without a network connection.
Does it print service records for customers?
Yes. The unit has network printing capability and retains service records, so you can hand a customer a printed summary of the work performed.
Is the printer included or an add-on?
The printer is optional and not built into the base unit, so confirm whether one is included with your specific order before installing.
What power does this unit need in my shop?
It runs on standard 120 VAC, 60 Hz, 12 Amp power, no special electrical setup required beyond a proper outlet.
How does the oil management system work?
The unit automatically weighs recovered oil during service, giving you an accurate figure for how much oil to replenish rather than relying on estimates.
Can I check refrigerant purity before it enters the machine?
Yes. A non-integrated refrigerant identifier uses a separate third hose and coupler to sample refrigerant before it reaches the machine's internal components, protecting the unit from contamination.
What certifications does the ACX2250 carry?
It's certified to SAE J2843, SAE J2888, and UL 1963 standards.
How much space does this unit take up in my shop?
It measures 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm) and weighs 215 lb (98 kg), so plan for a dedicated footprint near your service bay.
