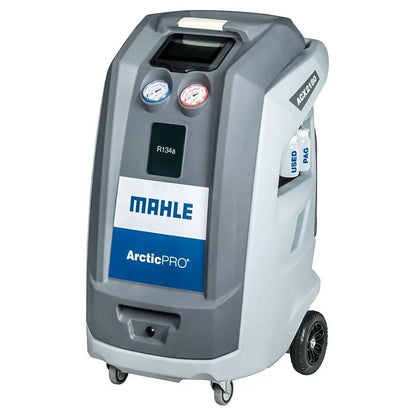

Mahle ArcticPRO ACX2180 R134a Refrigerant Handling System
Your tech is halfway through an A/C job when the machine loses its read on the system pressure and the whole process stalls out. The Mahle ArcticPRO ACX2180 R134a refrigerant handling system runs on three transducers instead of the usual dual-sensor setup, so it holds a tighter, faster read through the full recovery and charge cycle. Fully automatic operation means your tech sets it up and moves on.
The 7-inch capacitive touch display and LED status light keep the process visible without anyone hovering over the unit, and the hinged service door means routine upkeep doesn't turn into a wrestling match with panels. Where the ACX2180 pulls ahead is the phone app. It mirrors the service session to an iOS or Android device, so your tech can walk away, check on another bay, and still see exactly where the job stands.
Oil handling gets smarter here too. Automatic weighing tracks what comes out, and the unit injects it back with support for two different oil types, so you're not stuck manually swapping equipment when a job calls for something other than your default oil. Integrated UV dye injection is built in as well, flagging slow leaks at the point of service instead of on the comeback.
The ACX2180 is SAE J-2788 certified for R134a service, which covers you for insurance and fleet documentation requirements. Order it through GSG and parts, consumables, and support are a phone call away. No manufacturer support queue, no runaround.
Specifications
| Refrigerant | R134a |
| Certification | SAE J-2788 Certified |
| Display | 7 in Color Touch Screen |
| Vacuum Pump | 2 CFM, 2-Stage |
| Recovery Tank Size | 30 lb |
| Refrigerant Tank Capacity | 24 lb |
| Hose Length | 9 ft |
| Recovery Efficiency | 95%+ |
| Charge Accuracy | Within 1/2 oz |
| Filter-Drier Capacity | 150-200 lb |
| Voltage | 120 VAC, 60 Hz |
| Printer | Optional |
What's Included
Call to confirm included accessories.
Installation & Setup
The ACX2180 runs on standard 120 VAC, 60 Hz power, so there's no dedicated line or electrician visit standing between the crate and your first job. Once it's on your shop WiFi, software updates install automatically and the mobile app connects for remote session mirroring without any extra setup on your end.
Applications
Phone app session mirroring lets one tech keep an eye on a running job from across the shop.
Two-oil-type injection means you're not swapping equipment when a job specs something other than your default.
SAE J-2788 certification and logged service data back you up when documentation is required.
Three-transducer sensing keeps process times down compared to dual-sensor machines.
Warranty
The ArcticPRO ACX2180 is backed by a 2-year limited warranty.
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Buy?
Call (855) 498-2147 and talk to a real person about the ArcticPRO ACX2180.
Frequently Asked Questions
What makes the ACX2180 different from a standard dual-sensor A/C machine?
It uses three transducers instead of two, which reduces process times through the recovery and charge cycle compared to dual-sensor units.
Does the ACX2180 work with a phone app?
Yes. It's compatible with iOS and Android for remote session mirroring, so a tech can monitor a running job from a phone.
Can it handle more than one type of oil?
Yes. The automatic oil weighing and injection system supports two different oil types.
What kind of power hookup does this machine need?
Standard 120 VAC, 60 Hz shop power. No dedicated electrical line is required.
Is this machine compatible with R1234yf systems?
No. This is an R134a-specific machine, SAE J-2788 certified. The included overview document covers the differences between R134a and R1234yf systems.
How much refrigerant does it hold?
The refrigerant tank capacity is 24 lb, and the recovery tank holds up to 30 lb.
What's the warranty on the ACX2180?
It carries a 2-year limited warranty. Registration may be required after purchase.
Does it help catch A/C leaks?
Yes. Integrated UV dye injection is built in for leak detection during service.
What vacuum pump does it use?
A 2 CFM, 2-stage vacuum pump handles evacuation.
