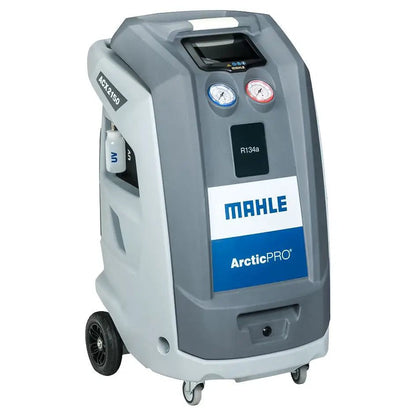

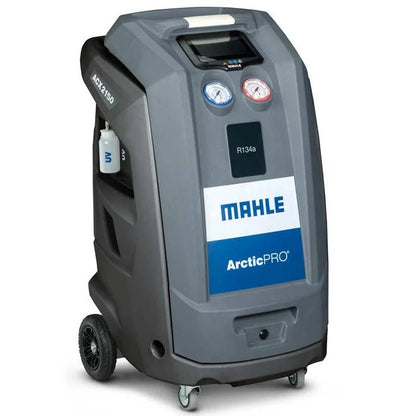

Mahle ArcticPRO ACX2150 R134a Hybrid Refrigerant Handling System
You've got customers backed up waiting on A/C service, and every extra minute your tech spends babysitting a recovery machine is a minute they're not turning wrenches on the next car. The Mahle ArcticPRO ACX2150 R134a hybrid refrigerant handling system runs a full recovery, evacuation, and recharge cycle virtually unattended, so your tech can prep the next vehicle instead of standing over a machine watching gauges.
The 7-inch capacitive touch display walks your team through the process step by step, and an LED status light lets anyone in the shop see where the machine's at without walking over to check. When the unit needs service, a hinged service door means your tech isn't wrestling with panels to get inside.
Behind the screen, the ACX2150 handles the details that usually eat up bay time. Automatic oil weighing and on-board injection means nobody's guessing how much oil came out or eyeballing a syringe to put it back. Integrated UV dye injection flags slow leaks before they turn into comebacks. The unit updates its own software over WiFi, so you're not chasing firmware patches or waiting on a service call to get new features.
This machine is SAE J-2788 certified for R134a service, which matters if your shop needs documented compliance for insurance work, fleet contracts, or warranty claims. Buy the ArcticPRO ACX2150 from GSG and you're not just getting the unit. Parts and consumables are a phone call away, and you're talking to a real person, not routed through a manufacturer support queue.
Specifications
| Refrigerant | R134a |
| Certification | SAE J-2788 Certified |
| Display | 7 in Color Touch Screen |
| Vacuum Pump | 2 CFM, 2-Stage |
| Recovery Tank Size | 30 lb |
| Refrigerant Tank Capacity | 24 lb |
| Hose Length | 9 ft |
| Recovery Efficiency | 95%+ |
| Charge Accuracy | Within 1/2 oz |
| Filter-Drier Capacity | 150-200 lb |
| Voltage | 120 VAC, 60 Hz |
| Printer | Optional |
What's Included
Call to confirm included accessories.
Installation & Setup
The ACX2150 runs on standard 120 VAC, 60 Hz power, so you're not scheduling an electrician or running a dedicated line before you can put it to work. Uncrate it, plug it in, and it's ready for its first job. Once the unit's connected to your shop WiFi, wireless software updates and remote support access handle themselves in the background.
Applications
Unattended recovery-to-recharge cycles free your tech to move to the next vehicle instead of watching a machine work.
SAE J-2788 certification and logged service data give you documentation when a claim or contract requires it.
Integrated UV dye injection catches slow leaks at the point of service instead of on the next visit.
Network printing keeps service records centralized when more than one bay is running A/C jobs.
Warranty
The ArcticPRO ACX2150 is backed by a 2-year limited warranty.
Warranty registration may be required after purchase. Refer to included documentation for details.
Documents
Click to open in a new tab.
Questions Before You Buy?
Call (855) 498-2147 and talk to a real person about the ArcticPRO ACX2150.
Frequently Asked Questions
Does the ACX2150 handle recovery, evacuation, and recharge in one cycle?
Yes. It runs the full R134a service cycle virtually unattended, with recovery efficiency rated at 95%+ and charge accuracy within 1/2 oz.
What kind of power hookup does this machine need?
Standard 120 VAC, 60 Hz shop power. No dedicated electrical line is required.
Is this machine compatible with R1234yf systems?
No. This is an R134a-specific machine, SAE J-2788 certified. The included overview document covers the differences between R134a and R1234yf systems.
How much refrigerant does it hold?
The refrigerant tank capacity is 24 lb, and the recovery tank holds up to 30 lb.
Can I print service records?
The unit supports network printing, though a printer is an optional add-on and isn't included by default.
What's the warranty on the ACX2150?
It carries a 2-year limited warranty. Registration may be required after purchase.
Does it track oil removed and replaced automatically?
Yes. The oil management system automatically weighs recovered oil and injects the correct replacement amount on board.
What vacuum pump does it use?
A 2 CFM, 2-stage vacuum pump handles evacuation.
Does it help catch A/C leaks?
Yes. Integrated UV dye injection is built in for leak detection during service.
