Katool X90E – Scissor Lift (8,000 lb, Mid-Rise)
Katool X90E 8,000 lb Mid Rise Scissor Lift

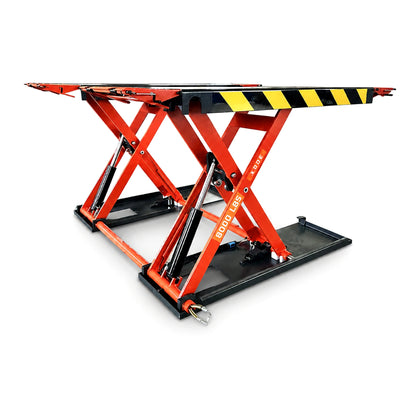

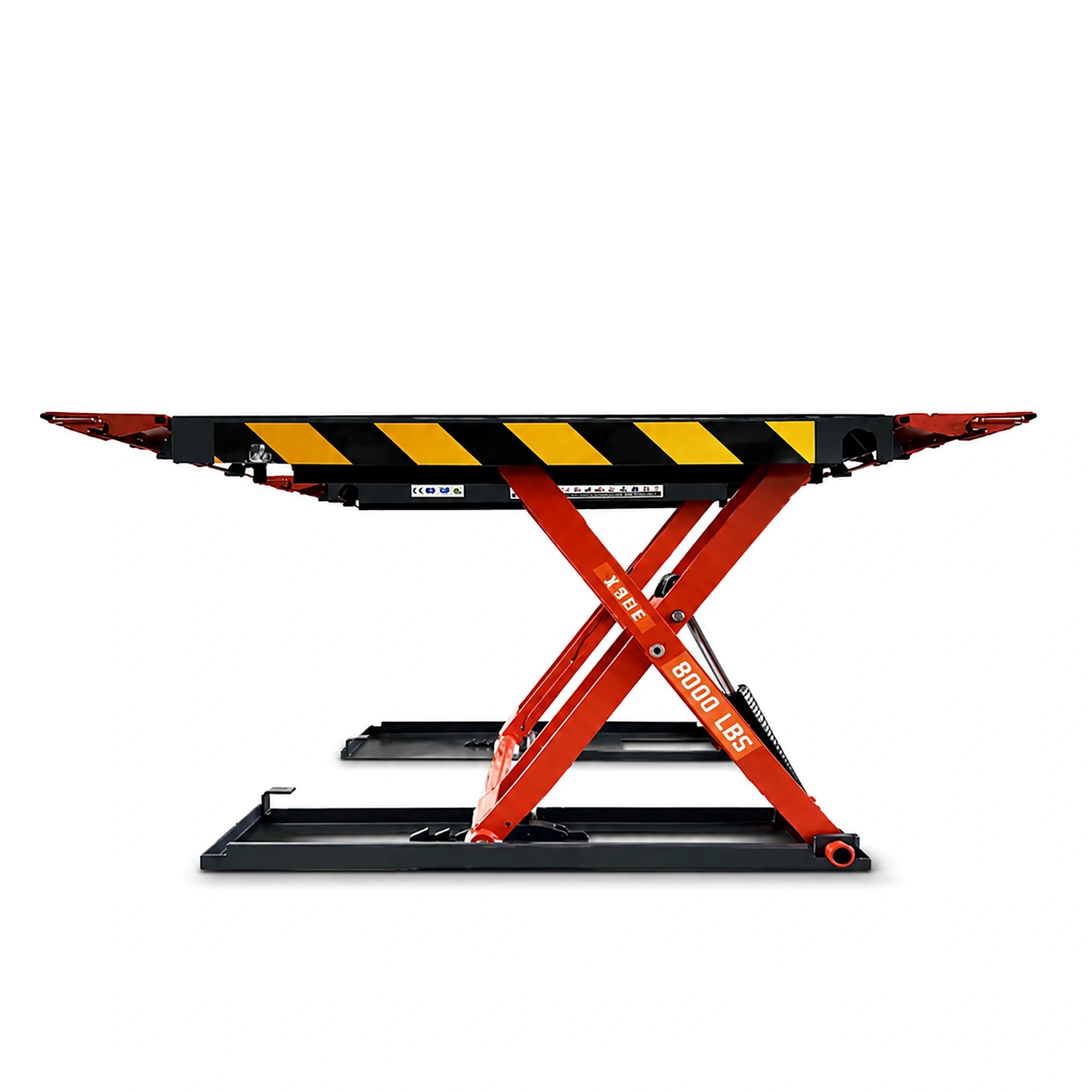

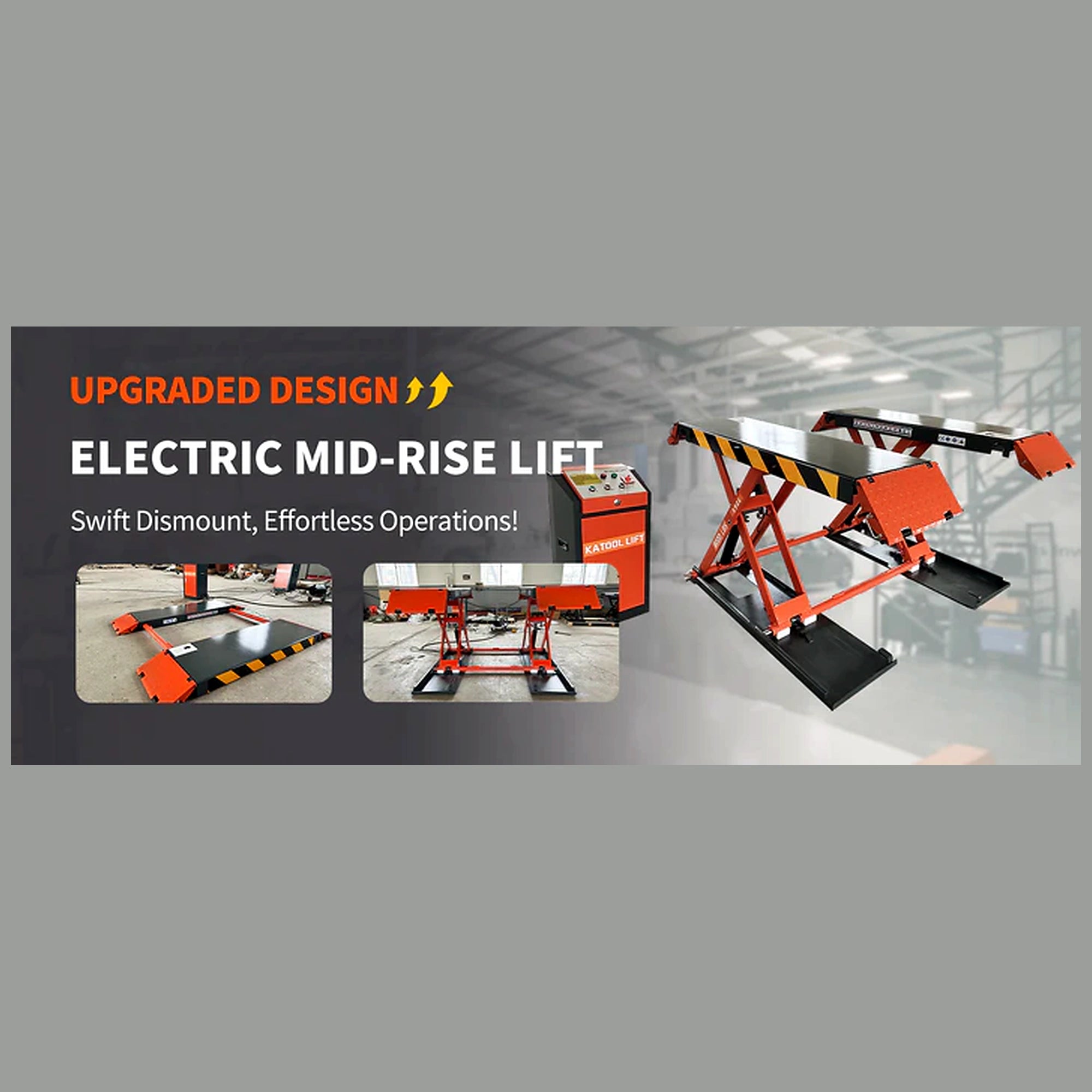

The Katool X90E is a mid-rise scissor lift engineered for automotive shops and home garages with limited ceiling height. Featuring an 8,000 lb capacity, this unit handles heavier SUVs and light trucks that standard lifts cannot support. It offers a 47-inch working height from a low 4.3-inch drive-on profile, powered by a 110V motor with a 24V electric safety release system (no air required).
Key Features

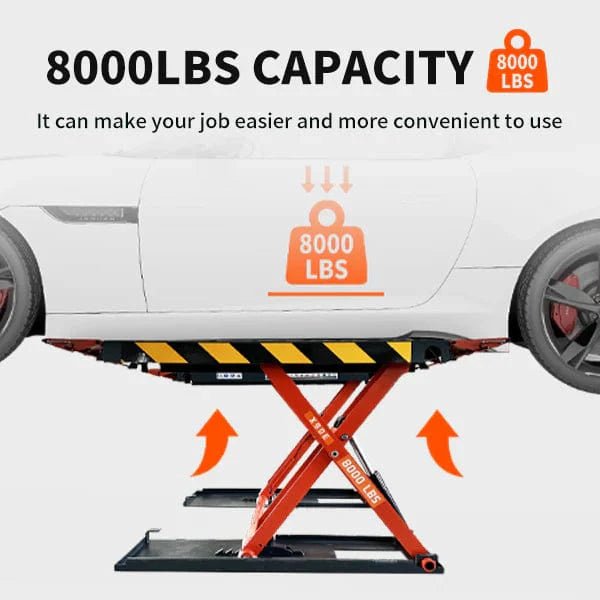

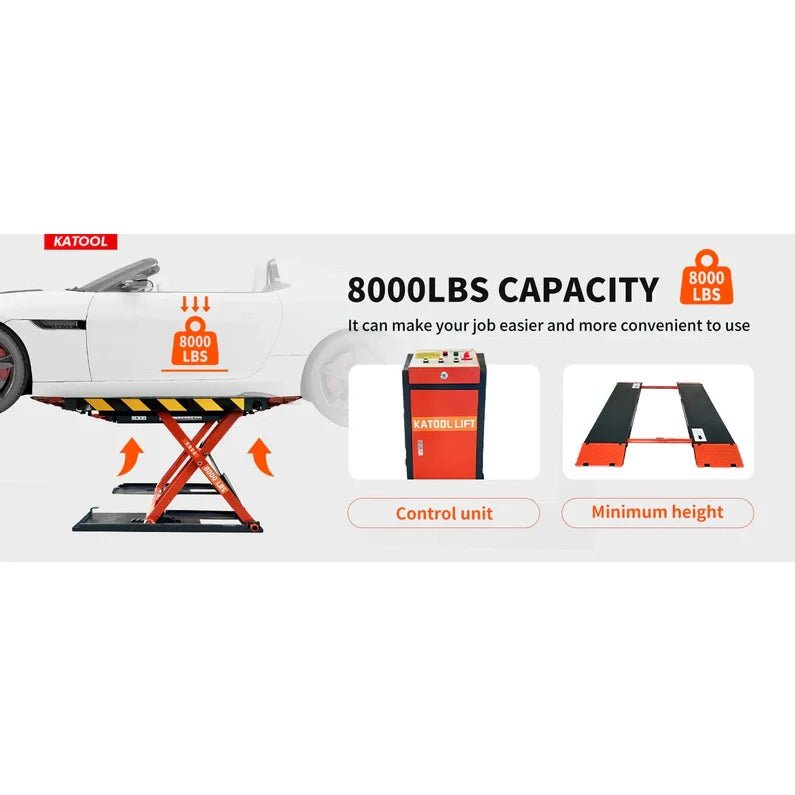

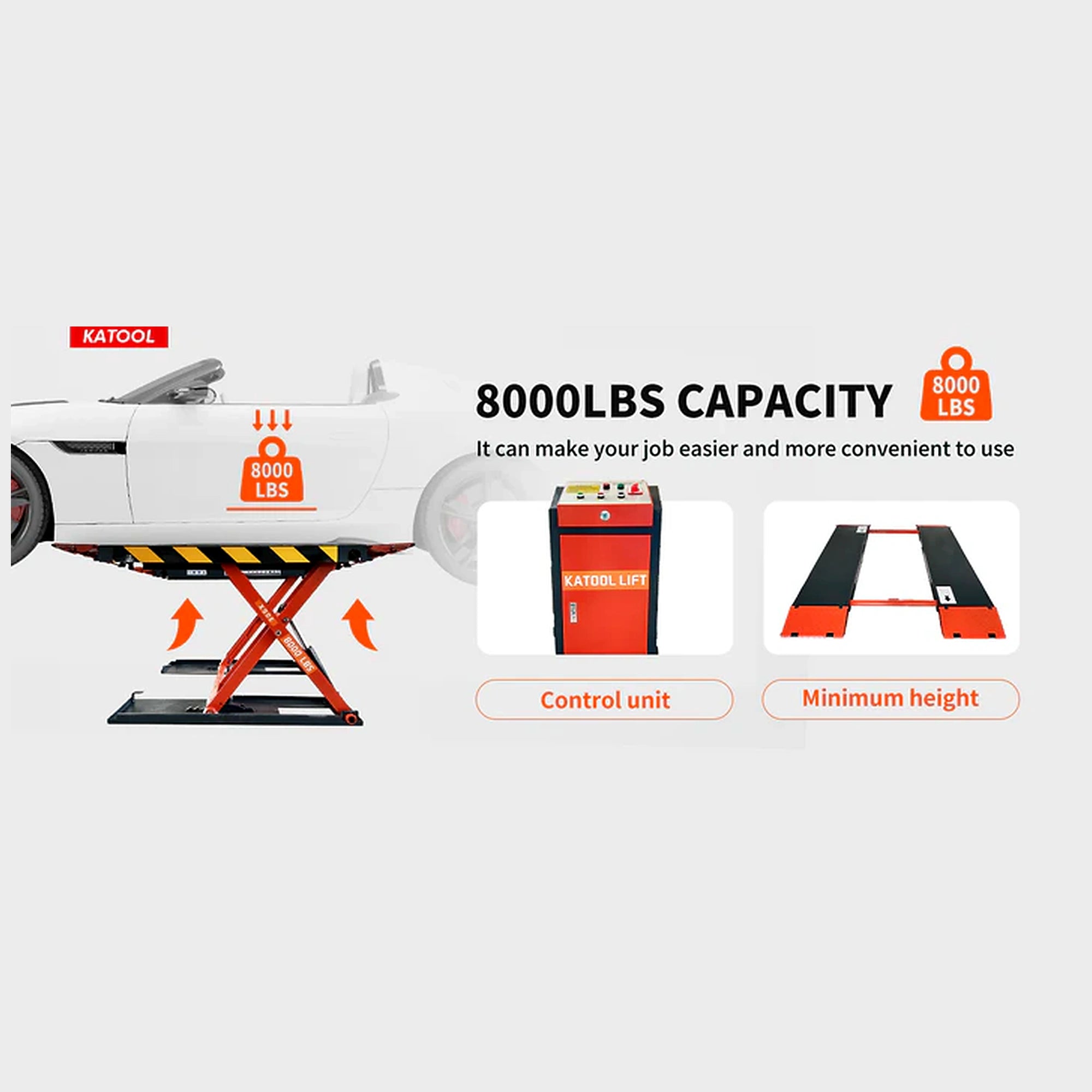

8,000 lb Capacity
The X90E's 8,000 lb rating provides ample capacity for heavier modern SUVs, full-frame vehicles, and light trucks. This robust rating enables mixed-fleet shops and home mechanics to handle a wider range of vehicles on a single mid-rise platform without requiring a full-rise system.

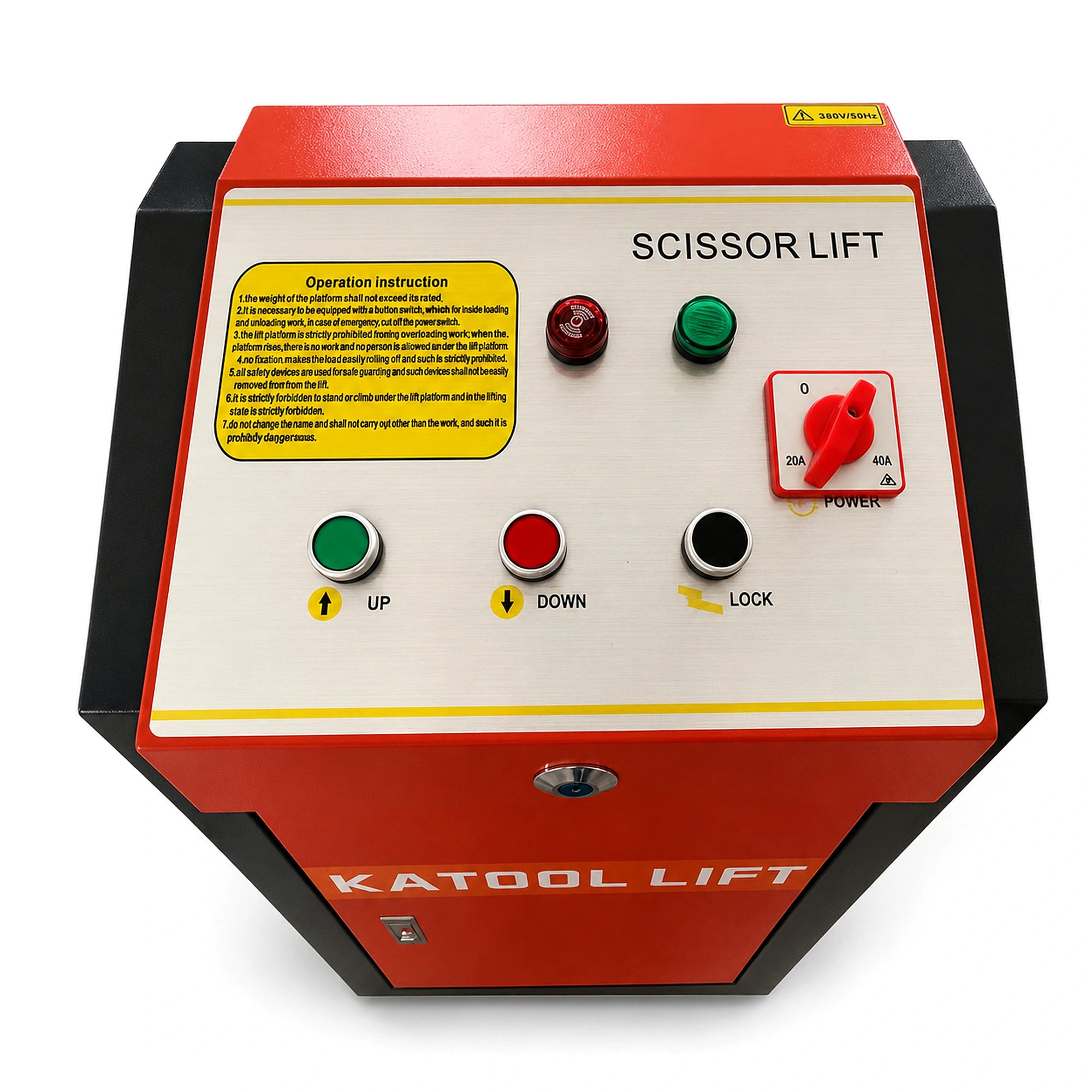

Electric Safety Release with 24V Control
The lift utilizes an electric safety release powered by a 24V low-voltage control circuit, eliminating the need for shop compressed air. The system automatically engages locks during ascent and provides precise, safe descent control without manual lock bar manipulation.

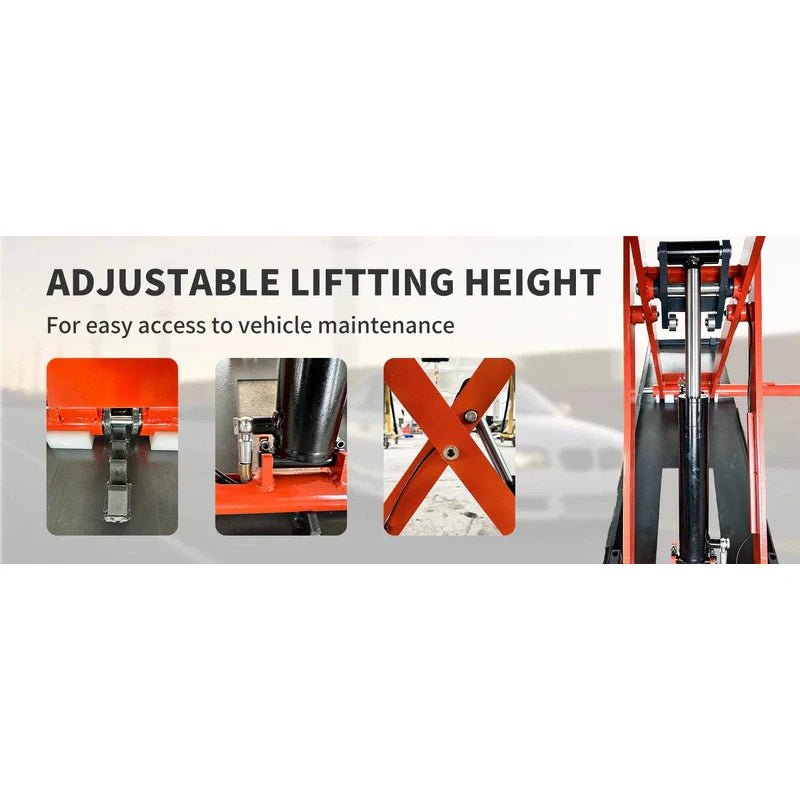

5-Position Mechanical Safety Locks
Features 5 mechanical lock positions that engage automatically as the platform rises. Each position independently secures the load, ensuring safety for intermediate-height work such as oil changes, chassis cleaning, and undercarriage inspections.
110V Electric Operation
Operates on standard 110V single-phase power requiring a 30A dedicated circuit. This compatibility makes the X90E easy to install in residential garages and commercial facilities without the need for expensive high-voltage electrical upgrades.
CE Certification with Documented Load Testing
The X90E carries CE certification with verified testing to 115% dynamic load and 150% static load. These documented test margins provide transparent safety verification for commercial insurance requirements and regulatory compliance.
Included Mobility Caster Kit
The unit ships with a heavy-duty caster kit featuring rollers and locking arms. This allows the lift to be easily repositioned when unloaded to reclaim floor space—ideal for small garages or multi-use service bays.
Product Demonstration
Applications
- Automotive Service: Brake work, suspension service, tire rotations, and oil changes on vehicles up to 8,000 lb.
- Exhaust & Underbody Work: Provides sufficient clearance for exhaust repairs and component replacement.
- Detailing & Inspection: Ideal for undercarriage detailing, corrosion inspection, and leak diagnosis.
- Commercial Shops: Complements full-rise systems in tire/wheel service bays.
- Home Garage Use: Perfect for DIY facilities with low ceilings where full-rise lifts are impractical.

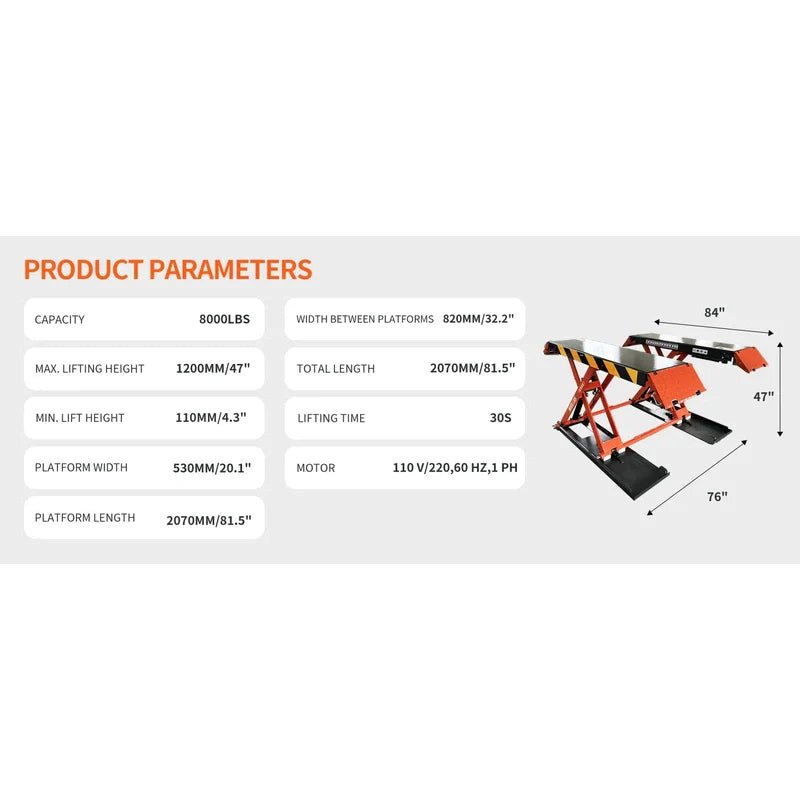

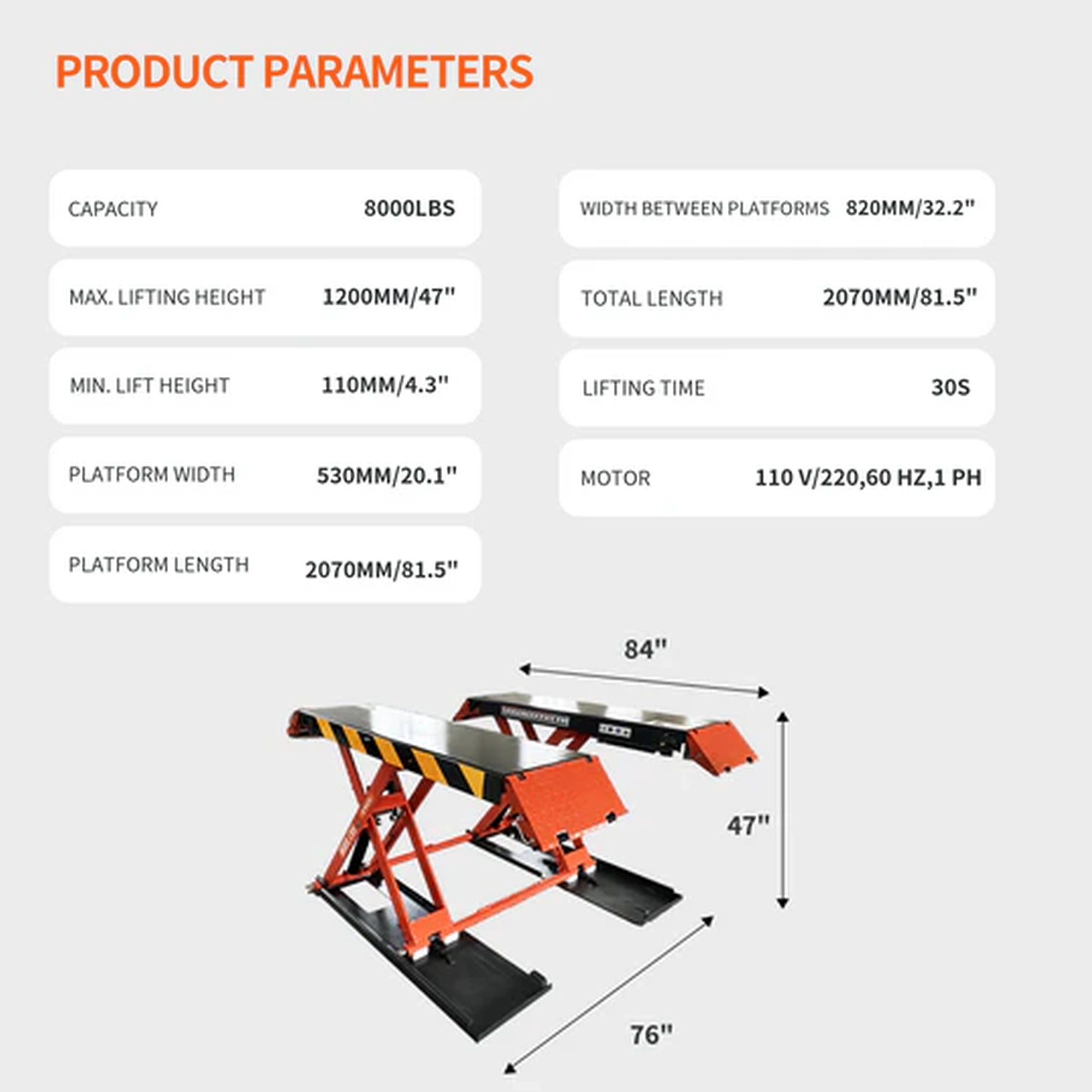

Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 8,000 lb (3,629 kg) |

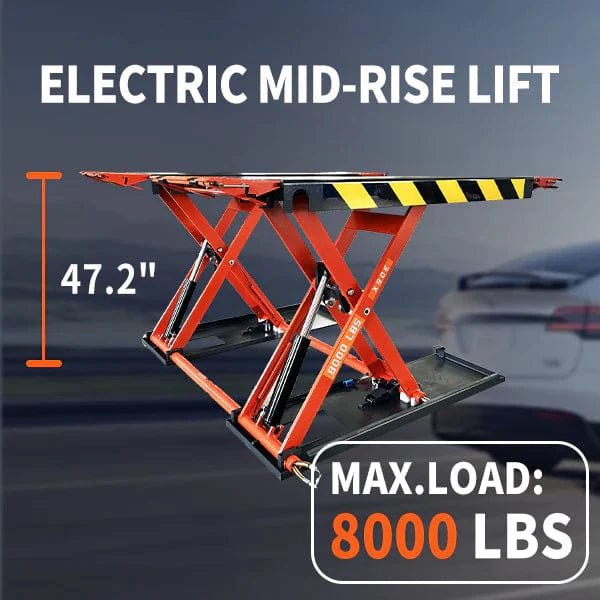

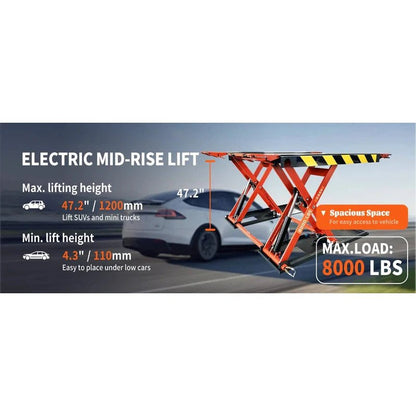

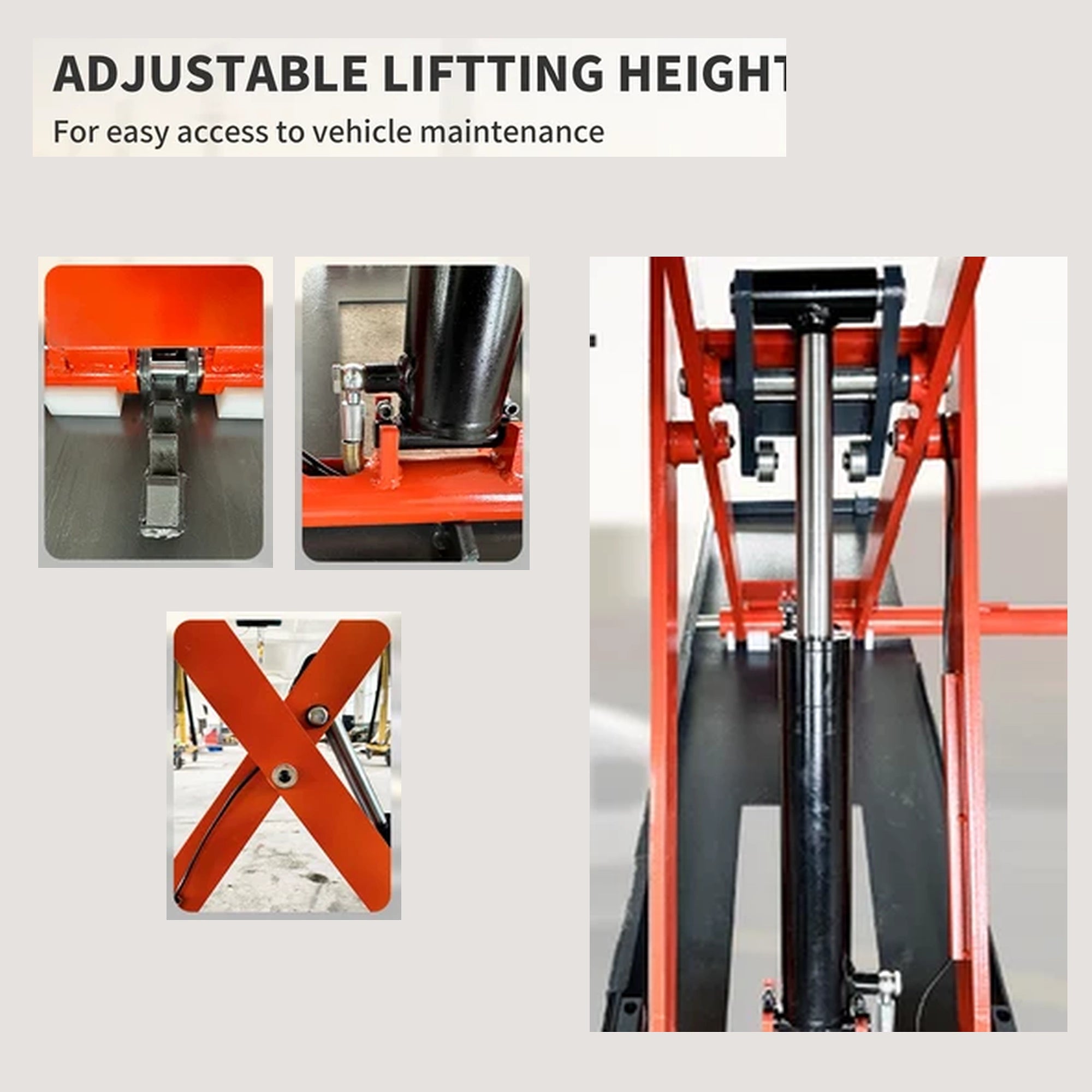

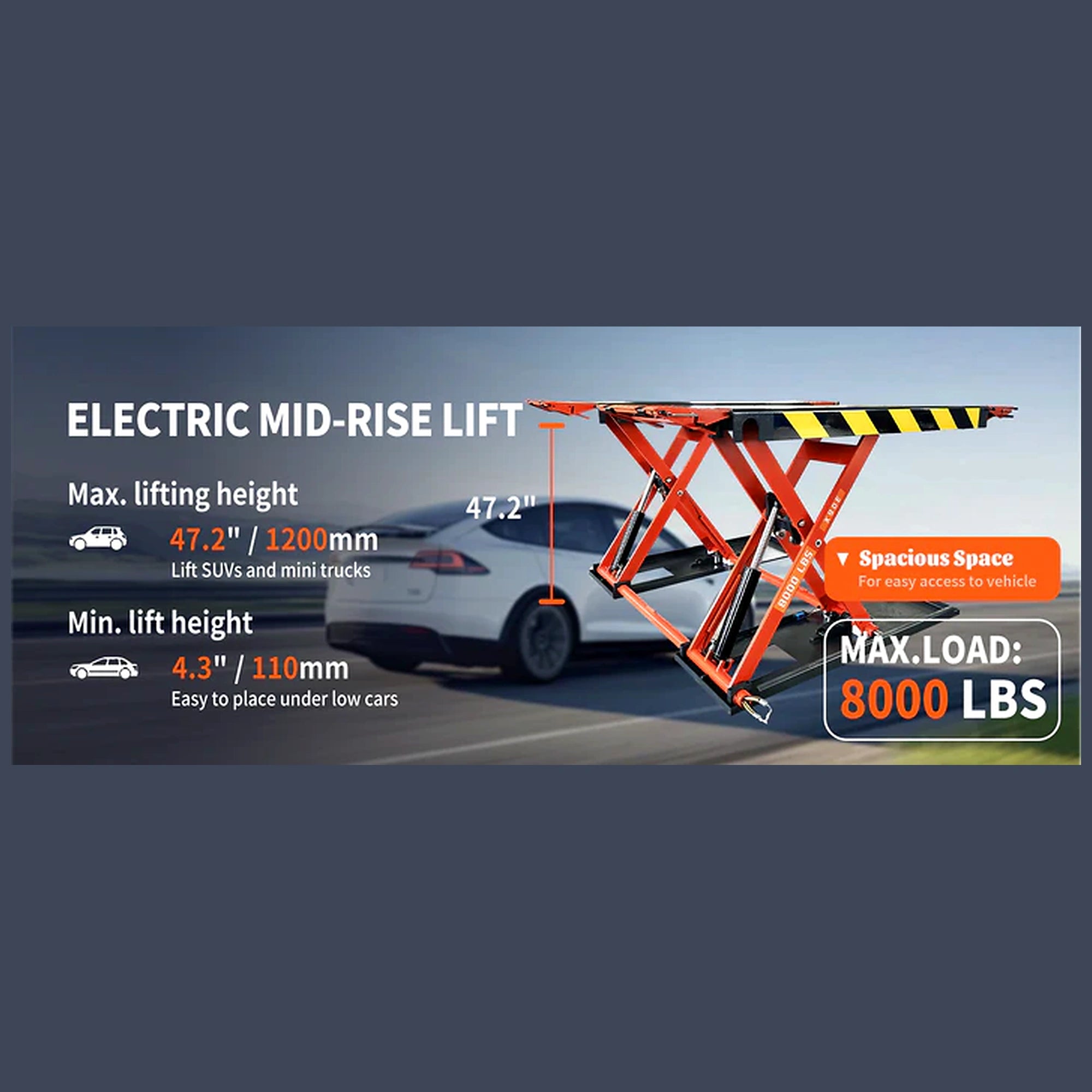

| Maximum Lift Height | 47 inches (1,200 mm) |
| Minimum Collapsed Height | 4.3 inches (110 mm) |
| Rise Time | 30 seconds |
| Mechanical Lock Positions | 5 positions |
| Specification | Value |
|---|---|
| Overall Length | 81.5 inches (2,070 mm) |
| Platform Width | 20.1 inches (510 mm) |
| Width Between Platforms | 32.2 inches (820 mm) |
| Lift Type | Mid rise electric scissor lift |
| Specification | Value |
|---|---|
| Voltage | 110V, 60 Hz single-phase |
| Recommended Circuit | 30A dedicated |

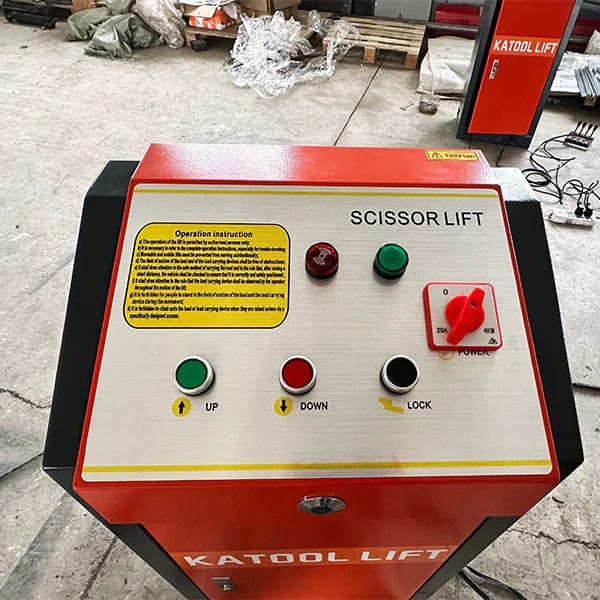

| Control Circuit | 24V low-voltage |
| Safety Release | Electric (no compressed air) |

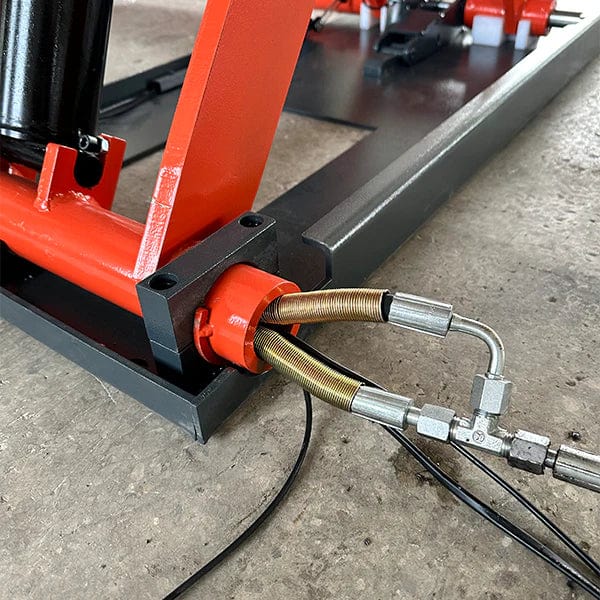

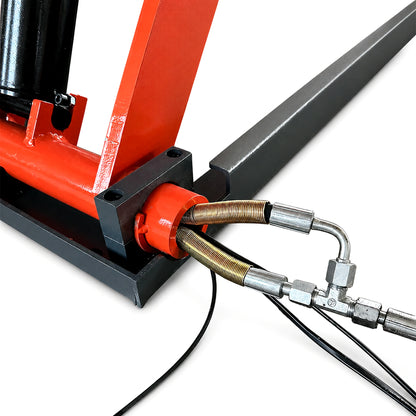

| Hydraulic Pressure | 20 MPa |
| Hydraulic Oil | AW-46 or AW-32 |
| Specification | Value |
|---|---|
| Certification | CE-approved |
| Dynamic Load Testing | 115% of rated capacity |
| Static Load Testing | 150% of rated capacity |
| Height Limit Switch | Included |

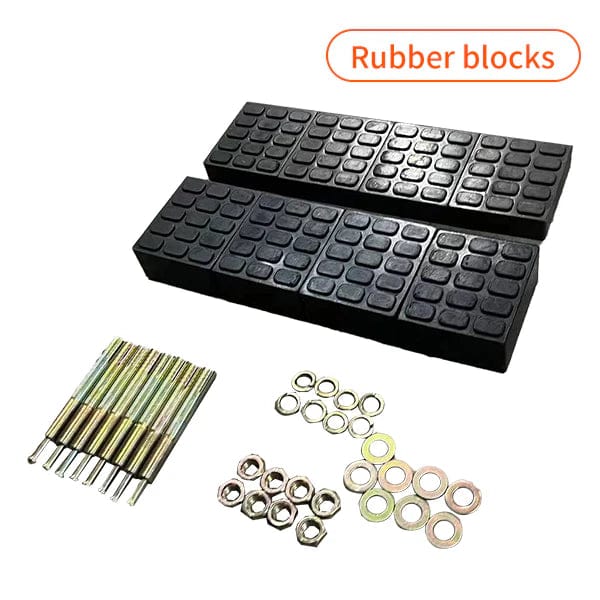

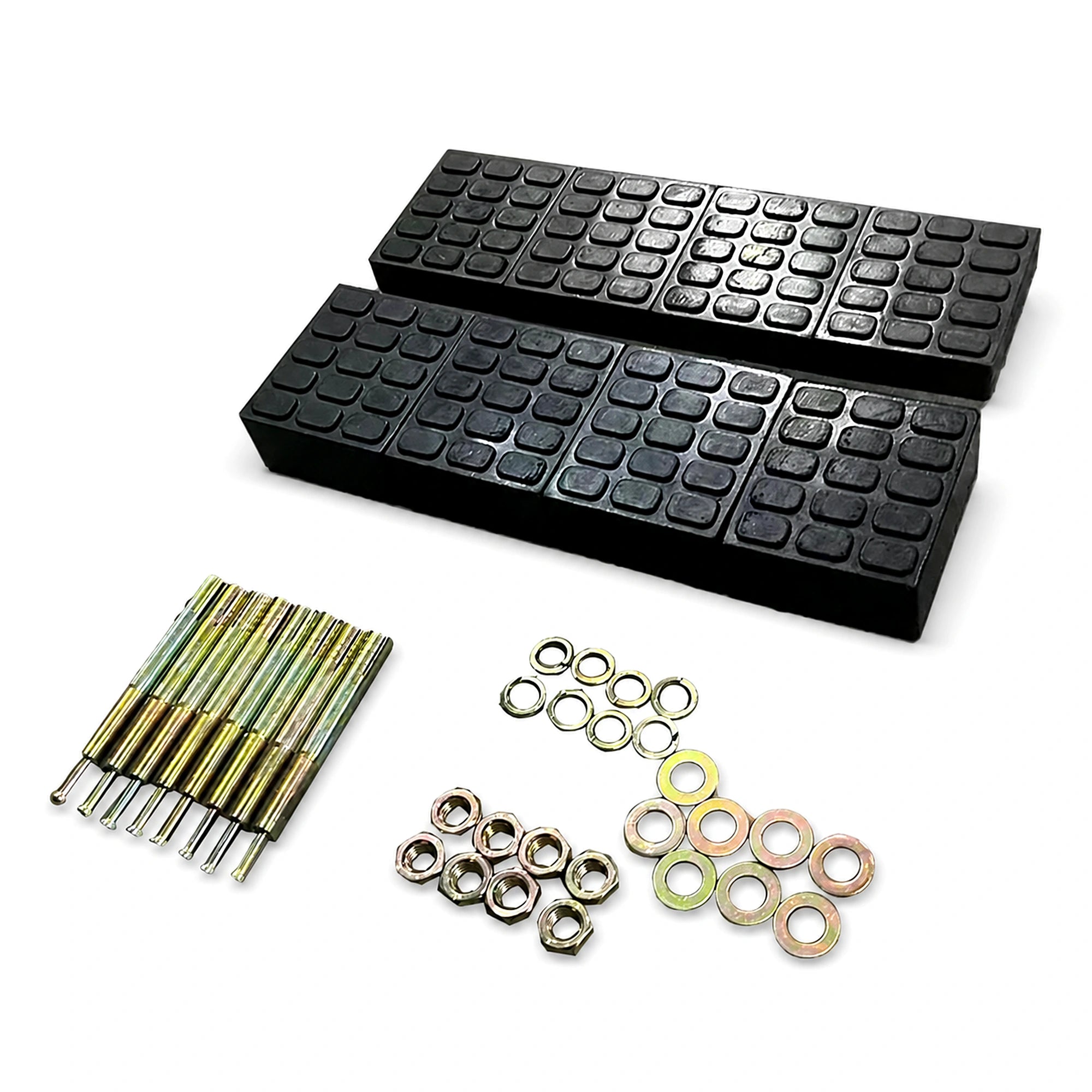

| Lifting Blocks | Composite rubber pads (included) |
Installation Requirements
Foundation
- Floor: Flat, stable concrete in good condition.
- Surface Prep: Concrete must be free of cracks or soft spots.
- Anchoring: Use supplied hardware per manufacturer specifications.
Electrical
- Power: 110V single-phase, 60 Hz.
- Circuit: 30A dedicated circuit required.
- Grounding: Dedicated circuit with proper breaker protection; no extension cords.
Utilities
- Compressed Air: Not required.
- Hydraulic Oil: AW-32 or AW-46 supplied by customer (approx 2-3 gallons).
User Manual
Download Katool X90E User Manual (PDF)
Complete installation instructions, electrical diagrams, parts list, and maintenance guidelines.
Shipping & Delivery
Freight Details
Method: LTL freight on pallets. Shipping included to commercial addresses in lower 48 states.
Residential Delivery: Additional surcharges may apply for residential or liftgate service.
Timeframe: 7-10 business days typical.
Receiving
Unloading: Forklift or loading dock required. Buyer is responsible for unloading.
Inspection: Check all packages for visible damage before signing the bill of lading.
Damage Claims
Within 15 Days: 100% coverage for replacement parts and freight.
15-30 Days: Partial coverage (shared cost).
Warranty
Coverage
1 Year: All parts and components against manufacturing defects.
3 Years: Structural components including frame and platforms.
Requirements: Proof of purchase and proper installation required.
Questions?
Get help with product selection, installation planning, or technical specifications for your shop or home garage.
Frequently Asked Questions
What is the maximum capacity?
8,000 lb (3,629 kg), suitable for cars, SUVs, and light trucks.
What's the lift height and collapsed height?
47 inches maximum lift height, 4.3 inches collapsed. Ideal as a car lift for small garage or low-ceiling environments where full-rise lifts won't fit.
What electrical service does it need?
110V single-phase with a 30A dedicated circuit. Compatible with upgraded residential service, making it suitable as a scissor lift for home garage installation.
Does it require compressed air?
No. The electric safety release eliminates shop air requirements entirely.
What are the concrete requirements?
Flat, stable concrete floor. Consult the installation manual for exact requirements for your facility.
What's included?

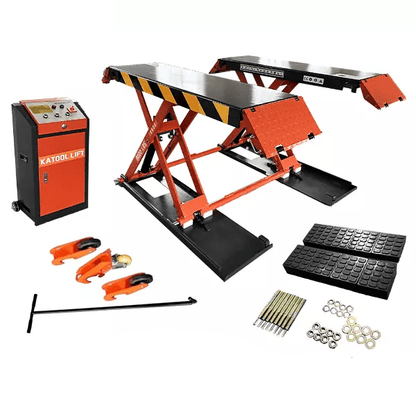

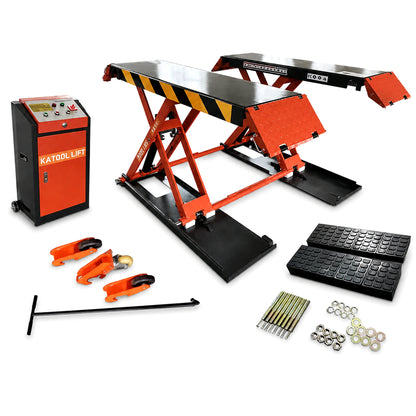

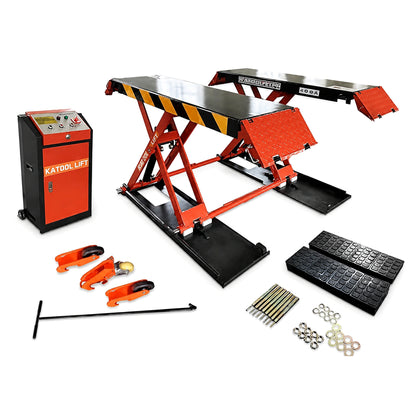

Mid rise scissor lift assembly, hydraulic power unit, rubber lifting blocks, caster mobility kit, anchoring hardware, and manual. Hydraulic oil (AW-32 or AW-46) sold separately.
What's the warranty?
1-year parts coverage plus 3-year structural warranty on frame and platforms. Labor not included.
Is this suitable for low-ceiling garages?
Yes. The 4.3 inch collapsed height allows most vehicles to drive on easily, and the 47 inch max height works in standard-height garages where full-rise lifts are impractical. The included caster kit lets you reposition the lift to maximize space.
