Katool RL-8500 - Wheel Cutting & Brake Disk Repair Lathe Machine
Katool RL-8500 - Professional Combination Brake Lathe with DC Servo Motor Technology

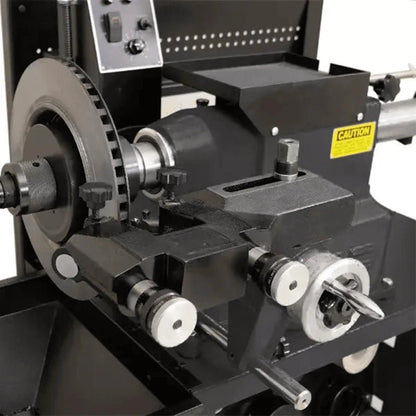

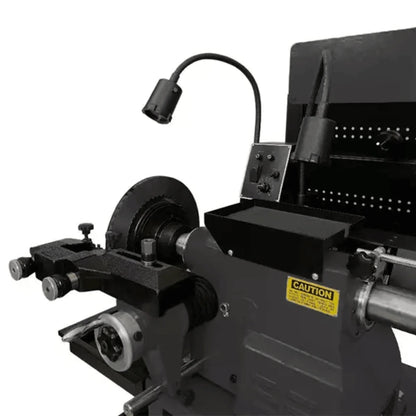

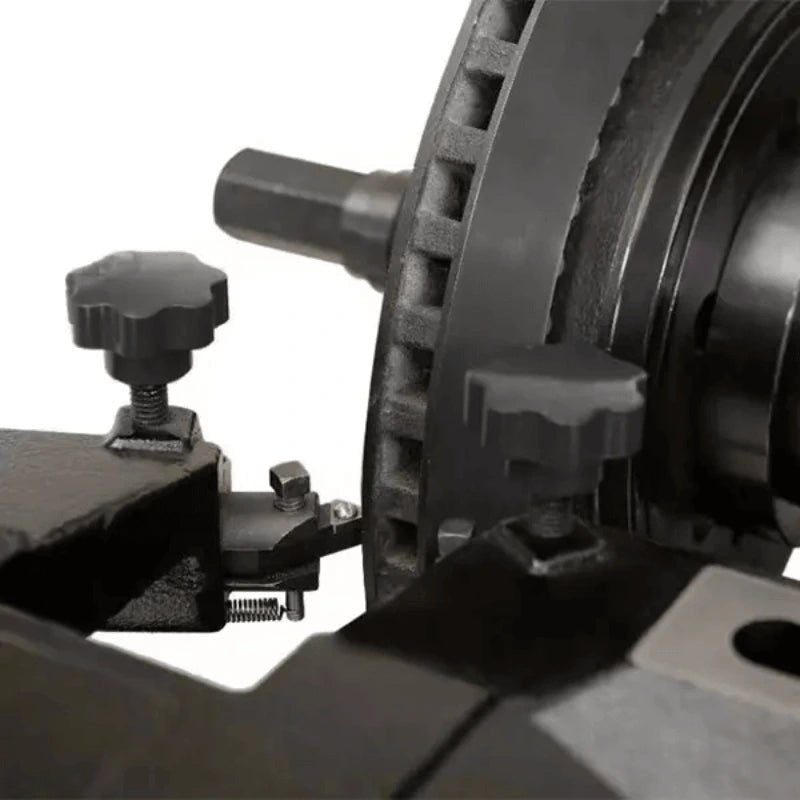

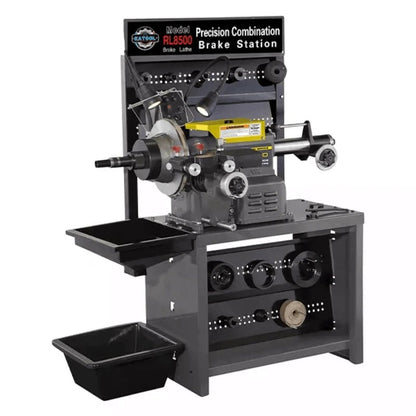

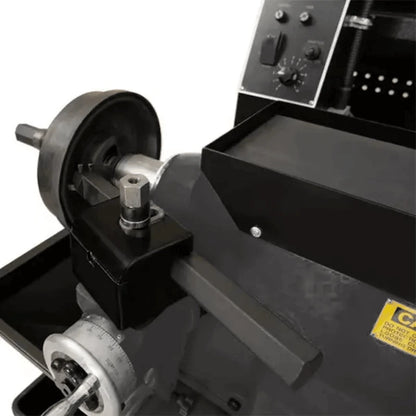

The Katool RL-8500 is a professional combination bench brake lathe engineered for automotive repair shops to resurface brake rotors, drums, and flywheels. Utilizing independent DC servo motors, this gearless design eliminates traditional mechanical transmissions to reduce vibration. The machine accommodates both standard and composite rotors through a Quick-Change Adapter-Plus system with comprehensive adapter package coverage.
Key Features & Benefits
Gearless DC Servo Motor Architecture
The RL-8500 employs independent DC servo motors for both cross-feed and spindle-feed drives, completely eliminating mechanical gearboxes, belts, and transmission systems. This direct-drive architecture removes wear-prone components and provides vibration-free power delivery for smoother rotor finishes.
Infinitely Variable Feed Rate Control
The servo motor system delivers continuous adjustment of cutting speeds rather than fixed gear settings. Technicians can fine-tune feed rates anywhere within the operating range to optimize parameters for aggressive rough cuts or precision finish passes without stopping the machine.
Quick-Change Adapter-Plus System
The Quick-Change Adapter-Plus system features integrated spring mechanisms that eliminate conventional bell clamps and centering cones. Adapters install with simple quarter-turn movements, securing rotors and drums with automatic spring-loaded centering that compensates for minor variations in hub dimensions.
Comprehensive Composite & Standard Rotor Compatibility
The included adapter package covers standard rotors with center holes from 2-5/32 to 4 inches and composite rotors with center holes from 4 to 6.25 inches. This dual-range capability handles domestic and foreign passenger car and light truck applications without requiring additional adapter purchases.

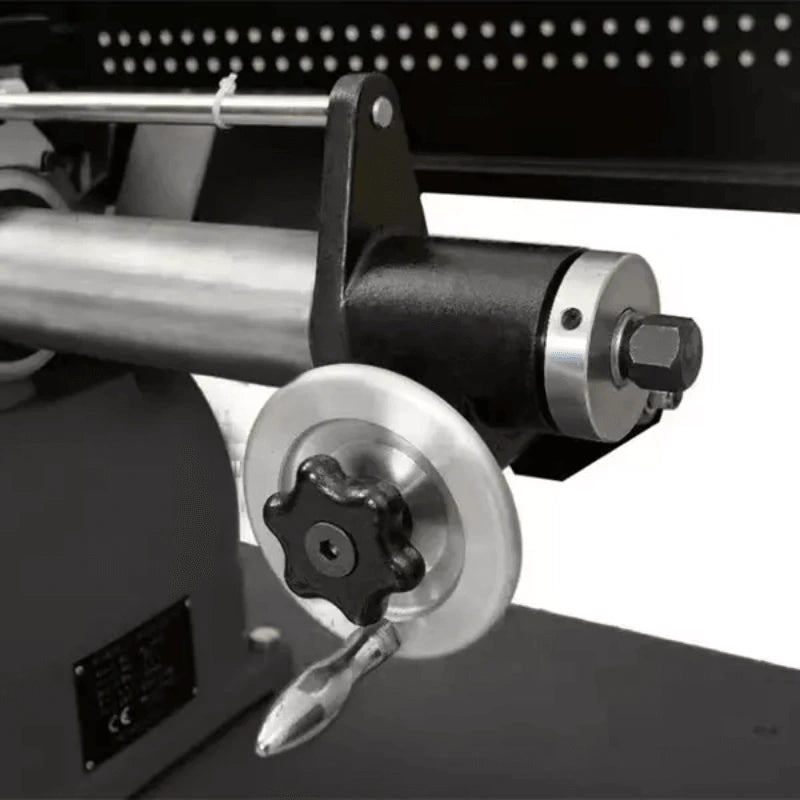

Tapered Spindle Bearing System
The RL-8500 utilizes massive tapered spindle bearings rather than standard cylindrical bearings. This distributes radial and axial loads across a larger contact area, providing superior stability and rigidity when machining heavy truck drums approaching the 28-inch capacity.
Applications & Use Cases
- Automotive Repair Shops: Rotor and drum resurfacing for domestic and foreign vehicles.
- Fleet Maintenance: High-volume drum reconditioning for commercial fleets.
- Performance Shops: Composite rotor resurfacing for European imports.
- Machine Shops: Flywheel resurfacing for engine rebuilds and clutch service.
- Heavy Equipment Repair: Brake drum machining for light commercial equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Rotor Thickness | 2.5 inches (64 mm) |
| Maximum Rotor Diameter | 17 inches (432 mm) |
| Brake Drum Diameter Range | 6-28 inches (152-711 mm) |
| Standard Rotor Center Hole | 2-5/32 to 4 inches (54-102 mm) |
| Composite Rotor Center Hole | 4 to 6.25 inches (102-159 mm) |
| Feature | Description |
|---|---|
| Motor Type | Independent DC servo motors |
| Drive Architecture | Gearless/transmission-free design |
| Feed Rate Control | Infinitely variable |
| Spindle Bearings | Tapered spindle bearings |
Installation Requirements
Mounting & Power
- Bench Mounting: Requires installation on a solid, stable workbench.
- Power: Single-phase electrical supply required. Consult manufacturer for exact specs.
- Installation: Professional installation recommended.
Documentation
Instruction Manual: Download the Katool RL-8500 Instruction Manual (PDF)
Shipping & Delivery
Freight Coverage
Shipping: Freight/LTL shipping required. Free shipping often available.
Delivery: 7-10 business days typical. Options include commercial delivery, terminal pickup, or residential (additional fees).
Warranty Coverage
Standard Warranty
1-Year (12 Months): Covers defects in parts, motors, and electronics.
Coverage: Free replacement parts for manufacturing defects.
Extended Warranty
Optional 2-Year: Available for purchase to extend coverage.
Ready to Upgrade Your Brake Service?
Get expert guidance on the Katool RL-8500 brake lathe. Call to verify included accessories and technical specifications for your shop.
Frequently Asked Questions
What sizes does the RL-8500 handle?
The RL-8500 handles rotors up to 17 inches diameter and 2.5 inches thick, and brake drums from 6 to 28 inches diameter.
Is an adapter package included?
Yes, the unit includes a comprehensive adapter package covering both standard and composite rotor applications, along with the Quick-Change Adapter-Plus system.
What are the electrical requirements?
The machine requires a single-phase electrical power supply. Contact the manufacturer or authorized dealer for specific voltage and amperage requirements.
Can it handle composite rotors?
Yes, the included adapter package is specifically designed to accommodate composite rotors with center holes from 4 to 6.25 inches.
How does the gearless design help?
The DC servo motor system eliminates mechanical gearboxes and belts, removing wear-prone parts and reducing vibration for smoother cuts and lower maintenance.
What is the warranty?
The RL-8500 comes with a standard 1-year manufacturer warranty covering defects in parts, motors, and electronics.
