Katool KT-YA260 - Auto Body Frame Machine (50 kN, Portable, Hydraulic)
- Authorized Online Dealer direct manufacturer relationship
- No Sales Tax outside PA where applicable
- Authorized Dealer Price Match verification required
- Fast Delivery some products may have lead times
- Manufacturer Warranty included with purchase
- Questions? +1 (855) 498-2147

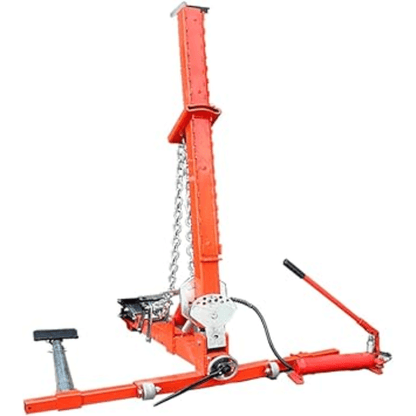

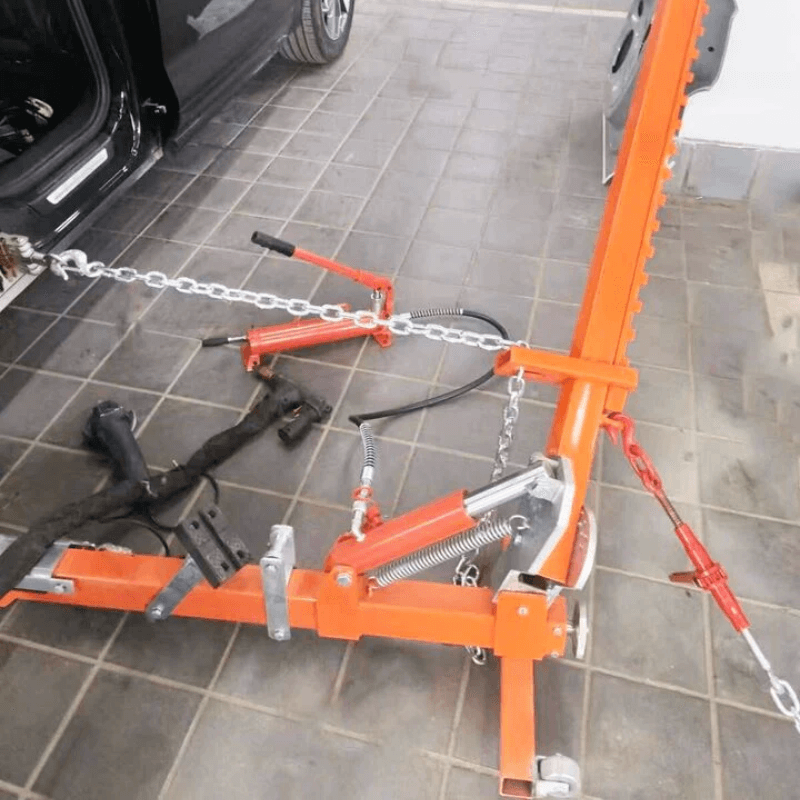

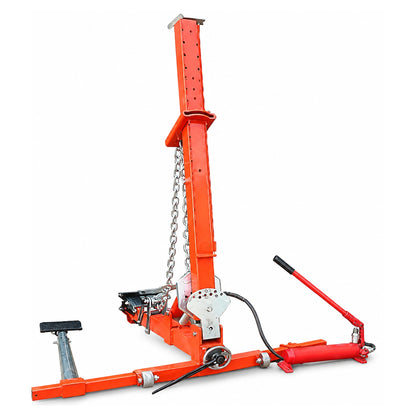

Katool KT-YA260 50 kN Portable Auto Body Frame Puller and Frame Straightener
The Katool KT-YA260 is a portable hydraulic frame straightener delivering 50 kN (11,240 lb) of pulling force through a self-contained manual hydraulic system at 70 MPa. Weighing 143 lb with a 39.6" x 25.6" x 35.4" footprint, this frame puller requires no external air or electrical connections and is built for single-operator collision repair.
Key Features & Benefits
Self-Contained Hydraulic System
No external air or power needed. The integrated manual hydraulic system delivers full 70 MPa pressure through a built-in pump, cylinder, and pull tower.
True portability. Move the KT-YA260 between bays or to mobile repair locations without tying into shop infrastructure.
Compact Professional-Grade Performance
50 kN pulling force in a small footprint. The 39.6" x 25.6" x 35.4" tower takes up far less space than full-size frame racks while delivering controlled, long-stroke pulls on unibody vehicles.
Store when not in use. Roll it out for collision jobs without dedicating permanent floor space.
Saw-Tooth Chain Precision

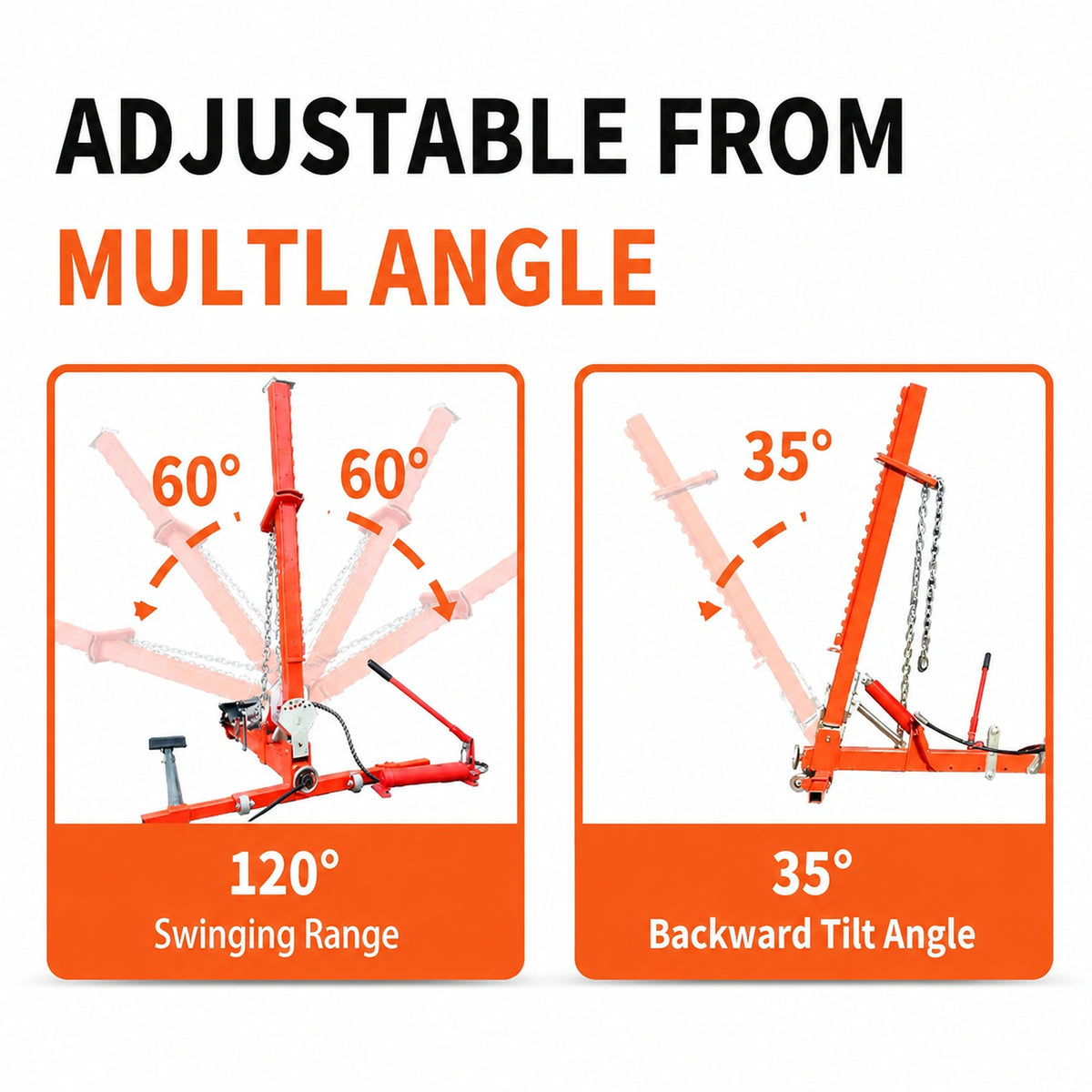

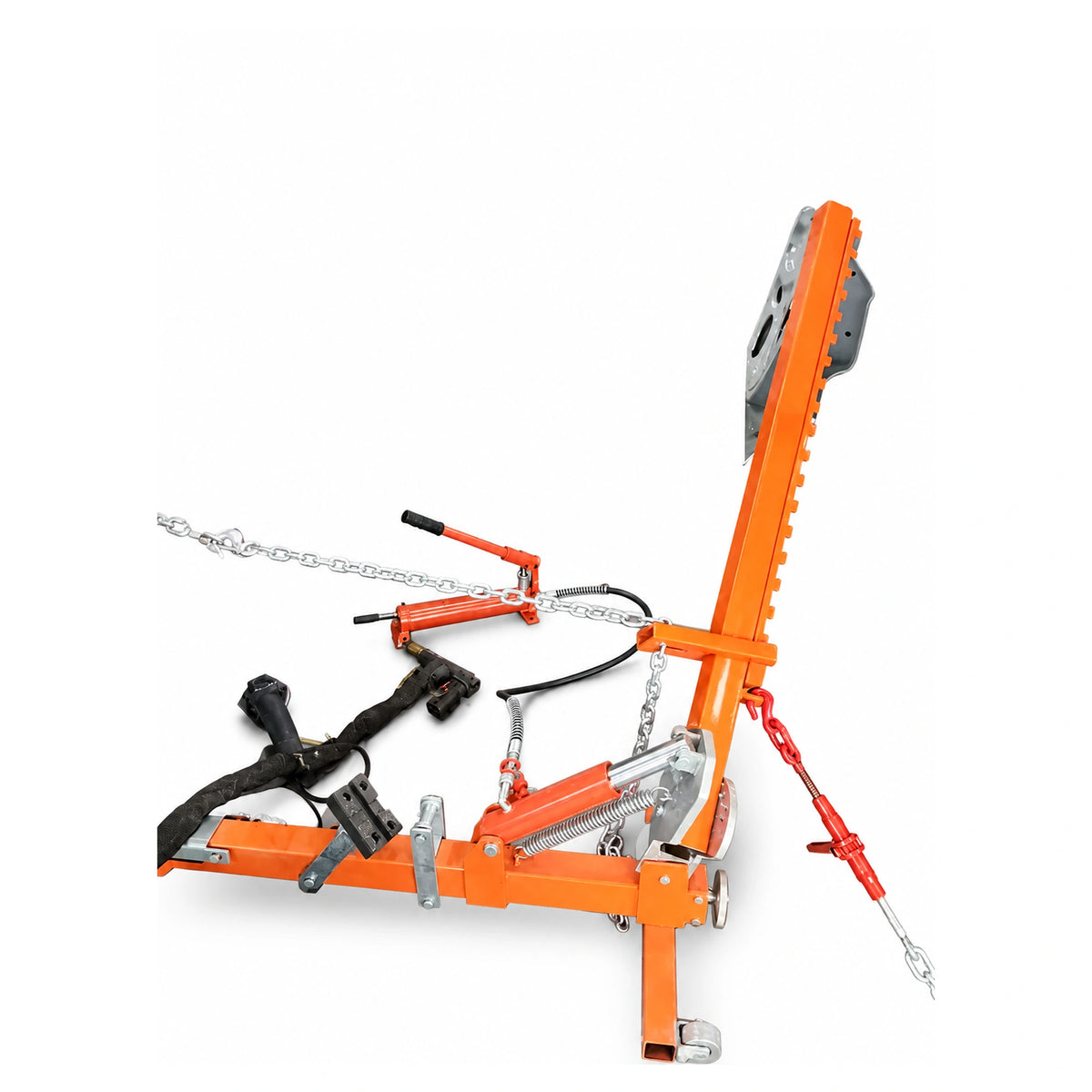

Micro-adjustable positioning. The saw-tooth chain locks at any point along its length — not just fixed pin locations — giving you fine control over pull direction and chain length.
Faster cycle times. Fewer reset-ups and more accurate geometry correction compared to basic portable pullers with coarse pin spacing.
Single-Operator Design
One tech handles the entire job. Ground anchoring, chain adjustment, and hydraulic pumping are all positioned for solo operation without a second set of hands.
Lower labor costs. Turn frame straightening work faster without adding headcount to each repair.
Heavy-Duty Steel Construction
Q235/Q245 structural steel. Welded tower and base handle full 50 kN loads repeatedly without flex.
3-year structural warranty. Built for years of daily use in professional collision environments.

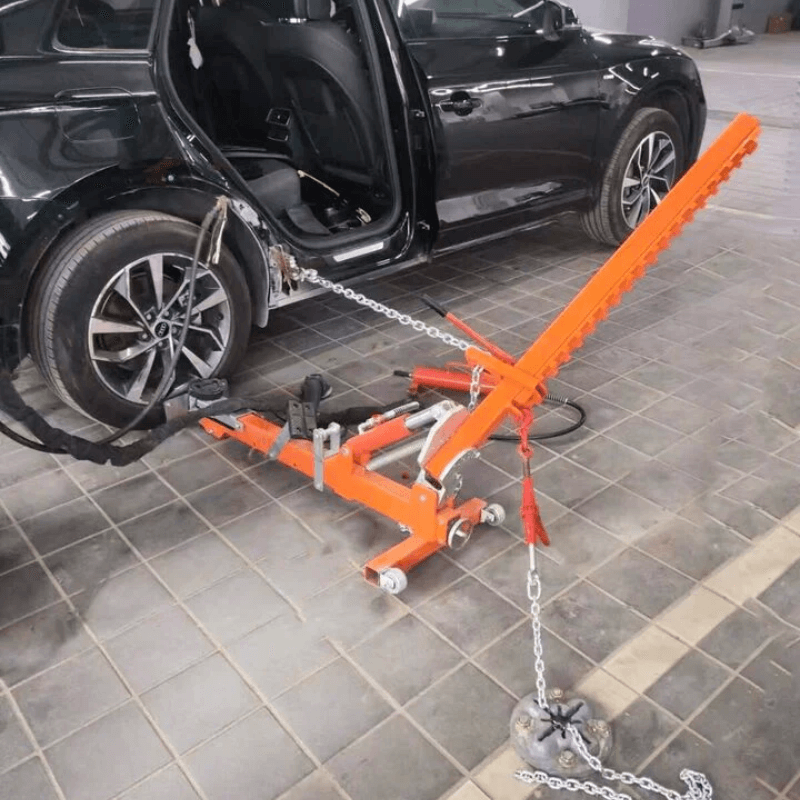

Product Demonstration
Applications & Use Cases

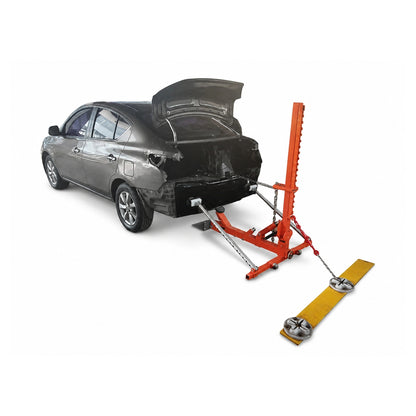

- Auto Body Shops: Sheet metal repair and frame alignment on passenger vehicles and light commercial applications
- Mobile Repair Operations: On-site collision repair requiring portable equipment without external power or air
- Small Independent Shops: Frame straightening for facilities with limited floor space
- Training Facilities: Hands-on instruction for collision repair techniques
- Insurance Adjustment Centers: Damage assessment and minor repair for repairability evaluations
Technical Specifications
For detailed setup and operation procedures, see the KT-YA260 instruction manual.
| Specification | Value |
|---|---|
| Hydraulic Pulling Force | 50 kN (11,240 lb) |
| Operating Pressure | 70 MPa (10,150 PSI) |
| Power Requirements | Manual hydraulic (none) |
| Air Requirements | None (self-contained) |
| Specification | Value |
|---|---|
| Length | 39.6 in (1,005 mm) |
| Width | 25.6 in (650 mm) |
| Height | 35.4 in (900 mm) |
| Weight | 143.3 lb (65 kg) |
| Construction | Q235/Q245 structural steel |
Installation Requirements
Foundation Requirements

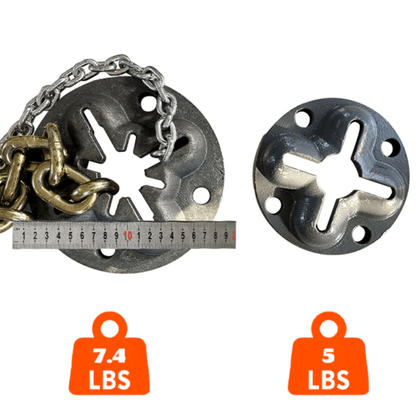

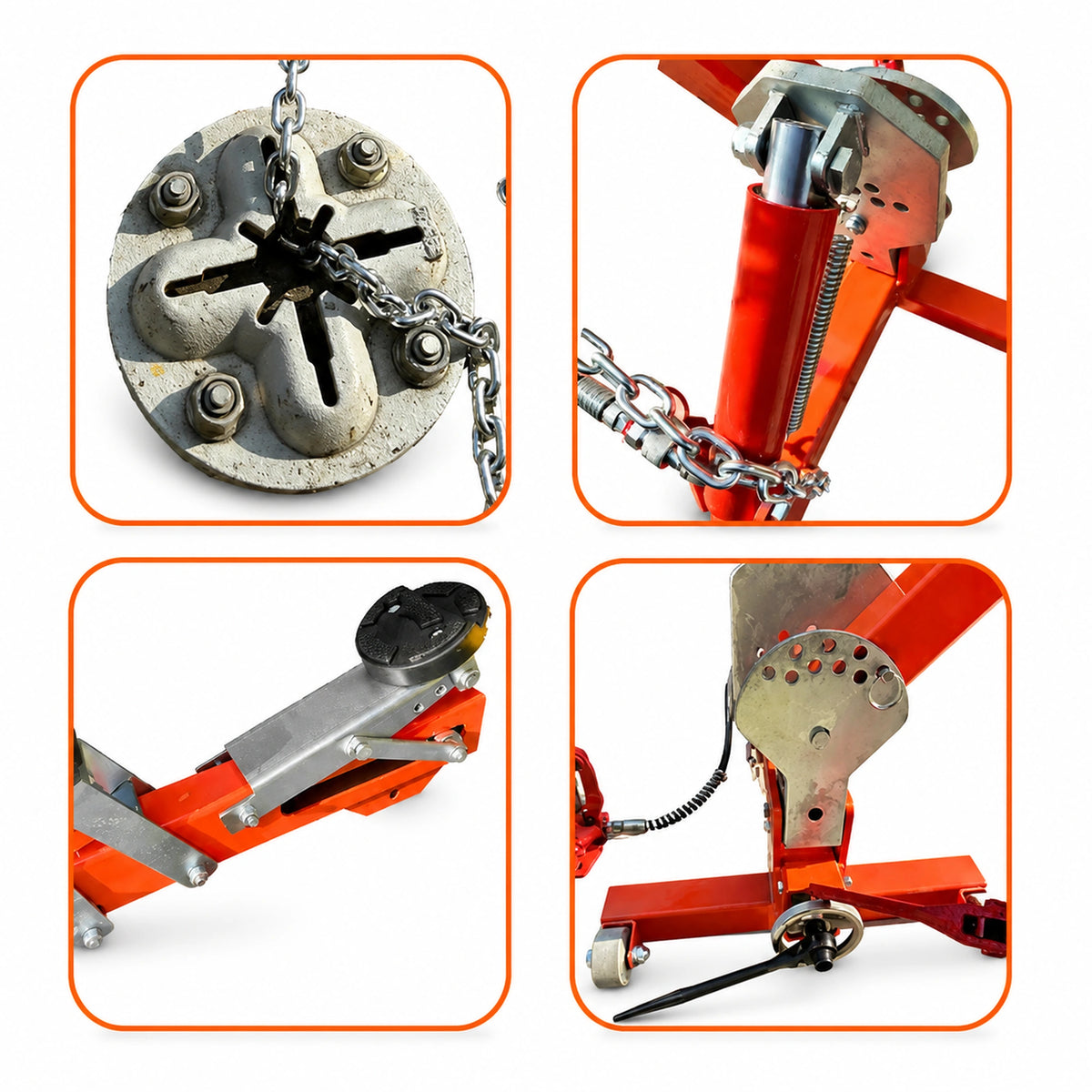

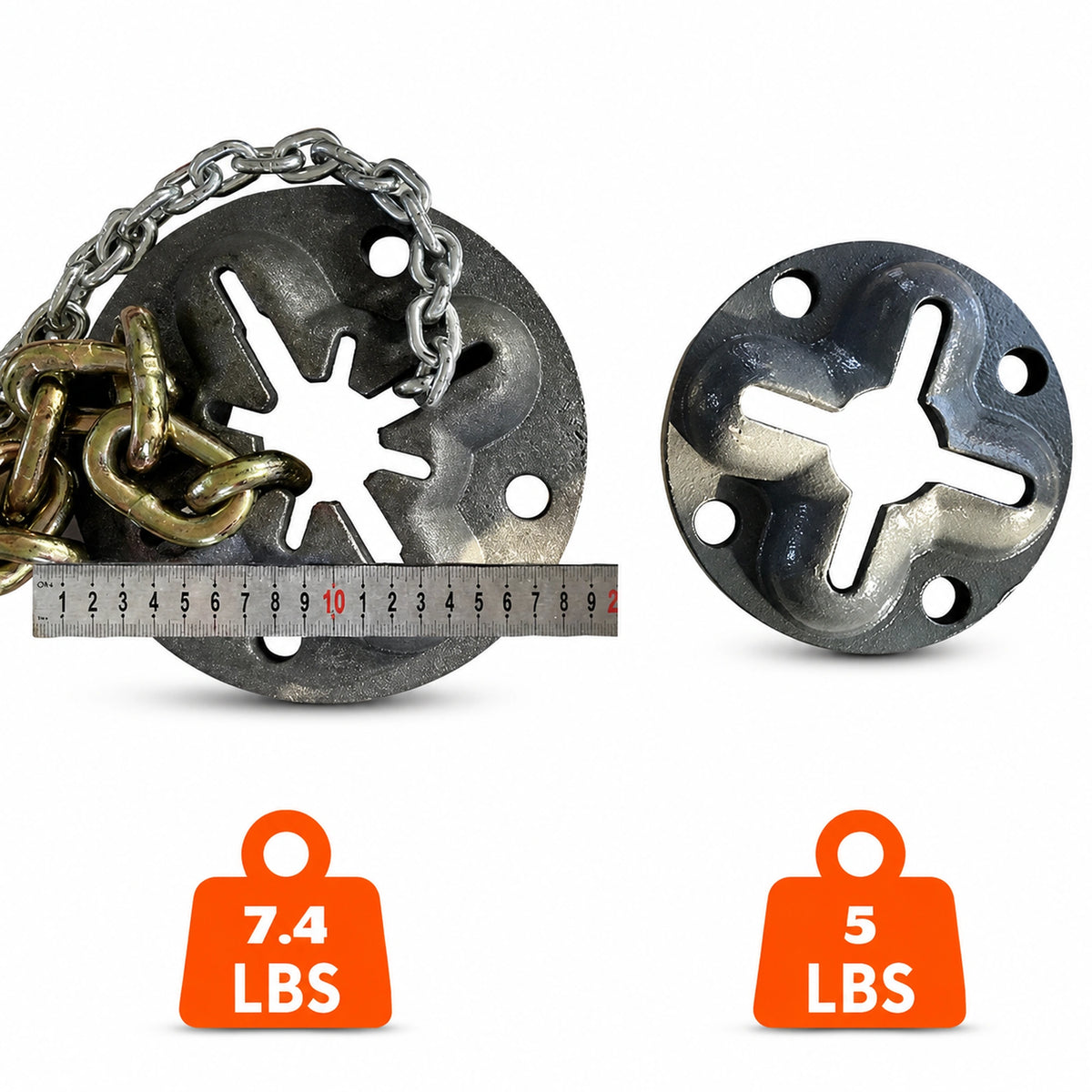

- Ground Anchors: Concrete floor with anchor seats for reaction system
- Working Area: Minimum 6' x 8' level surface
- Floor Condition: Level concrete capable of handling reaction forces
Installation Notes
- Power: No electrical, plumbing, or compressed air required
- Mobility: Position anywhere with ground anchor access
- Setup: Single technician can complete installation
Shipping & Delivery
Freight Coverage
Shipping: Freight to lower 48 US states included.
Delivery: Commercial addresses preferred; residential delivery may incur additional fees.
Unloading: Buyer responsible. Forklift or loading dock recommended.
Delivery Options
Standard: Curbside freight to accessible commercial locations.
Liftgate: Available at additional cost for locations without dock access.
Receiving: Inspect all packages before signing. Note visible damage on BOL before driver departs.
Warranty Coverage
Limited Warranty Program
1 Year – Parts: All components including cylinders, hydraulics, and mechanical parts
3 Years – Structural: Frame and structural components
Replacement Parts: Free shipping during warranty period
Warranty Requirements
Eligibility: Original purchaser with proof of purchase from authorized dealer
Claims: Subject to approval; photos or video may be requested
Coverage: Defects and manufacturing issues; labor not included
Ready to Upgrade Your Shop?
Questions about the KT-YA260? Our team can help with product selection, installation planning, and technical specs.
Frequently Asked Questions
What is the pulling capacity of the Katool KT-YA260?
The KT-YA260 delivers 50 kN (11,240 lb) of hydraulic pulling force at 70 MPa pressure. Sufficient for sheet metal and light structural repairs on passenger vehicles and light commercial applications.

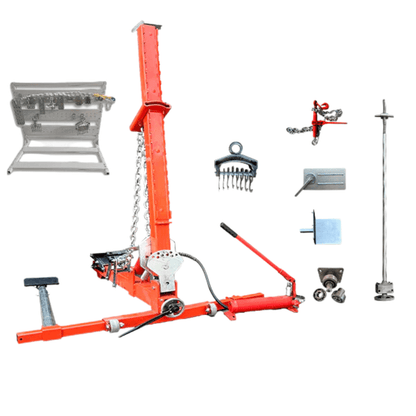

What accessories are included?

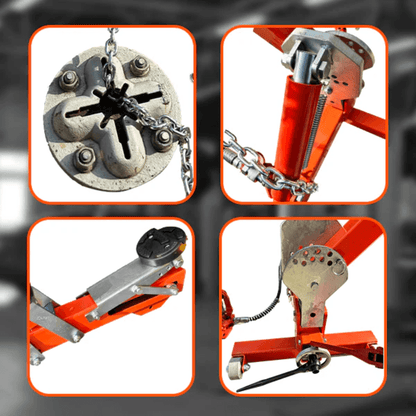

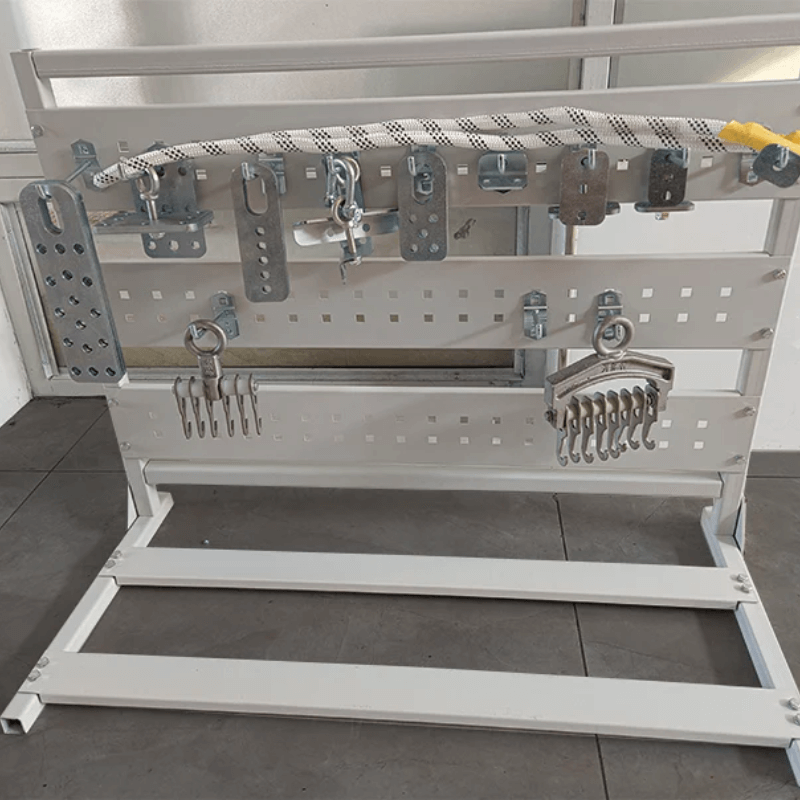

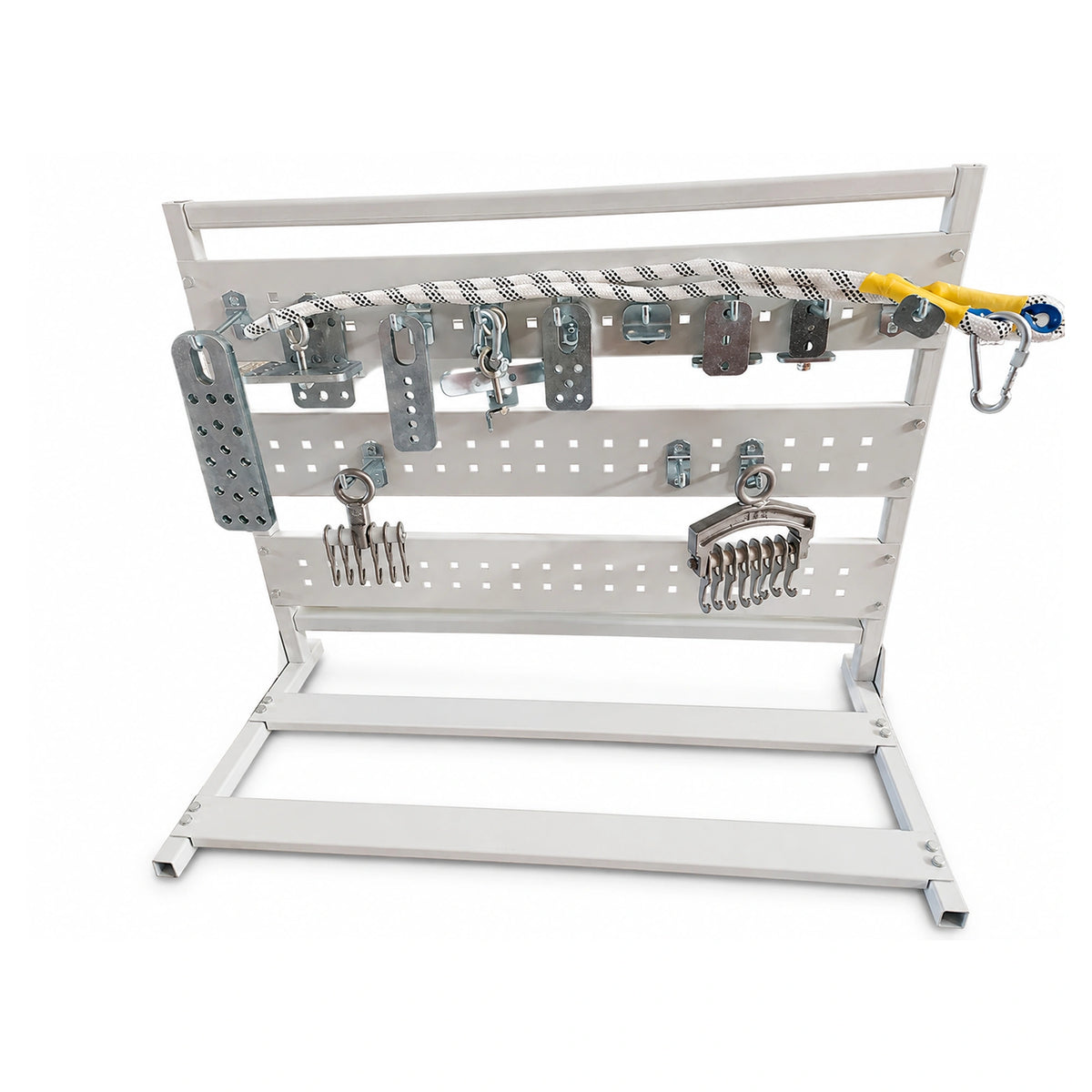

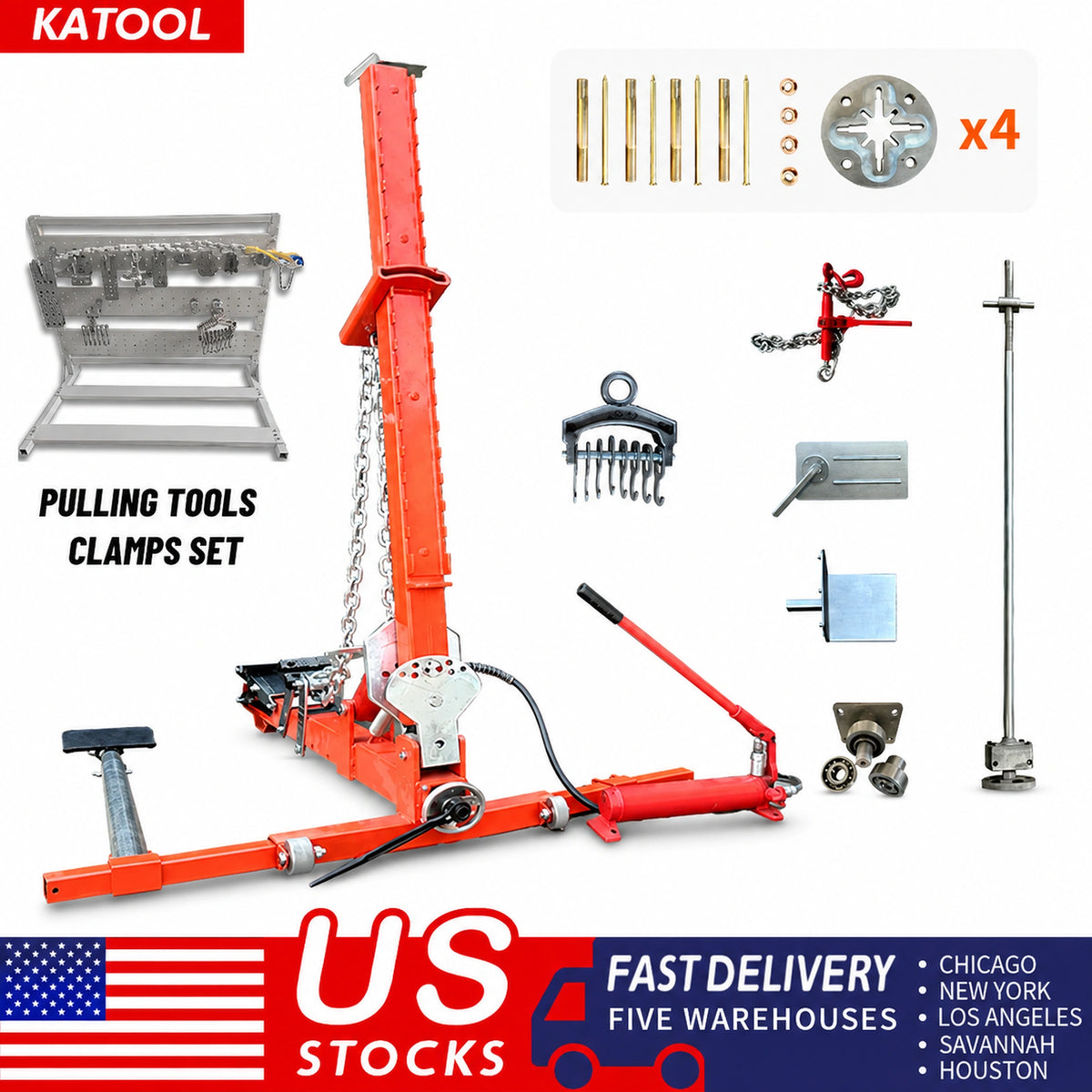

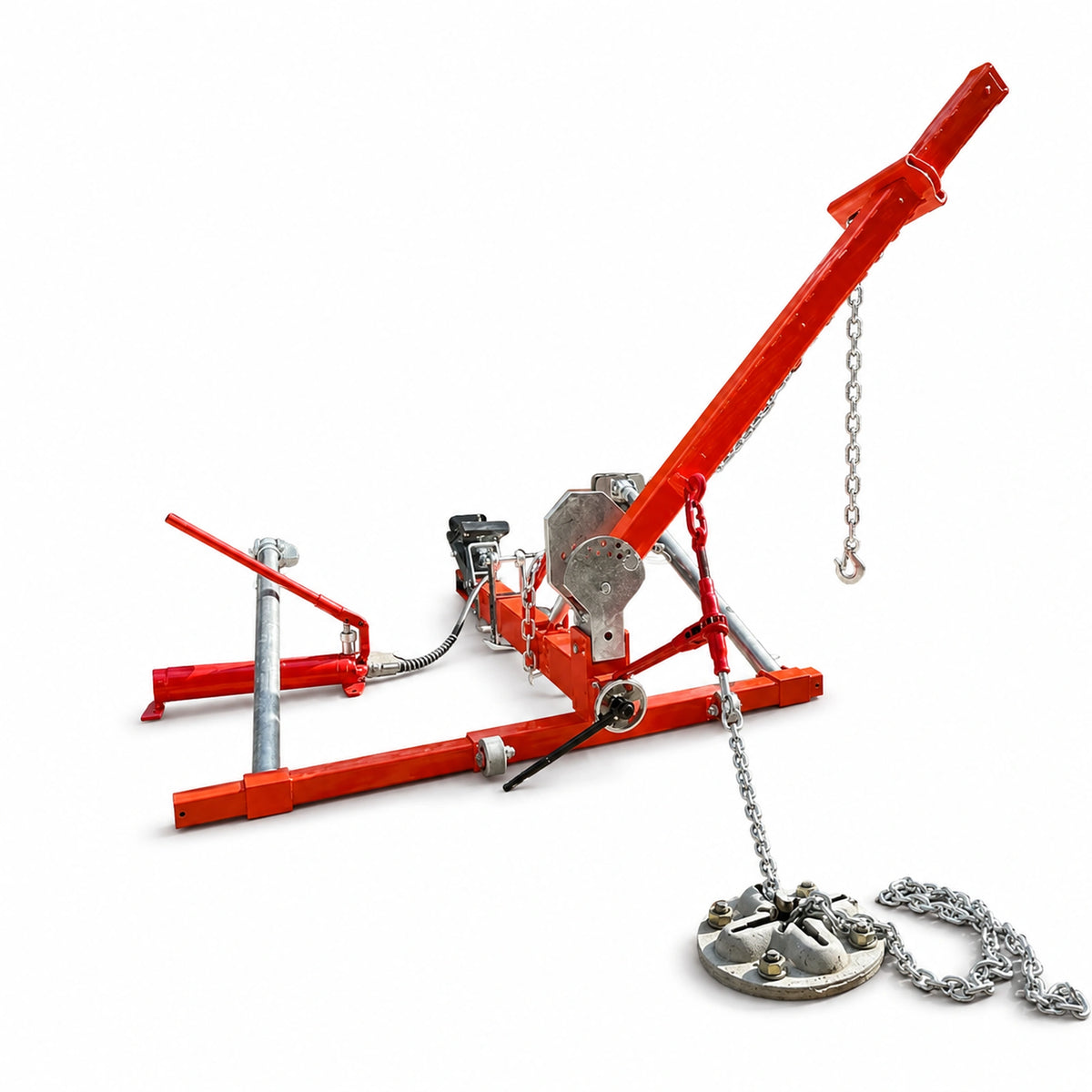

The unit includes the pulling tower with integrated hydraulic cylinder, saw-tooth chain system with locking mechanism, support frame, floor anchoring hardware, pulling chains, hooks, attachments, and operating manual.
What are the installation requirements?
Ground anchors in concrete floor, minimum 6' x 8' working area, and level concrete surface. No electrical, plumbing, or compressed air connections required.
What vehicles can be repaired with this frame straightener?

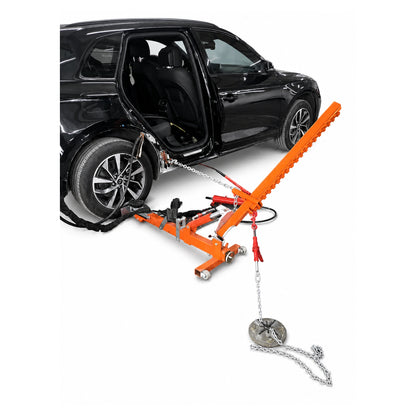

Designed for sedans, SUVs, and light trucks. Handles sheet metal repair, frame alignment, dent removal, and structural corrections on unibody vehicles.
Does it require an air compressor?
No. The KT-YA260 uses a self-contained manual hydraulic system that generates full 70 MPa pressure through the integrated hand pump.
What warranty coverage is provided?
1-year parts coverage on all components and 3-year structural warranty on frame construction. Free replacement parts shipping included.
Can one person operate the KT-YA260?
Yes. Setup, operation, chain adjustment, and force application are all manageable by one technician through ergonomic control placement.
What are the dimensions and weight?
39.6" L x 25.6" W x 35.4" H and 143.3 lb. Compact enough to store when not in use or move between bays.
