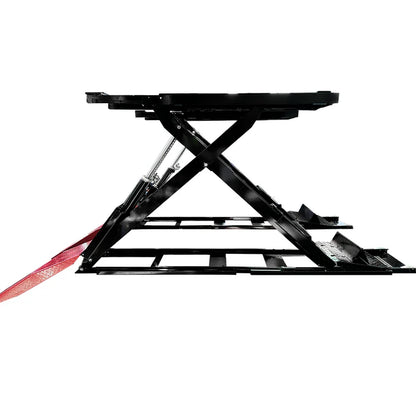

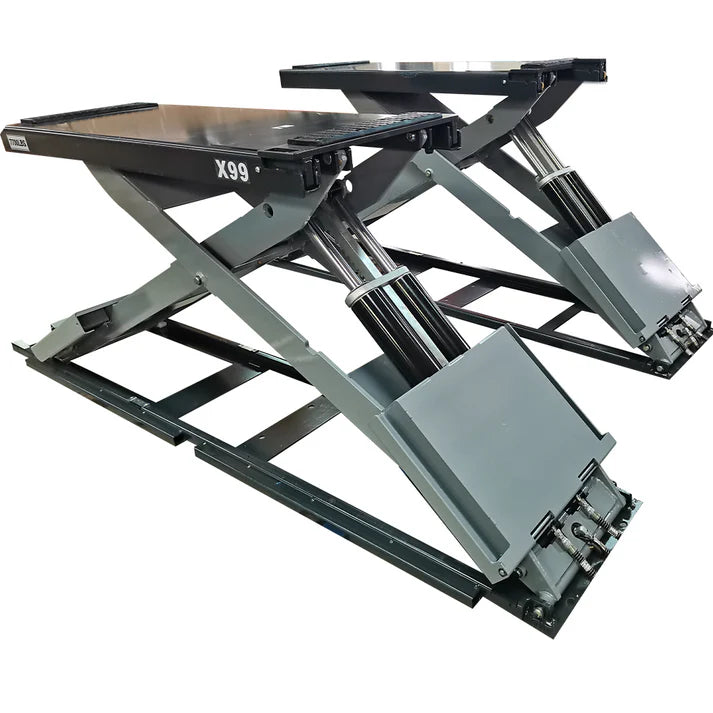

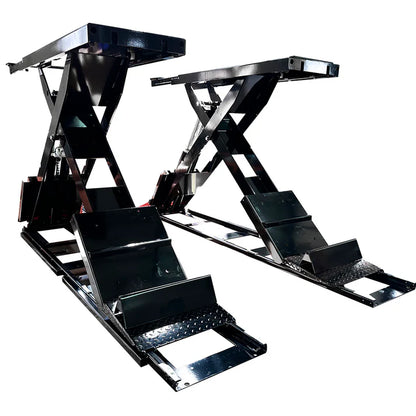

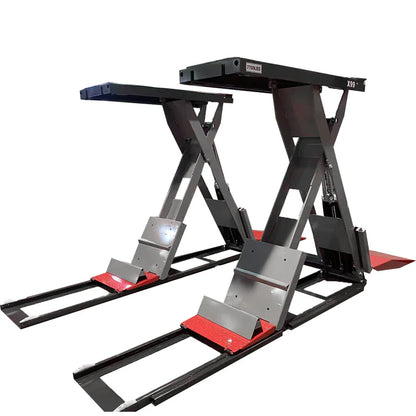

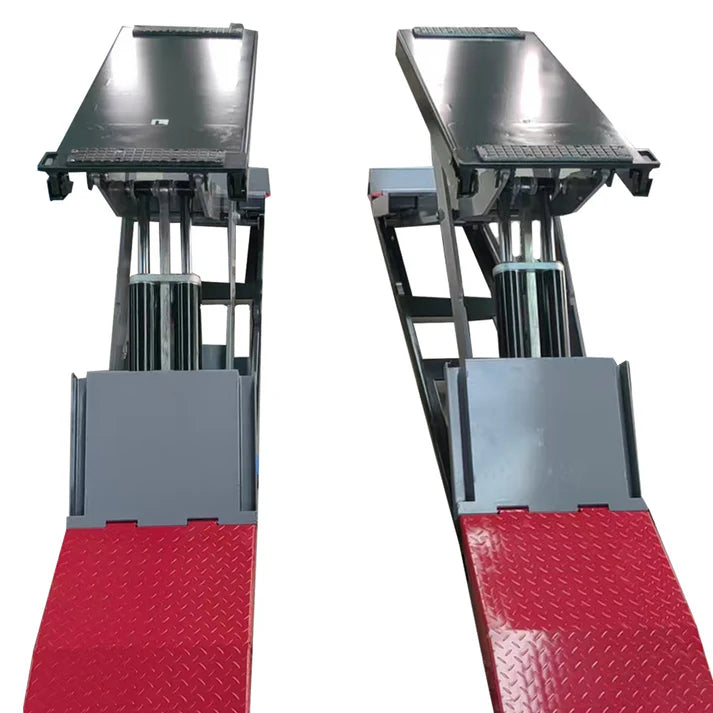

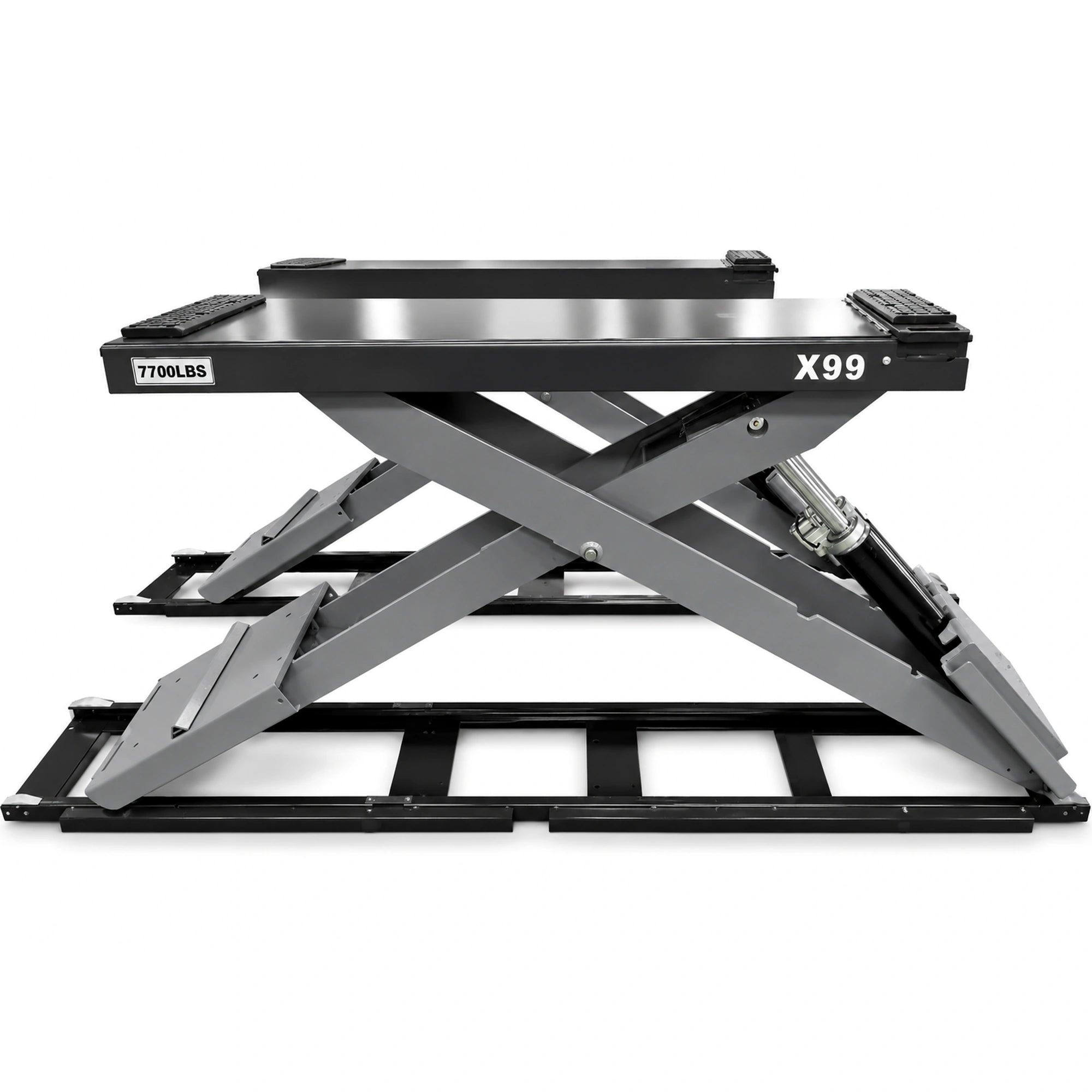

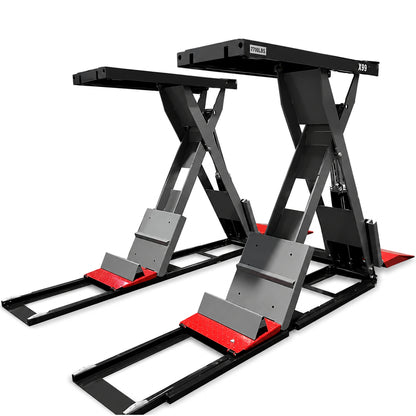

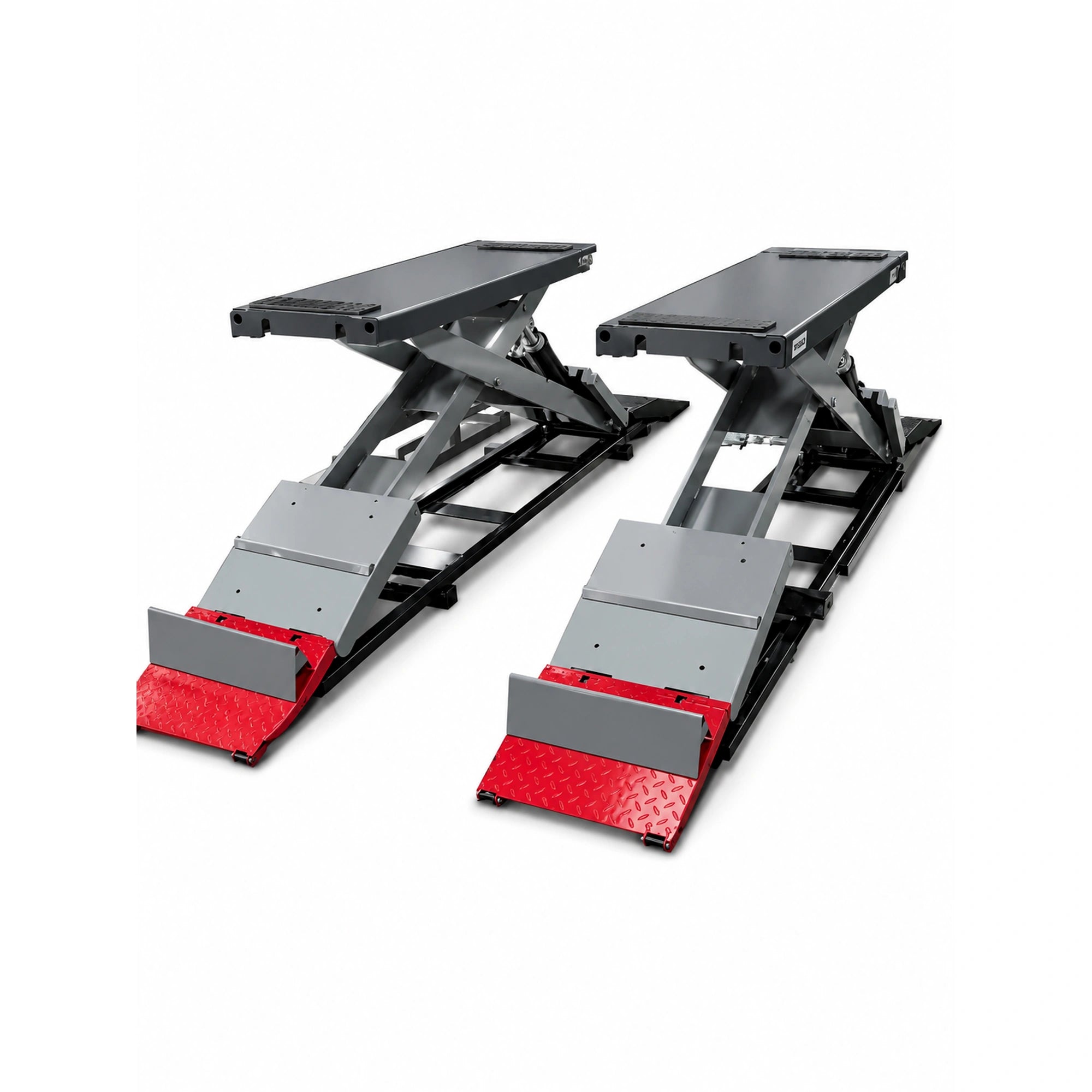

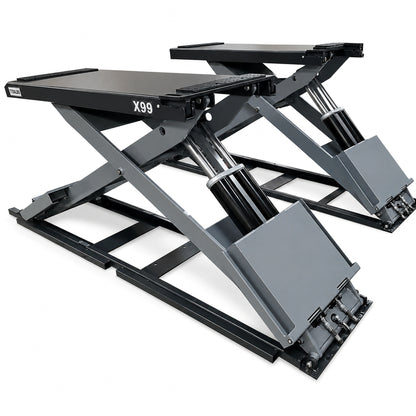

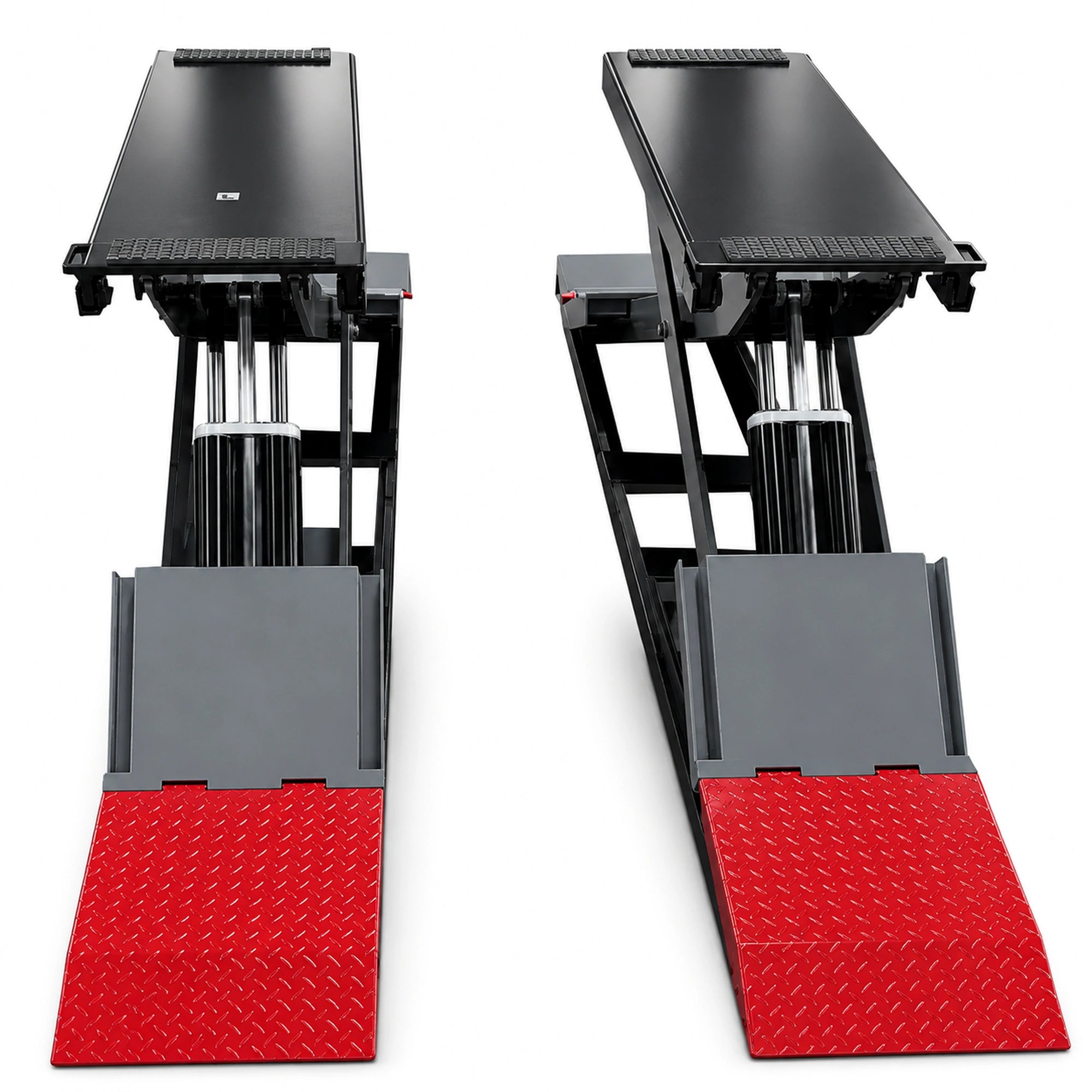

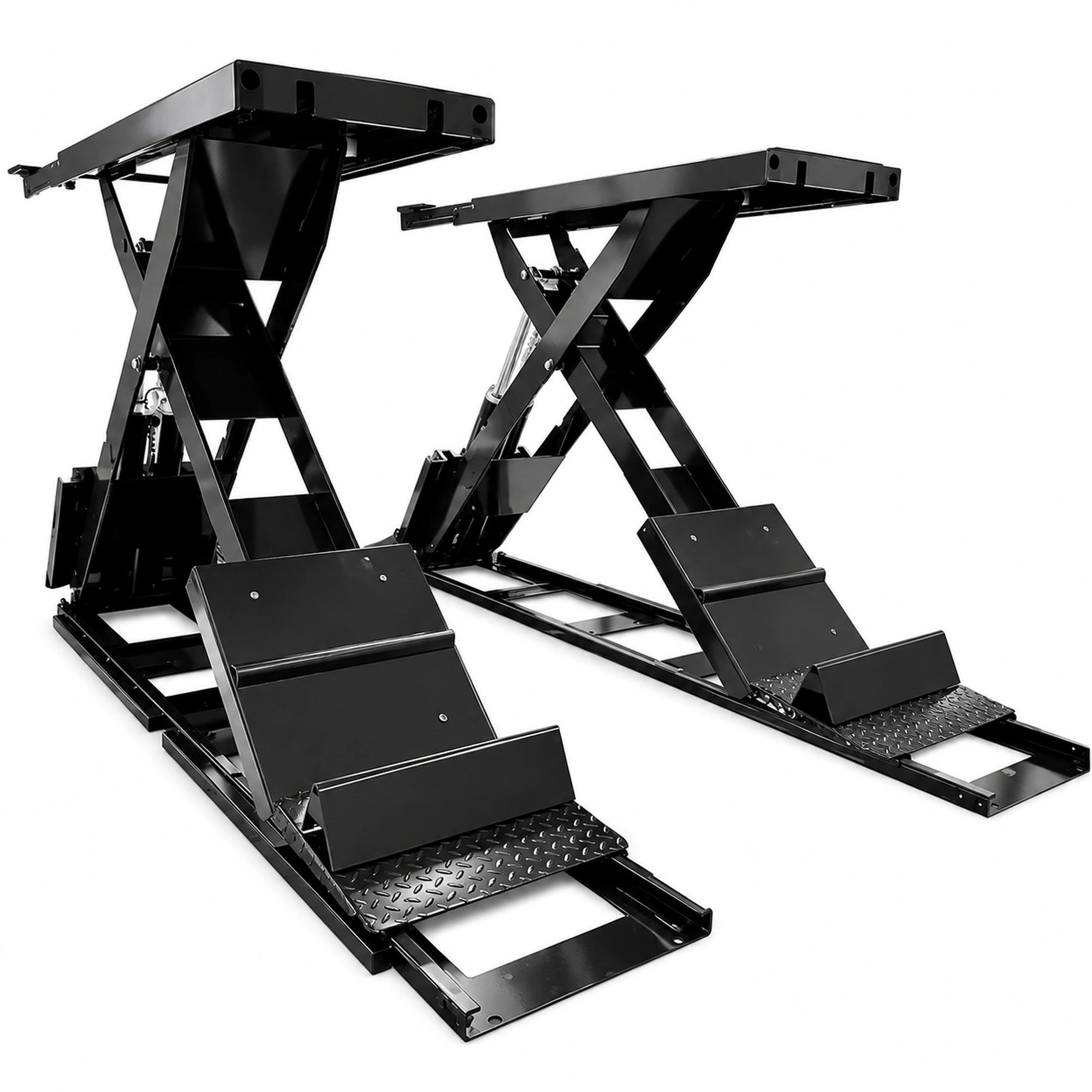

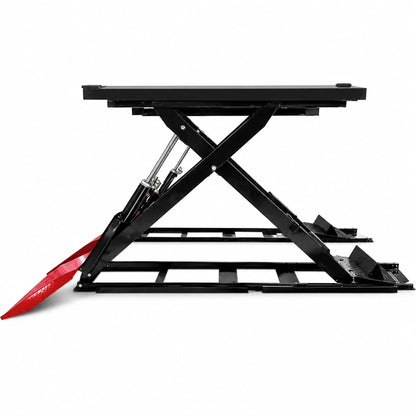

Katool KT-X99 Full Rise Scissor Lift With 7,700 lb Capacity
You're tired of working on your back under a mid-rise lift that only gets you halfway there. The Katool KT-X99 full rise scissor lift changes that equation completely, delivering a full 76 inches of lift height so you can stand upright and work comfortably under any passenger vehicle, SUV, or light truck in your bay. With a 7,700 lb rated capacity, this isn't a light-duty compromise. It's a serious production tool for shops that need full undercar access without bolting a two-post into their ceiling.
What makes the KT-X99 worth a closer look is the combination of full-rise travel and a compact footprint. The overall dimensions come in at 78 inches long by 52 inches wide, which means it fits into busy bay layouts where a traditional in-ground or two-post setup might not work. The hydraulic power system runs on a 2.0 HP motor with 110V or 220V options, raising and lowering vehicles in 30 to 40 seconds. Smooth, consistent cycles with minimal vibration so you're not fighting the equipment while you work.
Heavy-gauge welded steel construction and a powder-coat finish keep the KT-X99 holding up under daily shop abuse. A multi-position mechanical safety lock system and integrated anti-slip platform texturing give you the confidence to work underneath without second-guessing the equipment. CE certified, backed by a 1-year parts and 3-year structural warranty. When you buy from Garage Supply Guys, you get direct support from a team that knows this equipment and can help you through setup, parts, and anything else that comes up after the sale.
Specifications
| Model | Katool KT-X99 |
| Lift Type | Hydraulic Scissor Lift |
| Rated Capacity | 7,700 lb (4,082 kg) |
| Min Height | 4.5 in (115 mm) |
| Max Height | 76 in (710 mm) |
| Overall Length | 78 in (1,981 mm) |
| Overall Width | 52 in (1,321 mm) |
| Platform Width | 48 in (1,219 mm) |
| Platform Thickness | 1.25 in (32 mm) |
| Lift Speed | 30-40 seconds (raise/lower) |
| Power Unit | 110V / 220V Electric Hydraulic (single / three phase optional) |
| Motor Power | 2.0 HP |
| Operating Pressure | 2,200 psi (151.7 bar) |
| Safety System | Multi-position Mechanical Safety Lock |
| Platform Surface | Integrated Anti-Slip Texture |
| Construction | High-Strength Welded Steel |
| Finish | Powder-Coat (Grey & Red) |
| Shipping Weight | 1,250 lb (567 kg) |
| Package Dimensions | 84 in L x 56 in W x 28 in H |
| Certification | CE Certified |
| Warranty | 1-Year Parts, 3-Year Structural |
What's Included
Call to confirm included accessories.
Installation & Setup
The KT-X99 is a full-rise scissor lift, so proper installation planning matters before it arrives. You'll need a level concrete floor capable of supporting the combined weight of the lift and vehicle. With a shipping weight of 1,250 lb, a forklift is required for unloading and positioning the unit in your bay.
Power requirements are flexible. The KT-X99 runs on either 110V single-phase or 220V three-phase electric, so you can match it to your existing shop electrical setup. Confirm your available circuit capacity and have a qualified electrician handle the final connection. Once positioned and wired, the hydraulic system and safety locks should be tested through several full cycles before putting a vehicle on the platform.
Applications
Full undercar access for exhaust, suspension, drivetrain, and brake work without hunching or crawling. The 76 in rise height lets your techs stand and work efficiently all day.
Fast lift cycles and a compact footprint make the KT-X99 a strong fit for high-volume tire and service operations where bay space is at a premium.
Get underneath damaged vehicles quickly for inspection and structural assessment. The low 4.5 in minimum height accommodates lowered or damaged vehicles with limited ground clearance.
A 7,700 lb capacity handles SUVs, vans, and light trucks common in fleet operations. Durable welded steel construction stands up to daily, repetitive use.
Shipping
Please review carefully before placing your order.
Seasonal shipping delays may apply. Orders may take up to 3 weeks to arrive or be available for pickup.
Freight shipping is available within the lower 48 states, with fulfillment times of 6-10 business days. Shipping to Alaska and Hawaii is also available. Contact us for a quote before ordering.
A forklift is required for unloading scissor lifts. Please make sure to select the correct shipped or pickup option before adding the item to your cart. If no forklift is available, we can arrange terminal delivery for pickup instead.
Additional Services: Residential delivery ($80) and liftgate service ($80) may be available. Contact us to confirm liftgate availability for scissor lifts before ordering.
Customer Responsibilities: Customers are responsible for unloading freight from the truck. A forklift or dock service is strongly recommended. Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Inspection & Claims: Carefully inspect your order before signing the Bill of Lading or delivery receipt. All visible damage or missing items must be noted on the delivery receipt at the time of delivery. Report concealed damage or shortages within 48 hours of delivery. If no issues are noted at delivery, the shipment will be considered received in satisfactory condition.
Our team coordinates the freight shipment and helps manage scheduling details. Need a delivery window, residential delivery, or liftgate service? Contact us before ordering so we can confirm the best delivery setup and any accessorial charges.
Warranty
The Katool KT-X99 is covered by a 1-year warranty on all product parts and a 3-year warranty on product structure. Free shipping on warranty parts is included. Labor is not covered under warranty.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Call our team at (855) 498-2147 for help with fitment, installation requirements, or shipping details for the Katool KT-X99 full rise scissor lift.
Frequently Asked Questions
What is the maximum lifting capacity of the Katool KT-X99?
The KT-X99 is rated for 7,700 lb (4,082 kg). That covers most passenger cars, SUVs, crossovers, and light trucks you'll see in a typical service bay. Always confirm the curb weight of the vehicle before lifting.
How high does the KT-X99 scissor lift raise a vehicle?
Full rise height is 76 inches, with a minimum lowered height of 4.5 inches. That range lets you drive low-clearance vehicles onto the platform and still stand comfortably underneath at full extension for exhaust, suspension, and drivetrain work.
What power supply does this lift require?
The KT-X99 runs on either 110V single-phase or 220V three-phase electric power, with a 2.0 HP motor. You can match it to your existing shop electrical. Have a qualified electrician handle the hookup to make sure the circuit can support the load.
How long does it take to raise or lower a vehicle?
A full raise or lower cycle takes 30 to 40 seconds. The hydraulic system delivers smooth, consistent operation without jarring stops, so you're not waiting around between jobs.
What safety features does the KT-X99 include?
The lift uses a multi-position mechanical safety lock system that engages at multiple heights during the raise cycle. The platform also features an integrated anti-slip texture to prevent vehicle movement once positioned. The unit is CE certified.
Do I need a forklift to unload this lift?
Yes. The KT-X99 ships at 1,250 lb in an 84 x 56 x 28 inch crate, so a forklift is required for unloading. If you don't have forklift access, contact us before ordering and we can arrange terminal delivery for pickup instead.
Will this scissor lift fit in my shop bay?
The KT-X99 measures 78 inches long by 52 inches wide, with a 48-inch platform width. It's a compact footprint for a full-rise lift, making it a practical fit for most standard service bays without major layout changes.
What does the warranty cover?
Katool provides a 1-year warranty on all parts and a 3-year warranty on the structural components. Warranty parts ship free. Labor costs are not included in the warranty coverage.
Can I get this lift shipped to a residential address?
Residential delivery is available for an additional fee. Liftgate service may also be available, but contact us first to confirm for scissor lifts specifically. Freight shipping covers the lower 48 states, with Alaska and Hawaii quotes available on request.
What kind of vehicles can the KT-X99 handle?
Any vehicle within the 7,700 lb capacity rating. That includes sedans, coupes, crossovers, SUVs, minivans, and most light trucks. The 4.5-inch low height also accommodates sport cars and lowered vehicles that can't clear taller lift platforms.
