Katool KT-X85-Electric – Scissor Lift (8,000 lb, Mid-Rise)
Katool KT-X85-ELECTRIC - 8,000 lb Mid Rise Scissor Lift with Electric Safety Release
This 8000 lb mid rise car lift features a 24V electric safety lock release, eliminating air compressor requirements. CE certified. Includes mobile caster kit for portable use or anchor bolts for fixed installation.
Key Features & Benefits
Electric Safety Lock Release

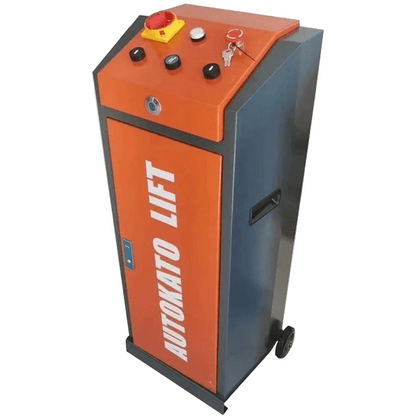

The 24V electric safety lock release eliminates air compressor requirements. Operates via pendant controller for controlled vehicle lowering. Standard 110V or 220V power is all that's needed—no shop air system required.

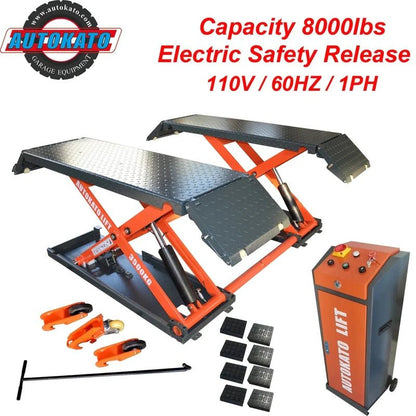

8,000 lb Capacity
This 8000 lb scissor lift exceeds the 6,000 lb rating on most mid rise auto scissor lifts. Handles full-size SUVs and light trucks without requiring full-rise equipment.
Portable Mid Rise Scissor Lift
Includes mobile caster kit for repositioning or storage. Anchor bolts provided for permanent fixed installation on concrete slab.
Drive-Up Ramps with Platform Extension
Lockable drive-up ramps provide easy vehicle loading and extend platform length for longer-wheelbase vehicles when locked in position.
Dual Safety System
10 mechanical locking positions plus hydraulic pressure holding. Height limit switch prevents over-extension. Self-lubricated bushings reduce maintenance.
CE Certified
CE certification confirms testing above rated capacity per European mechanical lift conformity requirements.
Applications
- Tire Service: Changes, rotations, wheel service for vehicles up to 8,000 lb
- Brake Work: Pad replacement, rotor inspection, caliper service
- Suspension: Shock/strut replacement, control arm service
- Detailing: Rocker panels, wheel wells, underbody access
- Fluid Service: Oil changes, drain plug access, filter replacement
- Home Garage: Scissor lift for small garage setups with standard ceiling heights
Technical Specifications
| Specification | Value |
|---|---|
| Lifting Capacity | 8,000 lb (approx. 3,630 kg) |
| Locking Positions | 10 mechanical positions |
| Overall Width (with ramps) | 76.75 in |
| Net Weight | approx. 1,213 lb / 550 kg |
| Certification | CE certified; tested above rated capacity |
| Specification | Value |
|---|---|
| Max Lifting Height | approx. 40-41 in |
| Collapsed Height | approx. 4.25-4.33 in |
| Platform Length | approx. 56-57 in (up to approx. 80 in with ramps) |
| Platform Width | approx. 20 in |
| Lift Time | approx. 35 sec or less (limited data) |
| Specification | Value |
|---|---|
| Power Supply | 110V or 220V, 60Hz, Single Phase |
| Motor Power | approx. 2.2 kW |
| Control Voltage | 24V |
Installation Requirements
Documentation
Installation & Operation Manual: Download PDF Manual
Complete installation, operation, maintenance, and troubleshooting instructions. Read thoroughly before installation and operation.
Electrical
- Power: 110V or 220V, 60Hz, single-phase
- Motor: Approx. 2.2 kW
- Note: Local codes may require dedicated circuit
Floor
- Surface: Level, reinforced concrete slab
- Mounting: Fixed (anchor bolts) or portable (caster kit)
Environment
- Location: Indoor, dry environments
- Temperature: -10°C to 40°C (14°F to 104°F)
Delivery
- Unloading: Forklift required—main pallet approx. 1,184 lb
- Packaging: Two pallets (Box A ~78x64x10 in; Box B ~43x23x18 in)
Shipping & Delivery
Coverage
Area: Freight shipping to lower 48 U.S. states. Free to commercial addresses; residential may incur surcharges.
Lead Time: 6-10 business days typical. Seasonal delays may extend to 3 weeks.
Requirements
Unloading: Buyer responsible—forklift required. Liftgate not available.
Inspection: Check all packages before signing. Note damage on BOL before driver departs.
Warehouses
City of Industry CA, Brookshire TX, Bolingbrook IL, Jersey City NJ, Pooler GA
Warranty
Coverage
1 Year: All parts (cylinders, power units, motors, electronics)
3 Years: Structural components
Extended: Optional 2-year extension available through select dealers
Terms
Non-transferable. Requires original order number. Claims require photo/video documentation. Parts and shipping covered; labor not included.
Ready to Upgrade Your Shop?
Get expert guidance on the right lift for your facility.
Frequently Asked Questions
What is the lifting capacity of the Katool KT-X85-ELECTRIC?
8,000 lb (approx. 3,630 kg), which exceeds the 6,000 lb rating on most mid-rise scissor lifts.
Does the KT-X85 require an air compressor?
No. The 24V electric safety lock release eliminates air compressor requirements.
What electrical power does the KT-X85 require?
110V or 220V, 60Hz, single-phase. Motor is approx. 2.2 kW. Local codes may require dedicated circuit.
What is included with the Katool KT-X85-ELECTRIC?

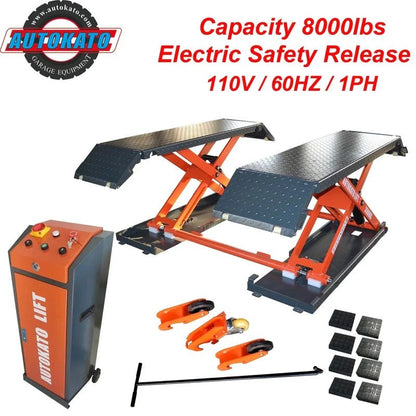

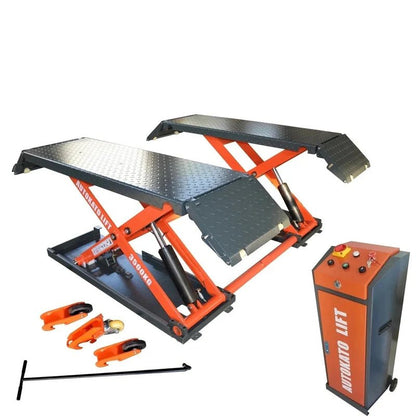

Two platform units with ramps, electric-hydraulic power unit, rubber lifting blocks, mobile caster kit, hydraulic hoses, anchor bolts, and user manual.
Can the KT-X85 be used as a portable lift?
Yes. Includes mobile caster kit for repositioning. Anchor bolts also provided for fixed installation.
What are the concrete requirements for the KT-X85?
Level, reinforced concrete slab required. Consult installation manual for specific thickness and PSI requirements.
What warranty does the KT-X85 include?
1 year on all parts, 3 years on structural components. Parts and shipping covered; labor not included.
Is the Katool KT-X85 ALI certified?
No. It carries CE certification (European standard). ALI is a separate North American certification.
