What warranty comes with this scissor lift for home garage use? A: 1-year parts warranty plus 3-year structural warranty. Free shipping on replacement parts. Labor not included.

Q: What warranty comes with this scissor lift for home garage use? 1-year parts warranty plus 3-year structural warranty. Free shipping on replacement parts. Labor not included.

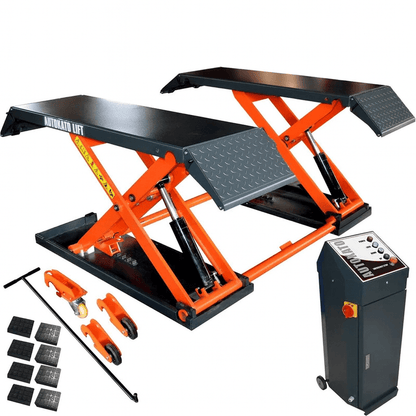

Katool KT-X80 pneumatic mid-rise scissor lift 8000 lb with pneumatic safety release 4.25 to 41.25 in lift range 110/220V mobile kit.

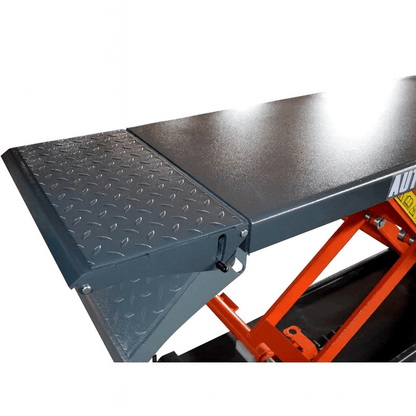

Katool KT-X80 pneumatic mid-rise scissor lift platform closeup with diamond plate ramp, red arrow indicator, Capacity 8000 lb.

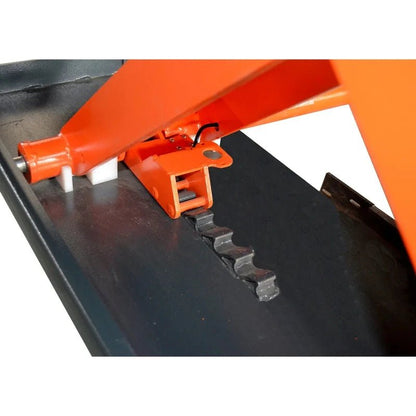

Katool KT-X80 pneumatic mid-rise scissor lift base showing safety lock teeth and pivot bracket for platform stability, rated 8000 lb.

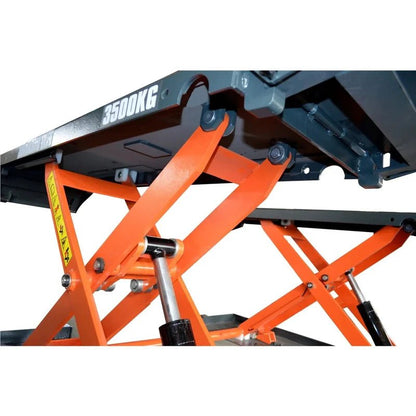

Katool KT-X80 pneumatic mid-rise scissor lift underside showing scissor linkage and hydraulic cylinder, rated 8000 lb capacity.

Katool

Katool KT-X80 – Scissor Lift (Mid-Rise, Pneumatic)

Q: Will this mid rise scissor lift fit in a standard residential garage? A: Yes. The X80 measures 73.25" wide by 80" long, fitting standard garages with 8-foot or higher ceilings. The 4.25" collapsed height allows vehicles to drive over when lowered.

Q: Will this mid rise scissor lift fit in a standard residential garage? Yes. The X80 measures 73.25" wide by 80" long, fitting standard garages with 8-foot or higher ceilings. The 4.25" collapsed height allows vehicles to drive over when lowered.

Q: What size air compressor is required? A: The pneumatic system requires 85-120 PSI, which most 20-gallon shop compressors provide. Air is only used for releasing locks, not lifting. One release cycle uses approximately 0.5 CFM.

Q: What size air compressor is required? The pneumatic system requires 85-120 PSI, which most 20-gallon shop compressors provide. Air is only used for releasing locks, not lifting. One release cycle uses approximately 0.5 CFM.

Q: Can this 8000 lb scissor lift handle full-size trucks? A: Yes. At 8,000 lb capacity, the X80 safely lifts F-150s, Silverados, Tahoes, and similar vehicles. Platform extends to 80" for longer wheelbases.

Q: Can this 8000 lb scissor lift handle full-size trucks? Yes. At 8,000 lb capacity, the X80 safely lifts F-150s, Silverados, Tahoes, and similar vehicles. Platform extends to 80" for longer wheelbases.

Q: What electrical service is needed? A: 110V with 30A circuit recommended, or 220V single-phase. The 24V control system provides thermal overload protection. Most garages have suitable 110V outlets.

Q: What electrical service is needed? 110V with 30A circuit recommended, or 220V single-phase. The 24V control system provides thermal overload protection. Most garages have suitable 110V outlets.

Q: Is this a good low profile car lift for garage use with lowered vehicles? A: Yes. At 4.25" collapsed, it sits lower than competitors (Atlas TD6MR: 5.75", BendPak MD-6XP: 4.75"). The low approach angle helps prevent front spoiler and undercarriage damage.

Q: Is this a good low profile car lift for garage use with lowered vehicles? Yes. At 4.25" collapsed, it sits lower than competitors (Atlas TD6MR: 5.75", BendPak MD-6XP: 4.75"). The low approach angle helps prevent front spoiler and undercarriage damage.

Q: Can I install this myself? A: Experienced DIYers can follow the manual, though professional installation ensures optimal safety. Ships in two boxes (1,190 lbs and 132 lbs) requiring forklift unloading. Assembly takes 3-4 hours.

Q: Can I install this myself? Experienced DIYers can follow the manual, though professional installation ensures optimal safety. Ships in two boxes (1,190 lbs and 132 lbs) requiring forklift unloading. Assembly takes 3-4 hours.

Q: How often does this require maintenance? A: Change hydraulic oil periodically based on usage and condition (ISO 6743/4 HM class). Self-lubricating bushings reduce routine greasing. Check pneumatic connections quarterly and inspect safety locks before each use.

Q: How often does this require maintenance? Change hydraulic oil periodically based on usage and condition (ISO 6743/4 HM class). Self-lubricating bushings reduce routine greasing. Check pneumatic connections quarterly and inspect safety locks before each use.

$2,299.00 $2,799.00

Product variants

Please answer the shipping questions below and the Add to Cart Button will be activated. ↓

Delivery Options

Katool X80 8,000 lb pneumatic mid rise scissor lift

Katool X80 8,000 lb Mid Rise Scissor Lift - Pneumatic

Also known as: KT-X80, X80, Katool X80 Pneumatic

The Katool X80 is an 8000 lb scissor lift in a mid rise scissor lift format with pneumatic safety locks. This katool mid rise scissor lift delivers 41.25 inches of working height from a low 4.25-inch drive-on profile, fitting sports cars and lowered vehicles. Features 110V/220V dual-voltage operation, 24V control system, and CE certification tested above rated capacity.

8,000 lb capacity in 73.25" x 80" footprint

Pneumatic safety locks with 24V control

Mobile caster kit for flexible positioning

CE approved and tested above rated capacity

Key Features

Katool KT-X80 pneumatic scissor lift safety lock — Toothed ladder track and pawl mechanically lock the platform at set heights

Pneumatic Safety Lock System

The pneumatic system engages automatic safety locks at any height within the 41.25-inch range. The toothed ladder track and pawl beneath the scissor arm mechanically lock the platform, preventing drop during service. Compressed air-powered release (85-120 PSI required) provides hands-free operation. Combined with the 24V low-voltage control and automatic height limit switch, these safety features meet CE certification requirements.

Katool KT-X80 mid rise scissor car lift platforms — Twin platforms with rubber pads and mobility dollies

8,000 lb Capacity

Reinforced scissor mechanisms rated for 8,000 lbs - 2,000 lbs more than typical 6,000 lb mid rise car lifts. Tested above rated capacity for safety margin. Long-life self-lubricating bushings reduce maintenance requirements.

Katool KT-X80 diamond plate ramp — Drive-up ramps with diamond-plate surface for tire grip

Mobile Caster Kit Included

Four industrial-grade casters rated at 500 lbs each with foot-operated locks. Reposition between service bays or storage in under 30 seconds - ideal for car lifts in small garage environments. Platform extends from 56.25 to 80 inches using flip-up ramps for longer wheelbases.

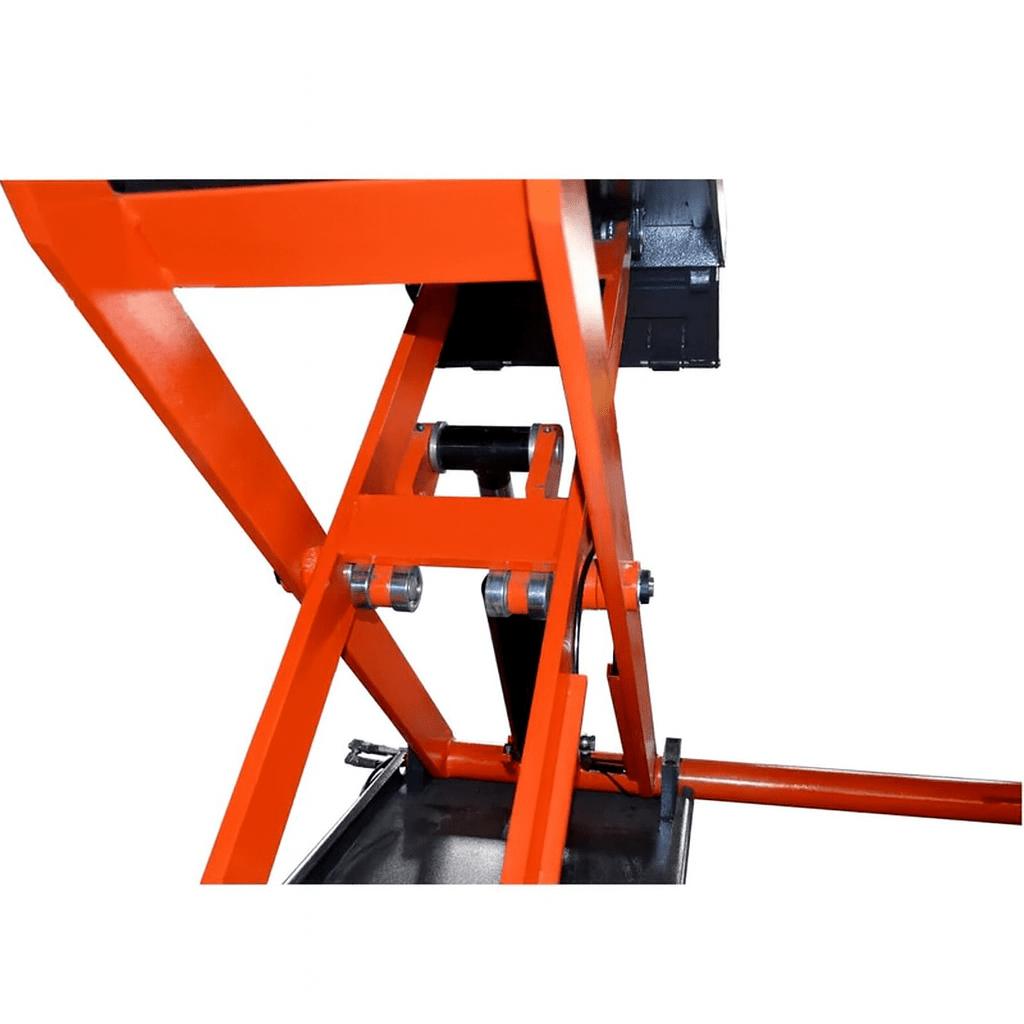

Katool KT-X80 scissor arm pivot — Crossbar brace, pivot pins and roller guide for smooth lifting

110V/220V Dual Voltage - 35-Second Rise

Full 41.25-inch lift in 35 seconds using 110V (30A circuit) or 220V commercial power. Aluminum motor housing with integrated cooling fan helps maintain stable operating temperatures during continuous use. Uses ISO 6743/4 HM-class hydraulic oil.

4.25-Inch Collapsed Height

At 4.25 inches when lowered, this mid rise auto scissor lift sits lower than Atlas TD6MR (5.75") and BendPak MD-6XP (4.75"). The low profile accommodates lowered vehicles, sports cars, and modified suspensions. The low approach angle prevents undercarriage damage on vehicles with front spoilers.

Applications

This 8,000 lb mid rise scissor car lift handles professional shops and home garages requiring quick under-vehicle access. The 41.25-inch height positions vehicles at ergonomic working level.

Professional Shop:

Tire shops: Four-tire rotation with dual-sided access
Brake service: Access all brake components without removing wheels
Exhaust work: Full undercarriage visibility at standing height
Detail bays: Apply undercoating with 360-degree access

Scissor Lift for Home Garage:

DIY maintenance: Oil changes standing upright
Suspension work: Install lowering springs or lift kits with proper support
Storage: Stack project cars using 41.25-inch clearance

Technical Specifications

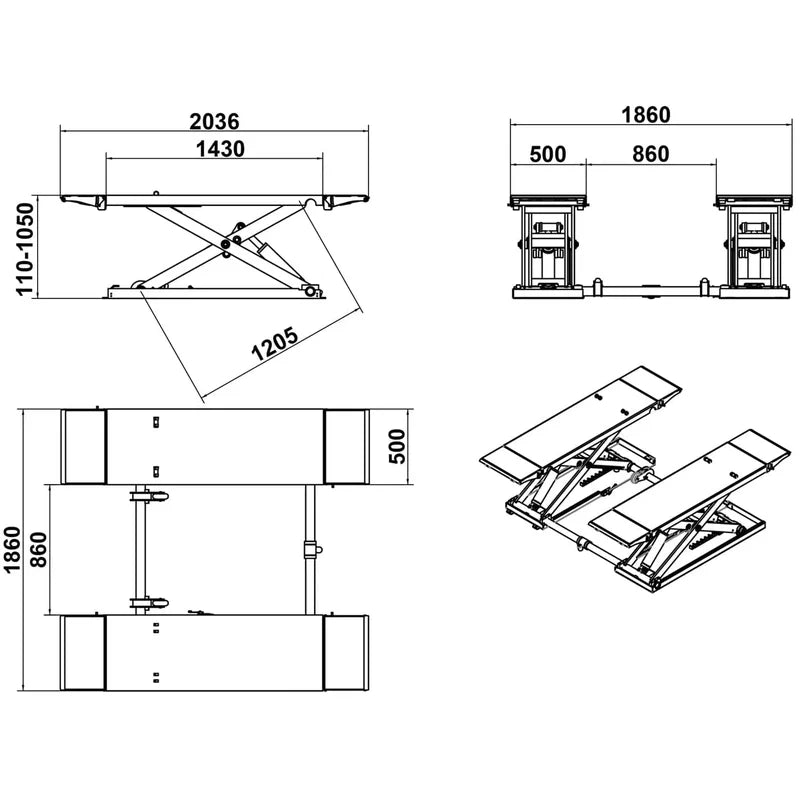

Capacity & Dimensions
Specification	Value
Lifting Capacity	8,000 lbs (3,629 kg)
Maximum Lift Height	41.25" (1,050 mm)
Minimum Height	4.25" (110 mm)
Platform Length	56.25" (1,430 mm)
Platform Width	19.5" (500 mm)
Overall Length	80" (2,036 mm)
Overall Width	73.25" (1,860 mm)
Net Weight	1,213 lbs (550 kg)

Power & Performance
Specification	Value
Power	110V/220V, 60 Hz, 1-Phase
Air Pressure Required	85-120 PSI
Lifting Time	35 seconds
Lowering Time	40 seconds
Noise Level	80 dB(A) at 1m
Operating Temperature	14°F to 104°F
Hydraulic Oil	ISO 6743/4 HM class
Certification	CE Approved

What's Included

Dual Platform Assembly: Twin scissor platforms, 56.25" length

Rubber Lifting Blocks: Composite pads to protect undercarriage

Mobile Caster Kit: Four heavy-duty casters for repositioning

Drive-Up Ramps: Flip-up diamond-plate ramps for longer vehicles

Control System: 24V safe control with height limit switch

Hydraulic Power Unit: Aluminum motor with cooling fan

Pneumatic Safety System: Automatic locks (requires 85-120 PSI air)

Note: Requires compressed air source (85-120 PSI) for pneumatic lock operation. For shops without a compressor, Katool offers an electric lock version (model X80-Electric).

Shipping

Freight Details:

Coverage: Freight shipping only within the lower 48 states
Free Shipping: Commercial addresses only. Remote areas may incur charges
Residential: Additional carrier charges may apply
Unloading: Buyer responsible - forklift or loading dock required
Package Weight: Box A: 1,190 lbs, Box B: 132 lbs

Delivery Notes:

Refuse visibly damaged shipments and document with photos
Inspect before signing Bill of Lading
Note any damages on delivery receipt

Pickup Locations:

Illinois: 360 Veterans Pkwy Unit 110, Bolingbrook IL 60440
Texas: 2465 FM 359 South Rd Building B, Suite E, Brookshire TX 77423
California: 19465 E Walnut Dr N, Walnut CA 91789

Warranty

Coverage:

Parts: 1 year on all components including cylinders, motors, electronics
Structural: 3 years on frame and structural components
Shipping: Free shipping on warranty replacement parts
Labor: Not included

What's Covered:

Manufacturing defects in materials and workmanship
Hydraulic system components
Electrical components
Structural steel and welds
Pneumatic safety lock components

Warranty claims require original order number and proof of purchase. Contact: (855) 498-2147

Questions?

Get help with product selection, installation, or specifications for your shop or home garage.

Call (855) 498-2147 Download Manual (PDF)

Frequently Asked Questions

Will this fit in a standard residential garage?

Yes. The X80 measures 73.25" wide by 80" long, fitting standard garages with 8-foot or higher ceilings. The 4.25" collapsed height allows vehicles to drive over when lowered, and the mobile kit enables repositioning for storage.

What size air compressor is required?

85-120 PSI, which most 20-gallon shop compressors provide. Air is only used for releasing locks, not lifting. One release cycle uses approximately 0.5 CFM at 90 PSI.

Can this handle full-size trucks and SUVs?

Yes. At 8,000 lb capacity, the X80 safely lifts F-150s, Silverados, Tahoes, and similar vehicles. Platform extends to 80" for longer wheelbases. Average F-150 weighs 4,500-5,500 lbs.

What electrical service is needed?

110V with 30A circuit recommended, or 220V single-phase. The 24V control system provides thermal overload protection. Most garages have suitable 110V outlets.

Will this work with lowered vehicles?

Yes. At 4.25" collapsed, it sits lower than competitors (Atlas TD6MR: 5.75", BendPak MD-6XP: 4.75"). The low approach angle helps prevent front spoiler and undercarriage damage.

Can I install this myself?

Experienced DIYers can follow the manual, though professional installation ensures optimal safety. Ships in two boxes (1,190 lbs and 132 lbs) requiring forklift unloading. Assembly takes 3-4 hours.

How often does this require maintenance?

Change hydraulic oil periodically based on usage and condition (ISO 6743/4 HM class). Self-lubricating bushings reduce routine greasing. Check pneumatic connections quarterly and inspect safety locks before each use.

What warranty coverage is included?

1-year parts warranty plus 3-year structural warranty on frame and structural components. Free shipping on replacement parts. Labor not included.
