Katool KT-X80-Electric – Scissor Lift (Mid-Rise)
Katool KT-X80-ELECTRIC - Mid-Rise Scissor Lift for Home Garages & Small Shops
The Katool KT-X80-ELECTRIC is an 8,000 lb mid-rise hydraulic scissor lift for passenger cars, SUVs, and light trucks in garages and small workshops with limited ceiling height. Features a durable electric safety lock system, dual-voltage flexibility (110 V or 220 V), and a compact footprint that works in standard garage bays.
Key Features & Benefits

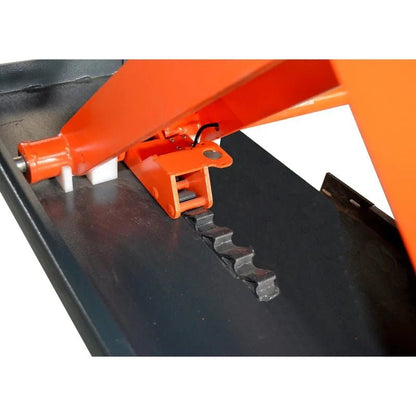

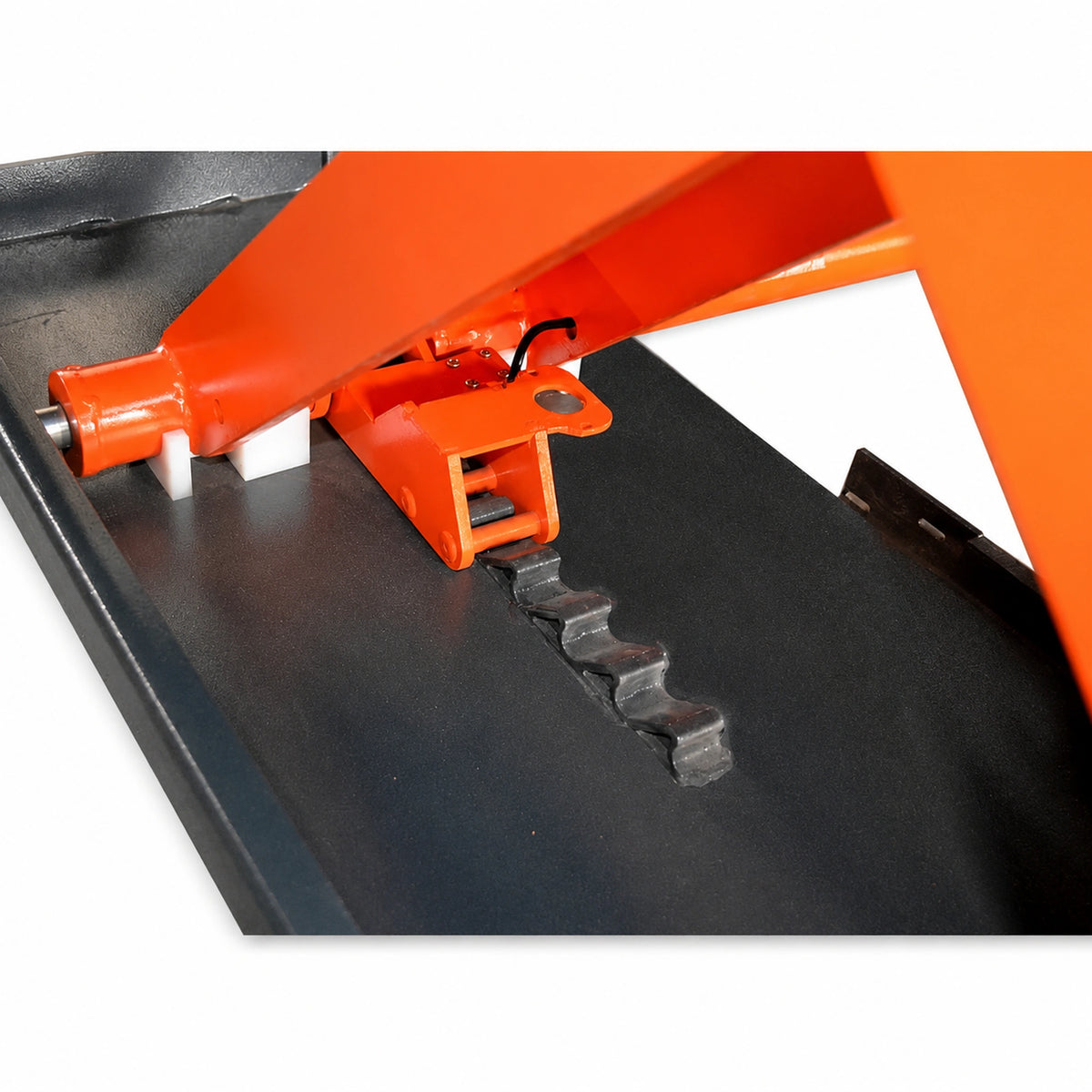

Electric Safety Lock System
The KT-X80-ELECTRIC features a patented electric safety lock release with 24 V low-voltage control that delivers automatic, fail-safe engagement without requiring a separate air compressor. The lock engages instantly when the lift rises, eliminating manual adjustment during brake, tire, and suspension service.
This enables safer undercarriage access without compressor dependency, reducing installation complexity in home garages. The quick-release operator control provides instant pressure release while maintaining full holding strength during active service operations.
Dual-Voltage Power Flexibility (110 V / 220 V)
The KT-X80-ELECTRIC operates on standard household voltage (110 V single-phase) or commercial voltage (220 V single-phase) with a 60 Hz motor, allowing buyers to match the lift to existing electrical infrastructure without costly rewiring.
Whether you're setting up a dedicated home workshop or a quick-service bay in a small shop, the lift fits your existing power infrastructure from day one.
Compact Mid-Rise Design with Maximum Working Height
The KT-X80-ELECTRIC starts at a low 4.25" collapsed height and rises to 41.25" maximum lift height, providing meaningful undercarriage access in garages where full two-post lifts are impractical. The overall footprint measures 73.25" wide and 80" long with drive-up ramps, fitting standard single-car garage bays.

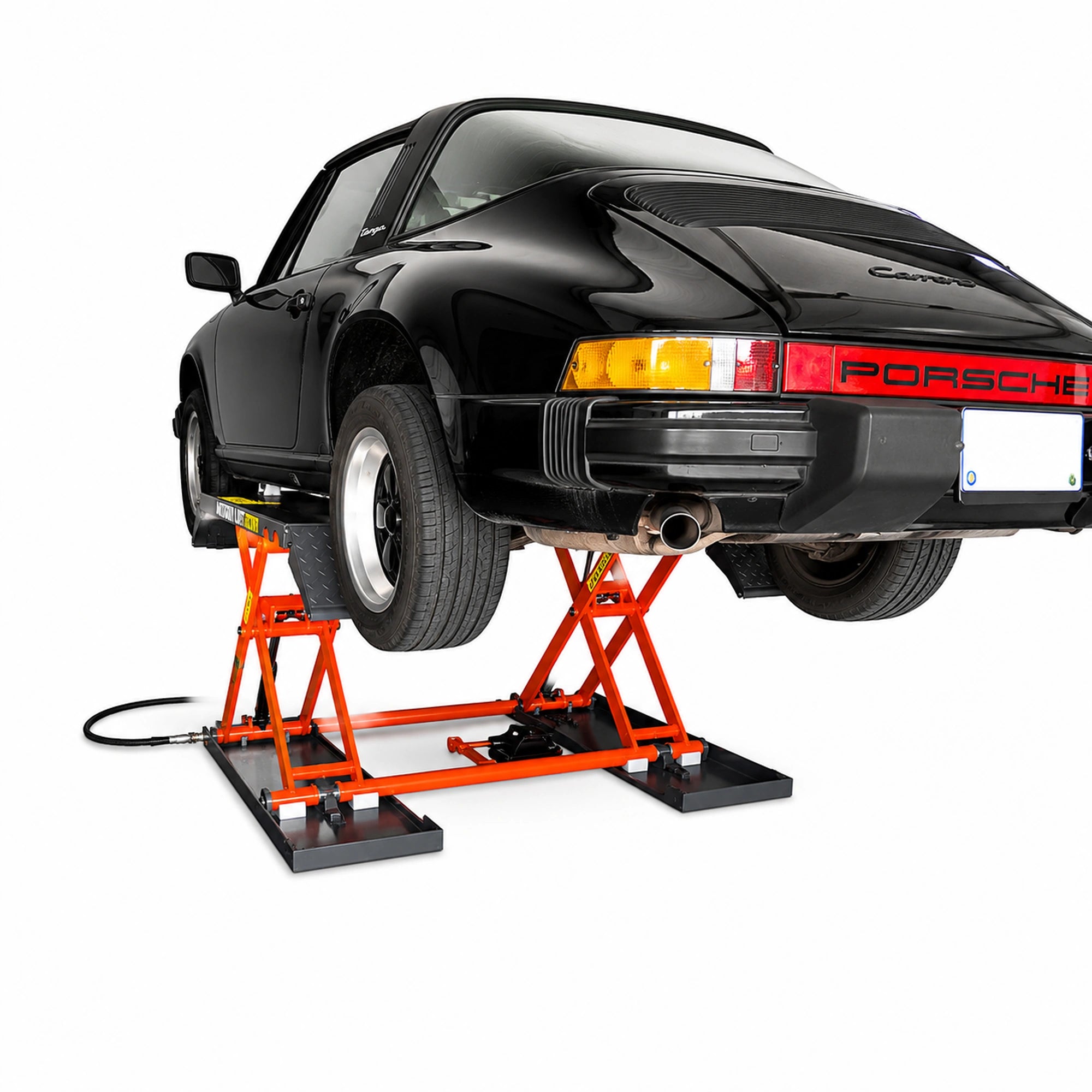

This compact design enables work on low-profile vehicles (sports cars, sedans) without clearance concerns while still supporting 8,000 lb vehicles and light trucks.
Mobile & Fixed-Mount Flexibility
The KT-X80-ELECTRIC includes a standard mobile caster kit, enabling the same lift to be used as a movable asset or permanently anchored to the floor. This dual-configuration capability gives workshops flexibility without purchasing multiple units.
The mobility hardware allows the lift to be wheeled into position for service work, then moved aside when bay space is needed for detailing, parts storage, or vehicle staging.
CE-Certified with Verified Load-Testing Margins
The KT-X80-ELECTRIC carries CE approval and is tested to 115% of dynamic load and 150% of static load above its 8,000 lb working capacity. This provides quantifiable safety margins of 9,200 lb dynamic and 12,000 lb static.
The documented margins mean the lift handles occasional overload scenarios without risk of structural failure, making it a safer choice for environments where load variability is common.

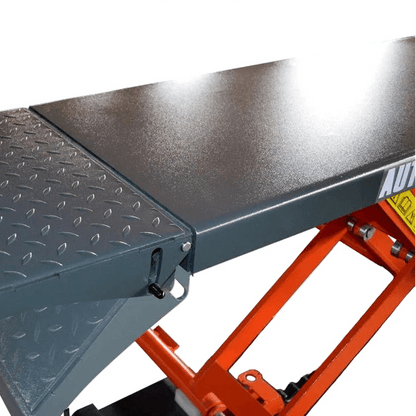

Included Composite Lifting Blocks & Lockable Ramps
The KT-X80-ELECTRIC comes with composite rubber lifting blocks and drive-up ramps with locking extension design, enabling most vehicles to be loaded and supported safely without immediate accessory purchases. The composite blocks protect vehicle undercarriage components from damage.
The locking ramp design supports both standard and extended-wheelbase vehicles without requiring adapter changes or repositioning.
Applications & Use Cases

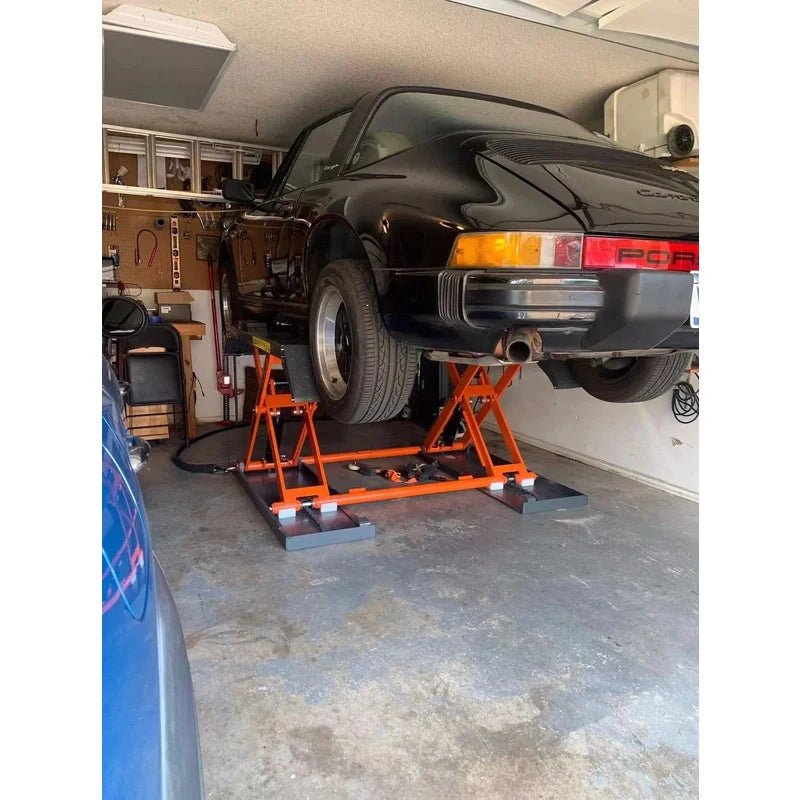

- Home & Enthusiast Garages: DIY automotive work, tire rotations, brake service, and undercarriage maintenance on vehicles up to 8,000 lb where ceiling height limits two-post lifts
- Small Commercial Workshops: Quick-service bays, detail shops, and small transmission/suspension shops needing compact mid-rise access
- Tire & Brake Service: Wheel removal, tire rotation, brake pad replacement, and brake system inspection
- Suspension & Undercarriage Work: Light suspension checks, component removal, oil changes, and undercarriage cleaning
- Detailing & Paint Protection: Full access to rocker panels, wheel wells, and undercarriage for deep cleaning and protective coatings

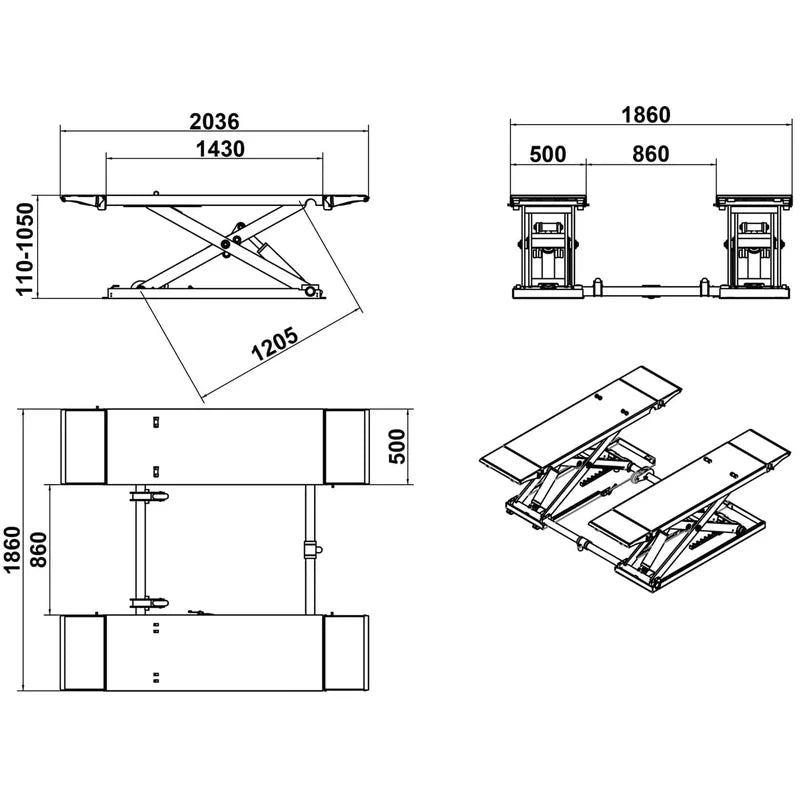

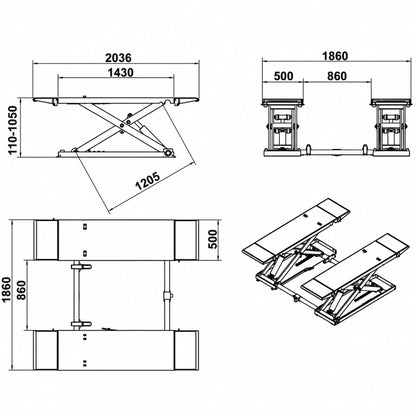

Technical Specifications
| Specification | Value |
|---|---|
| Maximum Lifting Capacity | 8,000 lb (3,500 kg) |
| Maximum Lifting Height | 41.25 inches (1,050 mm) |
| Minimum Collapsed Height | 4.25 inches (110 mm) |
| Platform Length | 56.25 inches (1,430 mm) |
| Platform Width | 19.5 inches (500 mm) |
| Overall Length (with ramps) | 80 inches (2,036 mm) |
| Overall Width | 73.25 inches (1,860 mm) |
| Net Weight | 1,213 lb (550 kg) |
| Specification | Value |
|---|---|
| Power Options | 110 V or 220 V, single-phase, 60 Hz |
| Control System Voltage | 24 V low-voltage control circuitry |
| Safety Lock System | Electric safety lock with automatic engagement |
| Hydraulic Fluid Type | AW-46 (AW-32 for cold environments) |
| Dynamic Load Testing | 115% of rated capacity |
| Static Load Testing | 150% of rated capacity |
| Certification | CE Approved |
Installation Requirements
Product Manual
Download the official installation and operation manual for complete setup instructions, safety guidelines, maintenance procedures, and troubleshooting information.
📄 Download KT-X80-ELECTRIC Installation & Operation Manual (PDF)
Power Requirements
- Voltage Options: 110 V or 220 V single-phase, 60 Hz (specify at time of order)
- Electrical Setup: 110 V for residential garages; 220 V for heavier-duty shop setups. Confirm circuit requirements with a qualified electrician.
- Low-Voltage Control: 24 V control system isolated from main power for operator safety
Floor & Foundation
- Installation Surface: Level, reinforced concrete slab meeting Katool's specified thickness and compressive strength
- Leveling & Anchoring: Proper leveling essential. Fixed installations require secure anchoring per manufacturer instructions.
Space & Clearance
- Bay Footprint: 80" length x 73.25" width; ensure clearance for vehicle overhang and operator movement
- Ceiling Height: Must accommodate vehicle roof height plus 41.25" maximum rise
Hydraulic System
- Hydraulic Fluid: AW-46 standard; AW-32 for colder environments
- System Filling: Follow manufacturer procedures exactly
Installation Notes
- Permits: Verify local code compliance before installation
- Professional Installation: Must be performed by qualified personnel. Improper installation can void warranty.
Shipping & Delivery
Freight Coverage
Shipping Method: Ships via LTL freight from factory warehouses.
Delivery Scope: Many dealers offer free or flat-rate freight within the contiguous 48 states; surcharges for remote areas, Alaska, Hawaii, and international.
Delivery Timeframe: 5-10 business days from order to warehouse departure, plus transit time.
Delivery & Unloading Requirements
Equipment Required: Forklift with 2,000+ lb capacity required. The lift ships on a pallet.
Receiving: Inspect all packages before signing. Document any visible damage on the BOL before driver departs.
Liftgate Service: May be available as an add-on; confirm at time of order.
Damage Reporting & Freight Claims
Within 15 days: 100% coverage for visible damage and replacement freight costs.
Within 30 days: Shared-cost coverage (confirm policy before order).
After 30 days: No freight damage coverage.
Warranty Coverage
Multi-Tier Warranty Program
1 Year - Parts & Manufacturing Defects: Covers replacement parts and labor. Non-transferable; requires authorized dealer purchase.
3 Years - Structural Components: Covers lift frame and welded assemblies—exceeds typical 1-year industry standards.
Warranty Requirements
Eligibility: Original purchaser only. Installation by qualified personnel following manufacturer's manual.
Claims Process: Proof of purchase required. Photo/video documentation may be required before authorizing replacement parts.
Coverage Scope: Parts and manufacturing defects covered. Labor and freight per dealer policy.
Ready to Install Your Mid-Rise Lift?
Get expert guidance on installation planning, voltage configuration, and technical specifications.
Frequently Asked Questions
What is the maximum lifting capacity of the Katool KT-X80-ELECTRIC?
8,000 lb (3,500 kg). Tested to 115% dynamic load and 150% static load for safety margins above working capacity.
What is the maximum lifting height and collapsed height?
Maximum height is 41.25 inches (1,050 mm). Minimum collapsed height is 4.25 inches (110 mm) for low-ceiling garages and low-profile vehicles.
Can I run the KT-X80-ELECTRIC on 110V power?
Yes. Available in 110 V or 220 V single-phase, 60 Hz configurations. Specify voltage at time of order.

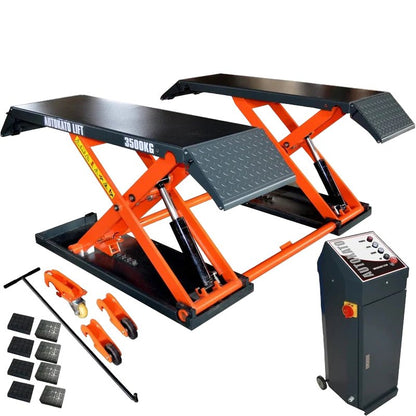

What is included in the KT-X80-ELECTRIC package?

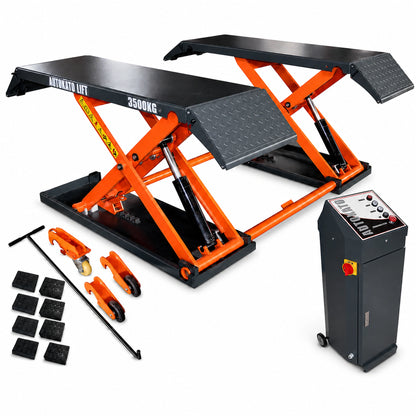

Main scissor lift assembly with hydraulic power unit, drive-up ramps with lock-type design, composite rubber lifting blocks, and mobile caster kit for mobile or fixed mounting.
What are the floor and foundation requirements for installation?
Level, reinforced concrete slab meeting Katool's specified thickness and PSI requirements. Confirm specs in installation manual before installation.
Does the lift have mobile or fixed mounting options?
Yes. Includes mobile caster kit for wheeled movement or fixed mounting to floor. No separate equipment needed for different configurations.
What warranty does the KT-X80-ELECTRIC come with?
1-year parts and manufacturing defects warranty, 3-year structural warranty on frame and welded assemblies. Non-transferable; requires authorized dealer purchase.
What is the footprint and will it fit in my garage?
80 inches length x 73.25 inches width. Fits most standard single-car garage bays. Ceiling must accommodate vehicle roof height plus 41.25 inch maximum rise.
