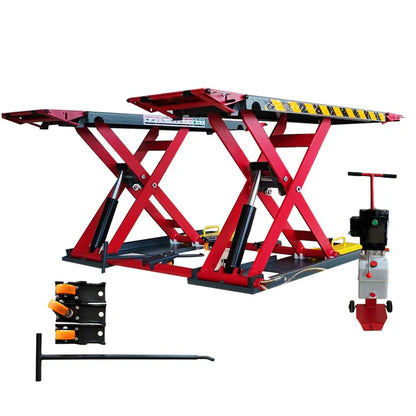

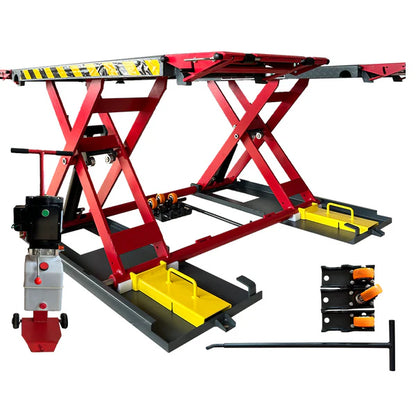

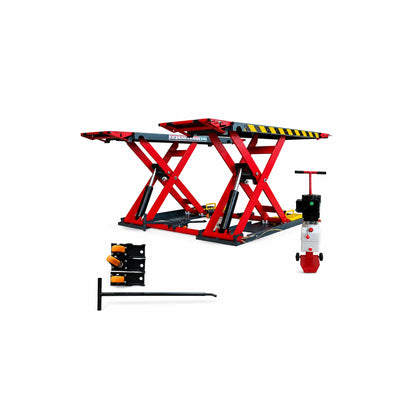

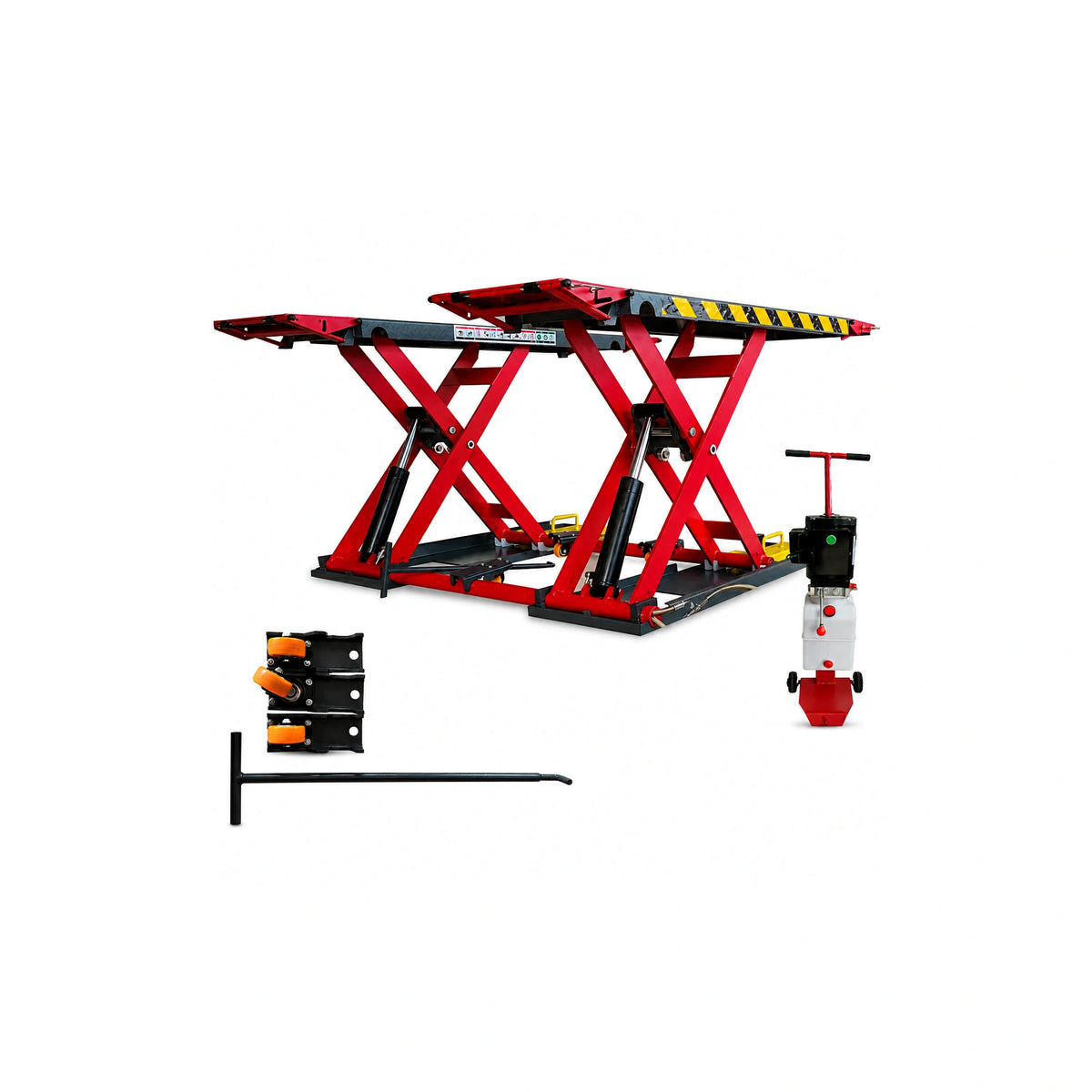

Katool KT-X77 Heavy Duty Scissor Lift - 7,000 lb Capacity
You're running brake jobs, oil changes, and tire rotations all day. Crawling under a car on jack stands slows you down and wears you out. The Katool KT-X77 heavy duty scissor lift gives you a 7,000 lb capacity mid-rise platform that gets vehicles up to 39.37" off the ground, so you can work standing or seated without burning time on setup and teardown between each car.
This is a drive-on scissor car lift with a low-profile entry height of just 4.33". That means most passenger cars, SUVs, and light trucks roll right onto the platform without ramps or alignment headaches. The 78" platform length and 63" overall width give you a stable, generous footprint that keeps the vehicle planted while you work underneath. Heavy-duty alloy steel construction handles the daily grind of a production shop without flexing or fatiguing over thousands of cycles.
Power options include 110V or 220V electric operation, so you can match the unit to your shop's existing electrical setup. A built-in safety locking and release system controls descent, and the hydraulic action delivers smooth, consistent lifting every cycle. If you need a mid-rise scissor lift that fits into a tight bay footprint without sacrificing capacity, the KT-X77 is worth a serious look. And when you buy from Garage Supply Guys, you get direct phone support and access to replacement parts down the road.
Specifications
| Model | KT-X77 |
| Lift Type | Mid-Rise Scissor Car Lift |
| Lifting Capacity | 7,000 lb (3,175 kg) |
| Max Lifting Height | 39.37" (1,000 mm) |
| Min Height (Lowered) | 4.33" (110 mm) |
| Platform Length | 78" (1,980 mm) |
| Overall Width | 63" (1,600 mm) |
| Load Type | Universal Drive-On |
| Construction | Heavy-Duty Alloy Steel |
| Power Supply | Electric 110V or 220V |
| Operation | Electric Lift with Safety Release Mechanism |
| Safety Features | Built-In Locking / Safety Release System |
| Shipping Weight | 1,300+ lb (590+ kg) |
What's Included
Call to confirm included accessories.
Installation and Setup
The KT-X77 is a drive-on mid-rise scissor lift, so it doesn't require the anchor bolts or concrete depth that a full-rise two-post or four-post lift demands. You'll need a level, solid concrete floor capable of supporting the combined weight of the lift and a loaded vehicle up to 7,000 lb. Make sure your bay has clearance for the 78" platform length and 63" width, plus room to walk around the vehicle once it's raised.
Before ordering, confirm your electrical supply. The KT-X77 is available in 110V or 220V configurations. Call us to specify which voltage you need so the correct unit ships to your location. A dedicated circuit is recommended for consistent hydraulic performance. The unit ships via freight at over 1,300 lb, so you'll need a forklift or loading dock to offload.
Applications
High-volume brake, exhaust, and suspension work where a mid-rise lift keeps cycle times short without occupying a full-height bay.
Quick-turn tire rotations, oil changes, and fluid services on cars, SUVs, and light trucks up to 7,000 lb.
Routine inspections and preventive maintenance across mixed fleets where consistent uptime and fast vehicle cycling matter.
Serious hobbyists who want commercial-grade lifting power in a compact, drive-on footprint that fits a standard garage bay.
Shipping
Please review carefully before placing your order.
Seasonal delays may apply. Orders may take up to 3 weeks to arrive or be available for pickup.
Freight shipping is available within the lower 48 states, with fulfillment times of 6-10 business days. Shipping to Alaska and Hawaii is also available. Contact us for a quote before ordering.
Because this is a scissor lift, you must provide a forklift for unloading. Please select the correct shipped or pickup option before adding the item to your cart. If no forklift is available, we can arrange terminal delivery for pickup instead.
Additional Services: Residential delivery and liftgate service are each available for a fee. Liftgate availability may be limited for select scissor lifts. Contact us to confirm before ordering.
Customer Responsibilities: You're responsible for unloading freight from the truck. A forklift or dock is strongly recommended. Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Inspection: Carefully inspect your order before signing the Bill of Lading. All visible damage or missing items must be noted on the delivery receipt at the time of delivery. Report concealed damage or shortages within 48 hours of delivery. If no issues are noted, the shipment is considered received in satisfactory condition.
Warranty
The Katool KT-X77 is covered by the manufacturer's warranty: one year on all product parts and three years on the product structure. Free shipping on warranty parts is included. Labor is not covered under warranty.
Warranty registration may be required after purchase. Refer to included documentation for details.
Questions Before You Buy?
Need help confirming voltage requirements, shipping logistics, or whether the KT-X77 fits your bay? Call our team at (855) 498-2147 and we'll get you sorted out.
Frequently Asked Questions
What types of vehicles can the Katool KT-X77 scissor lift handle?
The KT-X77 supports cars, SUVs, and light trucks up to 7,000 lb. The 78" platform length and 63" overall width accommodate a wide range of wheelbases, making it a versatile choice for mixed-vehicle shops and service centers.
How high does the KT-X77 lift a vehicle?
The maximum lifting height is 39.37" (1,000 mm) from a lowered profile of just 4.33" (110 mm). That's enough clearance for brake work, oil changes, exhaust service, and most under-car inspections without requiring a full-rise lift.
Does this scissor lift require in-ground installation?
No. The KT-X77 is a surface-mounted, drive-on mid-rise scissor lift. It doesn't need anchor bolts or an in-ground pit. You'll need a level, solid concrete floor capable of supporting the lift and a loaded vehicle up to 7,000 lb.
What power supply does the KT-X77 need?
The lift is available in 110V or 220V electric configurations. Call before ordering to specify your voltage so the correct unit ships. A dedicated electrical circuit is recommended for reliable hydraulic performance.
How is the KT-X77 shipped and how do I unload it?
The unit ships via freight at over 1,300 lb. You'll need a forklift or loading dock for unloading. If neither is available, terminal delivery for pickup can be arranged. Freight shipping covers the lower 48 states with 6-10 business day fulfillment.
Can I get this lift delivered to a residential address?
Yes, residential delivery is available for an additional fee. Liftgate service may also be available, but for select scissor lifts it may be restricted. Contact us before ordering to confirm delivery options and any accessorial charges for your address.
What safety features does the KT-X77 include?
The lift includes a built-in locking and safety release system that controls descent and prevents unexpected lowering. The heavy-duty alloy steel scissor frame and wide 63" platform provide a stable, secure lifting surface during service work.
What does the warranty cover on this Katool scissor lift?
The manufacturer warranty covers all product parts for one year and the product structure for three years. Free shipping on warranty replacement parts is included. Labor costs are not covered. Warranty registration may be required after purchase.
Will the KT-X77 fit in a standard garage bay?
The platform measures 78" long by 63" wide with a lowered height of 4.33". Most standard single and double garage bays can accommodate these dimensions, but measure your available floor space and ceiling clearance before ordering to confirm fit.
Can I get replacement parts for this lift?
Yes. Garage Supply Guys supports parts availability for the KT-X77. If you need a hydraulic component, safety latch, or any other replacement part down the line, call our team at (855) 498-2147 for assistance sourcing what you need.
