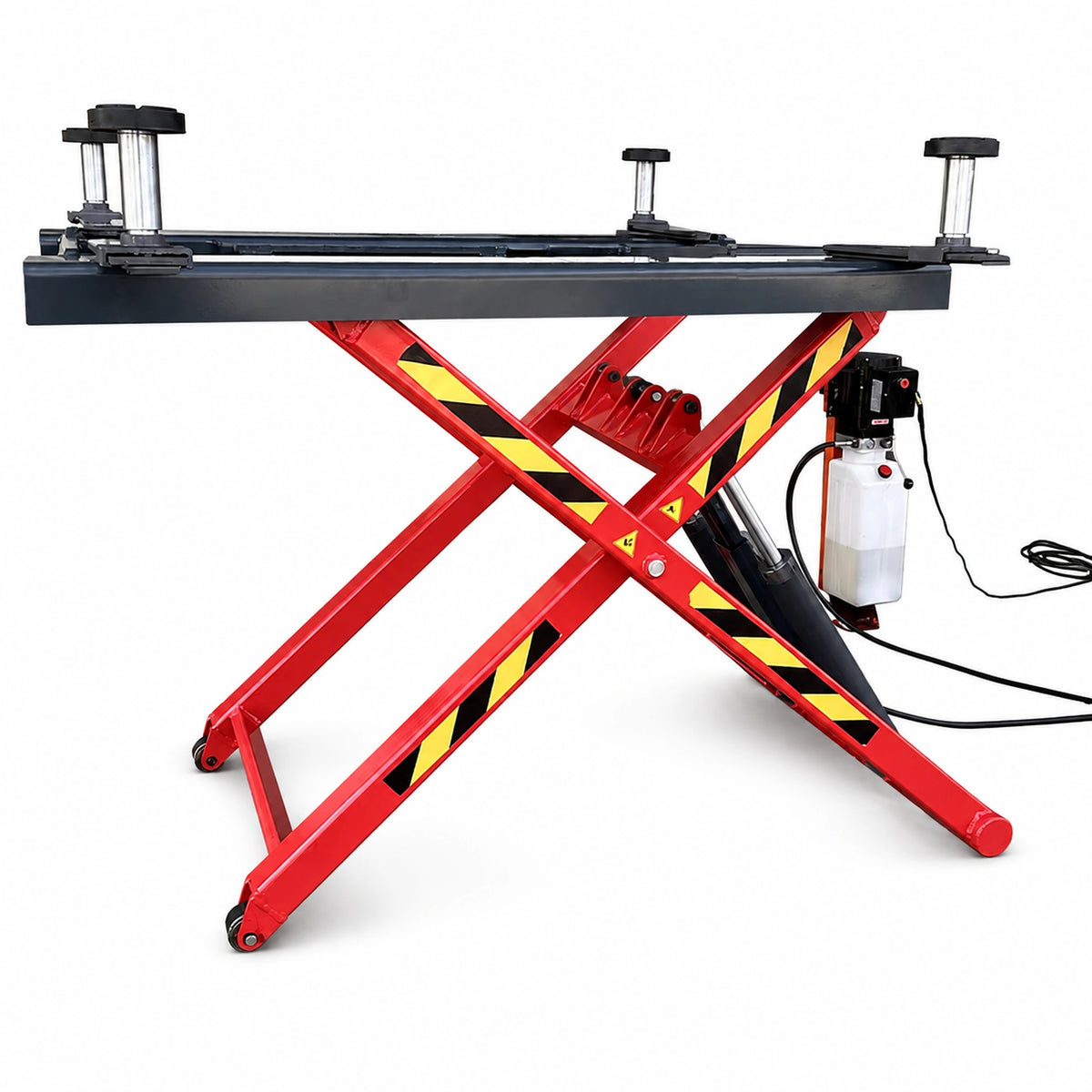

Katool KT-X66 – Scissor Lift (6,600 lb, Mid-Rise)
Katool X66 6,600 lb Portable Mid Rise Scissor Lift

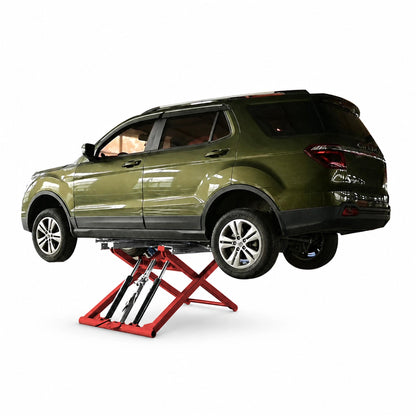

The Katool X66 is a 6,600 lb portable mid rise scissor lift designed for service shops and home garages. This katool mid rise scissor lift delivers 47.24" working height with a low 4.72" collapsed profile that fits under most vehicles without ramps. Features a wheeled power unit for portability, manual safety lock bar, and included height adapters (+3" and +6.25" sets). CE-approved with 115% dynamic and 150% static load testing.
Key Features
CE-Approved with Verified Load Testing
The X66 carries CE certification with load testing at 115% of rated capacity in dynamic conditions and 150% in static load tests. This provides documented safety validation for tire changes, brake work, suspension inspection, and undercarriage service.

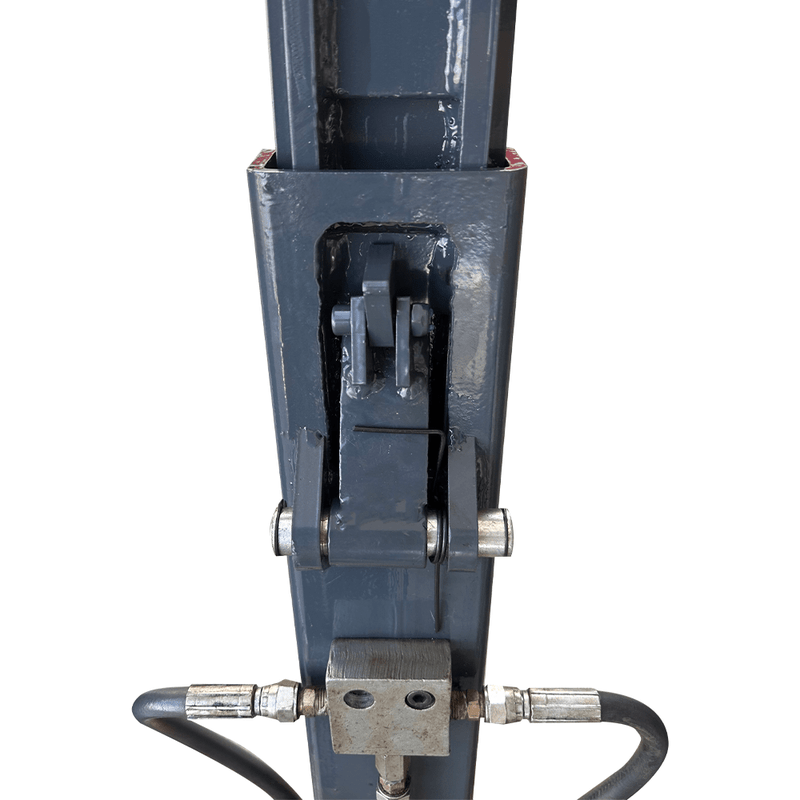

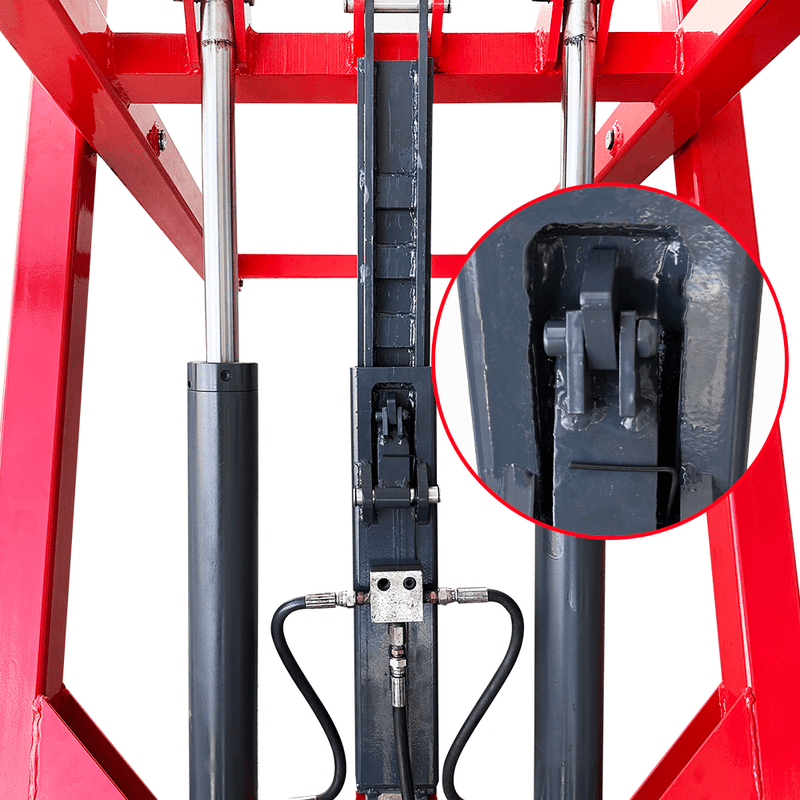

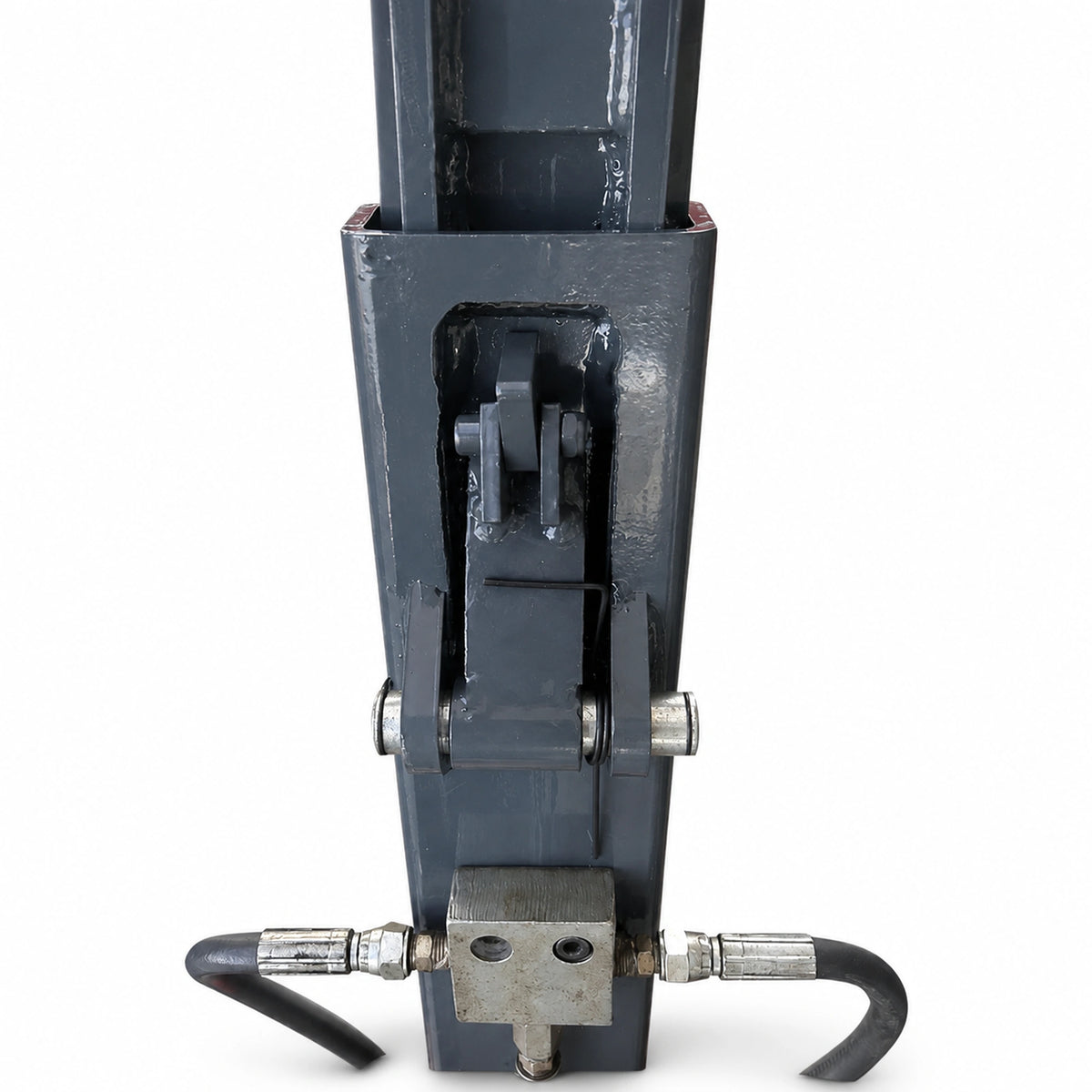

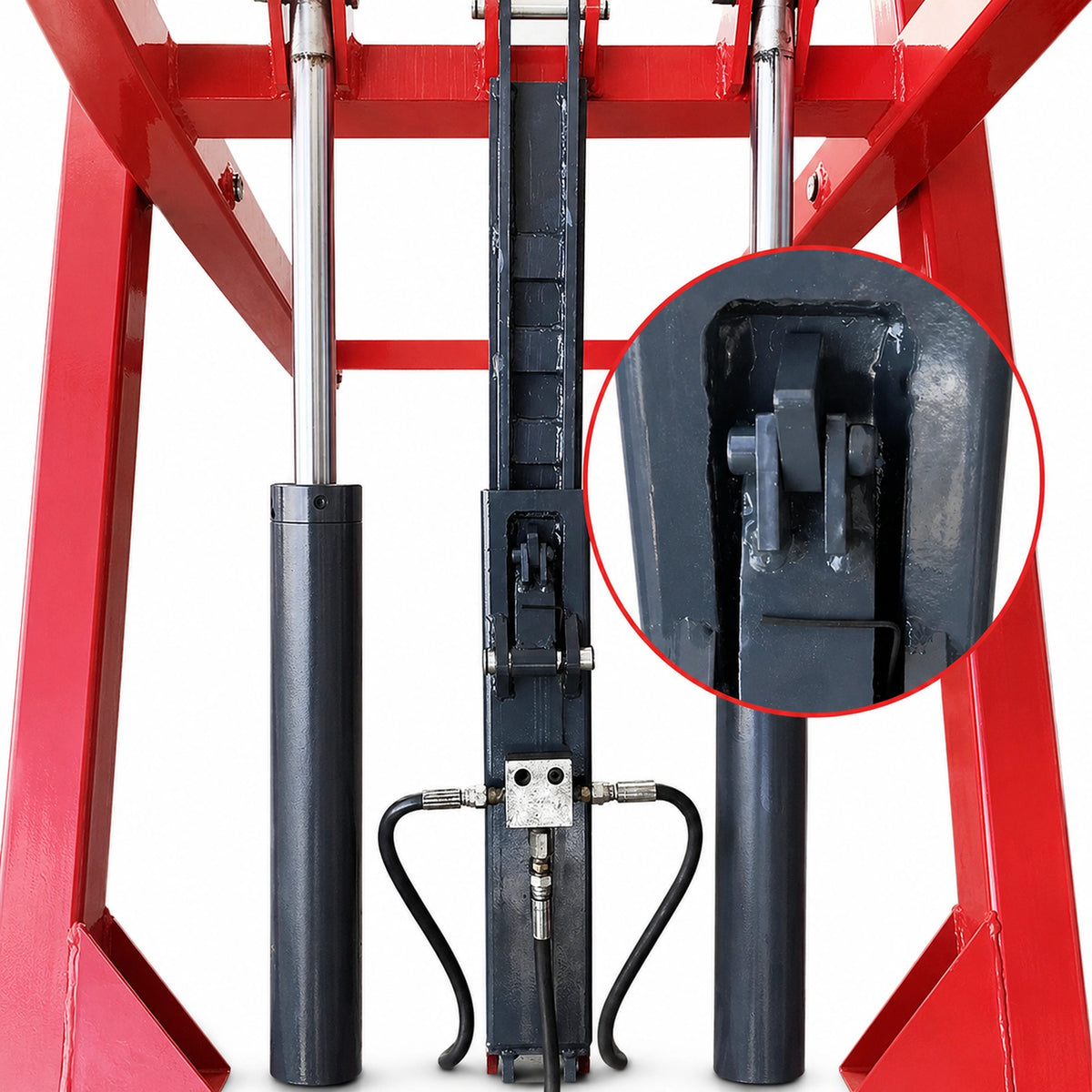

Manual Safety Lock Bar
Mechanical safety lock bar engages at any working height, holding platforms securely even if hydraulic pressure is lost. Manual release allows controlled lowering without complex electric solenoids. The system remains effective during extended holds or power interruptions.

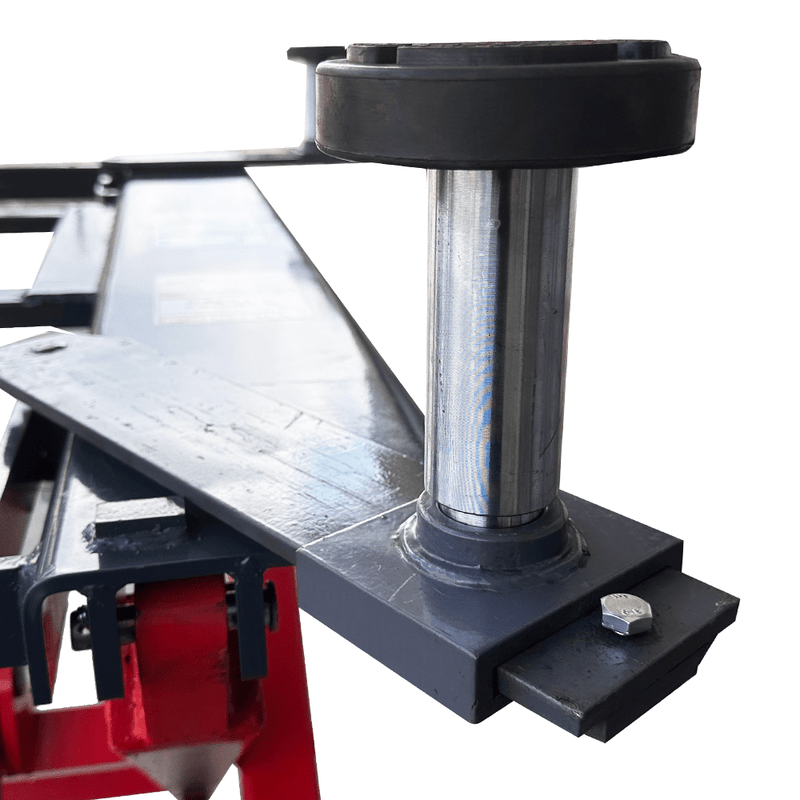

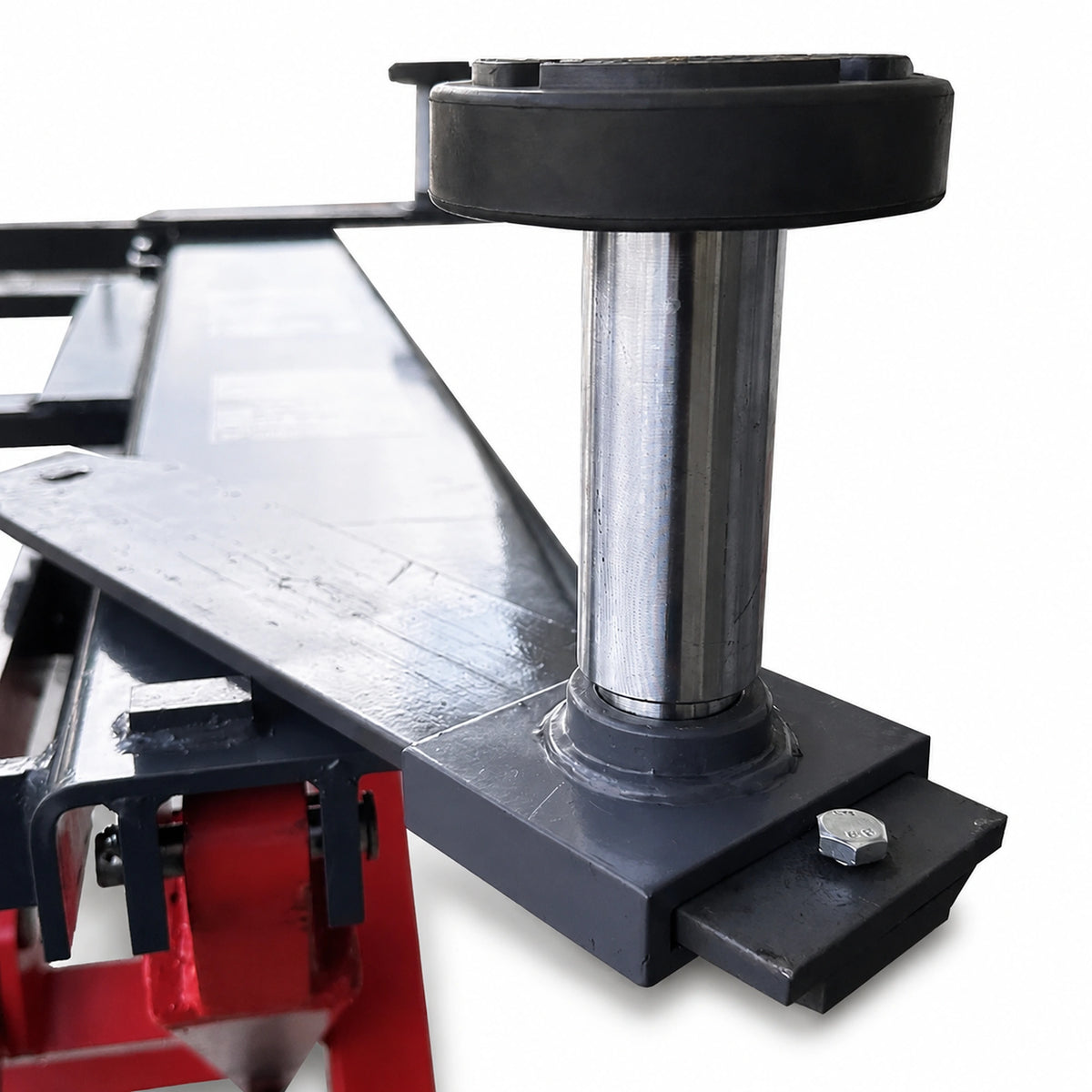

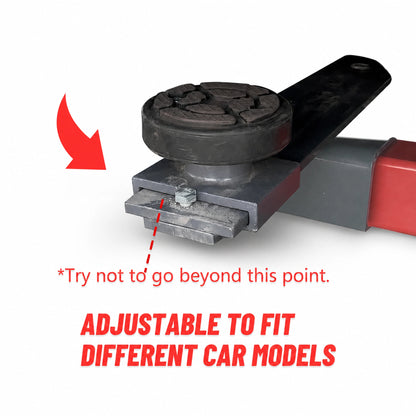

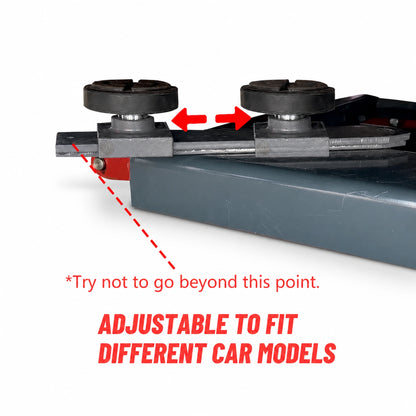

Included Height Adapter Sets
Ships with two adapter sets: +3" (75 mm) and +6.25" (160 mm) height increases. This provides three effective platform heights from a single lift, covering sedans, crossovers, SUVs, and light trucks within the 6,600 lb capacity.

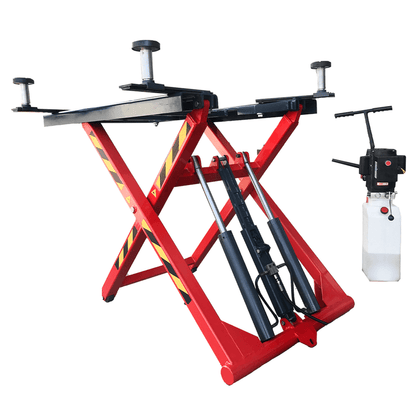

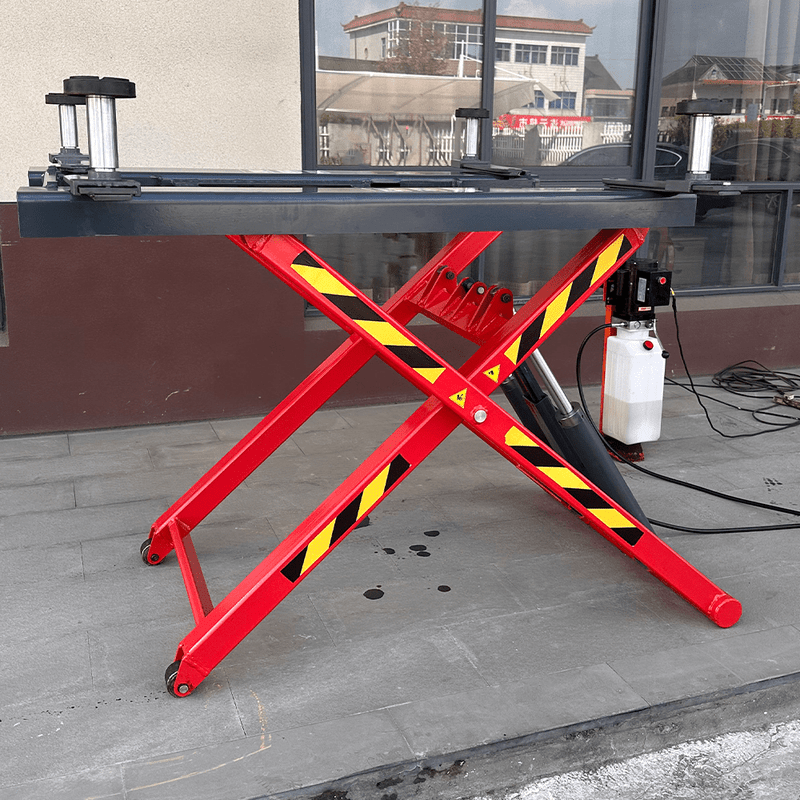

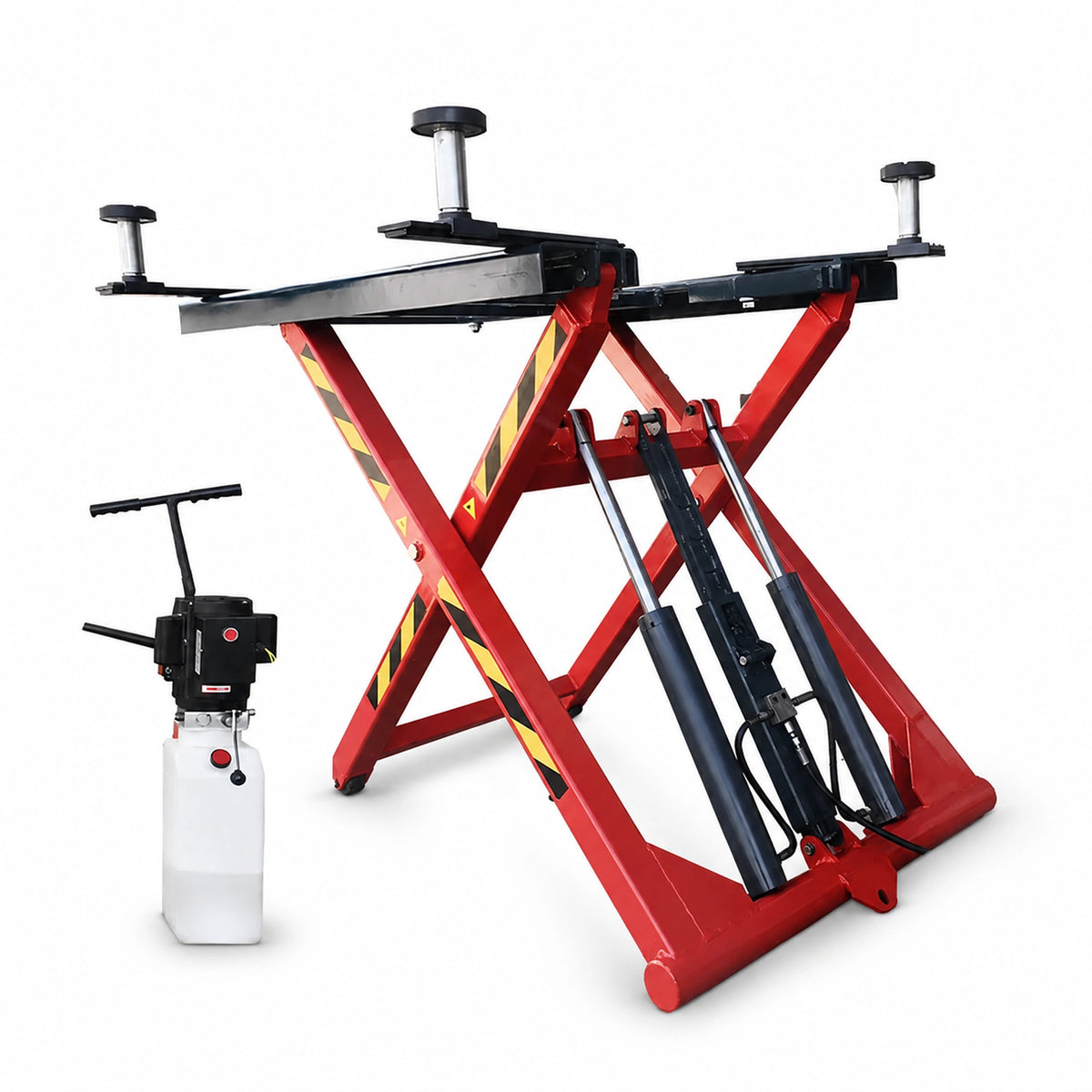

Portable Wheeled Power Unit
The hydraulic power unit mounts on a wheeled cart for easy repositioning. This portable scissor car lift moves between service bays without permanent mounting - ideal for car lifts in small garage environments or shops needing flexible workflow. Roll it into position, connect to 115V power, and operate in minutes.

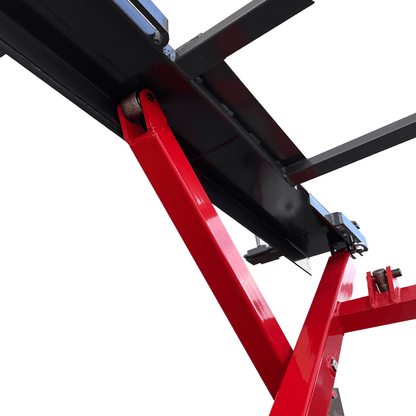

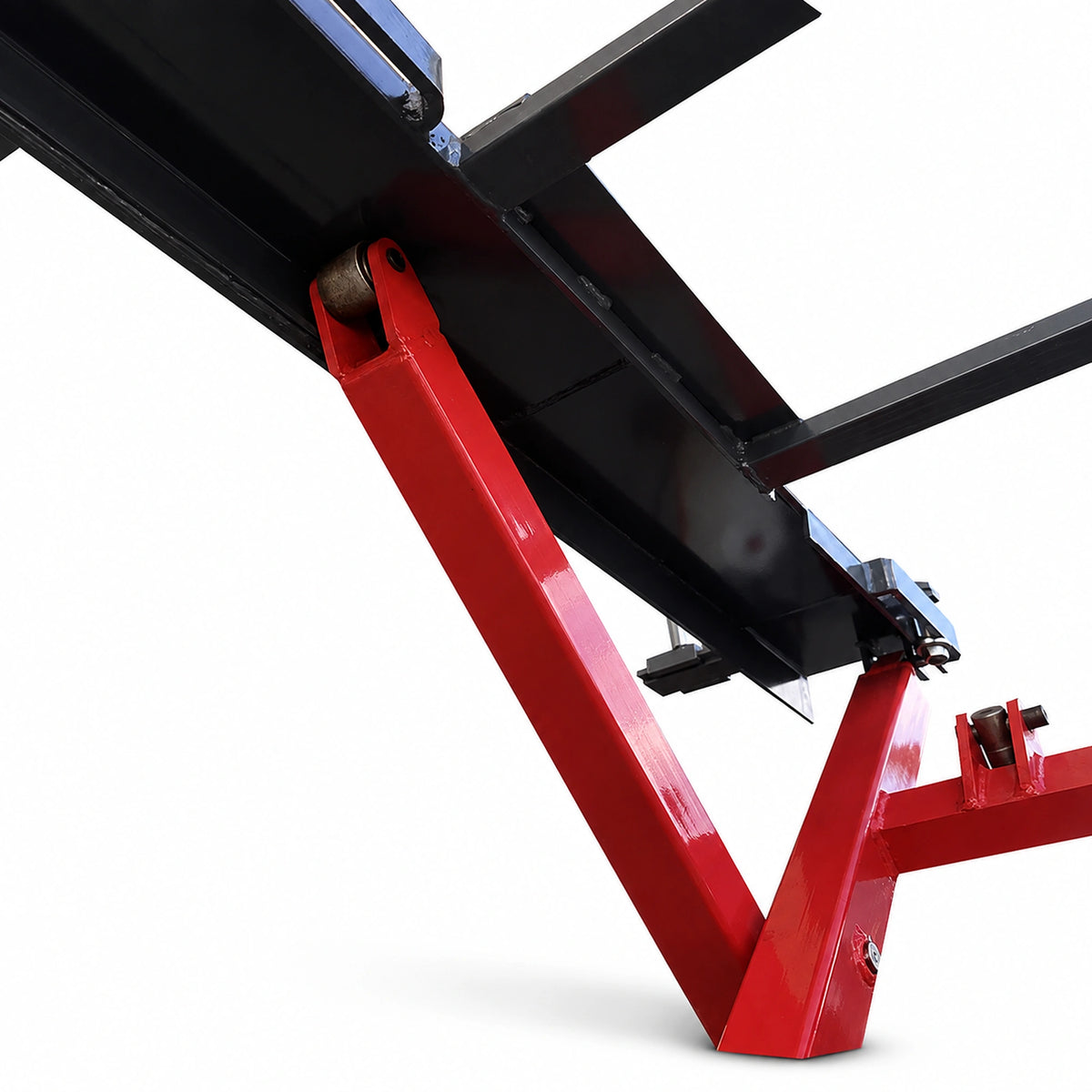

Self-Lubricated Bushings
Pivot points use self-lubricated bushings and bearings that reduce routine maintenance. Smooth, predictable motion throughout the lift's operational life without regular greasing schedules.

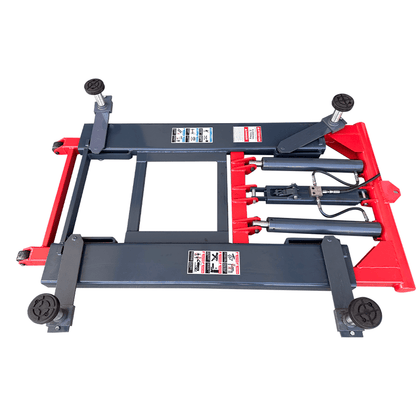

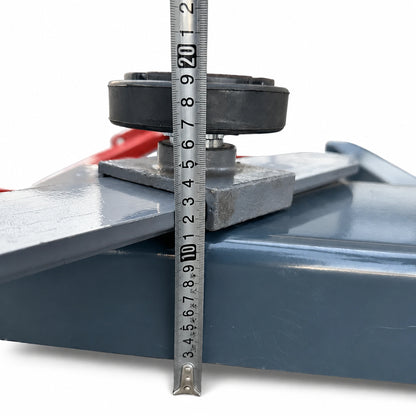

4.72" Collapsed Height
When fully retracted, the X66 collapses to 4.72" - low enough to fit under most vehicles without ramps. This low profile car lift for garage use allows direct positioning under the vehicle frame without additional setup. Also enables convenient push-starting or positioning of problem vehicles.
Product Demonstration
Applications
- Tire Service: Tire changing, rotation, and balancing for vehicles within 6,600 lb capacity.
- Brake Work: Pad replacement, rotor service, caliper work with comfortable mid-rise working height.
- Suspension Inspection: Visual inspection and light service of suspension components at accessible height.
- Exhaust & Undercarriage: Exhaust repair, transmission inspection, undercoating application.
- Detailing: Undercarriage detailing, PPF application, ceramic coating prep at comfortable height.
- Scissor Lift for Home Garage: DIY maintenance and project work with portable design and 115V compatibility.
Technical Specifications
| Specification | Value |
|---|---|

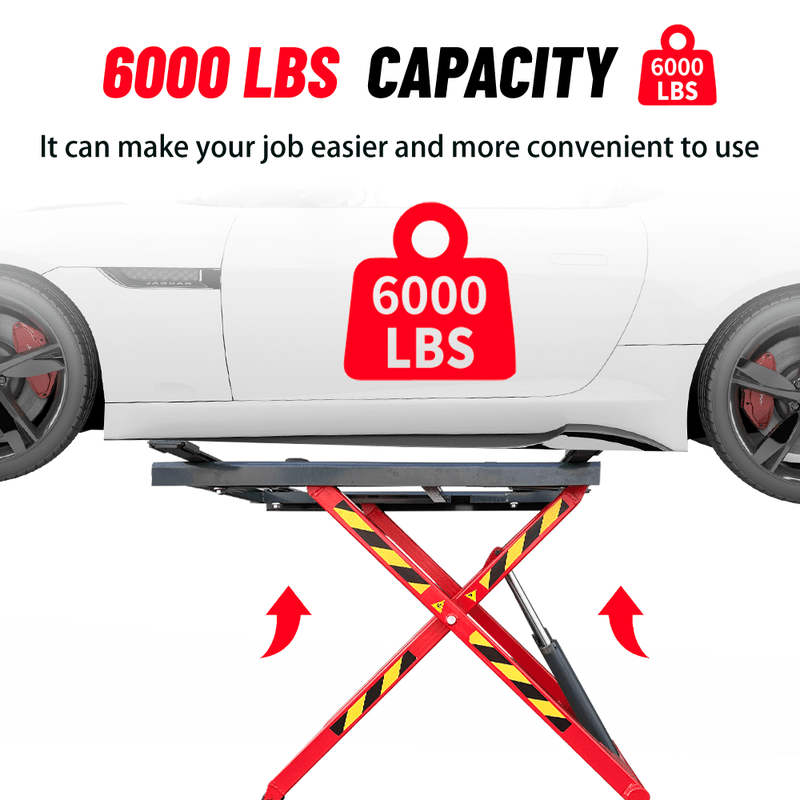

| Maximum Capacity | 6,600 lb (3,000 kg) |

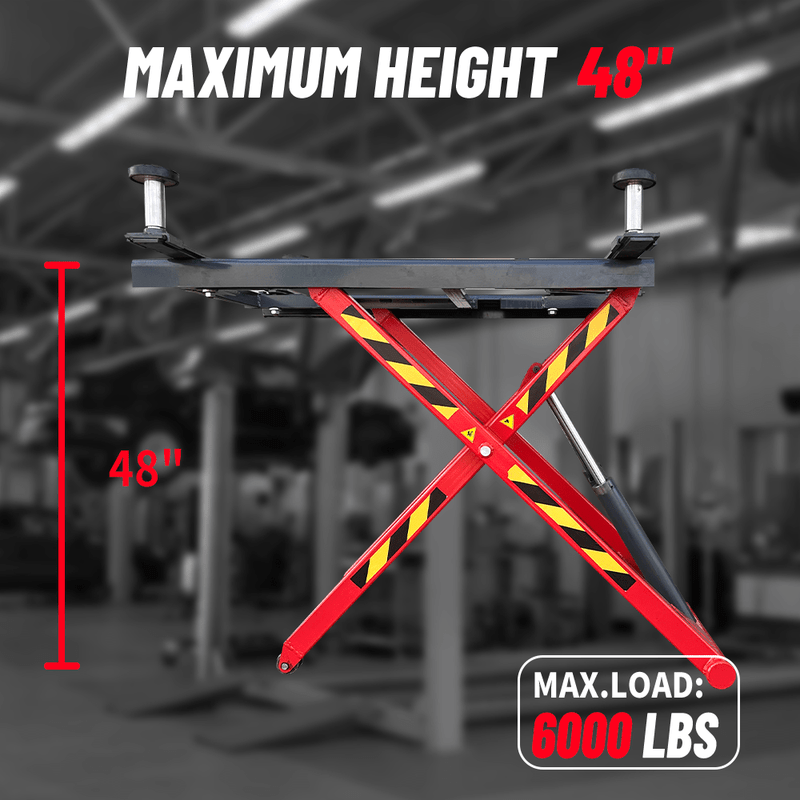

| Maximum Lift Height | 47.24" (1,200 mm) |
| Minimum Height | 4.72" (120 mm) |
| Overall Length | 91.54" (2,325 mm) |
| Platform Width | 39.57" (1,005 mm) |
| Overall Width | 41.89" (1,064 mm) |
| Net Weight | 1,212 lb (550 kg) |
| Specification | Value |
|---|---|
| Lifting Time | 45 seconds |
| Power | 115V AC, 60 Hz, 1-Phase |
| Alternative Power | 220V may be available - contact us |
| Motor | 3 HP |
| Safety | Manual mechanical lock bar |
| Load Testing | 115% dynamic / 150% static |
| Certification | CE Approved |
| Adapter Set | Height Increase | Quantity |
|---|---|---|
| Set 1 | +3" (75 mm) | 4 pcs |
| Set 2 | +6.25" (160 mm) | 4 pcs |
Installation Requirements
Foundation
- Type: Portable, free-standing - no permanent anchoring required
- Surface: Level concrete capable of supporting 7,800 lb total (lift + vehicle)
- Condition: Standard shop-grade concrete in good condition
Electrical
- Standard: 115V AC, 60 Hz, single-phase
- Alternative: 220V may be available - contact us
- Motor: 3 HP - verify circuit can support without voltage drop
Clearance
- Ceiling: Account for 47.24" lift height plus vehicle height (typically 48-72")
- Floor Space: Minimum 3-4 ft clearance on two sides recommended
Setup
- Basic assembly required: platform attachment, adapter installation, power connection
- Plan for 1-2 hours setup time
- Verify local permit requirements before installation
Shipping
Freight Details
Method: LTL freight within the lower 48 states.
Timeframe: Ships within a few business days. Transit typically 1-2 weeks.
Surcharges: Remote locations, Alaska, Hawaii may incur additional fees.
Receiving
Unloading: Forklift (6,000 lb minimum) or loading dock required.
Residential: Additional handling fees may apply.
Inspection: Check for damage before signing. Photograph and note any issues on freight bill.
Damage Claims
Within 15 days: Full replacement coverage.
15-30 days: Partial coverage (shared cost).
After 30 days: No coverage.
Warranty
Coverage
- 1 Year: Hydraulic components, motor, electronic controls
- 3 Years: Structural frame, welds, pivot points
- Extended: Optional 2-year extended warranty available at purchase
Requirements
- Use within 6,600 lb rated capacity
- Proper installation per manual
- Regular maintenance per operator's manual
Exclusions
Labor costs, routine maintenance, wear items (rubber pads, hoses), accident damage, overloading.
Questions?
Get help with product selection, installation, or specifications for your shop or home garage.
Frequently Asked Questions
What is the maximum capacity?
6,600 lb (3,000 kg), load-tested at 115% dynamic and 150% static. Supports sedans, crossovers, SUVs, and light-duty trucks.
What height adapters are included?
Two sets: +3" (75 mm) and +6.25" (160 mm). Each set has 4 adapters, providing three effective working heights from a single lift.
What electrical service is required?
115V AC, 60 Hz, single-phase standard. 220V versions may be available - contact us for current availability. 3 HP motor - verify your circuit can support without voltage drop.
What ceiling height is needed?
Platform reaches 47.24". Add vehicle height (48-72" typical) to calculate total clearance. Most standard 9-10 ft garage ceilings accommodate this lift.
Is this truly portable?
Yes. The wheeled power unit moves between bays without permanent installation. No anchoring required. Roll into position, connect to 115V, and operate. Store against a wall when not in use.
What foundation is required?
Level concrete capable of supporting 7,800 lb total (lift + vehicle). No permanent anchoring needed - portable free-standing design. Standard shop-grade concrete in good condition is adequate.
What safety features are included?
Manual mechanical safety lock bar engages at all working heights, holding platforms secure even if hydraulic pressure is lost. Manual release for controlled lowering. Self-lubricated bushings for smooth operation. CE certified with documented load testing.
What warranty is included?
1-year parts warranty (hydraulic, motor, controls) plus 3-year structural warranty on frame and welds. Optional 2-year extended warranty available at purchase.
