Katool KT-T900 – Tire Changer (Center Post)
Katool KT-T900 47-Inch Professional Hydraulic Center Post Tire Changer

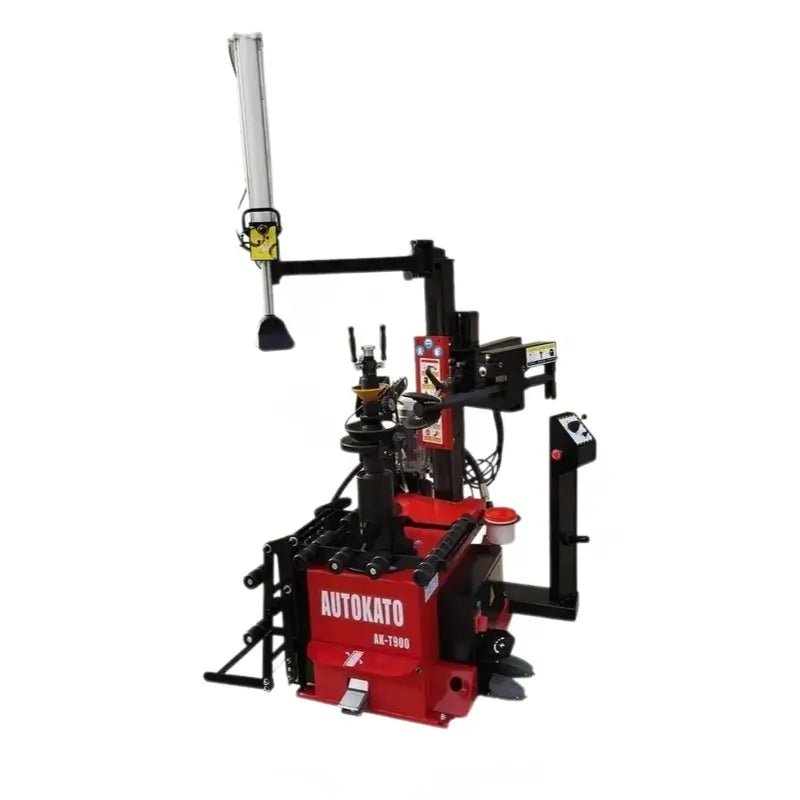

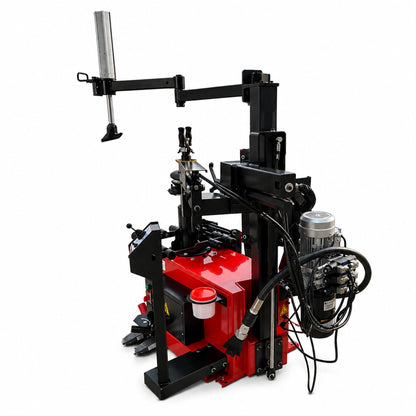

The Katool KT-T900 is a center-post, lever-less hydraulic tire changer for professional automotive service centers, handling wheels up to 47 inches in diameter. Features an all-hydraulic system with 2.0 HP gearbox motor and 1.5 HP hydraulic power unit on standard 110V single-phase power, specializing in damage-free service of run-flat and low-profile tires.
Key Features & Benefits
High-Capacity Center-Post Design

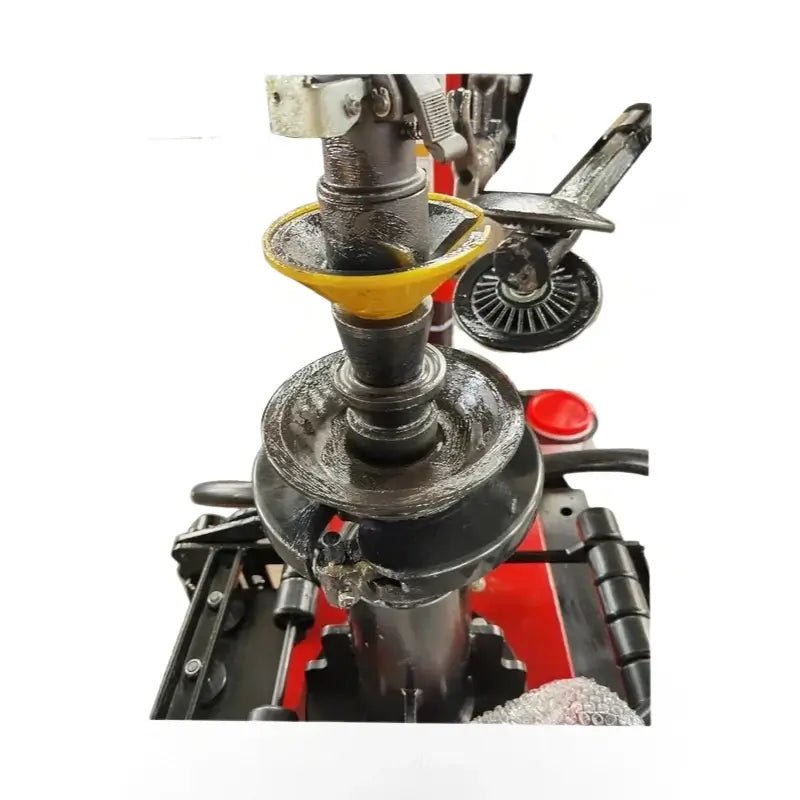

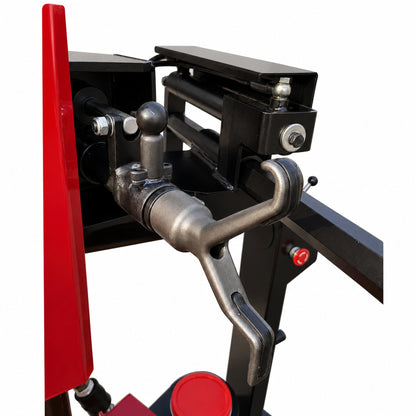

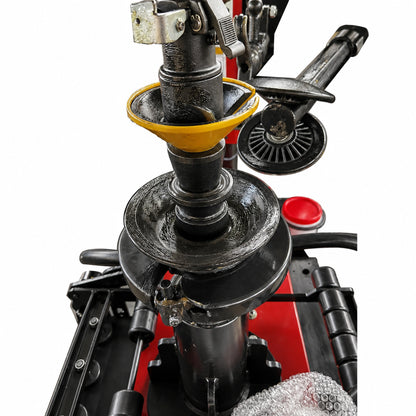

47" max diameter with 12" to 30" clamp range. Covers virtually all passenger car and light truck applications including large SUV aftermarket sizes. The center-post configuration with stainless steel mounting head and protective plastic rim covers prevents damage to expensive alloy wheels.

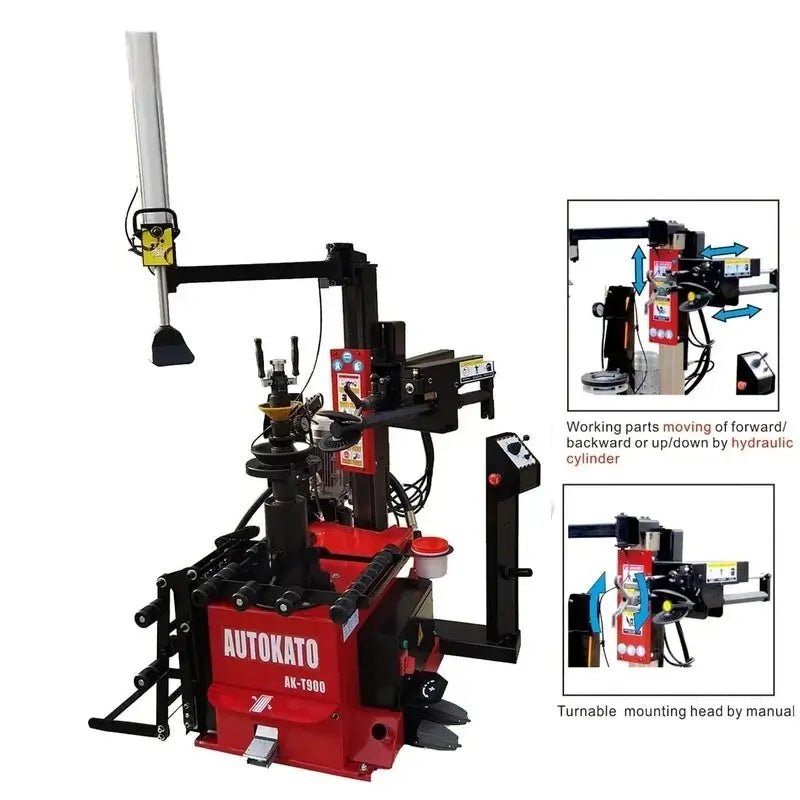

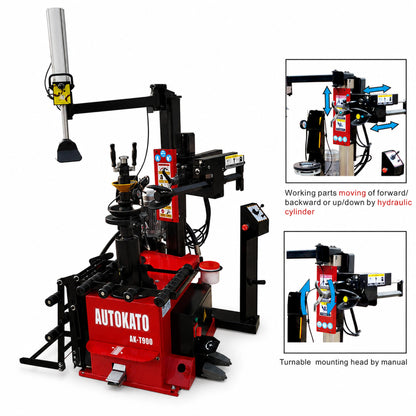

Fully Hydraulic Lever-Less Architecture

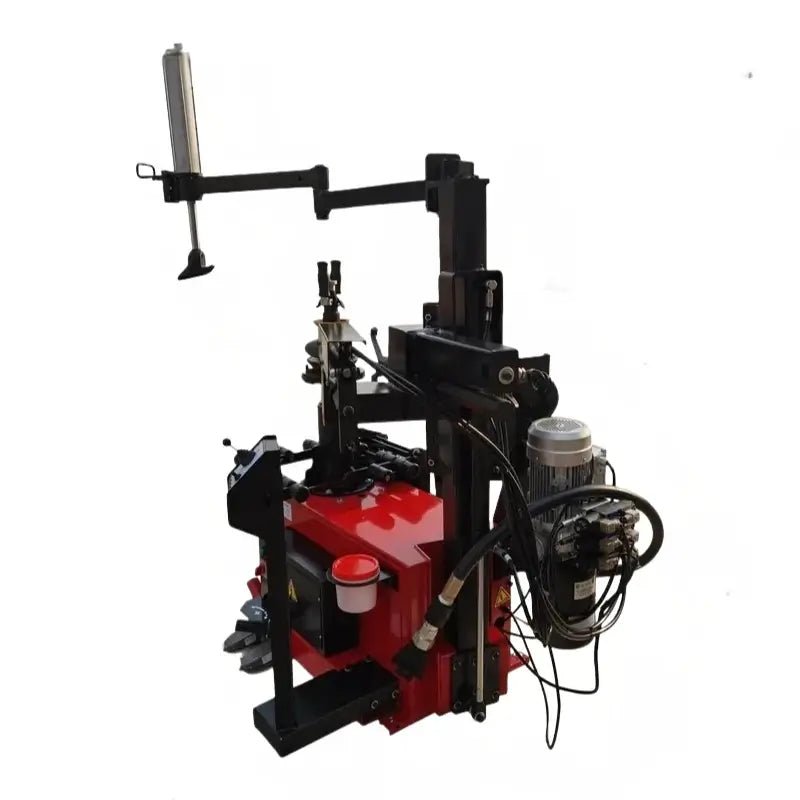

2.0 HP gearbox motor and 1.5 HP hydraulic power unit running at 6.8 rpm turntable rotation. No manual tire irons or pneumatic-assist needed. Pure copper motor windings ensure efficient heat dissipation and extended service life under continuous operation.
Integrated Professional Features

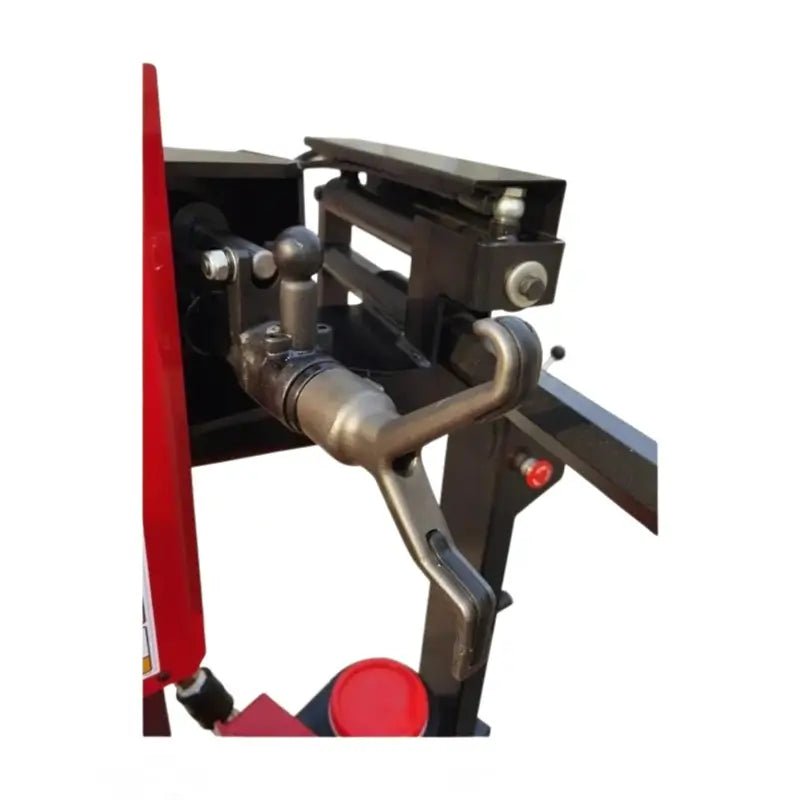

Built-in top assist arm and wheel lift assistant included as standard equipment for run-flat and low-profile tire service. The wheel lift reduces operator strain when handling heavy assemblies, while the top assist arm applies controlled pressure during difficult bead breaking.
Standard 110V Operation
Single-phase 110V, 60 Hz power. Install in shops with standard electrical service without 220-240V three-phase infrastructure. Faster installation and reduced total project costs.
Product Demonstration
Applications & Use Cases
- Passenger Car Service: All wheel sizes up to 47" including standard, low-profile, and run-flat tires
- Light Truck and SUV Applications: Pickup trucks, SUVs, and crossovers requiring larger wheel diameter capacity
- Run-Flat Tire Service: Specialized mounting and demounting with top assist arm support
- Professional Automotive Shops: Damage-free tire service on expensive alloy wheels
- Tire Service Centers: High-volume shops needing efficient, consistent tire changing
Technical Specifications
For detailed setup and maintenance procedures, see the KT-T900 installation manual.
| Specification | Value |
|---|---|
| Maximum Wheel Diameter | 47 in (1,200 mm) |
| Maximum Wheel Width | 16 in (406 mm) |
| Wheel Clamp Range | 12" to 30" |
| Gearbox Motor Power | 2.0 HP (1.5 kW) |
| Hydraulic Power Unit | 1.5 HP (1.1 kW) |
| Turntable Rotation Speed | 6.8 rpm |
| Net Weight | 414 lb (188 kg) |
| Specification | Value |
|---|---|
| Power Supply | 110V, single-phase, 60 Hz |
| Air Pressure | 116-145 psi (0.8-1.0 MPa) |
| Motor Construction | Pure copper winding |
| Mounting Head Material | Stainless steel with plastic rim protectors |
Installation Requirements
Power Requirements
- Electrical: 110V, single-phase, 60 Hz with appropriate circuit protection
- Motor: Pure copper winding construction for heat dissipation
Air Supply
- Pressure: 116-145 psi (0.8-1.0 MPa) continuous
- Quality: Clean, dry compressed air with adequate filtration
Foundation Requirements
- Surface: Level concrete, 4" thickness recommended
- Weight: Must support 414 lb equipment plus dynamic loads
- Clearance: Adequate space for wheel handling and operator access
Shipping & Delivery
Freight Coverage
Shipping: Free freight to commercial addresses in the lower 48 states.
Handling: Forklift or loading dock required for 414 lb equipment. Liftgate available for locations without dock access.
Receiving: Inspect all packages before signing. Note any visible damage on BOL before driver departs.
Warranty Coverage
12-Month Parts Warranty
Coverage: All parts including cylinders, power units, motors, displays, and electronics
Parts: Replacement parts and shipping at no cost; labor not included
Extended: 2-year extended warranty available
Ready to Upgrade Your Tire Service?
Questions about the KT-T900? Our team can help with product selection and installation planning.
Frequently Asked Questions
What is the maximum wheel diameter capacity?
47 inches with a 12" to 30" clamp range, covering virtually all passenger car and light truck applications including large SUV aftermarket wheels.
What components are included?
Stainless steel mounting head with plastic rim protectors, built-in top assist arm, wheel lift assistant device, filter system, and 2.0 HP pure copper winding motor. All included as standard equipment.
What are the electrical requirements?
110V, single-phase, 60 Hz with appropriate circuit protection. No three-phase infrastructure required.
Can the KT-T900 handle run-flat and low-profile tires?
Yes. The lever-less design with built-in top assist arm is specifically engineered for run-flat and low-profile tire service, providing controlled pressure while protecting alloy wheels.
What safety features protect expensive wheels?
Lever-less design eliminates manual tire irons, stainless steel mounting head with protective plastic covers, 12" to 30" clamp range, and hydraulic system filtration. The 2.0 HP motor provides controlled force throughout mounting.
What warranty coverage is provided?
1-year parts warranty covering cylinders, power units, motors, displays, and electronics. Replacement parts and shipping at no cost; labor not included. 2-year extended warranty available.
What air pressure is required?
116-145 psi (0.8-1.0 MPa) from clean, dry compressed air with appropriate filtration.
How does the KT-T900 compare to other center-post tire changers?
47" diameter capacity exceeds many competitors limited to 44". All-hydraulic 2.0 HP operation with top assist arm and wheel lift included as standard. Standard 110V power eliminates electrical infrastructure costs.
